Profiled Polycarbonate Sheet DIAMOND SINUS 2.8 mm 1.045x4 m, Bronze

Profiled Polycarbonate Sheet DIAMOND SINUS 2.8 mm 1.045x4 m, Bronze — image 3

Profiled Polycarbonate Sheet DIAMOND SINUS 2.8 mm 1.045x4 m, Bronze — image 4

Price: 102.00 €

Products ID:	193909
Availablity:	Ready to Order
Delivery Time	7-15 business days
EAN:	9991225165786

Delivery options to:

Choose country

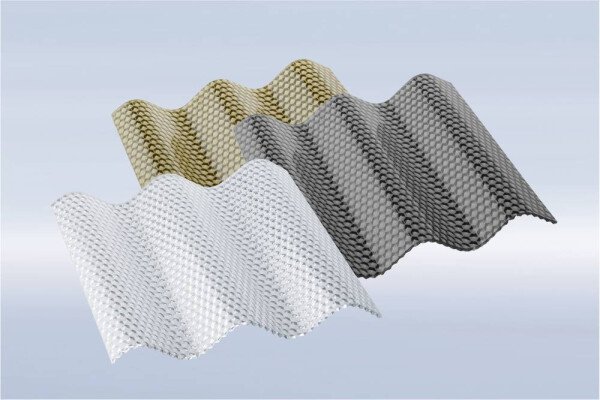

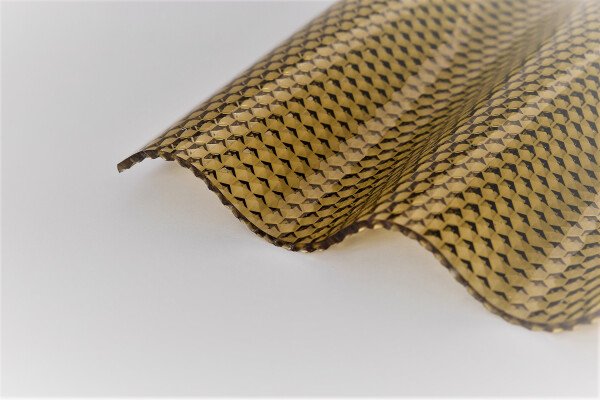

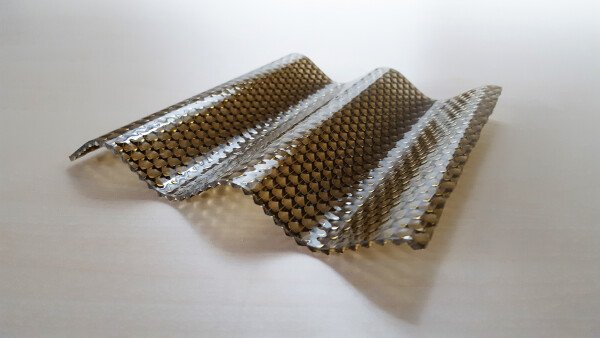

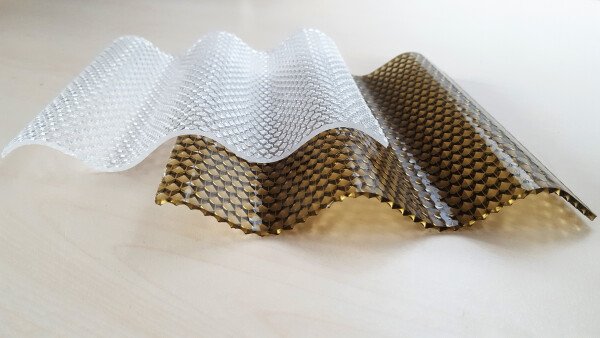

The DIAMOND SINUS 2.8 mm profiled corrugated polycarbonate sheet features an embossed diamond surface structure designed for roofing and vertical cladding. The sheet offers high rigidity, load-bearing capability, and resistance to weather fluctuations.

Key Features and Advantages

Equipped with double-sided UV protection, the sheet retains long-term resilience against outdoor atmospheric exposure. The bronze tint provides 46% light transmission while ensuring effective drainage across large roof spans.

Profile: Sinus 76/18
Double-sided UV protective layer
Light transmission (bronze): 46%
10-year warranty

Applications

Suitable for canopies, terraces, gazebos, pergolas, carports, window skylights, facades, and vertical glazing. Sheets can be trimmed to fit project-specific requirements.

Thickness	2.8 mm
Width	1.045 m (1045 mm, usable 988 mm)
Length	4 m
Profile	Sinus 76/18
Color	Bronze
Minimum Slope	7°
Lath Spacing	40–60 cm
U-value	5.57 W/m²K
UV Protection	Double-sided
Light Transmission	46%
Warranty	10 years
