Profiled polycarbonate sheet DIAMOND SINUS 2.8 mm, 1.045 x 6 m, transparent
Price: 153.20 €
| Products ID: | 193855 |
|---|---|
| Availablity: | Ready to Order |
| Delivery Time | 7-15 business days |
| EAN: | 5051351873978 |
Delivery options to:

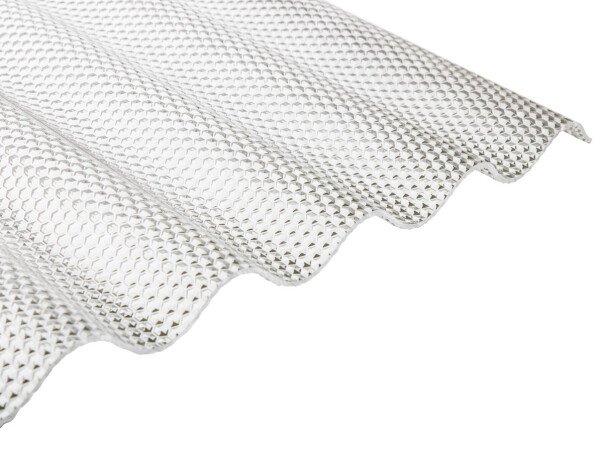

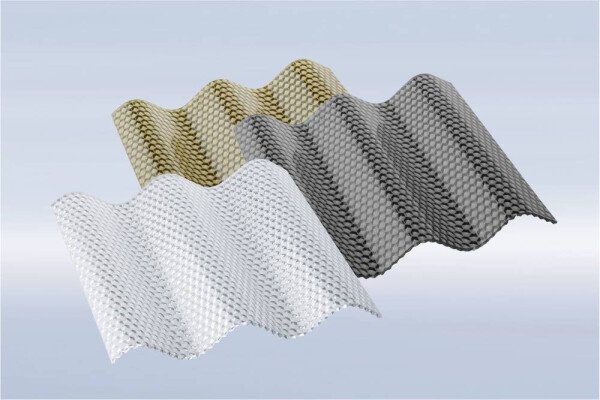

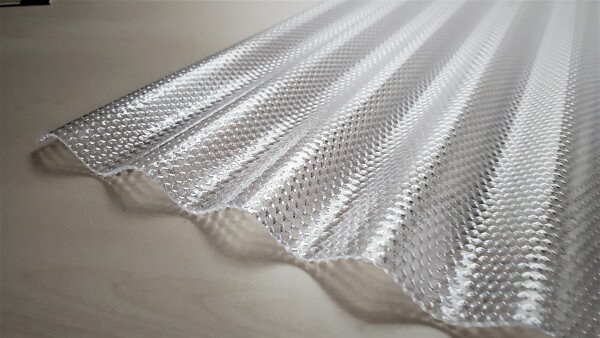

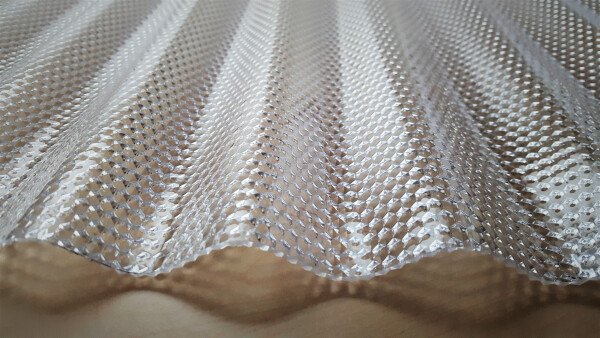

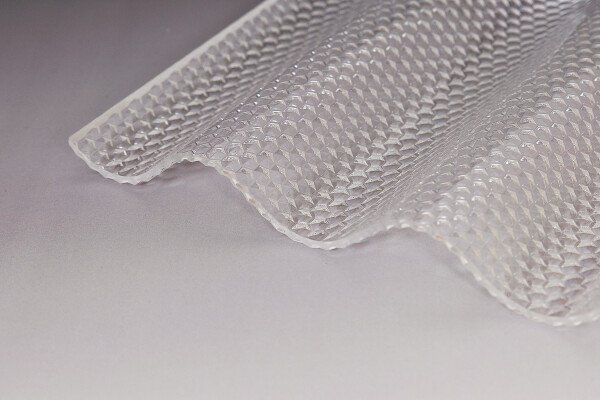

Choose countryThe DIAMOND SINUS profiled polycarbonate sheet is a rigid and durable 2.8 mm thick corrugated covering designed with an embossed diamond surface. Its structure provides high stiffness and dependable load-bearing capabilities, making it suitable for large area installations and optimal water drainage.
Key Features and Performance
- Light Transmission: Naturally clear transparency provides a high light transmission rate of 78%.
- UV Protection: Built with double-sided UV resistance to withstand long-term atmospheric exposure and temperature fluctuations.
- Corrugated Profile: The Sinus 76/18 profile pattern ensures rigidity and swift water runoff across the roof surface.
- Customization: Sheets can be cut to fit specific project dimensions.
Recommended Applications
- Roofing and canopy coverings
- Terraces, gazebos, and pergolas
- Carports
- Façade claddings and vertical glazing
- Roof lights and skylights
| Material | Polycarbonate (PC) |
|---|---|
| Profile | Sinus 76/18 |
| Thickness | 2.8 mm |
| Width | 1.045 m (1045 mm) |
| Usable width | 988 mm |
| Length | 6 m |
| Color | Transparent |
| Surface structure | Diamond structure |
| Light transmission | 78% |
| Thermal transmittance (U-value) | 5.57 W/m²K |
| UV protection | Double-sided |
| Minimum roof slope | 7° |
| Lath spacing | 40–60 cm |
| Technical parameter tolerance | 1–5% |
| Warranty | 10 years |
What is the usable cover width of this polycarbonate sheet?
While the total physical width is 1045 mm (1.045 m), the net usable cover width after overlapping is 988 mm.
What is the minimum roof slope required for installation?
The minimum recommended roof slope is 7°, mounted over support battens spaced between 40 and 60 cm.
Does this corrugated sheet feature UV protection?
Yes, it features double-sided UV protection designed to resist degradation from atmospheric weathering and temperature shifts.
