Profiled Polycarbonate Sheet DIAMOND Sinus 2.8 mm, 1.045 x 6 m, Gray

Profiled Polycarbonate Sheet DIAMOND Sinus 2.8 mm, 1.045 x 6 m, Gray — image 3

Profiled Polycarbonate Sheet DIAMOND Sinus 2.8 mm, 1.045 x 6 m, Gray — image 4

Profiled Polycarbonate Sheet DIAMOND Sinus 2.8 mm, 1.045 x 6 m, Gray — image 5

Price: 153.20 €

Products ID:	193856
Availablity:	Ready to Order
Delivery Time	7-15 business days
EAN:	5057309067963

Delivery options to:

Choose country

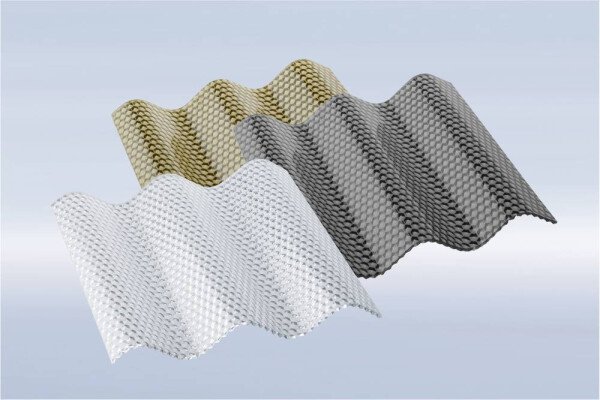

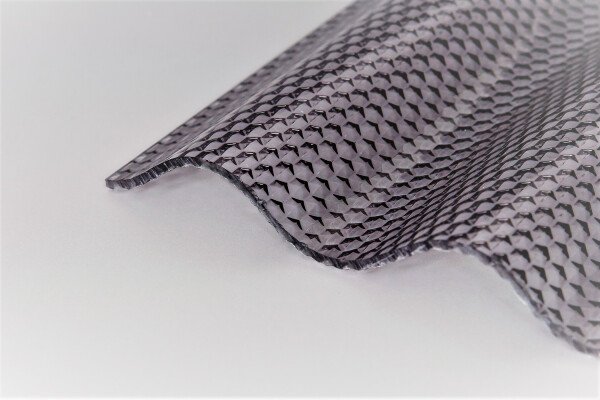

The DIAMOND Sinus profiled polycarbonate sheet with a thickness of 2.8 mm is a rigid and durable corrugated roofing material featuring an embossed diamond structure surface.

Key Features and Advantages

With its 2.8 mm thickness and Sinus 76/18 corrugated profile, this sheet provides excellent load-bearing capacity while remaining lightweight and flexible. It ensures efficient drainage across large coverage areas.

Double-sided UV protective layer
Resistant to temperature fluctuations and long-term weathering
Light transmission of 68% for the gray tint
Recycled and long-lasting material
10-year manufacturer warranty

Applications

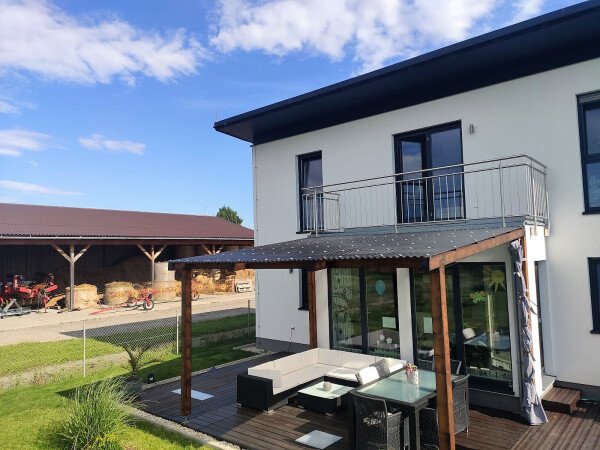

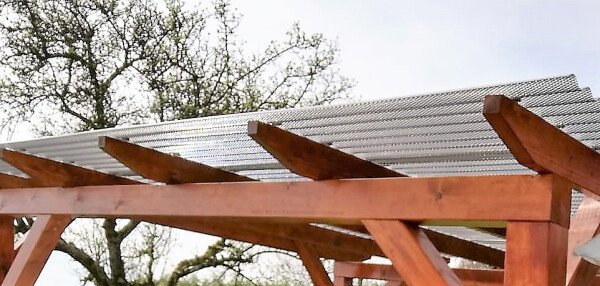

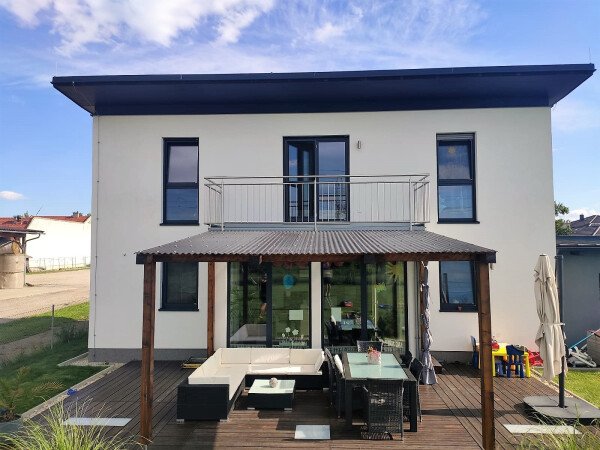

Suitable for roofs, gazebos, facades, terraces, canopies, pergolas, carports, window skylights, and vertical glazing. Sheets can be easily cut to fit project specifications.

Thickness	2.8 mm
Overall width	1.045 m (1045 mm)
Usable width	988 mm
Length	6 m
Profile	Sinus 76/18
Surface structure	Diamond structure
Color	Gray
Minimum slope	7°
Lath spacing	40–60 cm
U-value	5.57 W/m²K
UV protection	Double-sided
Light transmission	68%
Warranty	10 years
