Profiled Metal Fence Boards STANDARD RAL7016 Anthracite Gray PSx2

Price: 6.90 €

Products ID:	194419
Availablity:	Ready to Order
Delivery Time	7-15 business days

Delivery options to:

Choose country

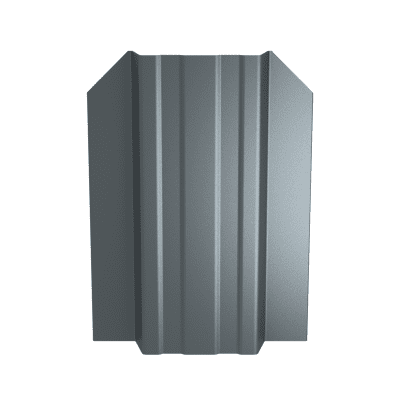

STANDARD profiled metal fence boards provide a long-lasting alternative to wooden palings and do not require annual protective treatments. They are manufactured from galvanized steel protected on both sides with a polyester coating.

Profile and Rigidity

The profile design ensures structural rigidity, providing stability against wind loads and resistance to mechanical impacts.

Material: galvanized steel with double-sided polyester layer
Color: RAL7016 Anthracite Gray
Profile height: 22 mm
Useful width: 115 mm
Metal thickness: 0.5 mm

Installation Guidelines

The boards can be mounted in single-sided or double-sided configurations:

Single-sided installation: 7 boards per 1 m of fence with a 2 cm gap, or 6.5 boards per 1 m with a 3 cm gap.
Double-sided installation: 9 or 12 boards per 1 m of fence depending on spacing.
Horizontal omega profile: 2 pcs for fence heights up to 1.5 m, or 3 pcs for taller fences.

Profile model	STANDARD PSx2
Material	Galvanized steel
Coating	Double-sided polyester
Color	RAL7016 (Anthracite Gray)
Profile height	22 mm
Useful width	115 mm
Metal thickness	0.5 mm
Minimum element length	150 mm
Maximum element length	2000 mm
Maximum fence section width	2500 mm

How many fence boards are needed per meter?

For single-sided installation with a 2 cm gap, 7 boards per 1 m are needed; with a 3 cm gap, 6.5 boards are required. For double-sided mounting, 9 or 12 boards per 1 m are used.

What are the dimensions of the STANDARD metal fence board?

The useful width is 115 mm, profile height is 22 mm, steel thickness is 0.5 mm, and element lengths range from 150 mm to 2000 mm.
