Geocell for Soil Stabilization and Slope Strengthening 100 mm, 2.46 x 6.1 m (15 m²)

This geocell is a cellular confinement system designed to stabilize soil surfaces in parking areas and pathways while protecting slopes and embankments from erosion and sliding.

Practical Applications

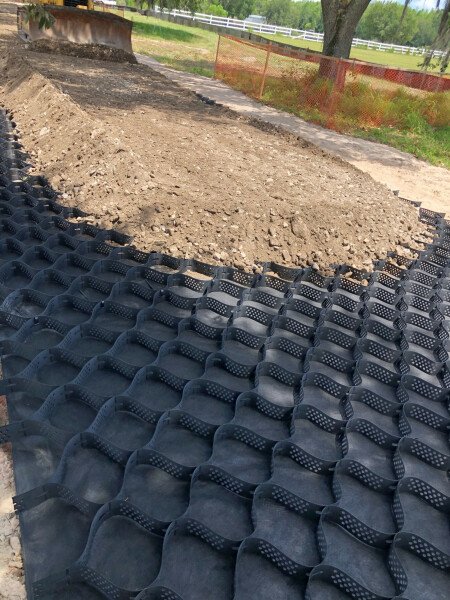

Backyard parking areas and garden paths

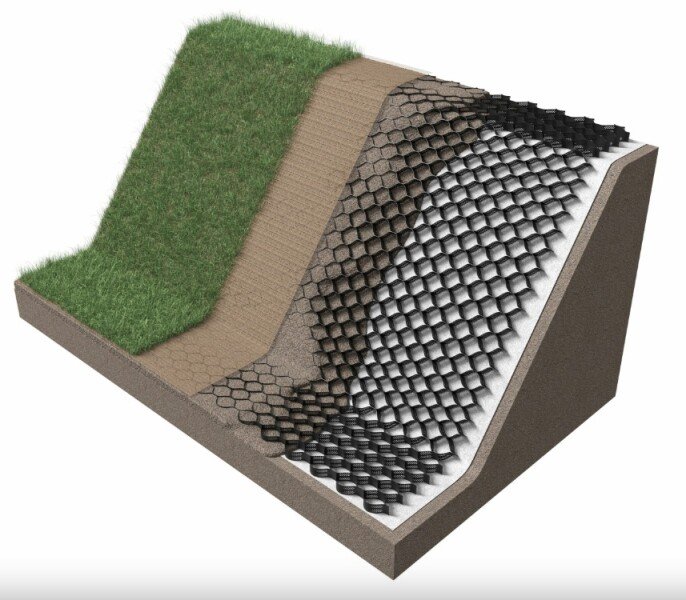

Slope and pond bank stabilization
Strengthening road embankments and bridge cones
Recultivation of quarry and landfill slopes
Shoreline reinforcement for natural and artificial reservoirs
Retaining soil fill on pitched roof structures

Design and Construction

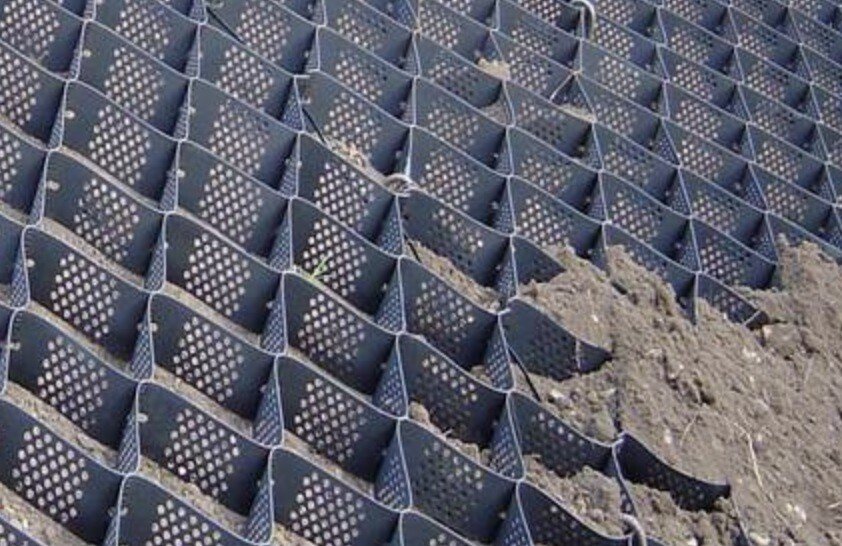

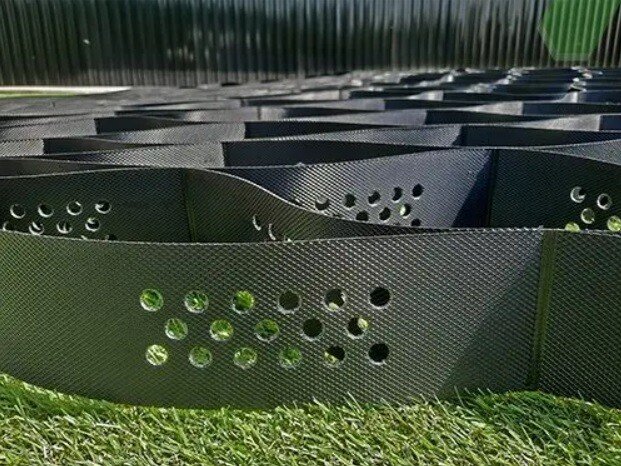

The product features a three-dimensional honeycomb structure formed by perforated high-density polyethylene (HDPE) strips joined by ultrasonic welding. Cells can be filled with topsoil and planted, or backfilled with crushed stone, gravel, or river rock over geotextile to restrict weed growth.

Expanded segment size	2.46 x 6.1 m
Coverage area	15 m²
Height	100 mm
Cell size	203 x 246 mm
Material	Perforated high-density polyethylene (HDPE)
Joint method	Ultrasonic welding

What fill materials can be used inside the geocell?

The geocell can be filled with soil and planted with vegetation, or filled with crushed stone, gravel, or river rocks over a layer of geotextile.

What are the dimensions and surface coverage of this geocell section?

When expanded, the section measures 2.46 x 6.1 m covering an area of 15 m², with a cell height of 100 mm and individual cell openings of 203 x 246 mm.
