SONOFF TRV Gen2 TRV-ZBT Zigbee Smart Thermostatic Radiator Valve, White
Sonoff
| Products ID: | 193192 |
|---|---|
| Manufactured by: | Sonoff |
| Availablity: | Ready to Order |
| Delivery Time | 5-12 business days |
| EAN: | 6979033600508 |
Delivery options to:
Choose country

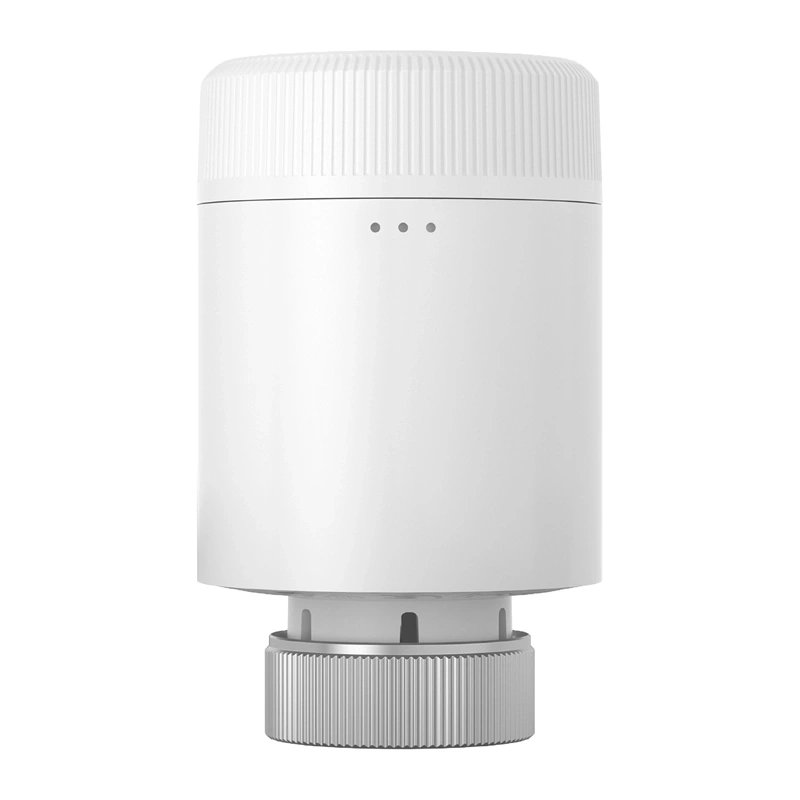

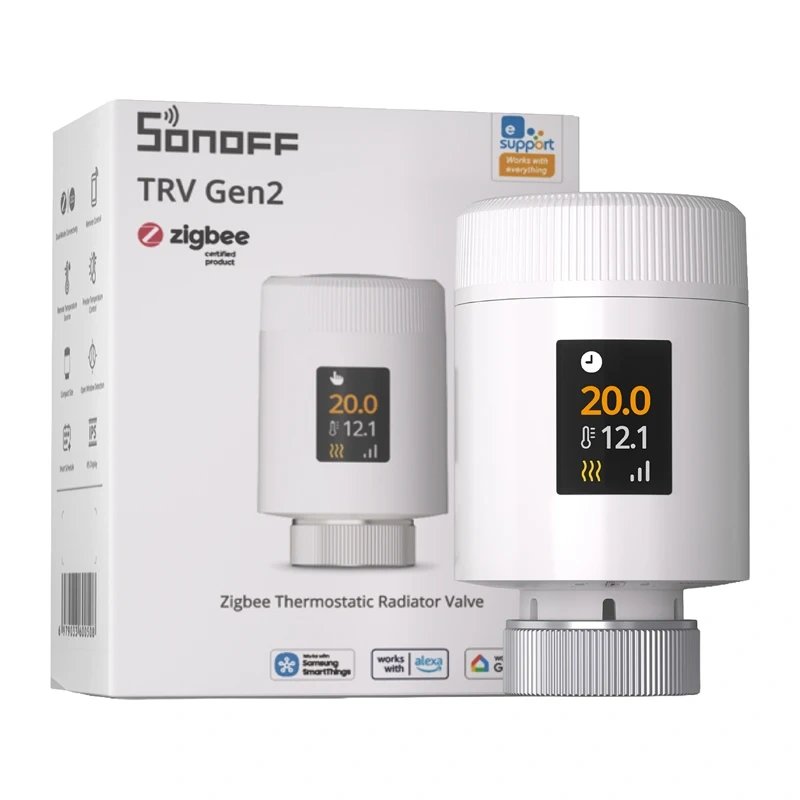

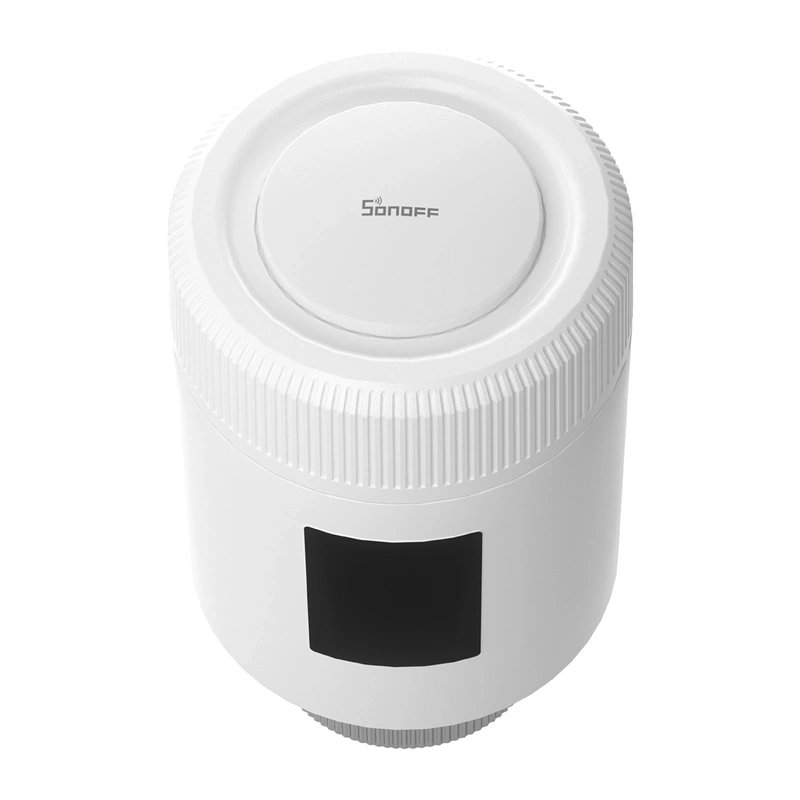

The SONOFF TRV Gen2 Zigbee is a smart thermostatic radiator valve designed for precise room temperature control and integration into smart home systems via Zigbee 3.0.

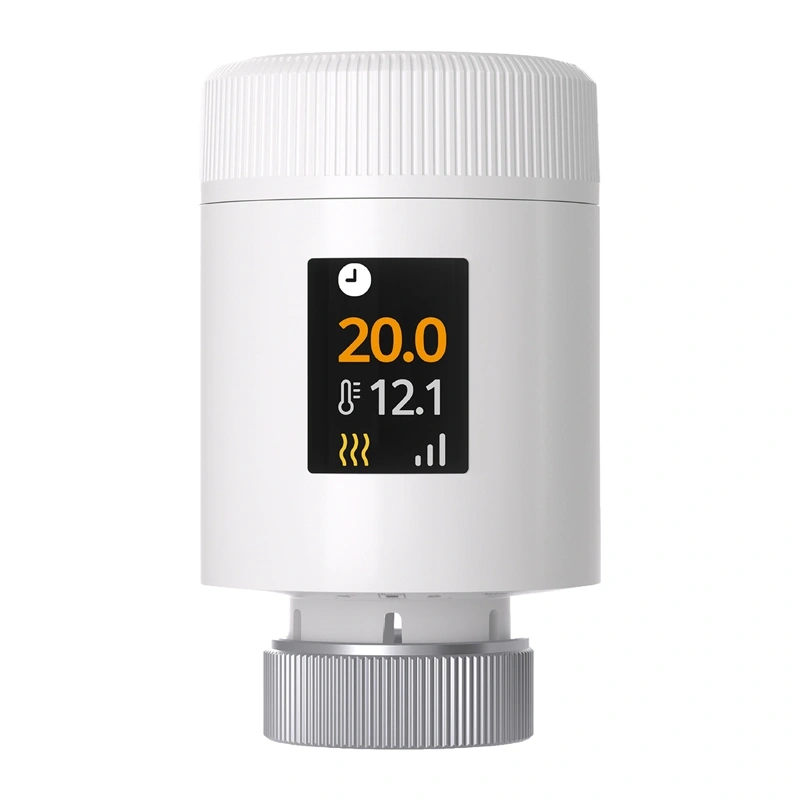

Compact Housing and Rotatable IPS Display
This second-generation valve is 38% smaller than its predecessor, allowing for straightforward installation in tight or complex radiator pipe layouts. It features a color IPS screen displaying real-time temperature, system status, and active settings. The display can be rotated in four directions to match horizontal or vertical mounting positions. Its adjustment mechanism runs quietly and is rated for 10 000 operating cycles.
Heating Schedules and Smart Automation
Users can configure up to three independent heating schedules, each featuring a 7-day routine with up to 12 time slots per day. The valve can be paired with external temperature sensors for localized climate tracking, as well as door and window sensors to automatically reduce or halt heating when an open window is detected.
Protective Features and Valve Compatibility

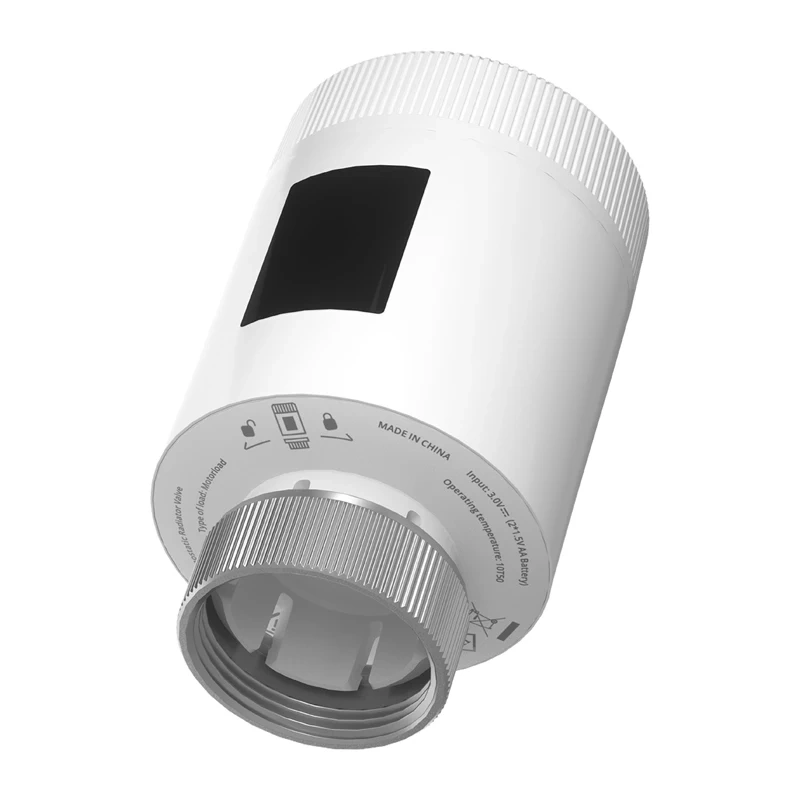

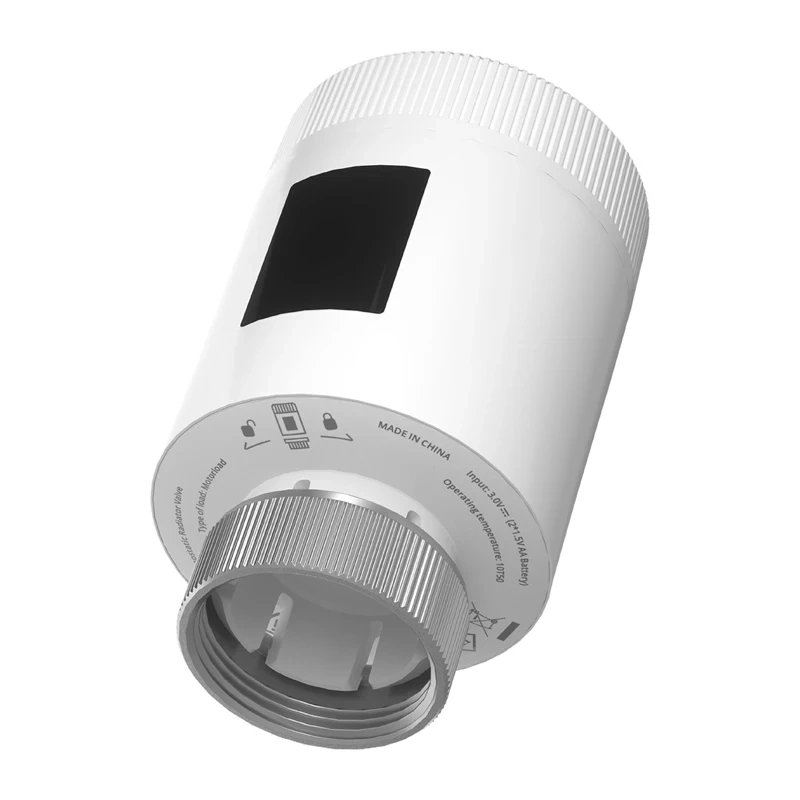

Built-in safeguards include freeze protection, automatic descaling valve maintenance, parental lock, and low-battery alerts. The thermostatic head features a standard M30 × 1.5 mm mounting thread and includes six adapters to fit various radiator valve types. It operates wirelessly on two AA batteries.
| Manufacturer | SONOFF |
|---|---|
| Product series | Thermo Series |
| Model | TRV-ZBT |
| Device type | Zigbee smart thermostatic head |
| Wireless connectivity | Zigbee IEEE 802.15.4 |
| Power supply | 3 V |
| Battery type | 2 × AA LR6 1.5 V |
| Connection thread | M30 × 1.5 mm |
| Temperature setting range | 5°C to 30°C |
| Net weight | 169 g (with batteries) |
| Housing material | PC |
| Color | White |
| Dimensions | 50 × 50 × 82.9 mm |
| Operating cycle | 10 000 cycles |
| Operating temperature | -10°C to 50°C |
| Operating humidity | 5–95% RH, non-condensing |
| Certifications | CE / RoHS |
Which valve adapters are included in the package?
The package includes adapters for CAL, RAVL, RAV, M28, GIA, and RA radiator valves.
What batteries are required to power the device?
The valve operates on two 1.5 V AA LR6 batteries.
Can the screen orientation be adjusted?
Yes, the color IPS display can be rotated in four directions to align with your radiator's mounting layout.
