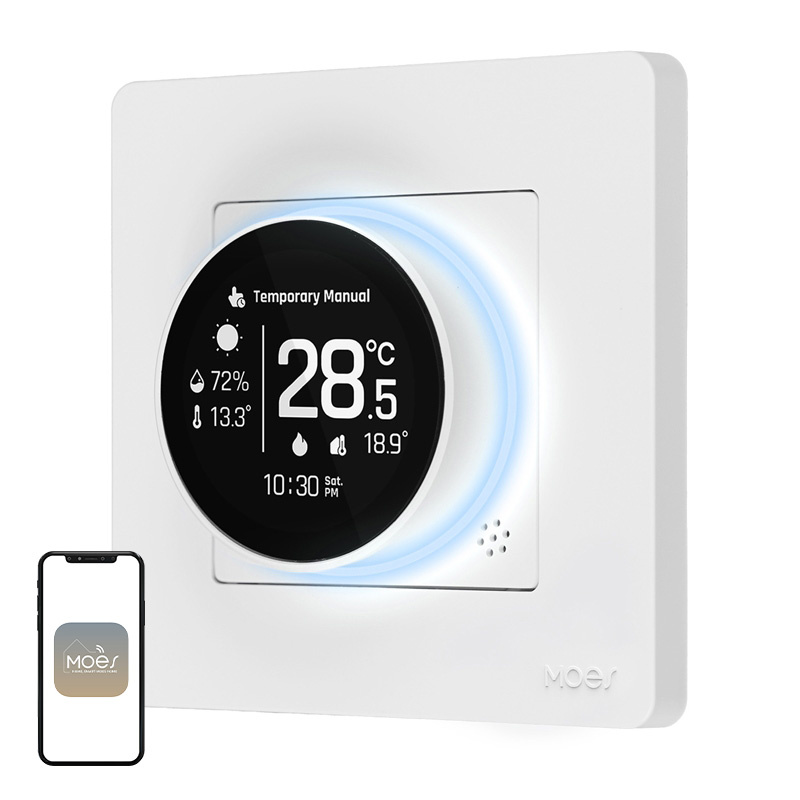

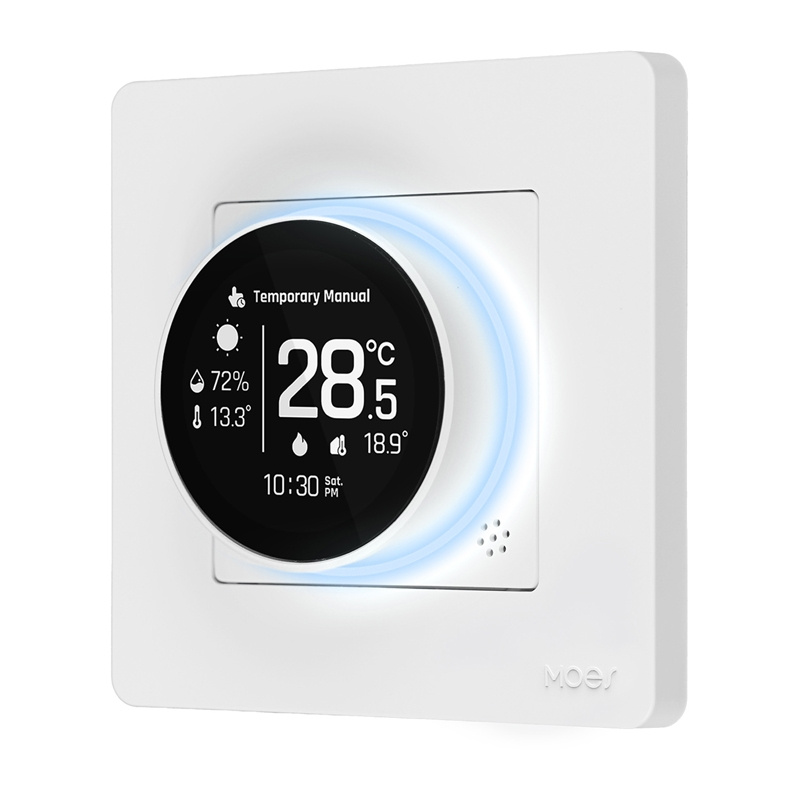

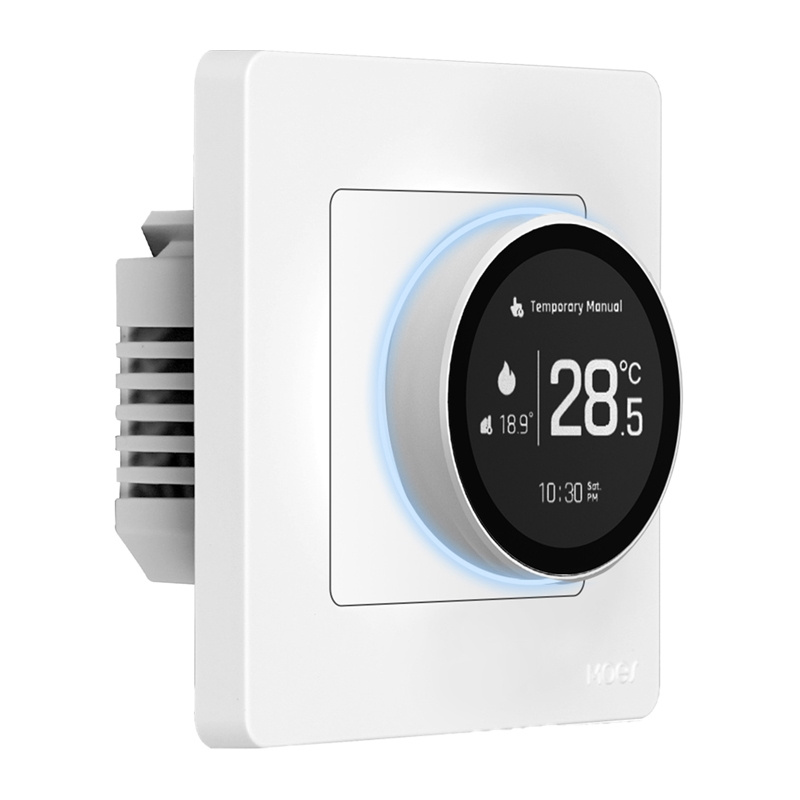

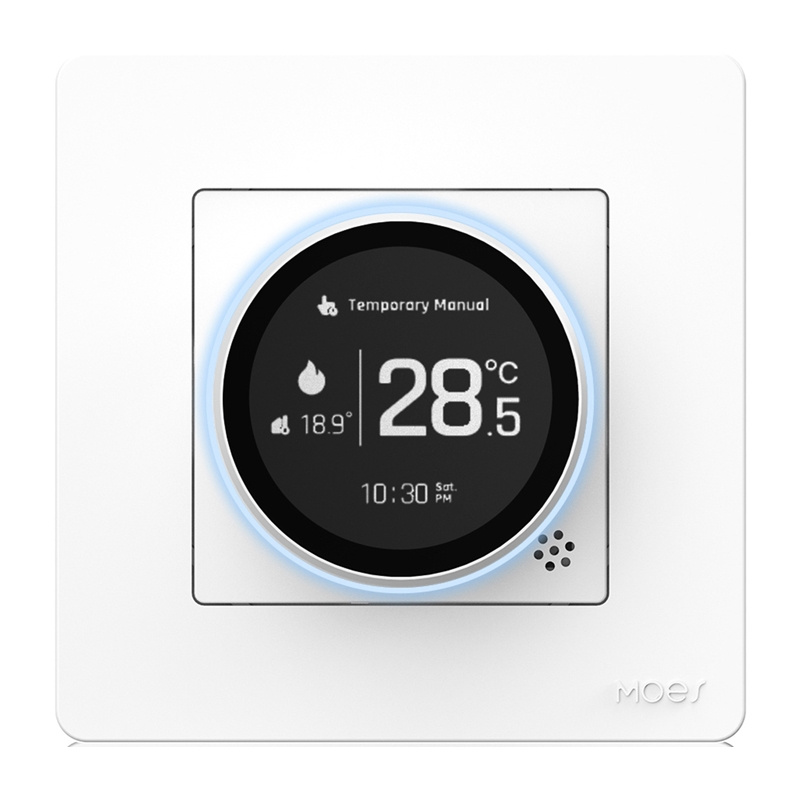

MOES ZHT-SR-GB Smart ZigBee Thermostat for Electric Heating
The MOES Smart Star Series ZHT-SR-GB is a ZigBee 3.0 thermostat designed for electric heating control, handling a maximum current load of 16 A and supporting a temperature setting range of 5 to 35 °C.
Key Features
- ZigBee 3.0 Connectivity: Integrates with MOES, Tuya Smart, and Smart Life apps, plus voice control via Amazon Alexa and Google Assistant.
- Accurate Sensing: Equipped with an NTC3950 (10K) sensor providing temperature control with ±1 °C accuracy.
- User Interface: Features capacitive touch buttons, a backlit rotary knob, and mode-indicating ring lighting.
- Scheduling and Safety: 5+1+1 weekly schedule with 6 daily slots, parental lock, and power-failure memory.
- Standard Installation: Fire-resistant PC + ABS housing compatible with 86 × 86 mm and European 60 mm round mounting boxes.
| Manufacturer | Moes |
|---|---|
| Model | ZHT-SR-GB |
| Voltage / Frequency | 95 ~ 245 V AC, 50/60 Hz |
| Load Current | 16 A |
| Communication Protocol | ZigBee 3.0 (IEEE 802.15.4) |
| Sensor | NTC3950, 10K |
| Setting Temperature Range | 5 ~ 35 °C |
| Accuracy | ±1 °C |
| Housing Material | PC + ABS |
| Protection Rating | IP20 |
| EAN | 6974246478517 |
|---|
Is a gateway required for smart functionality?
Yes, a ZigBee gateway is required to integrate the thermostat with the smartphone apps and smart home systems.
Which installation boxes are compatible with this thermostat?
The thermostat is compatible with 86 × 86 mm square installation boxes and standard European 60 mm round boxes.
