Single-Phase Power Meter

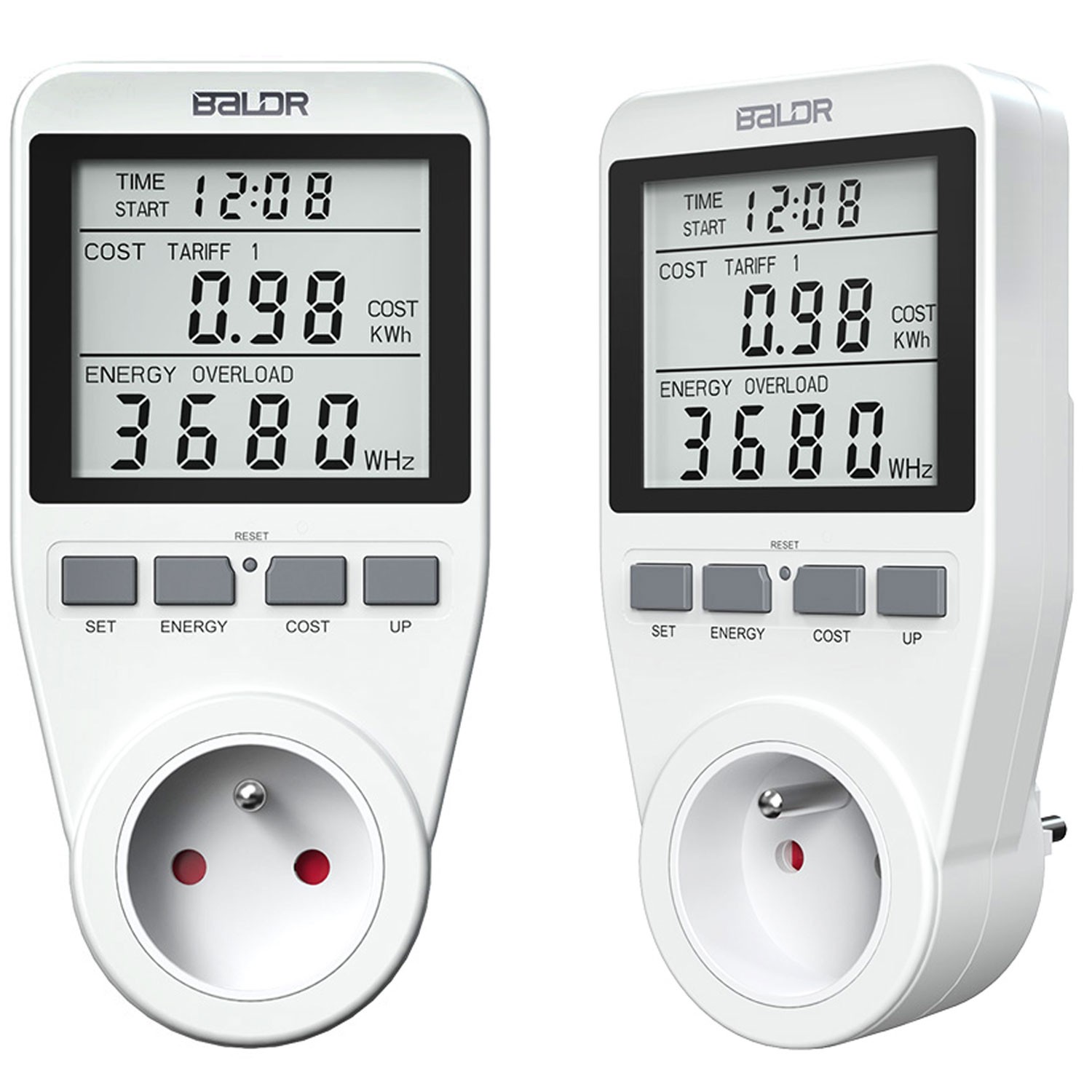

Monitor your electricity consumption and reduce your bills with the Baldr BD-990 electricity usage monitor. This device is simple to operate, featuring a large, clear display and a practical memory function that retains settings even during a power outage.

Key Features:

• Simple and intuitive to use.
• Convenient control buttons.
• Large, easy-to-read display.
• Efficient and high-quality performance.
• Lightweight (220g), does not strain the socket.
• Shows real-time energy consumption measurements.
• Includes a practical memory function.
• Safe — certified for compliance with EU directives.

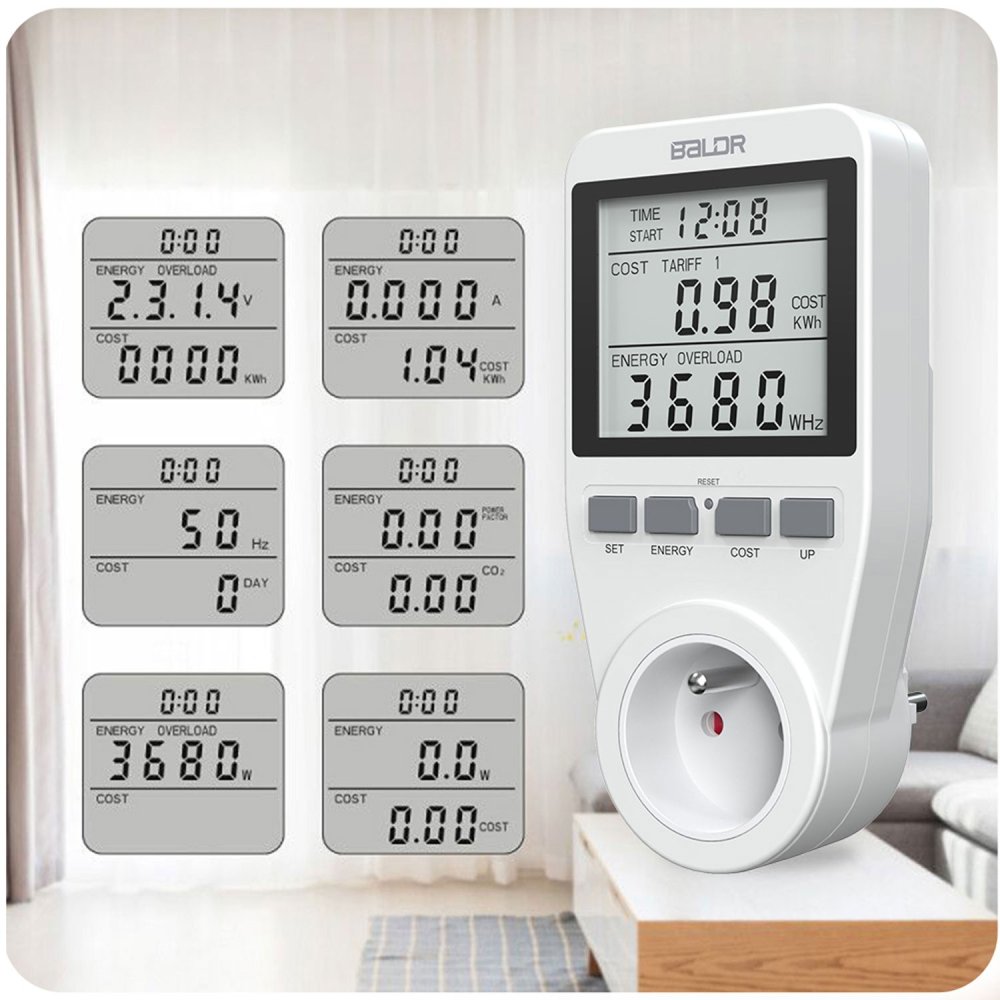

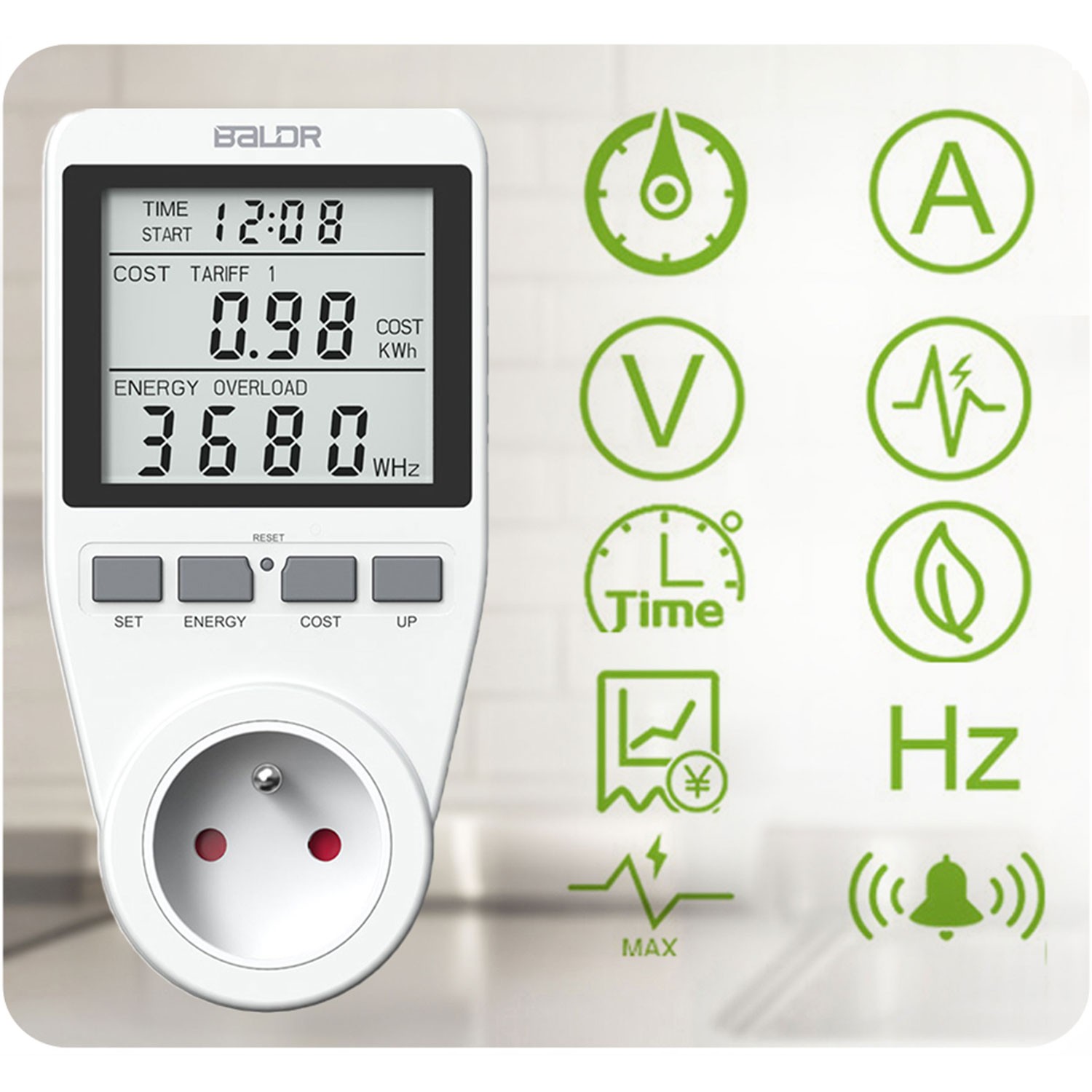

The large, clear display (6.8 cm x 5.8 cm) allows you to easily read:

• Total measurement time
• Energy parameters of the connected device:
• Voltage [V]
• Current [A]
• Frequency [Hz]
• Power Factor [PF]
• Overload value [W]
• Power [W]
• Energy consumption [kWh]
• Cost per 1 kWh
• Total operating time in days
• Total CO2 emissions [kg]
• Total cost of consumed electricity (requires setting the price per 1 kWh)

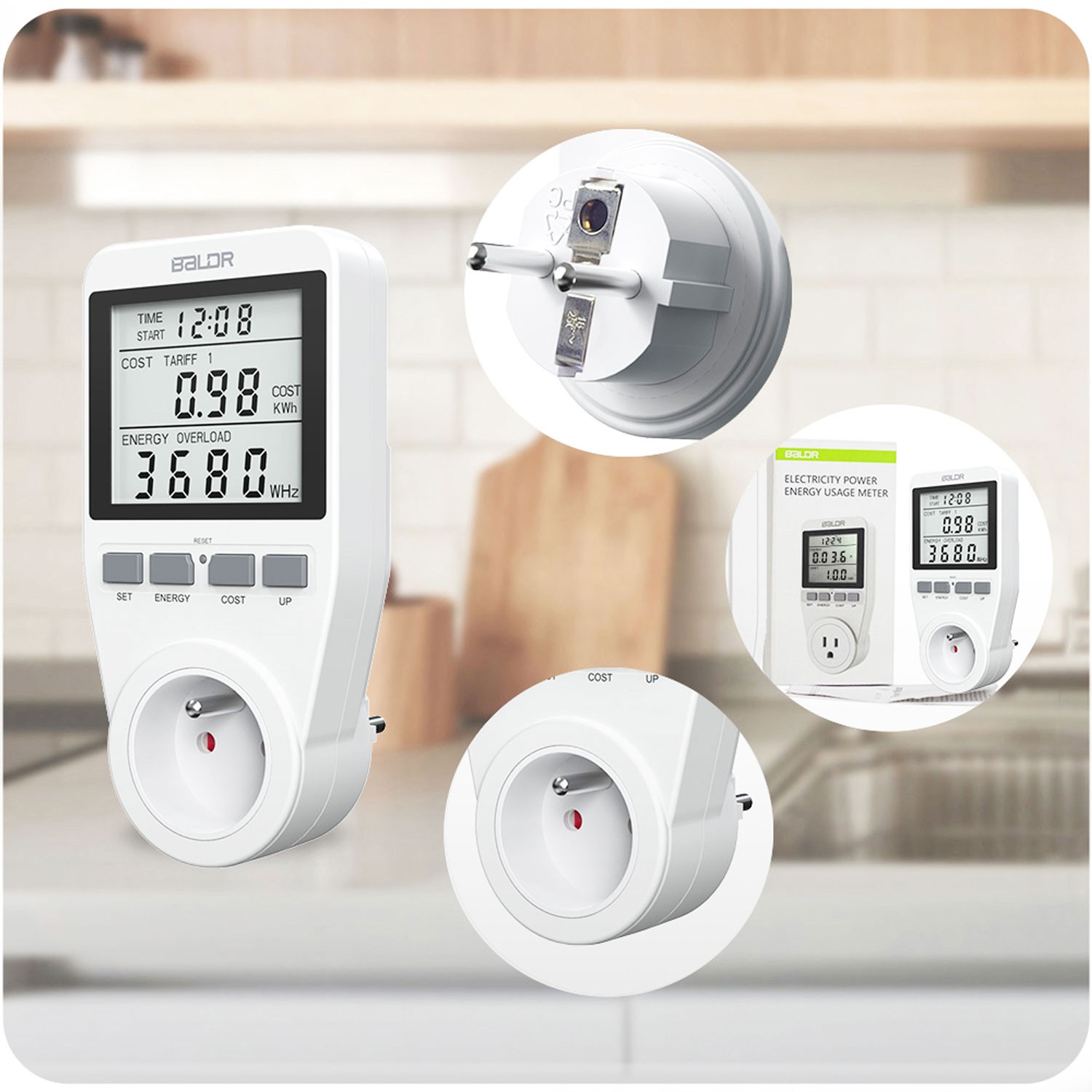

Important Note: This power meter is equipped with a Type E plug that includes a grounding pin. This is a crucial feature, as many meters on the market lack grounding and are not compatible with standard electrical sockets.

Convenient and Functional:

The device is extremely intuitive and displays simple messages in English. A user manual in Polish, German, and English is included.

• RESET Button: Allows you to restore the device to its factory settings.
• Overload Alarm: You can set a custom power threshold for the overload alarm (the display will show "overload" without an audible signal).
• Memory Function: A built-in rechargeable battery saves your settings even if the power supply is interrupted.

Specifications:

• Maximum Current: 16 A
• Maximum Load: 3680 W
• Voltage: 230 V
• Frequency: 50 Hz
• Voltage Range: 175-276V AC
• Frequency Range: 45-65 Hz
• Operating Current: ≤ 16 A
• Temperature Range: 0-50°C
