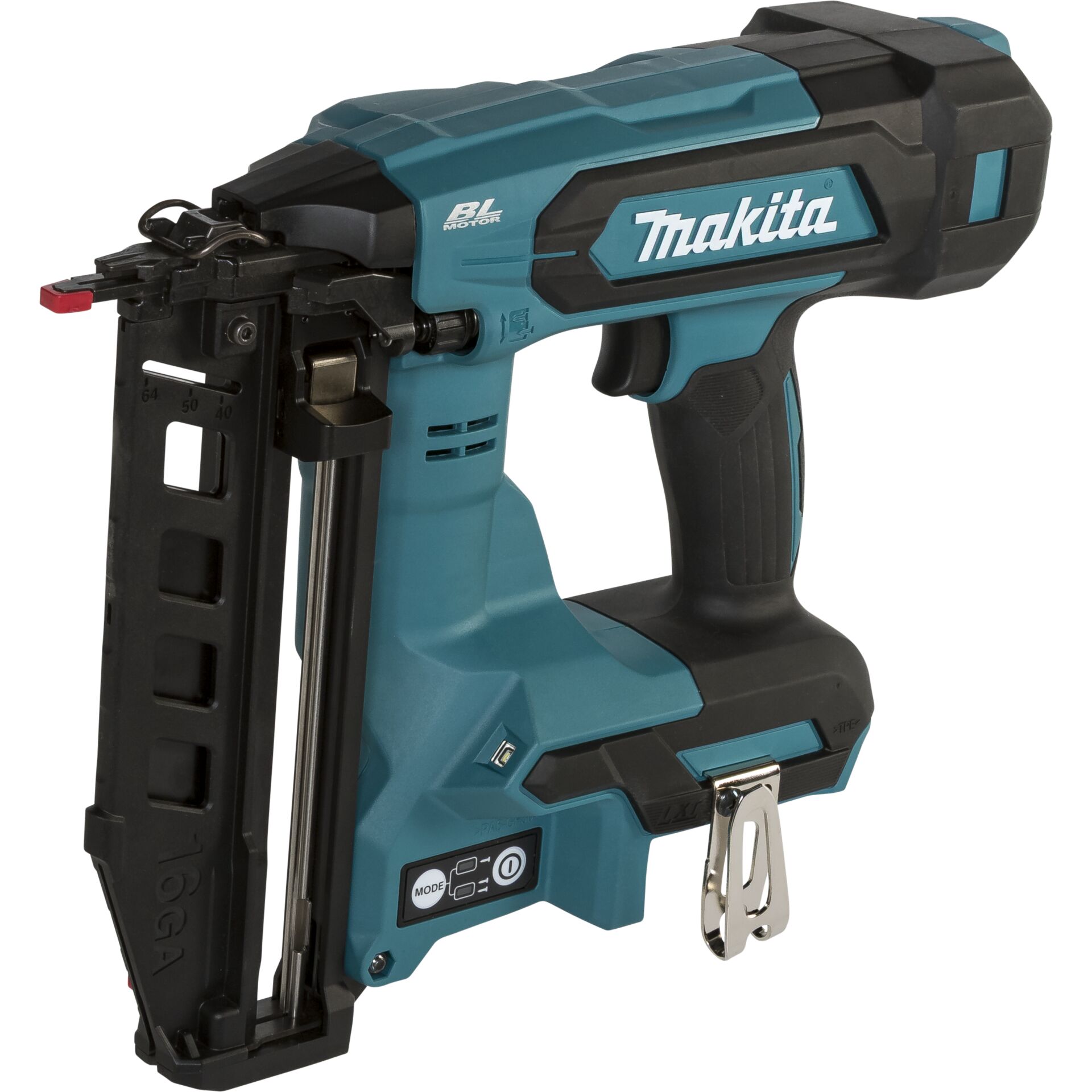

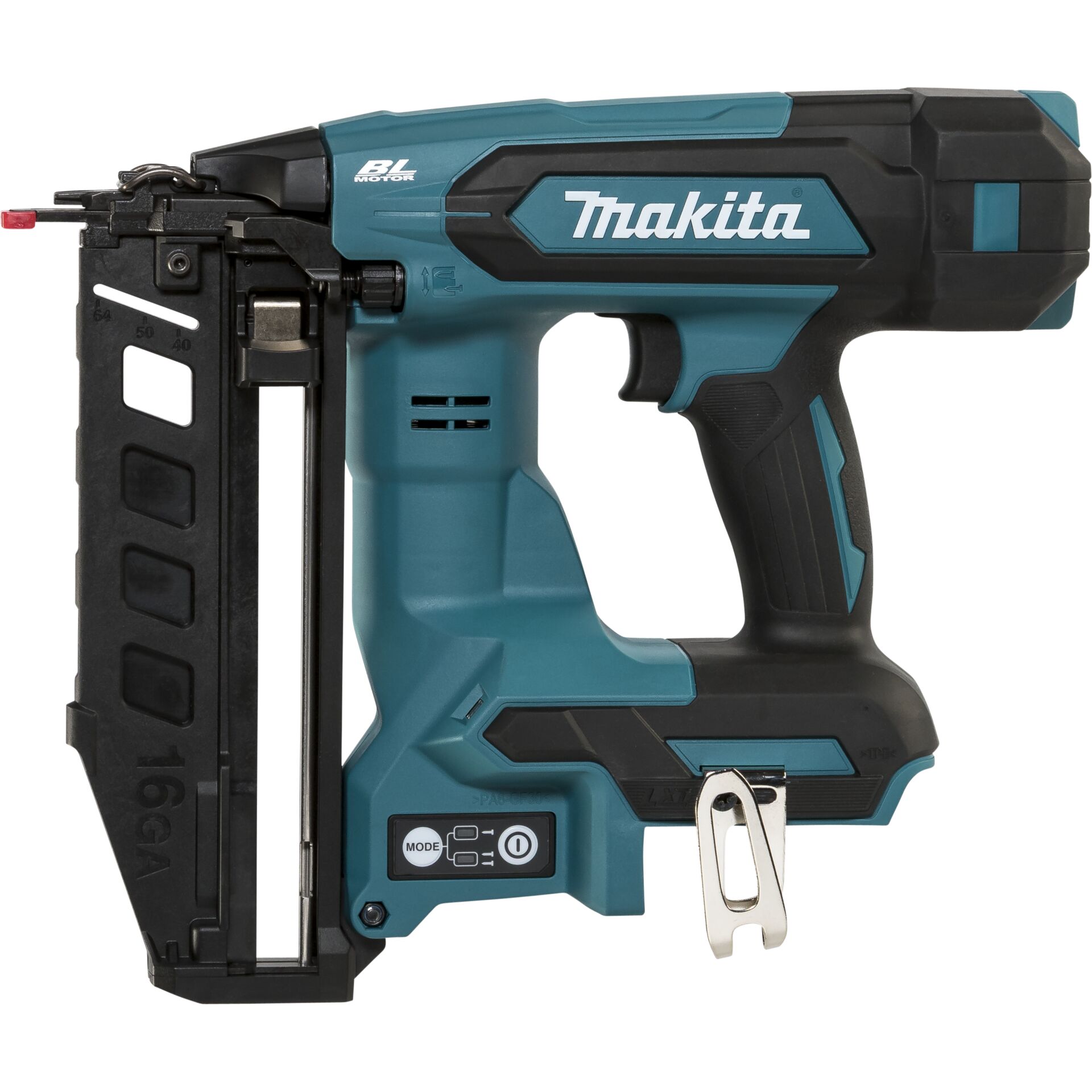

Makita DBN601Z 18V LXT Cordless Brad Nailer 16 Ga 19–64 mm (Body Only)
| Products ID: | 183747 |
|---|---|
| Manufactured by: | Makita |
| Availablity: | Ready to Order |
| Delivery Time | 7-15 business days |
| EAN: | 0197050008022 |
Delivery options to:
Choose countryThe Makita DBN601Z is an 18V LXT cordless brad nailer engineered for accurate and fast nailing without power cords. Powered by an efficient brushless motor and balanced ergonomics, it allows easy switching between single and sequential firing modes for productive operation.
Key Features
- Brushless motor offers long service life and low-maintenance operation.
- Tool-free depth adjustment enables quick adaptation to various work materials.
- Built-in LED work light enhances visibility in dim work areas.
- XPT technology protects the tool against dust and splashing water.
- Dry-fire lockout prevents blank firing and protects the mechanism.
- High-capacity magazine accommodates up to 110 nails from 19 to 64 mm in length.
| Battery series | LXT |
|---|---|
| Battery voltage | 18 V |
| Battery type | Li-Ion |
| Battery included | No |
| Nail length | 19 – 64 mm |
| Wire thickness | 1.6 mm |
| Gauge | 16 Ga |
| Magazine capacity | 110 nails |
| Sound power level | 94 dB(A) |
| Sound pressure level | 83 dB(A) |
| Vibration level | ≤ 2.5 m/s² |
| Dimensions (W x H x D) | 9.8 x 32 x 27.6 cm |
| Weight without battery | 2.6 kg |
| Weight with battery | 2.9 – 3.3 kg |
| Material | Plastic / Metal |
| Colour | Blue / Black |
What nail sizes does this nailer support?
The tool accepts 16 Ga finish nails with a wire thickness of 1.6 mm and lengths ranging from 19 mm to 64 mm.
What is included in the package?
The package includes the cordless brad nailer, an M4x12 screw (251314-2), and a hanging hook (346317-0). The battery and charger are sold separately.
How many nails can the magazine hold?
The magazine holds up to 110 nails.
