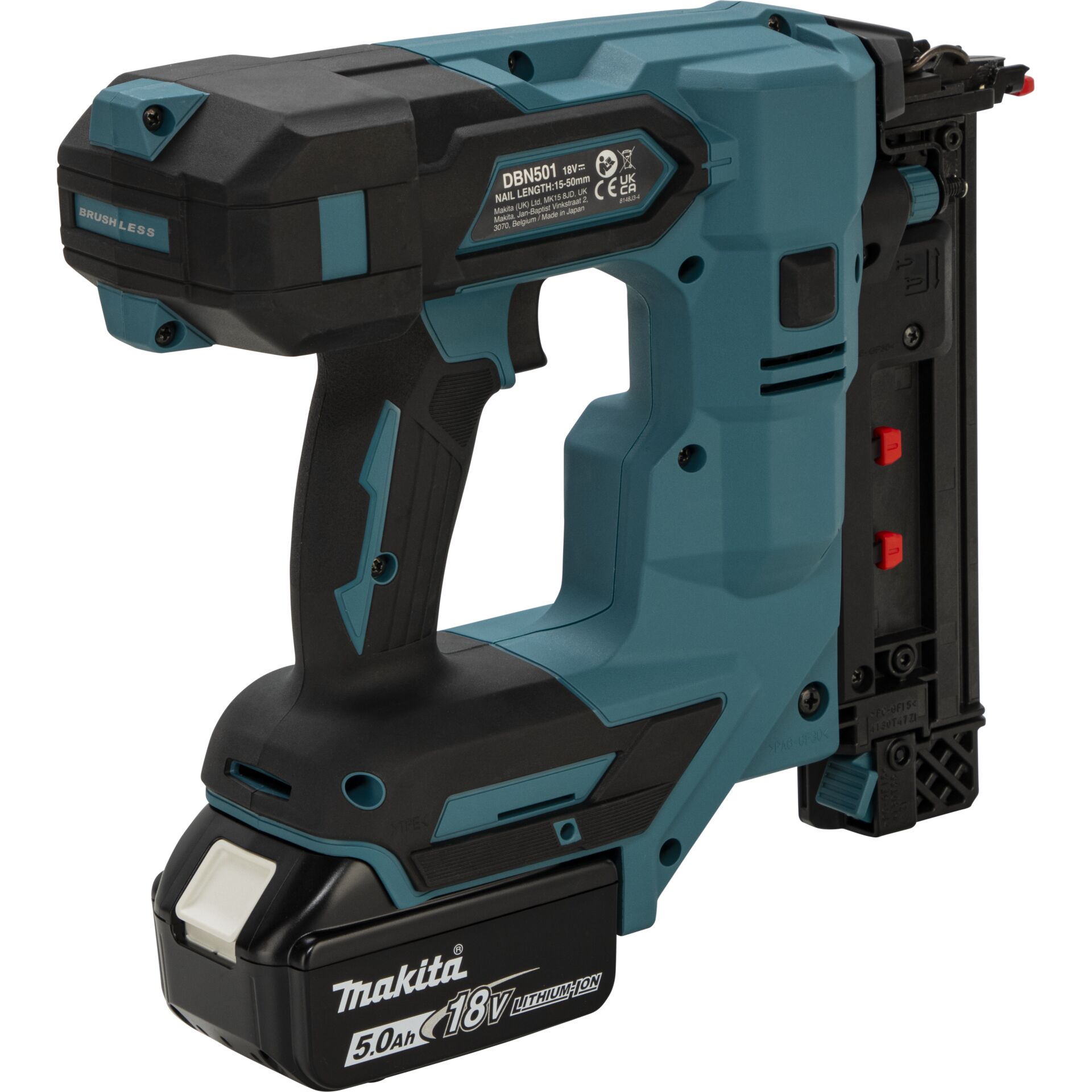

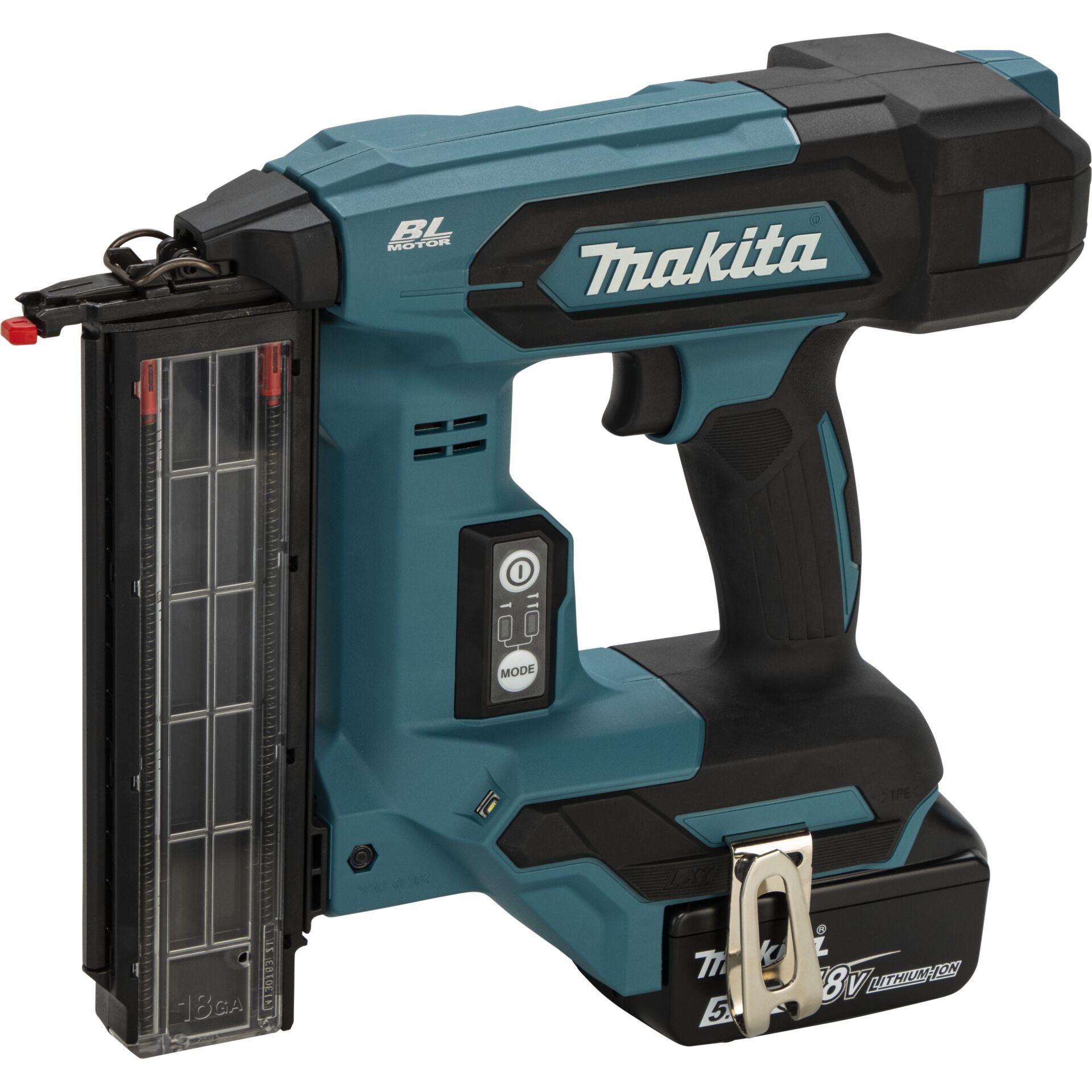

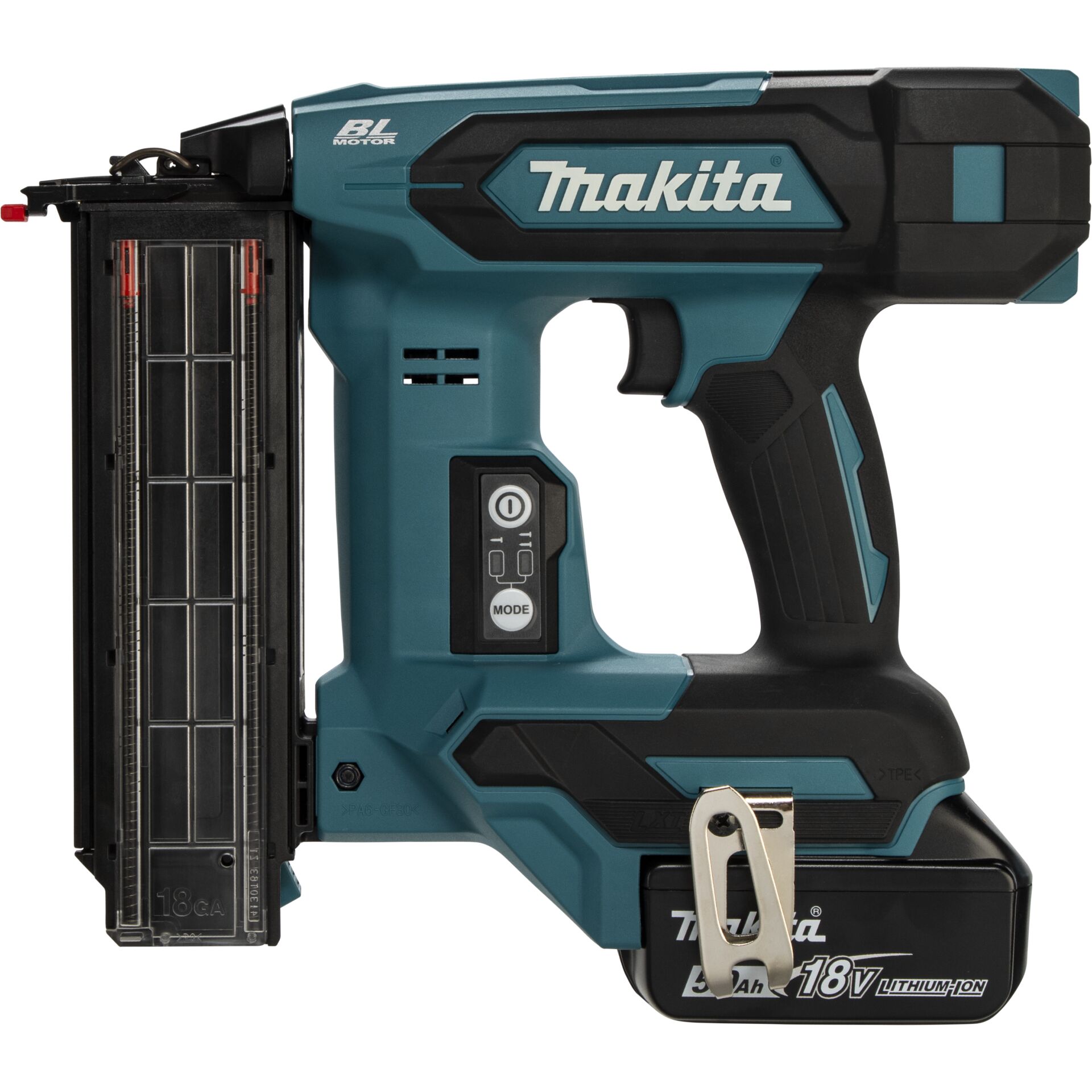

Makita DBN501RTJ 18V Cordless 50 mm Brad Nailer (2x 5.0 Ah)
Makita
| Products ID: | 186366 |
|---|---|
| Manufactured by: | Makita |
| Availablity: | SOLDOUT! |
| EAN: | 0197050008138 |
Delivery options to:
Choose country
The Makita DBN501RTJ is an 18V cordless brad nailer engineered for clean, precise wood fastening in furniture assembly and interior finishing. A slim nose design provides an unobstructed line of sight while driving nails.
Flexible and User-Friendly Operation
Users can readily select between single-shot and series-firing modes depending on project requirements. Driving depth is adjusted without tools. Because it operates without gas cartridges, routine maintenance is reduced, while a dry-fire lockout prevents accidental damage to the tool and workpiece.
Durable and High-Output Construction
Driven by an efficient brushless motor and a pneumatic spring mechanism, this nailer delivers consistent, rapid firing. Integrated LED lighting illuminates low-light work spaces, and Makita XPT technology provides resistance against dust and water splashes.
- Accepts 18 Ga (1.2 mm) brad nails with lengths from 15 to 50 mm
- Magazine holds up to 110 nails
- Tool-free depth adjustment and integrated LED work light

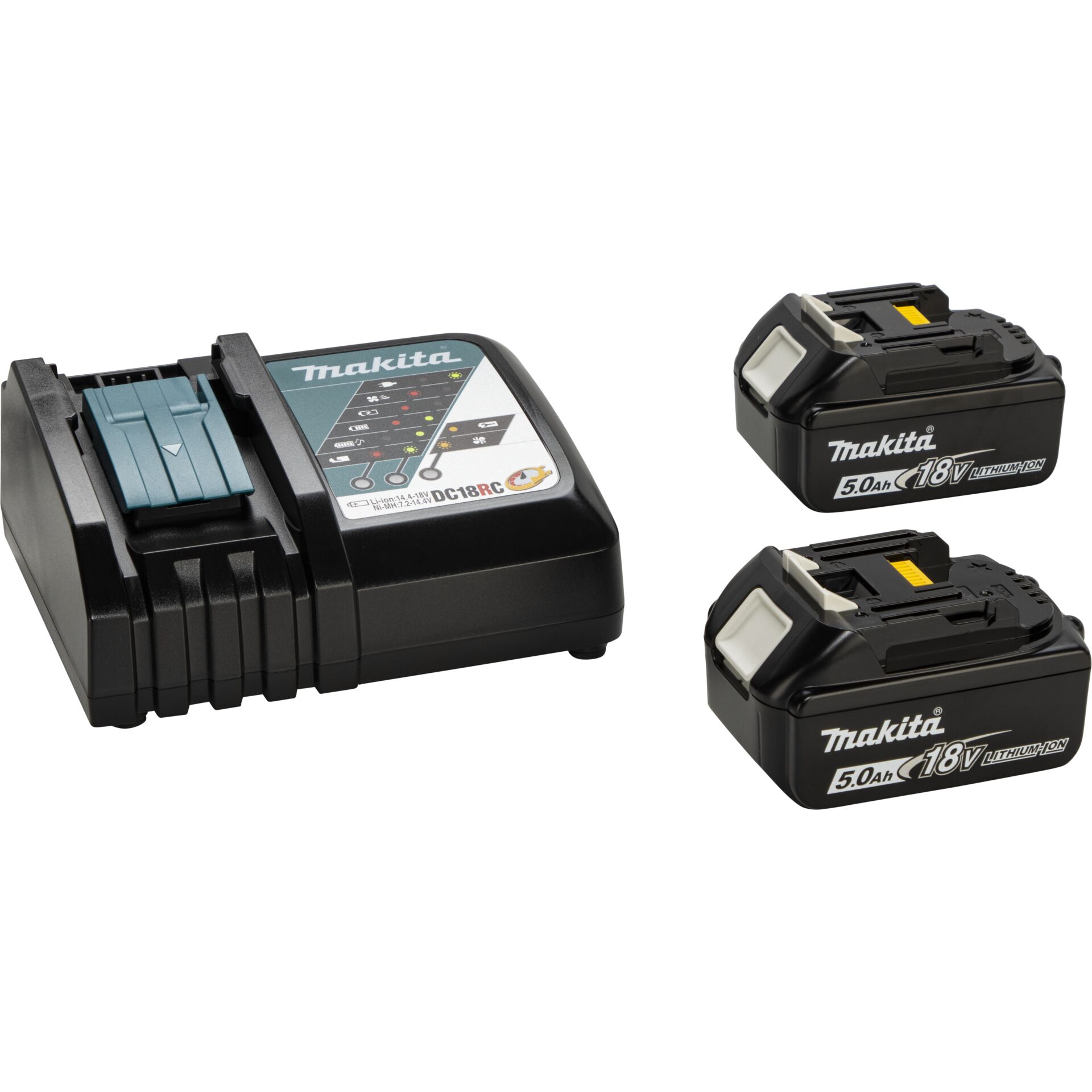

- Supplied with two 5.0 Ah batteries and a rapid charger
| Pin length | 15 – 50 mm |
|---|---|
| Wire thickness | 1.2 mm |
| Magazine capacity | 110 nails |
| Battery voltage | 18 V |
| Sound power level (LWA) | 93 dB(A) |
| Sound pressure level (LpA) | 82 dB(A) |
| Vibration | ≤ 2.5 m/s² |
| K-value vibration | 1.5 m/s² |
| Gauge | 18 Ga |
| Nail angle | 0° |
| Dimensions (W x H x D) | 9.6 x 30.1 x 24.6 cm |
| Weight | 2.7 – 3.0 kg |
| Battery type | Lithium-ion |
| Charging time | 0.75 h |
| Batteries included | 2 |
What nail sizes does the Makita DBN501RTJ support?
It accepts 18 Ga (1.2 mm wire thickness) straight brad nails with lengths between 15 mm and 50 mm at a 0° collation angle.
What items are included in the scope of delivery?

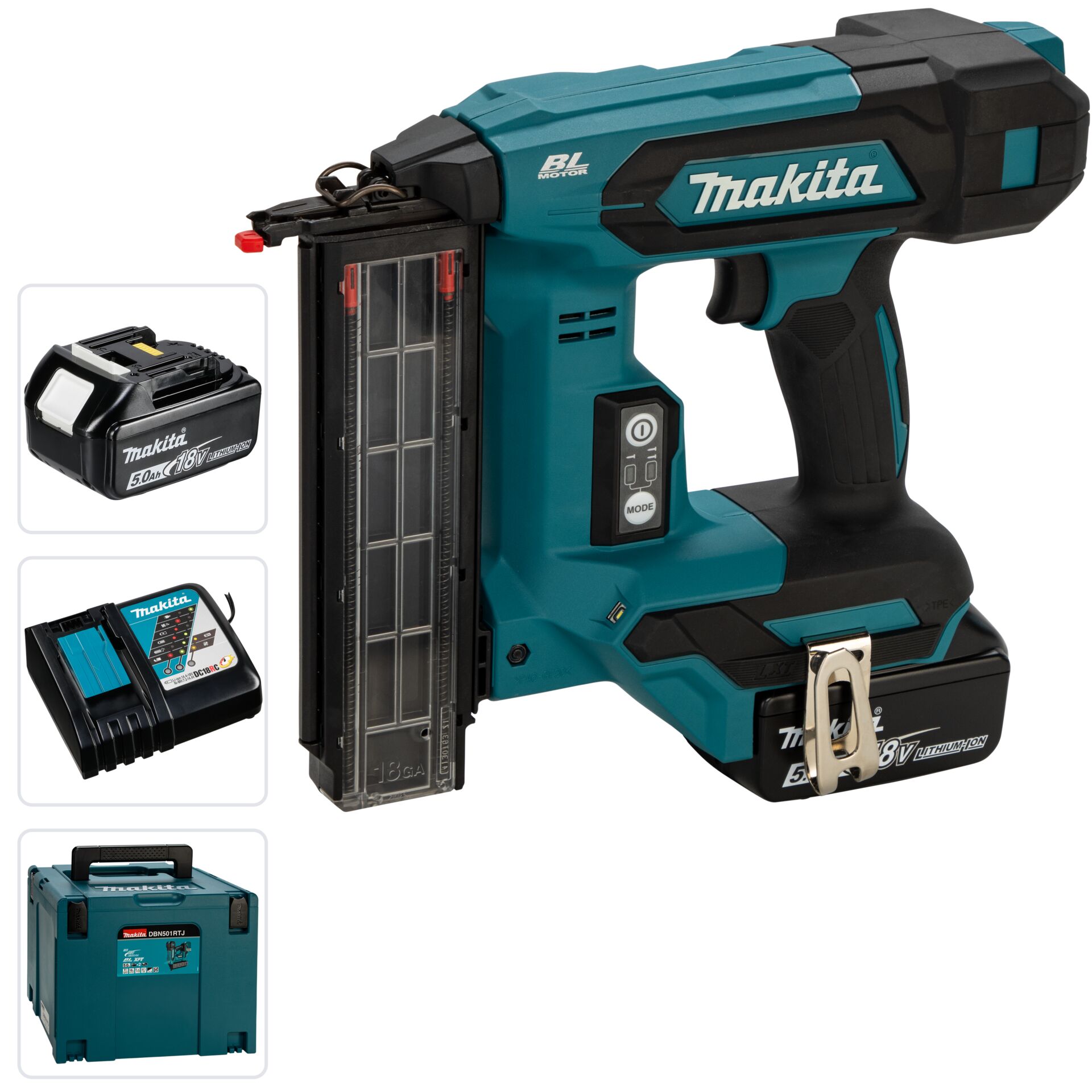

The package includes the DBN501RTJ cordless brad nailer, a short hanging hook, a MAKPAC size 4 case with insert, two 5.0 Ah BL1850B batteries, and a DC18RC quick charger.
Does this cordless nailer require gas cartridges?
No, the nailer operates via an electric-pneumatic spring mechanism powered directly by Makita 18V batteries, requiring no gas fuel cells.
