Smart Soldering Iron FNIRSI HS-02B MAX 100 W Tool Kit

Q: What power sources are supported by the FNIRSI HS-02B?

It can be powered via USB-C Power Delivery, Quick Charge, or DC power supplies ranging from 9 V to 20 V.

Q: What items are included in the HS-02B MAX kit?

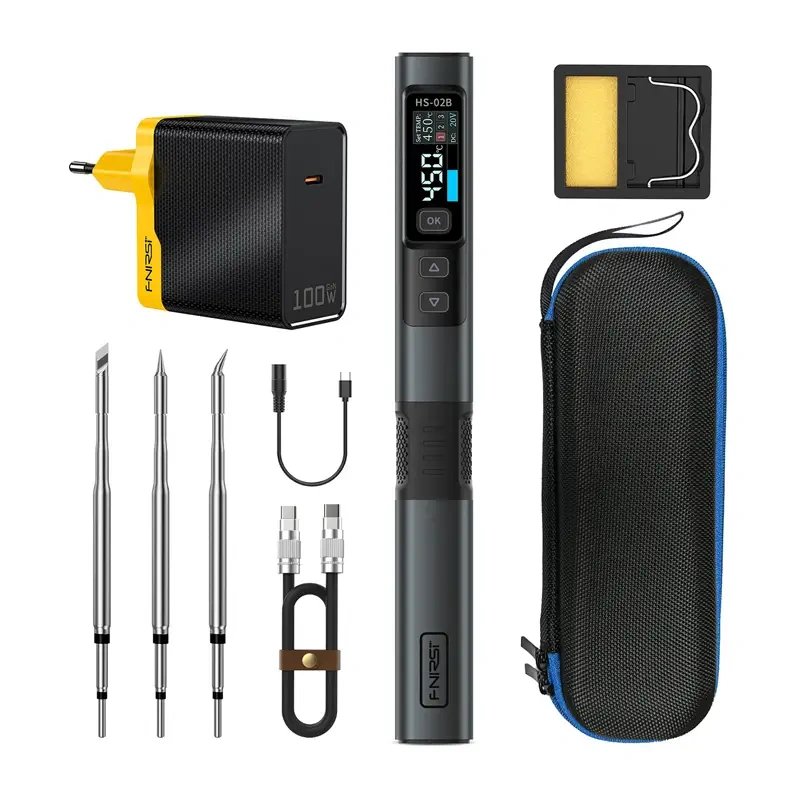

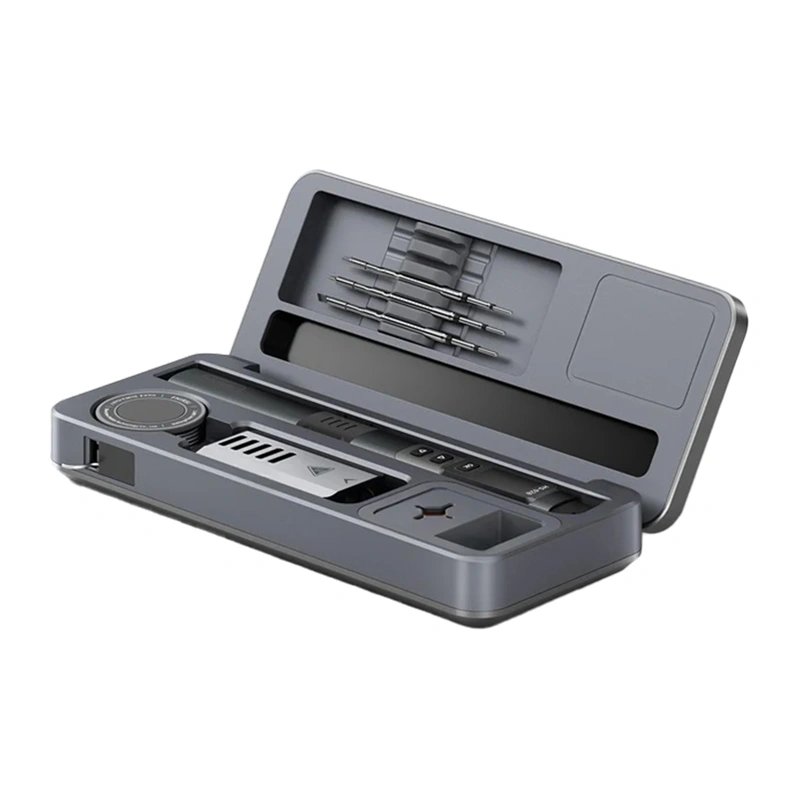

The kit includes the HS-02B soldering iron, a tool box, 3 tips, a USB-C power cable, a tip cleaner, a solder residue container, 42 g of lead-free solder wire, a 100 W charger, a C2C cable, an adapter cable, a stand, and a carrying bag.

Q: How fast does the soldering iron reach working temperature?

The 100 W heating system allows the tip to heat up in approximately 2 seconds.

Smart Soldering Iron FNIRSI HS-02B MAX 100 W Tool Kit — primary image

Smart Soldering Iron FNIRSI HS-02B MAX 100 W Tool Kit — image 2

Smart Soldering Iron FNIRSI HS-02B MAX 100 W Tool Kit — image 3

Price: 103.10 €

Products ID:	176368
Manufactured by:	Fnirsi
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	5905156102491

Delivery options to:

Choose country

Smart Soldering Iron FNIRSI HS-02B MAX 100 W Tool Kit

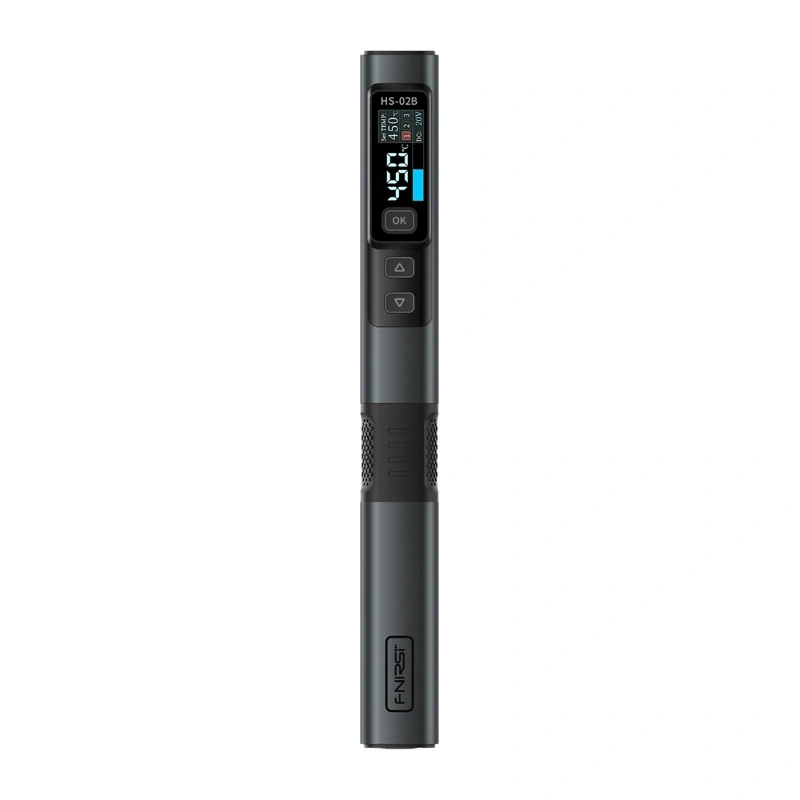

The FNIRSI HS-02B MAX is a portable smart soldering iron delivering up to 100 W of power, rapid heating, precise PID temperature regulation from 100 to 450°C, and versatile power input support via USB-C PD, QC, and DC 9–20 V.

Key Features

Fast Heating: 100 W maximum output provides tinning and heating in approximately 2 seconds.
Precise PID Control: Segmented temperature regulation with under 2% accuracy and 3 preset profiles (CH1/CH2/CH3).
Clear Display: 0.96-inch color IPS HD screen for real-time monitoring and setting adjustments.
Safety & Protection: Built-in ESD protection with grounding support and automatic inductive sleep mode.
Durable Construction: CNC-machined aluminum housing paired with a non-slip silicone grip.

Manufacturer	FNIRSI
Model	HS-02B
Device type	Smart digital soldering iron
Maximum power	100 W
Operating temperature range	100–450°C (180–842°F)
Temperature control accuracy	< 2%
Temperature control type	Segmented PID control
Heating time	Approx. 2 s
Power supply support	USB-C Power Delivery / Quick Charge / DC
Input voltage range	9–20 V
Display	0.96" color IPS HD
Housing material	CNC-machined aluminum + silicone
Soldering iron length	180 mm
Weight	approx. 61 g
Tip length	6.6 cm
Heating core resistance	2.1 Ω

What power sources are supported by the FNIRSI HS-02B?

It can be powered via USB-C Power Delivery, Quick Charge, or DC power supplies ranging from 9 V to 20 V.

What items are included in the HS-02B MAX kit?

The kit includes the HS-02B soldering iron, a tool box, 3 tips, a USB-C power cable, a tip cleaner, a solder residue container, 42 g of lead-free solder wire, a 100 W charger, a C2C cable, an adapter cable, a stand, and a carrying bag.

How fast does the soldering iron reach working temperature?

The 100 W heating system allows the tip to heat up in approximately 2 seconds.
