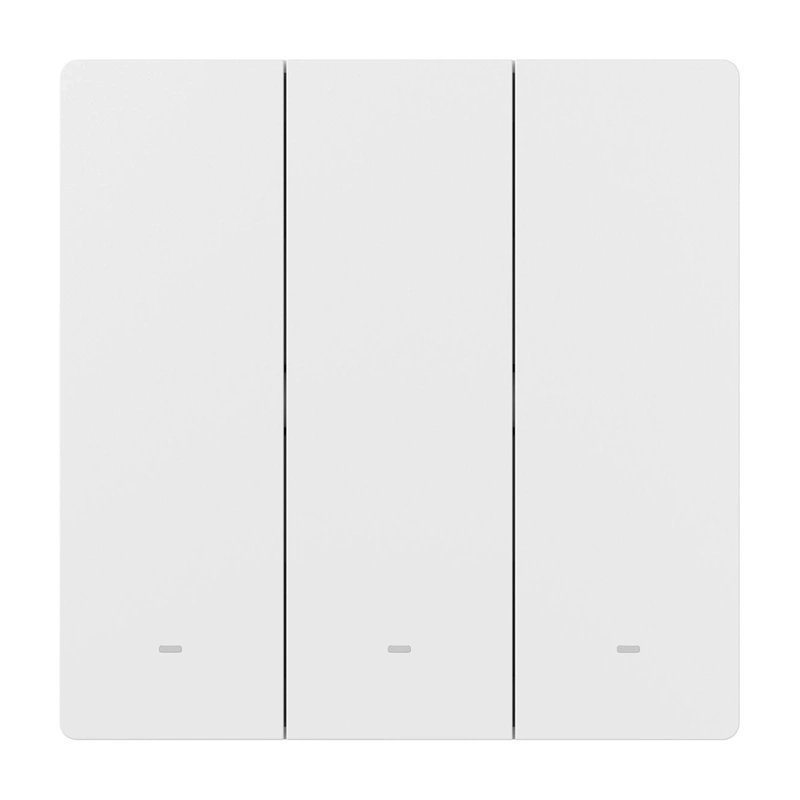

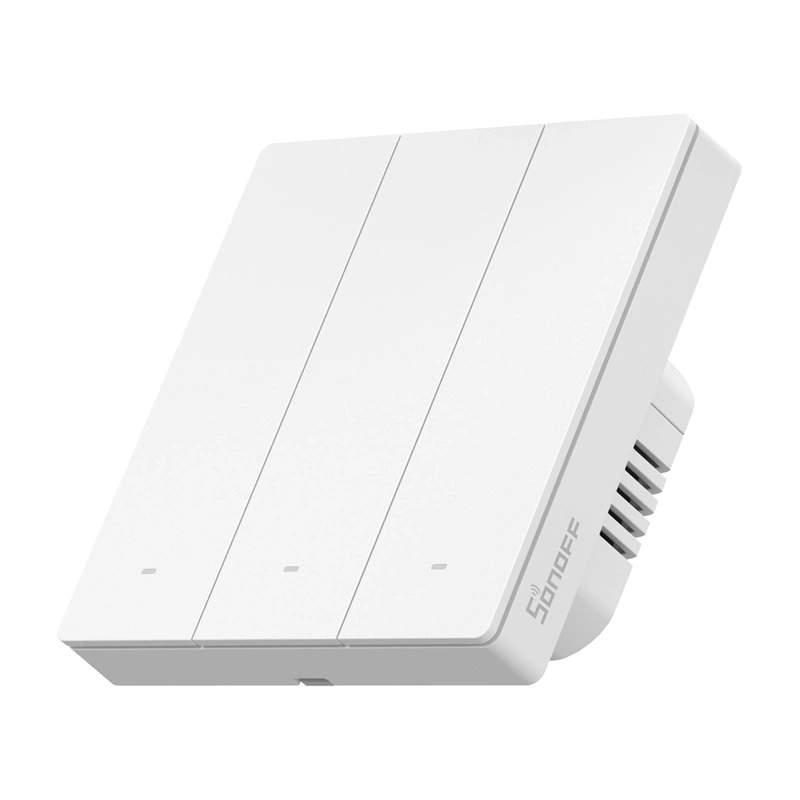

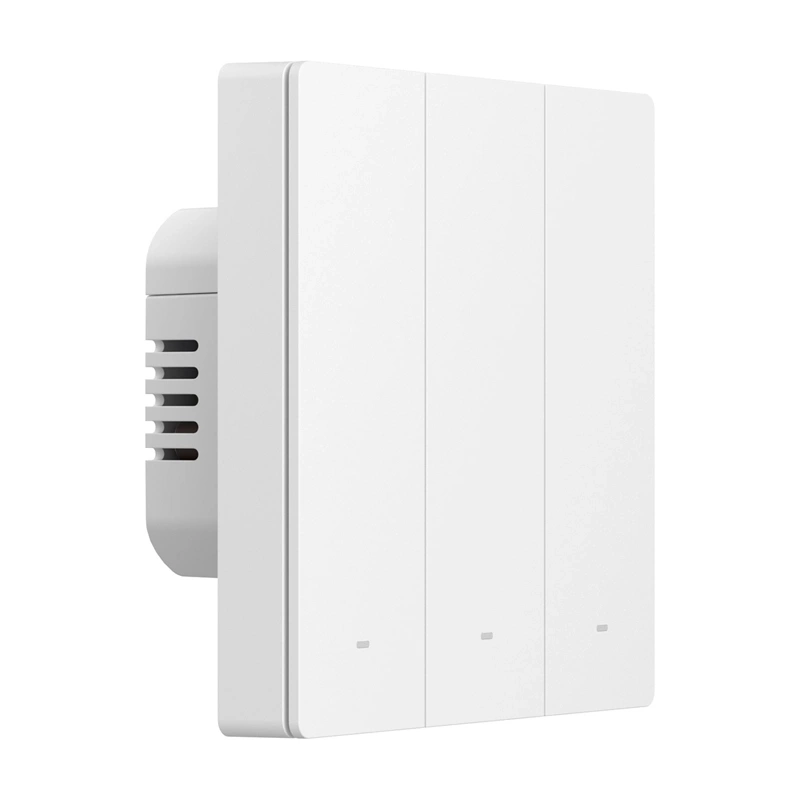

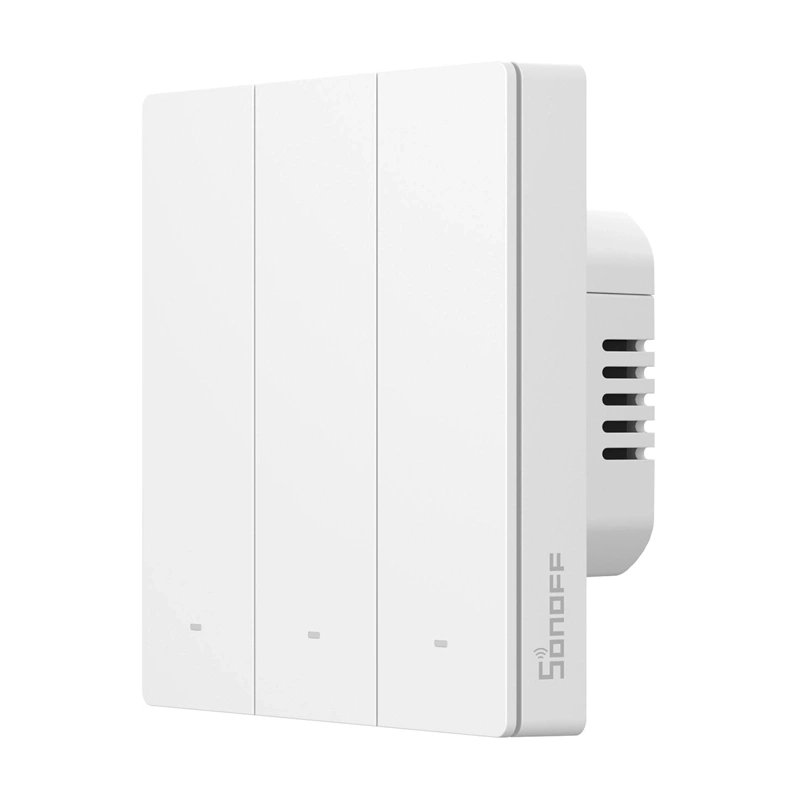

Sonoff ZBM5-3C-86W 3-Channel Zigbee Smart Touch Wall Switch, White

-9%

Sonoff ZBM5-3C-86W 3-Channel Zigbee Smart Touch Wall Switch, White — image 2

Sonoff ZBM5-3C-86W 3-Channel Zigbee Smart Touch Wall Switch, White — image 3

Sonoff ZBM5-3C-86W 3-Channel Zigbee Smart Touch Wall Switch, White — image 4

Price: 30.00 €27.20 €

Products ID:	146583
Manufactured by:	Sonoff
Availablity:	Ready to Order
Delivery Time	5-12 business days
EAN:	6920075743081

Delivery options to:

Choose country

Sonoff ZBM5-3C-86W 3-Channel Zigbee Smart Touch Wall Switch, White

The Sonoff ZBM5-3C-86W is a three-channel Zigbee smart touch wall switch designed for convenient lighting control. It supports installation in electrical systems both with and without a neutral wire, making it versatile for new and existing setups.

Key Features

Three touch-sensitive lighting channels for individual control
Compatible with wiring installations with or without a neutral wire
Remote control, schedules, and automation via the eWeLink app using a compatible Zigbee gateway
Hands-free voice control support with Amazon Alexa and Google Home
Detach relay function keeps smart bulbs powered even when the wall switch is turned off
Open-source integration supported through Zigbee2MQTT and ZHA

Manufacturer	Sonoff
Model	ZBM5-3C-86W
Minimum load	3W (without neutral wire)
Wireless connectivity	Zigbee 3.0
Color	White
Housing material	PC, CRS
Dimensions	87 x 87 x 40.2 mm
Operating temperature	-10℃~40℃
Rating	100-240V~ 50/60Hz 10A/channel, total max. resistive load 10A
LED	400W@240V/channel, 200W@100V/channel, total 400W@240V, 200W@100V
Number of channels	3

Does this switch require a neutral wire for installation?

No, it is engineered to work in wiring installations both with and without a neutral wire (minimum load without a neutral wire is 3W).

What is needed to control the switch remotely from a smartphone?

Full remote control features via the eWeLink app require a compatible Sonoff Zigbee gateway, such as iHost, NSPanel Pro, ZBBridge-U, ZBBridge-P, or ZBDongle-E/-P.

What items are included in the package?

The package includes the touch switch, two mounting screws, and a user manual.
