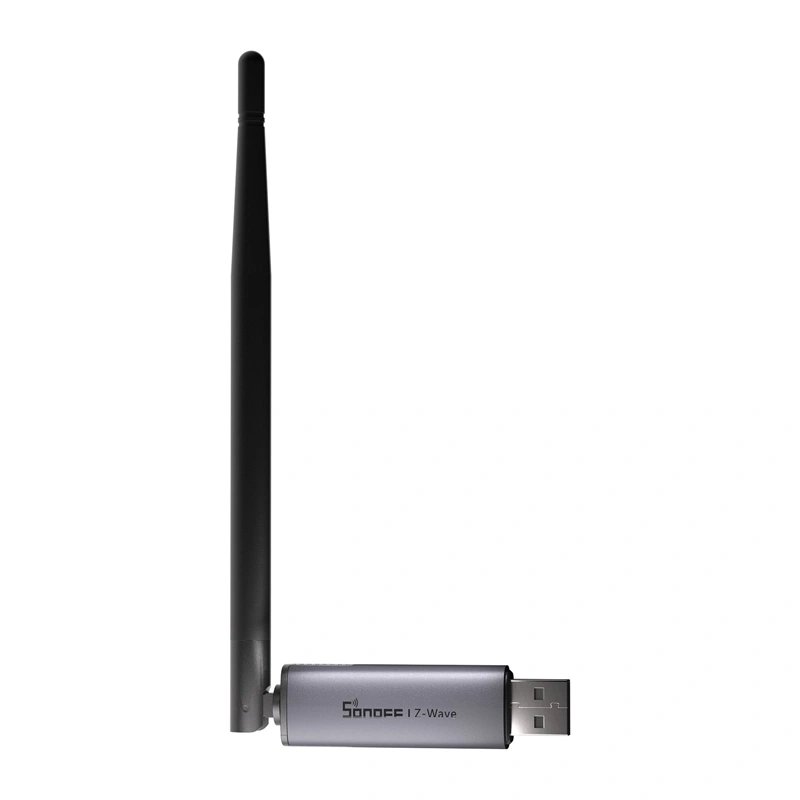

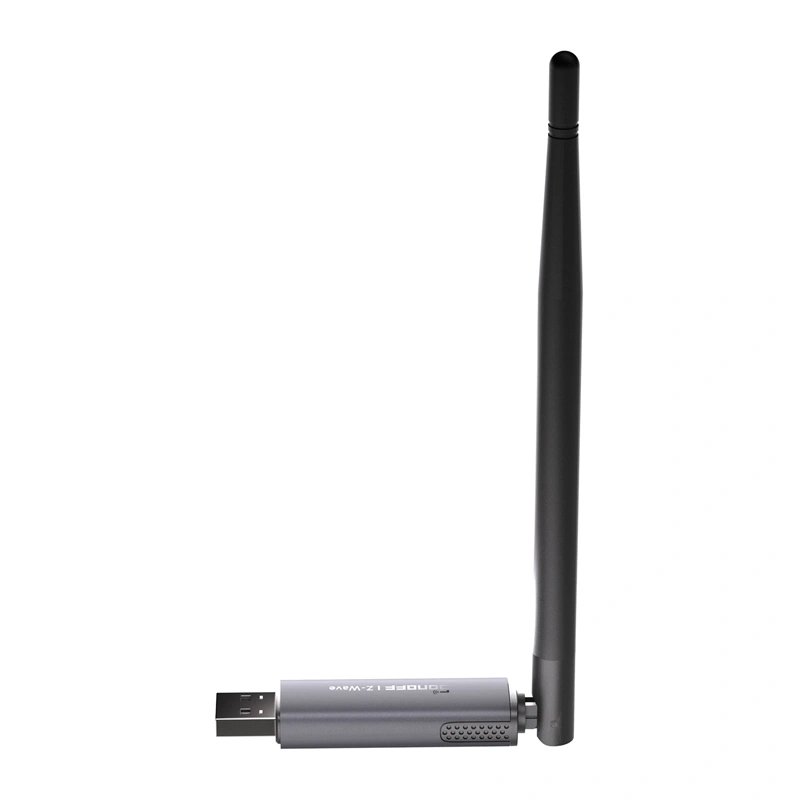

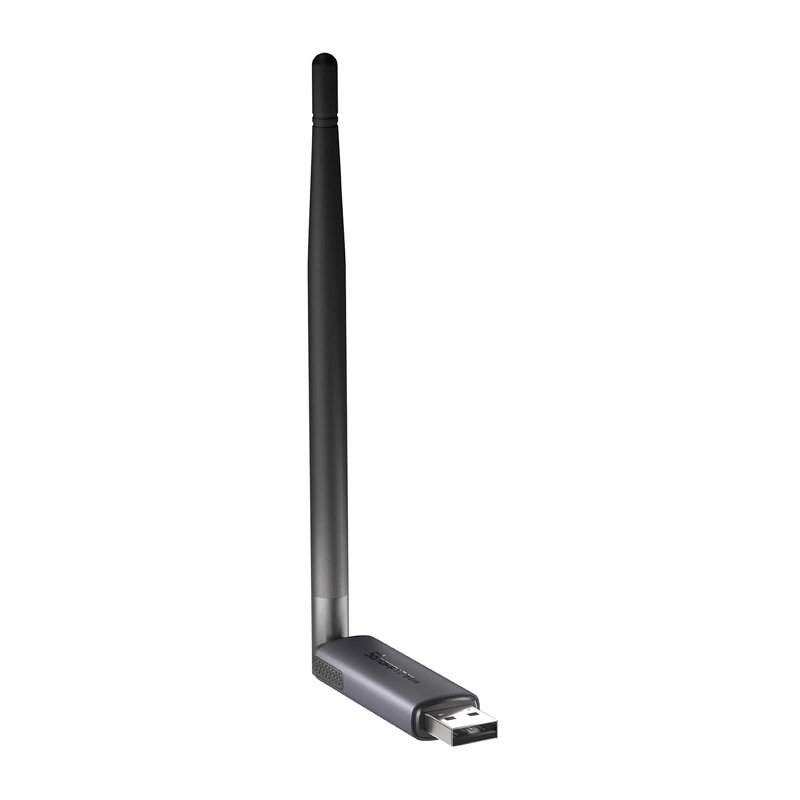

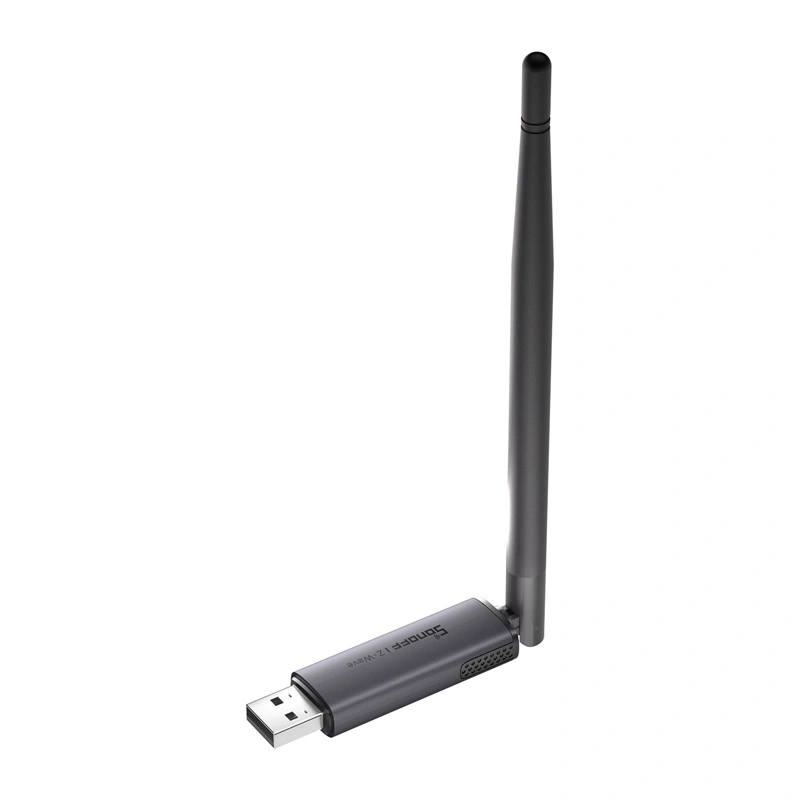

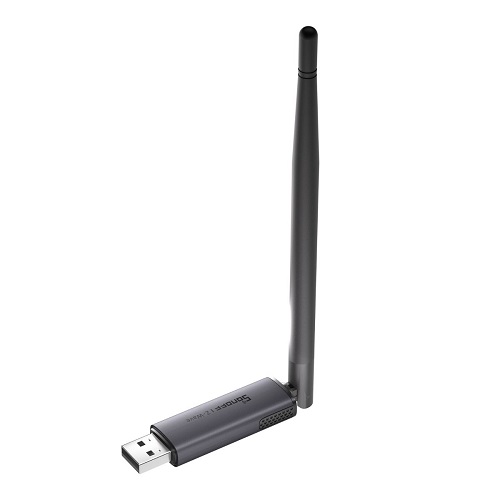

Sonoff Dongle-PZG23 Z-Wave 800 USB Adapter
Price: 39.60 €
| Products ID: | 159057 |
|---|---|
| Manufactured by: | Sonoff |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6979033600157 |
Delivery options to:
Choose countryThe Sonoff Dongle-PZG23 is a universal Z-Wave 800 Series USB adapter designed to connect and control Z-Wave devices via popular smart home platforms.

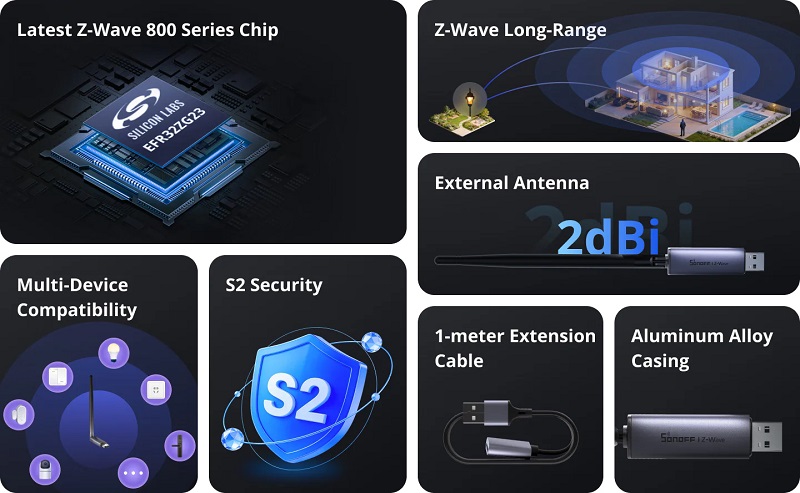

Key Features
- Operates locally without relying on manufacturer cloud services.
- Built on the Z-Wave 800 Series EFR32ZG23 chipset for low power consumption.
- Supports Z-Wave Long Range (ZWLR) technology for distances up to 1000m in open areas.
- Features S2 Security encryption for reliable data transmission.

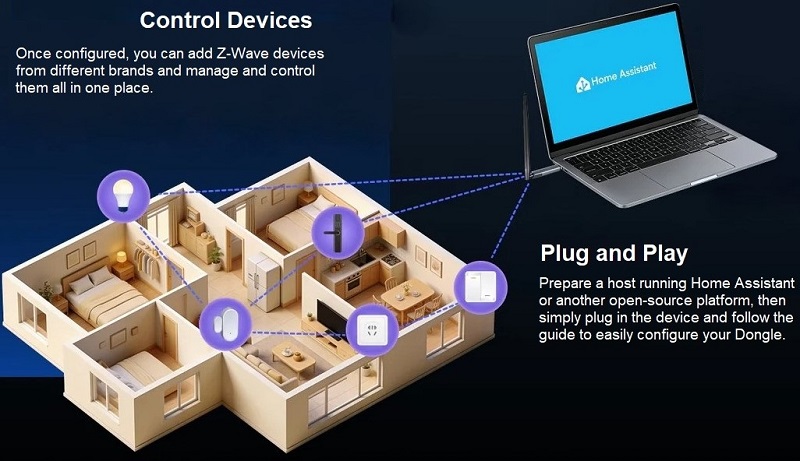

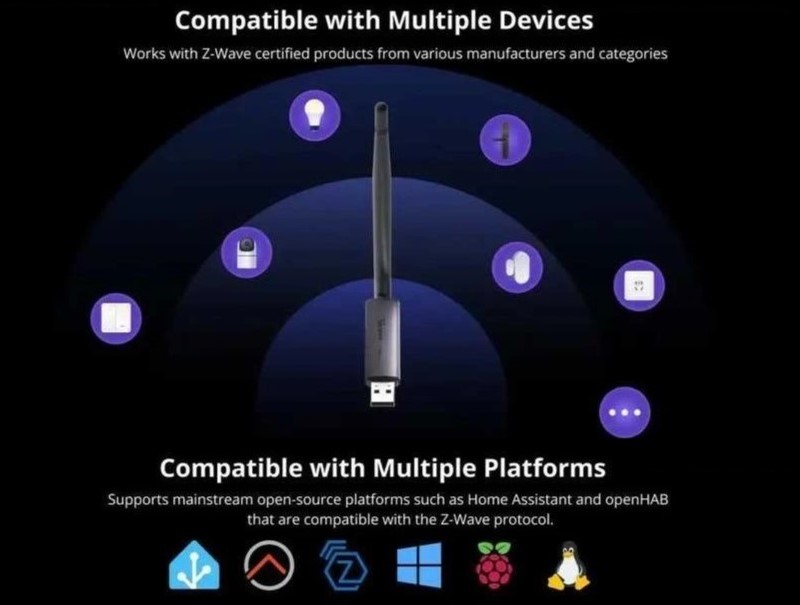

- Compatible with Home Assistant, openHAB, and other Z-Wave platforms.
- Includes a 1m USB extension cable to help reduce interference.
| Model | Dongle-PZG23 |
|---|---|
| Chipset | Silicon Labs EFR32ZG23 |
| Wireless standard | Z-Wave 800 |
| Power interface | USB Type-A |
| Input | 5V DC, max. 500mA |
| Communication range | Up to 300m (Mesh mode), up to 1000m (Long Range mode) |
| Frequency (EU) | 868.4 MHz / 869.85 MHz |
| Supported OS | Windows, Linux, macOS |
| Encryption | S2 Security |
| Housing material | Aluminum, PC, ABS |
| Color | Dark gray |
| Dimensions | 62.5 x 18 x 9 mm |
| Weight | 47 g |
What platforms are supported by this adapter?
It is compatible with Home Assistant, openHAB, and other Z-Wave-compatible platforms.
What is the maximum communication range?
In open space, it can reach up to 300m in Mesh mode and up to 1000m using Z-Wave Long Range mode.
What is included in the package?
The package includes the USB adapter and a 1m USB Type-A extension cable.
