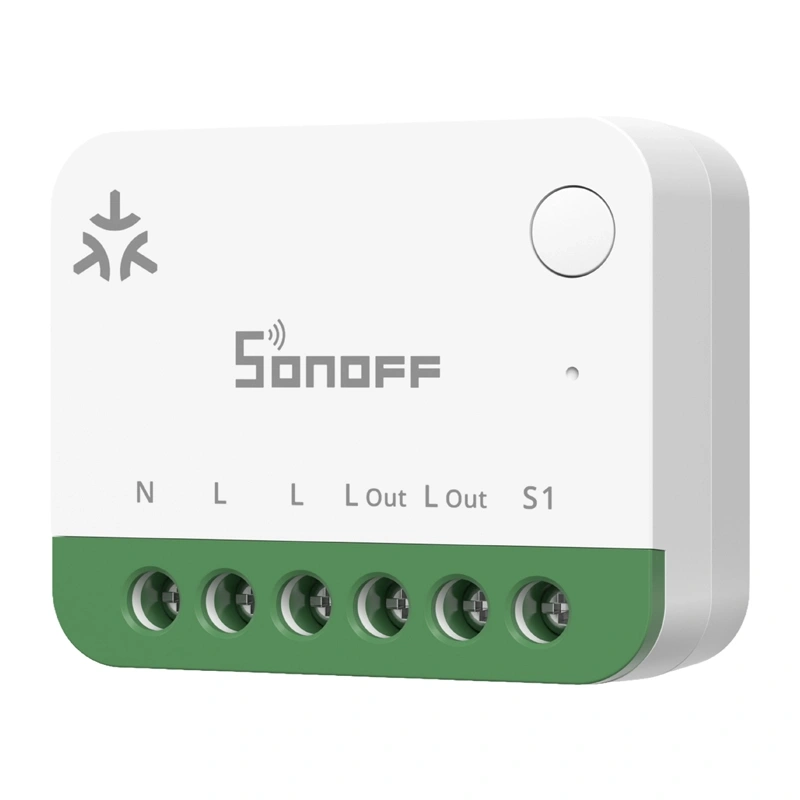

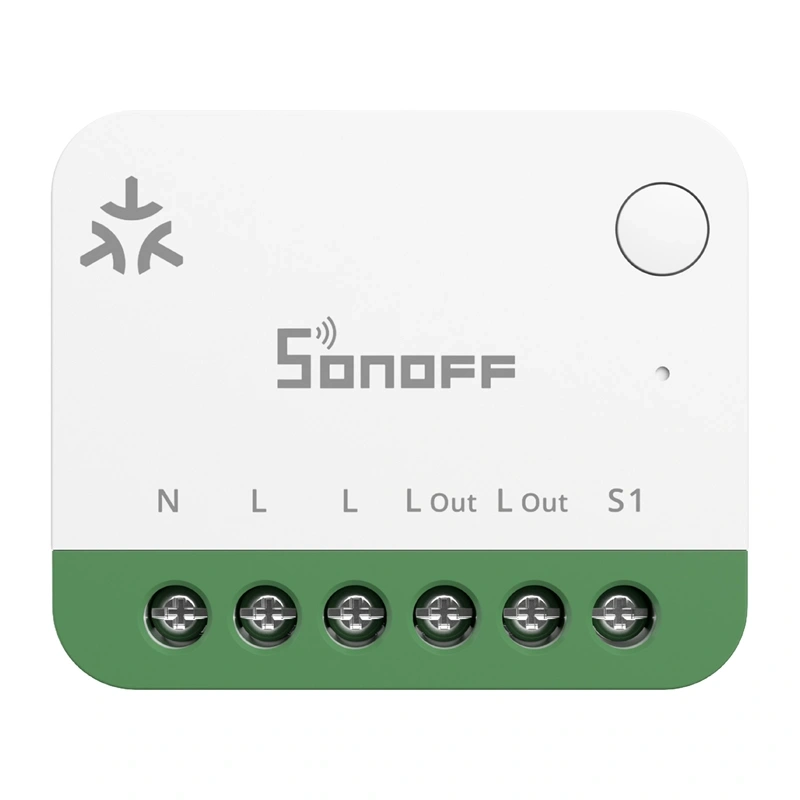

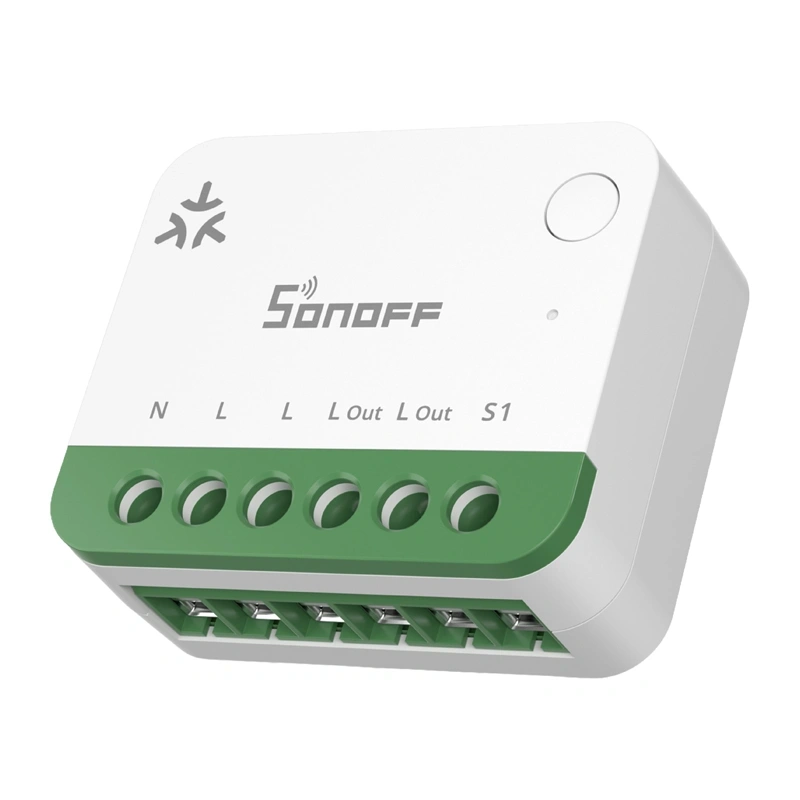

Smart Switch SONOFF MINI ONE Wi-Fi MINI-1GSP, Matter, 16A
Sonoff
| Products ID: | 193181 |
|---|---|
| Manufactured by: | Sonoff |
| Availablity: | Ready to Order |
| Delivery Time | 5-12 business days |
| EAN: | 6979033600539 |
Delivery options to:
Choose country
The SONOFF MINI ONE Wi-Fi (MINI-1GSP) is a smart switch with energy monitoring capabilities designed for concealed indoor installation and device automation.
Local Control and Smart Home Integration
Supporting the Matter standard, the switch integrates with Apple Home, Google Home, and Alexa ecosystems. A built-in local web console enables direct access via a web browser over the local network without relying on cloud services. Open interfaces including HTTP, WebSocket, and MQTT provide compatibility with platforms such as Home Assistant, OpenHAB, ioBroker, and Node-RED.
Energy Monitoring and Protection
Built-in bidirectional metering tracks energy consumption of connected appliances as well as generation from solar systems. Supporting loads up to 16 A (3680 W), the device monitors current, voltage, power, and temperature, cutting off power automatically in the event of overload or overheating.
Compact Installation
The compact PC housing measures 39.5 × 33 × 16.8 mm, facilitating installation in confined junction boxes. It accommodates single-strand or stranded copper wiring from 0.75 mm² to 2.5 mm².
| Manufacturer | SONOFF |
|---|---|
| Product series | MINI Extreme Series Gen5 |
| Model | MINI-1GSP |
| Communication standard | Wi-Fi IEEE 802.11 b/g/n 2.4 GHz |
| Supported smart home standard | Matter |
| Compatible ecosystems | Apple Home, Alexa, Google Home |
| Maximum load | 16 A |
| Rated voltage | 100–240 V~ 50/60 Hz |
| Maximum power | 3680 W |
| Energy measurement | Bidirectional |
| Communication interfaces | HTTP, WebSocket, MQTT, Open API |
| Housing material | PC |
| Color | White, green |
| Dimensions | 39.5 × 33 × 16.8 mm |
| Net weight | 27.3 g |
| Recommended wire cross-section | 0.75–2.5 mm² |
| Wire type | Single-strand or stranded copper |
| Operating temperature | -10°C to 40°C |
| Operating humidity | 10–90% RH, non-condensing |
| Certifications | CE / RoHS / FCC |
What is included in the package?

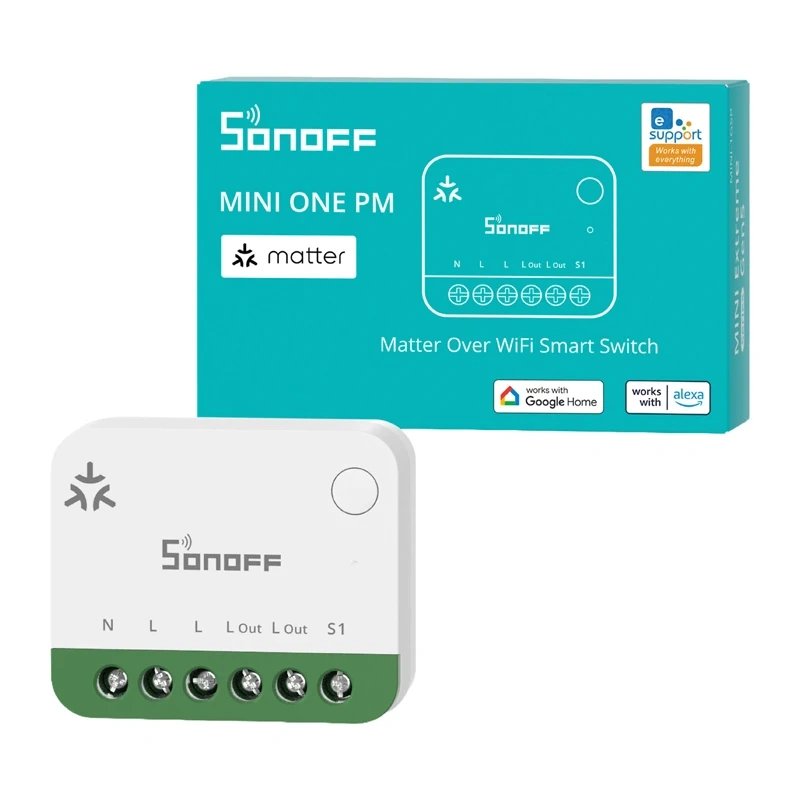

The package includes the SONOFF MINI ONE Wi-Fi switch MINI-1GSP and a user manual.
Which smart home platforms work with this switch?
The switch supports Matter and works with Apple Home, Google Home, and Alexa.
What wire sizes are compatible?
The switch is compatible with single-strand or stranded copper wires ranging from 0.75 mm² to 2.5 mm² in cross-section.
