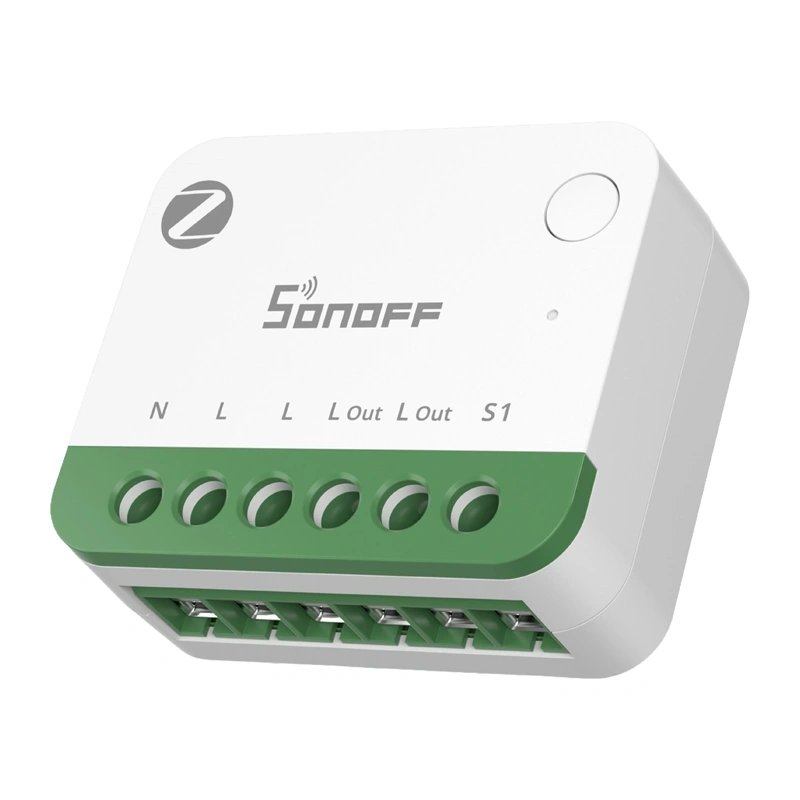

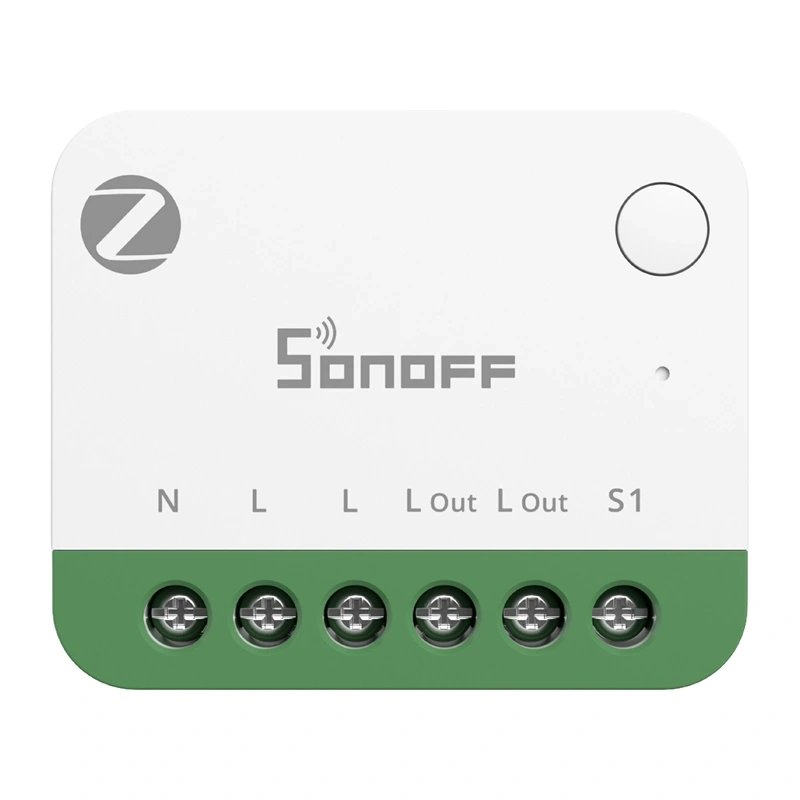

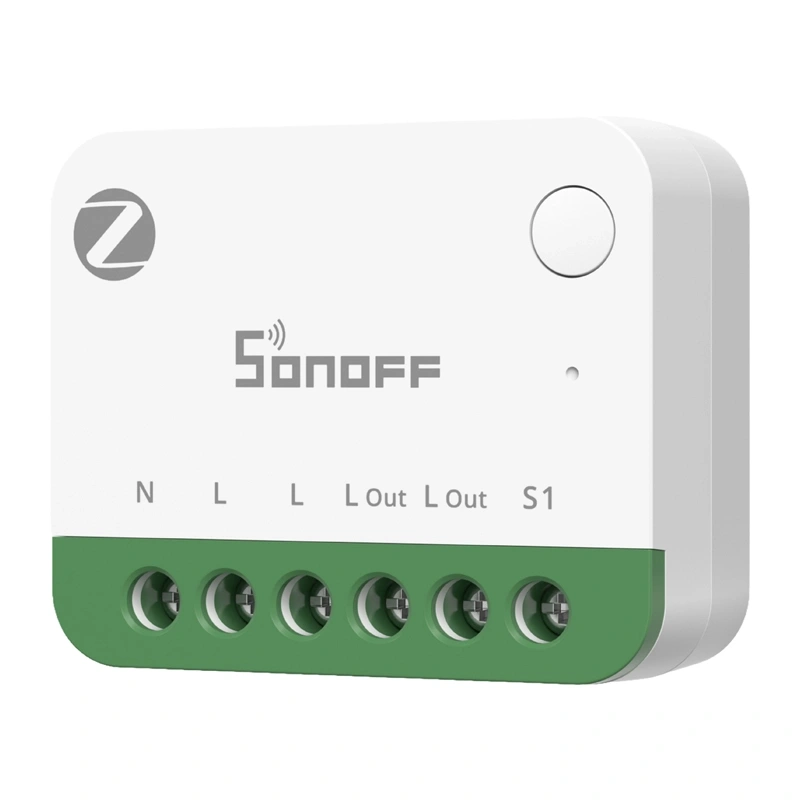

Smart Switch SONOFF MINI ONE PM ZigBee MINI-ZB1GSP 16A
Sonoff
| Products ID: | 193180 |
|---|---|
| Manufactured by: | Sonoff |
| Availablity: | Ready to Order |
| Delivery Time | 5-12 business days |
| EAN: | 6979033600515 |
Delivery options to:
Choose country
The SONOFF MINI ONE PM ZigBee MINI-ZB1GSP smart switch converts traditional electrical devices into smart home components. It offers remote control, energy consumption monitoring, and automation based on the Zigbee 3.0 standard, with a load capacity of up to 16 A (3680 W).
Bidirectional Energy Metering and Rate Analysis
Built-in bidirectional energy metering tracks electricity consumption and solar-generated energy in real time. The mobile app provides detailed graphs, exportable data, and customizable currency and time-of-use rates to help monitor operational costs.
Operation Detection and System Protection
The switch detects the operating status of connected appliances, sending app notifications upon task completion alongside maintenance reminders. For enhanced electrical safety, integrated protection guards against overload, overcurrent, overvoltage, and undervoltage by automatically cutting off power when thresholds are exceeded.
Compact Installation and Zigbee Router Support
Measuring 39.5 × 33 × 16.8 mm, the switch easily fits into confined spaces for concealed indoor installation. It also acts as a Zigbee router, relaying signals to extend the operational range and stability of your smart home network.
| Manufacturer | SONOFF |
|---|---|
| Product series | MINI Extreme Series Gen5 |
| Model | MINI-ZB1GSP |
| Communication standard | Zigbee IEEE 802.15.4 |
| Maximum current | 16 A |
| Rated voltage | 100–240 V~ 50/60 Hz |
| Maximum power | 3680 W |
| Energy measurement function | Yes |
| Bidirectional measurement | Yes |
| Zigbee router function | Yes |
| Housing material | PC |
| Color | White, green |
| Dimensions | 39.5 × 33 × 16.8 mm |
| Net weight | 27.3 g |
| Recommended wire gauge | 0.75–2.5 mm² |
| Operating temperature | -10°C to 40°C |
| Operating humidity | 10–90% RH, non-condensing |
| Certifications | CE / RoHS / FCC |

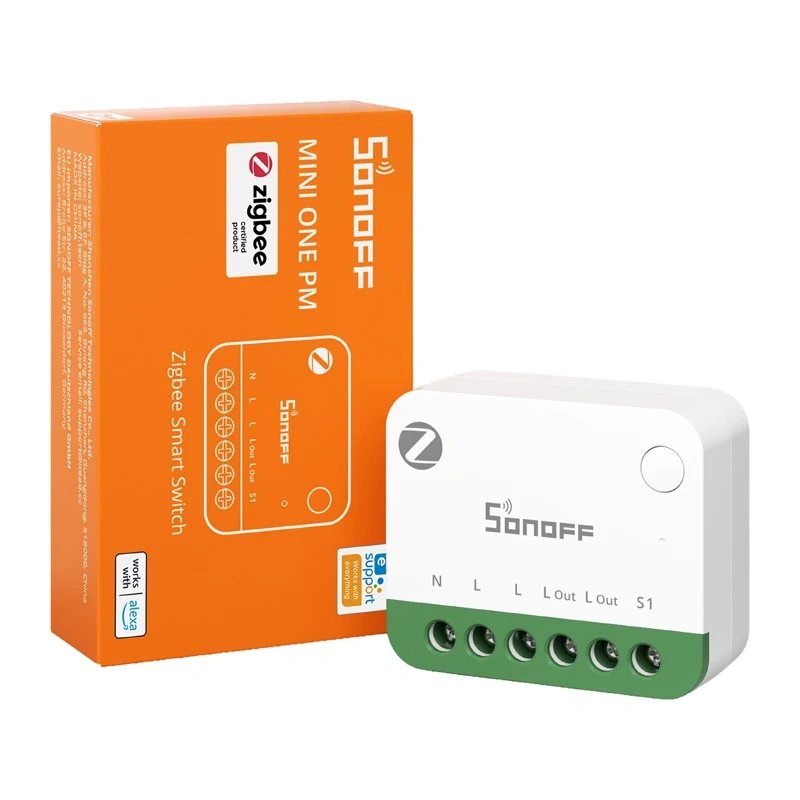

What is included in the set?
The package includes the SONOFF MINI ONE PM switch and a user manual.
What wire sizes are supported?
The switch supports copper wires with cross-sections ranging from 0.75 mm² to 2.5 mm².
Does the device function as a Zigbee router?
Yes, it can function as a Zigbee router to relay signals and increase overall network range and stability.
