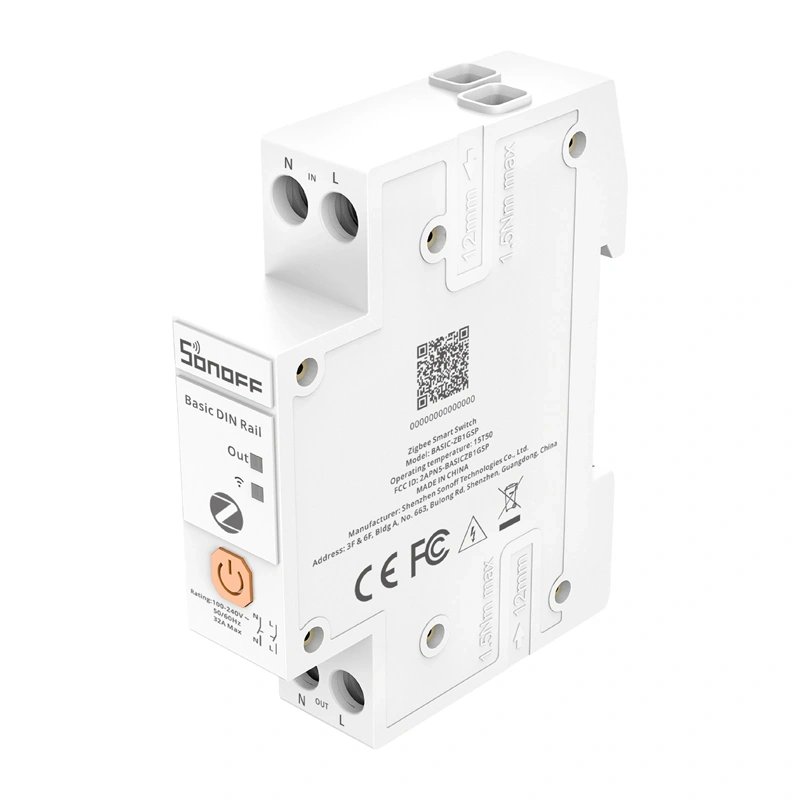

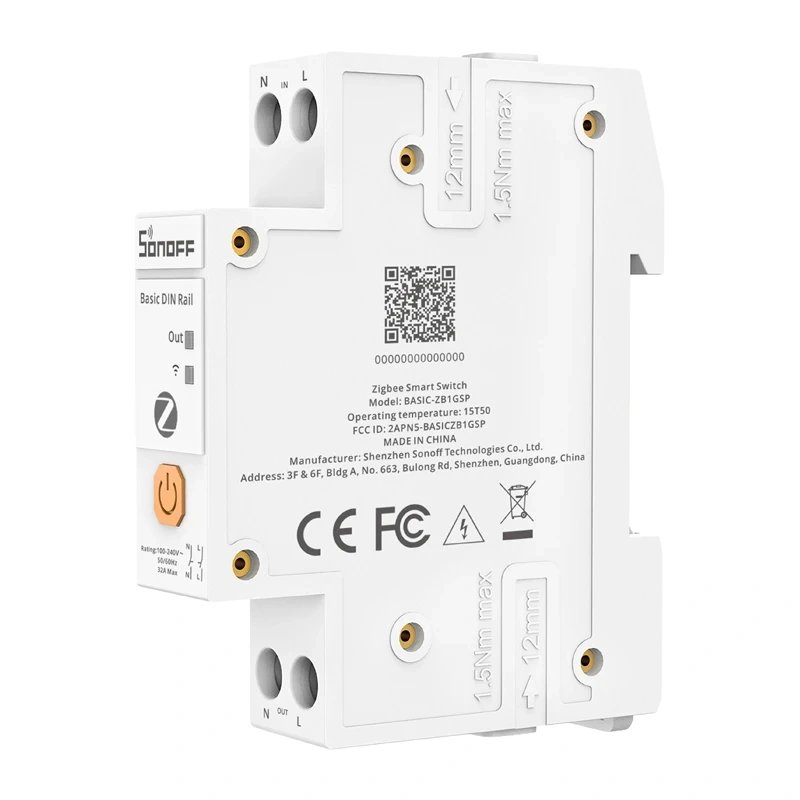

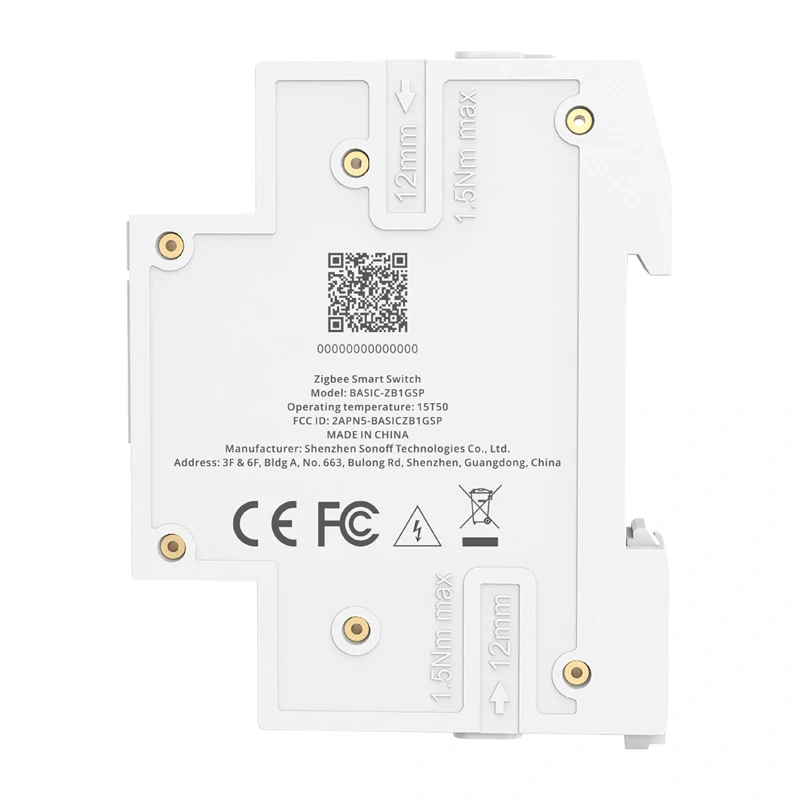

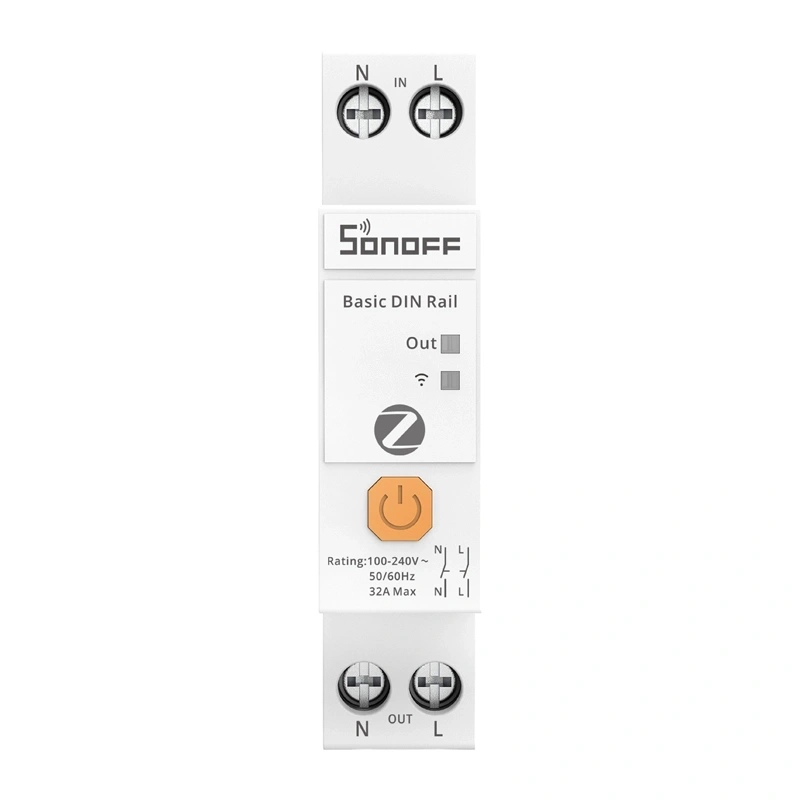

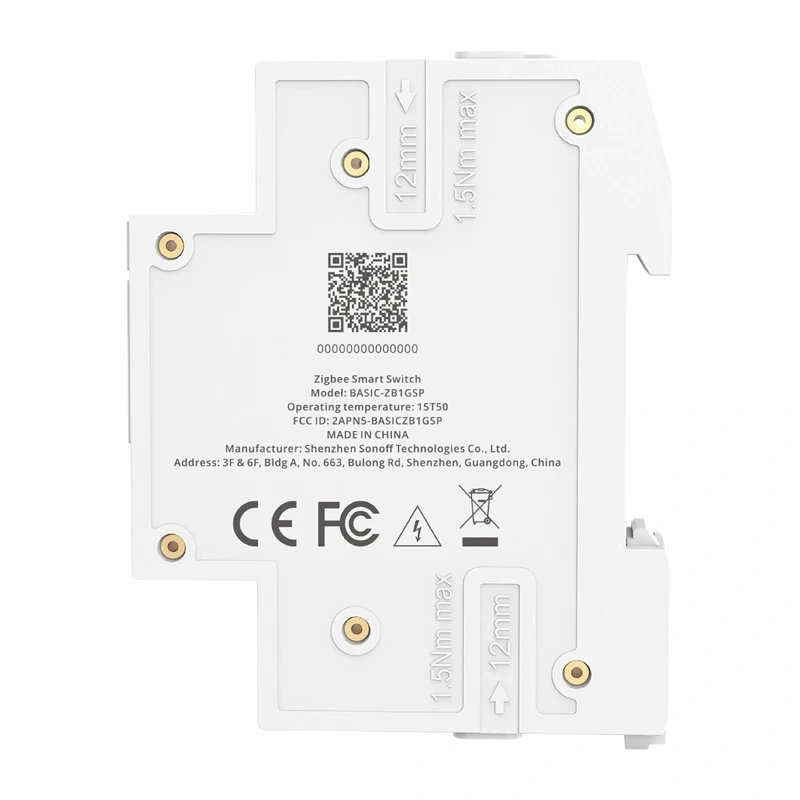

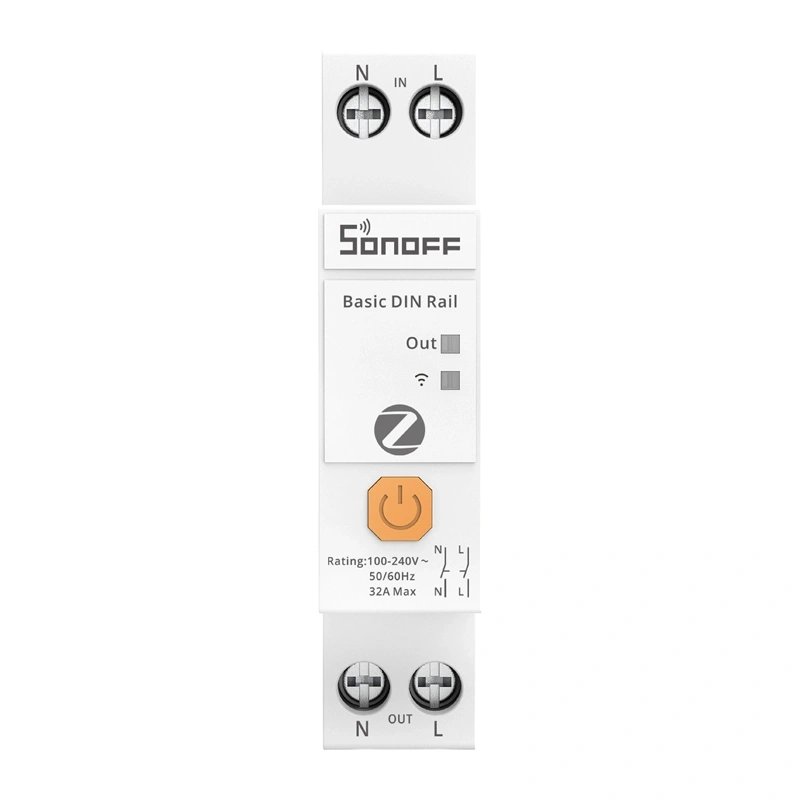

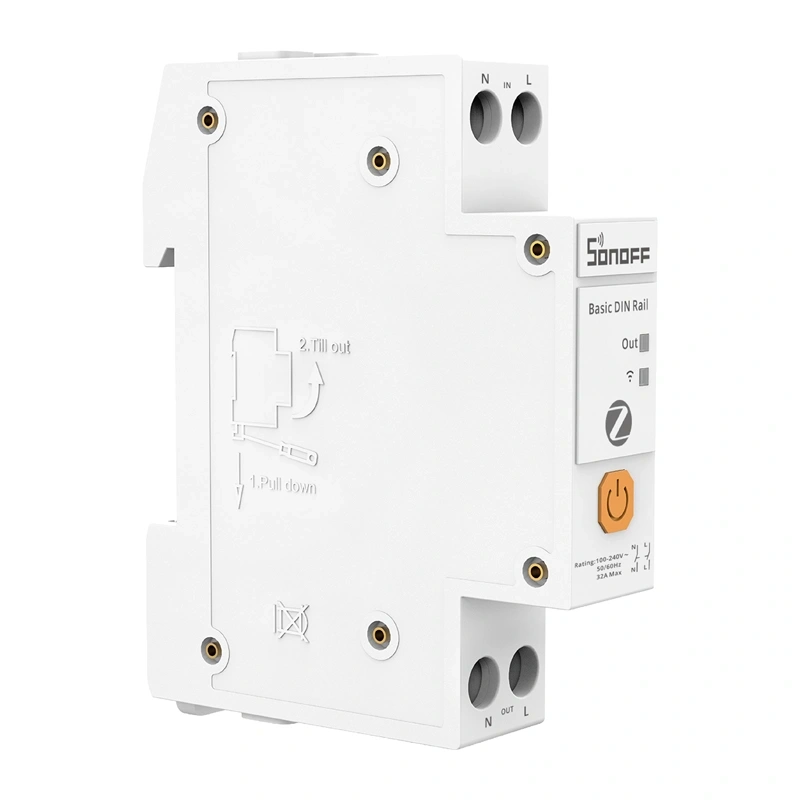

Smart Switch SONOFF BASIC-ZB1GSP Zigbee 3.0 DIN-Rail Relay, 32 A, White
Sonoff
| Products ID: | 193182 |
|---|---|
| Manufactured by: | Sonoff |
| Availablity: | Ready to Order |
| Delivery Time | 5-12 business days |
| EAN: | 6979033600652 |
Delivery options to:
Choose country
The SONOFF BASIC-ZB1GSP is a high-power smart switch featuring Zigbee 3.0 connectivity and standard DIN-rail mounting for distribution panels. Supporting loads up to 32 A and 7,680 W, it is built to manage demanding appliances such as electric vehicle chargers, water heaters, and heating systems.
Energy Monitoring and Overload Protection
Track electrical parameters including voltage, current, power, and overall energy consumption in real time. Historical data can be stored and exported for analysis. The switch also supports customizable overload protection thresholds and dual switching to disconnect both phase and neutral lines simultaneously.
Zigbee 3.0 Network and Hardware Design
Equipped with Zigbee 3.0, the unit functions as a network router to extend signal range and ensure stable connectivity across your automation setup. Housed in durable PC plastic, the compact enclosure accommodates solid and stranded copper wiring from 4 mm² to 10 mm².
- Mounts directly on standard DIN rails without modifications
- Real-time electrical measurement and data export
- High load capability up to 32 A and 7,680 W
- Dual-pole isolation disconnecting phase and neutral
| Manufacturer | SONOFF |
|---|---|
| Product series | Basic Series |
| Model | BASIC-ZB1GSP |
| Communication standard | Zigbee 3.0 |
| Rated voltage | 100–240 V~ 50/60 Hz |
| Maximum current | 32 A |
| Maximum power | 7 680 W |
| Energy measurement function | Yes |
| Energy monitoring range | Voltage, current, power, energy consumption |
| Housing material | PC |
| Color | White |
| Dimensions | 84 × 66.5 × 18 mm |
| Net weight | 93.5 g |
| Recommended wire cross-section | 4–10 mm² |
| Wire type | Copper SOL/STR |
| Application | Indoors |
| Operating temperature | -15°C to 50°C |
| Operating humidity | 10–90% RH, non-condensing |
| Certifications | CE / RoHS / FCC / CP65 / Zigbee 3.0 / WWA |
What is the maximum load supported by this switch?
The SONOFF BASIC-ZB1GSP supports a maximum current of 32 A and a maximum power of up to 7,680 W.
How is the switch installed?
The switch is designed for standard DIN-rail mounting inside electrical distribution enclosures without additional drilling.
What items are included in the package?
The package contains the SONOFF BASIC-ZB1GSP smart switch and a user manual.
