Smart Relay Switch Shelly 1PM Gen4 Zigbee / Matter, 2 Pack
-8%
Price: 50.50 €46.70 €
| Products ID: | 147537 |
|---|---|
| Manufactured by: | Shelly |
| Availablity: | Ready to Order |
| Delivery Time | 5-12 business days |
| EAN: | 3800238070724 |
Delivery options to:

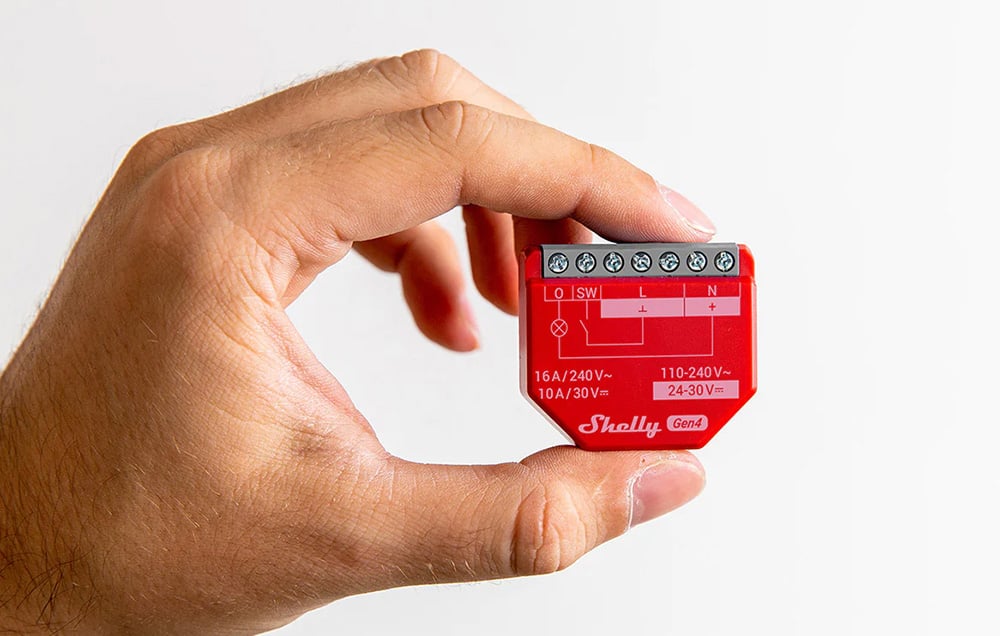

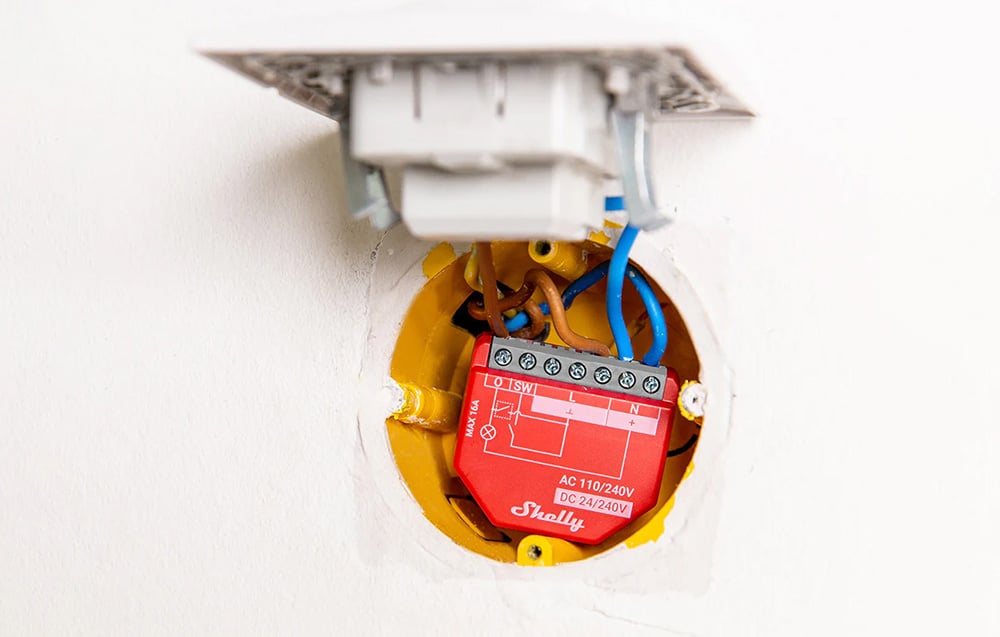

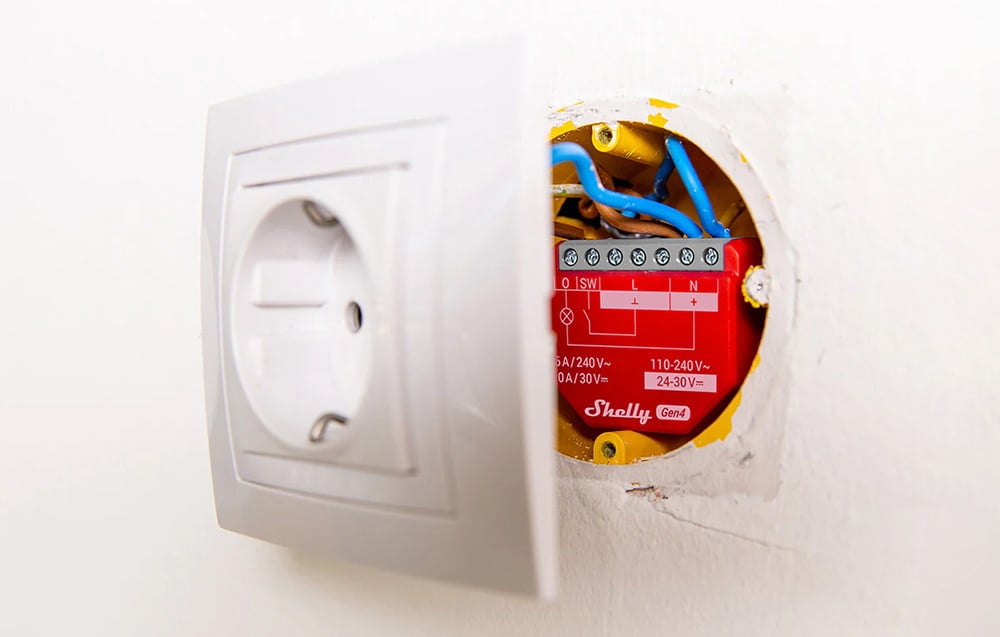

Choose countryThe Shelly 1PM Gen4 is a compact flush-mounted smart switch and controller featuring energy consumption monitoring and support for Zigbee, Wi-Fi, Bluetooth, and Matter. It allows remote management of connected electrical loads and real-time power analysis, easily fitting into flush-mount wall boxes behind outlets or switches.
Key Features
- Multi-protocol connectivity: Wi-Fi, Bluetooth 5.0, Zigbee, and Matter

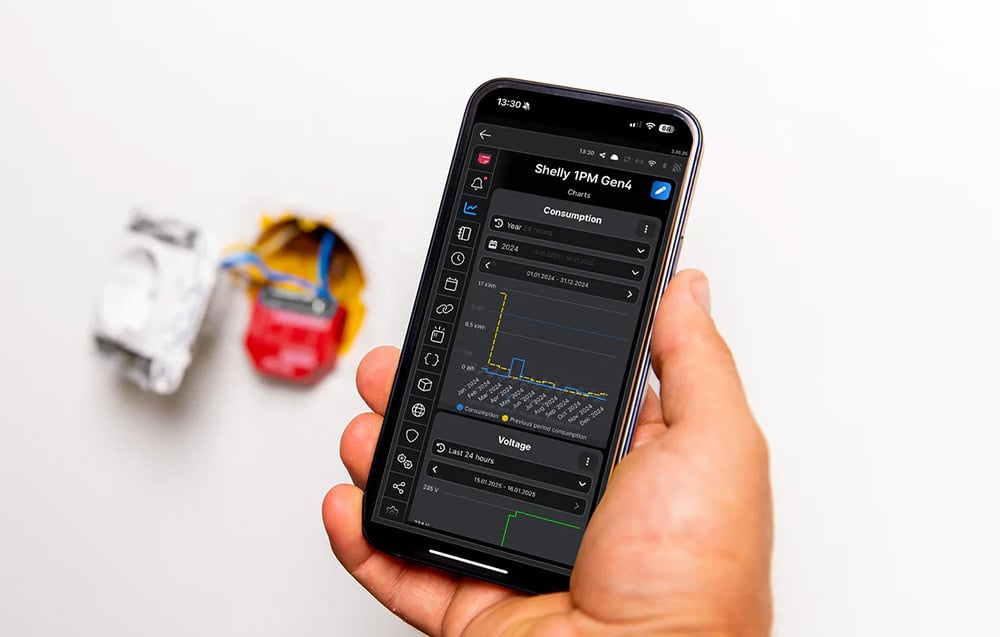

- Built-in wattmeter and ammeter for real-time power monitoring
- Acts as a Zigbee and Wi-Fi network signal repeater
- Broad system integration via MQTT, HTTPS, webhooks, and ShellyScript
- Integrated internal temperature sensor for overheat protection
- Supplied as a practical set of 2 units
| Manufacturer | Shelly |
|---|---|
| Model | 1PMGen4 |
| Dimensions | 37 x 42 x 16 mm / 1.46 x 1.65 x 0.63 inches |
| Weight | 27 g / 0.95 oz |
| Maximum terminal tightening torque | 0.4 Nm / 3.5 lbin |
| Wire cross-section | 0.2 to 2.5 mm² / 24 to 14 AWG (strand, wire, tube) |
| Wire stripping length | 6 to 7 mm / 0.24 to 0.28 inches |
| Mounting | Wall bracket |
| Housing material | Plastic |
| Housing color | Red |
| Terminal color | Gray |
| Operating temperature | -20 °C to 40 °C / -5 °F to 105 °F |
| Operating humidity | 30% to 70% RH |
| Maximum altitude | 2000 m / 6562 ft |
| Power supply | 110–240 V~ ; 24–30 V⎓ |
| Power consumption | < 1 W |
| Neutral wire required | Yes |
| External protection | Overcurrent circuit breaker compliant with EN60898-1 (B or C characteristic, rated current max. 16 A, breaking capacity min. 6 kA, energy limitation class 3) |
| Voltmeter (AC) | Yes |
| Ammeter (AC) | Yes |
| Internal temperature sensor | Yes |
| Wi-Fi protocol | 802.11 b/g/n |
| Wi-Fi RF band | 2412 – 2472 MHz |
| Wi-Fi RF power | < 20 dBm |
| Wi-Fi range | Up to 30 m indoors / 50 m outdoors (depending on conditions) |
| Bluetooth protocol | 5.0 |
| Bluetooth RF band | 2402 – 2480 MHz |
| Bluetooth RF power | < 4 dBm |
| Bluetooth range | Up to 10 m indoors / 30 m outdoors (depending on conditions) |
| Zigbee protocol | 802.15.4 |
| Zigbee repeater | Yes |
| Zigbee RF band | 2400 – 2483.5 MHz |
| Zigbee RF power | < 20 dBm |
| Zigbee range | Up to 100 m indoors / 300 m outdoors (depending on conditions) |
| CPU | ESP-Shelly-C68F |
| Flash memory | 8 MB |
| Schedules | 20 |
| Webhooks (URL actions) | 20 with 5 URLs per webhook |
| Scripts | Yes |
| MQTT | Yes |
What is included in the package?
The package includes 2 Shelly 1PM Gen4 controllers and a user manual.
Is a neutral wire required for installation?
Yes, this controller requires a neutral wire connection.
Which wireless communication protocols are supported?
The Shelly 1PM Gen4 supports Wi-Fi (802.11 b/g/n), Bluetooth 5.0, Zigbee (802.15.4), and Matter.
