Smart DIN Rail Relay Shelly Pro 1, 16 A, Wi-Fi, LAN, Bluetooth

58.20 € 81.80 € You save 23.60 € incl. VAT
In supplier warehouse · 393 pcs. Delivery Time: 4–10 business days

In your cart: 0

Delivery options to:

Choose country

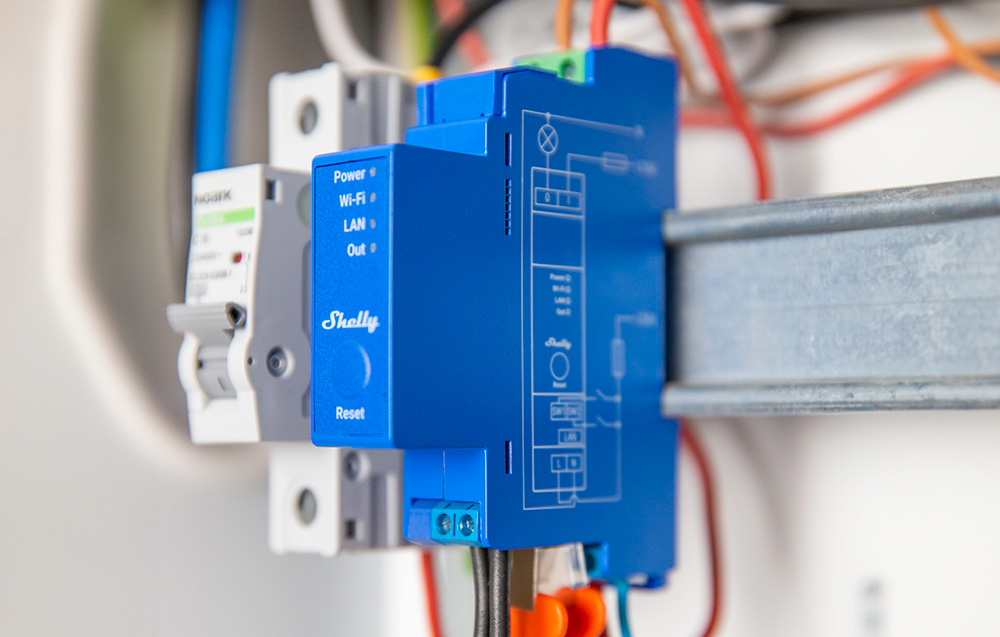

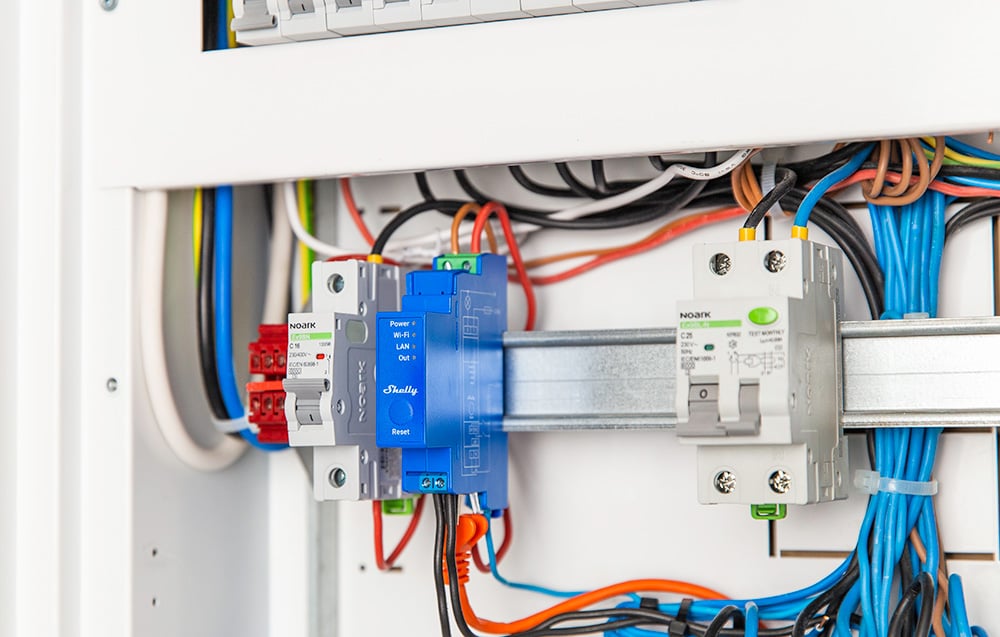

The Shelly Pro 1 is a single-channel DIN rail-mounted smart relay designed for home and building automation, handling electrical loads up to 16 A.

Key Features

  • Single channel equipped with potential-free dry contacts
  • Multi-connectivity via Wi-Fi, wired LAN, and Bluetooth
  • Direct integration with Google Assistant, Samsung SmartThings, and Amazon Alexa
  • Scripting support for custom event-based automation scenarios
  • Integrated internal temperature sensor

ManufacturerShelly
ModelSPSW-201XE16EU
AC Power Supply Voltage110 - 240 V
Power Consumption< 3 W
Max AC Switching Voltage240 V
Max AC Switching Current16 A
Internal Temperature SensorYes
Wi-Fi Protocol802.11 b/g/n
Wi-Fi RangeUp to 30 m indoors and up to 50 m outdoors
Bluetooth Protocol4.2
Bluetooth RangeUp to 10 m indoors and up to 30 m outdoors
CPUESP32-D0WDQ6
Flash Memory8 MB
Dimensions94 x 19 x 69 ±0.5 mm
MountingDIN rail
Housing MaterialPlastic
Ambient TemperatureFrom -20°C to +40°C
HumidityFrom 30% to 70% RH
Maximum Altitude2000 m
EAN3800235268001
What is the maximum current rating of the Shelly Pro 1?

The Shelly Pro 1 supports a maximum AC switching current of 16 A at up to 240 V.

Which network connections are supported?

It features Wi-Fi (802.11 b/g/n), Ethernet LAN, and Bluetooth 4.2 connectivity.

Which smart home assistants are compatible?

It integrates with Google Assistant, Samsung SmartThings, and Amazon Alexa.
