Shelly SSR Add-on Dual-Channel Module for The Pill, Black
Price: 28.00 €
| Products ID: | 176822 |
|---|---|
| Manufactured by: | Shelly |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 3800238073589 |
Delivery options to:
Choose country

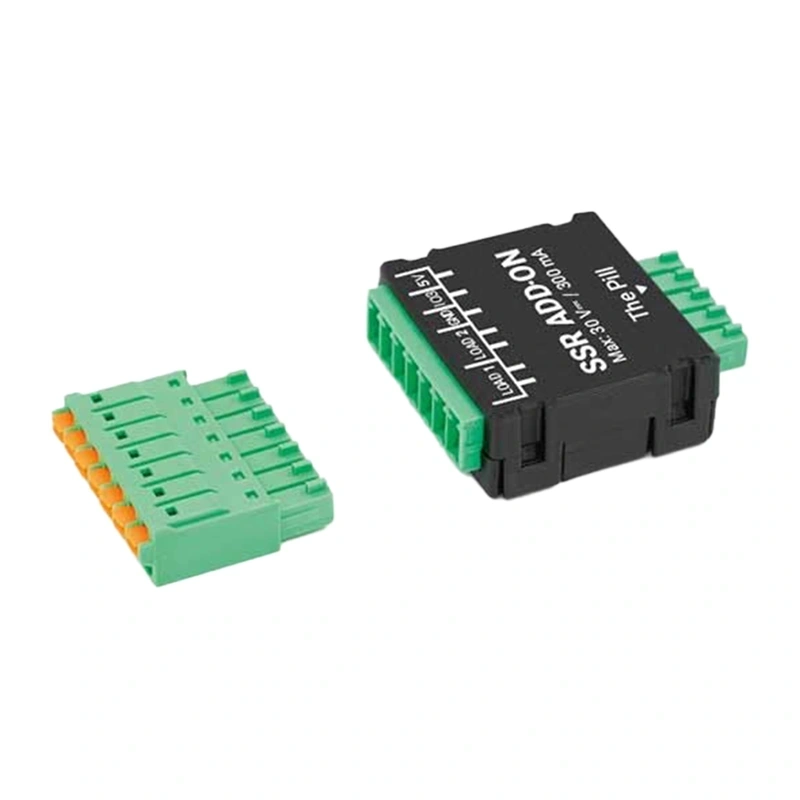

The Shelly SSR Add-on module expands the capabilities of The Pill by Shelly, enabling independent control of two DC loads with a voltage of up to 30 V and a current of up to 300 mA per channel.
Key Features
- Two independent SSR outputs (LOAD1 and LOAD2) for DC-powered equipment
- Galvanically isolated solid-state relays for silent and safe switching
- IO3 port with 3.3 V logic level configurable as digital input or digital output
- Low power consumption under 0.6 W
- Compact dimensions of 36 × 31 × 11.5 mm for installation in confined spaces
| Manufacturer | Shelly |
|---|---|
| Model | SSR Add-on |
| Compatibility | The Pill by Shelly (requires 5-Terminal Add-on) |

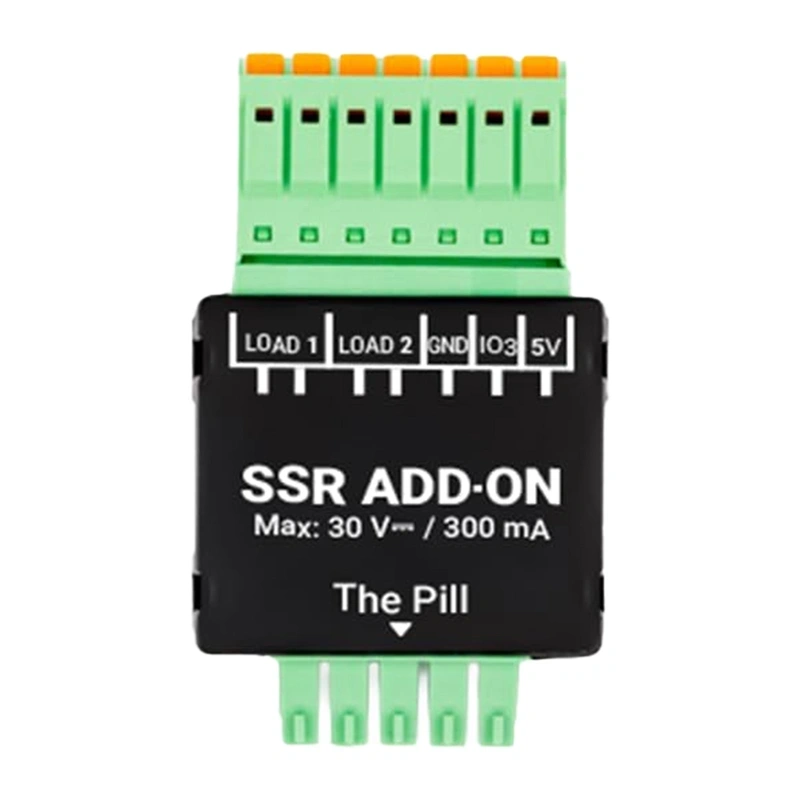

| Outputs | LOAD1, LOAD2 |
| Maximum switching voltage | 30 V DC |
| Maximum switching current | 300 mA |
| Input/Output | IO3 (3.3 V logic level) |
| IO3 Configuration | Digital input or digital output |
| Additional Terminals | 5V, GND |
| Power Consumption | < 0.6 W |
| Dimensions | 36 × 31 × 11.5 mm |
| Weight | 12 g |
| Color | Black |
| Operating temperature | 0°C to 40°C |
| Storage temperature | -20°C to 40°C |
| Operating humidity | 30% to 70% RH |
| Maximum operating altitude | 2000 m |
What is required to connect the module to The Pill by Shelly?
A 5-Terminal Add-on is required to connect the module to The Pill by Shelly and is sold separately.
What are the load ratings supported by the SSR outputs?
Each channel (LOAD1 and LOAD2) supports DC loads with a maximum voltage of 30 V DC and a maximum current of 300 mA.
