Shelly Shutter Wi-Fi Blind and Curtain Controller
Shelly
| Products ID: | 196033 |
|---|---|
| Manufactured by: | Shelly |
| Availablity: | Ready to Order |
| Delivery Time | 5-12 business days |
| EAN: | 3800238071745 |
Delivery options to:

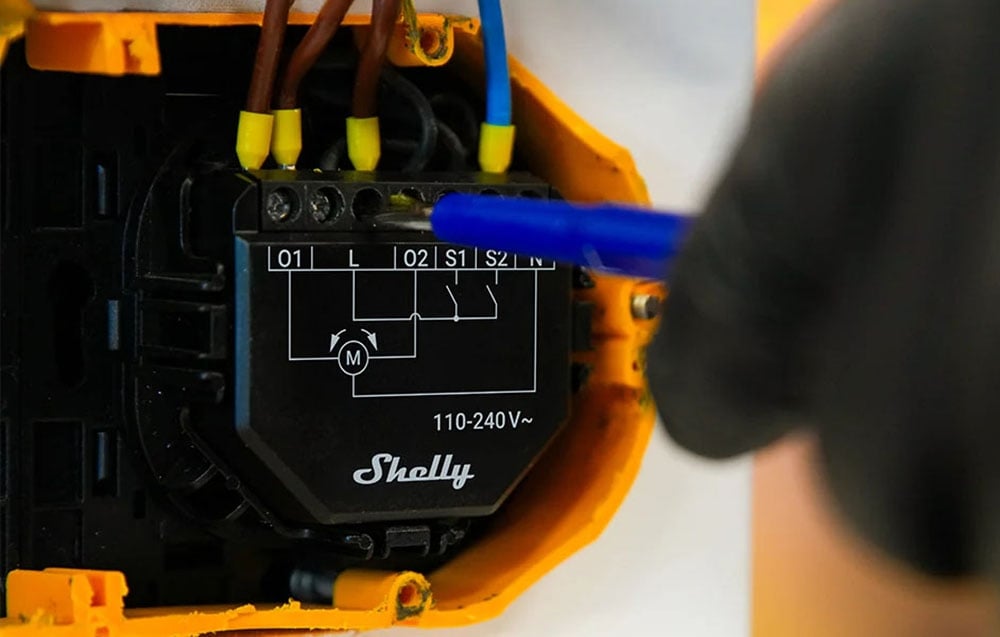

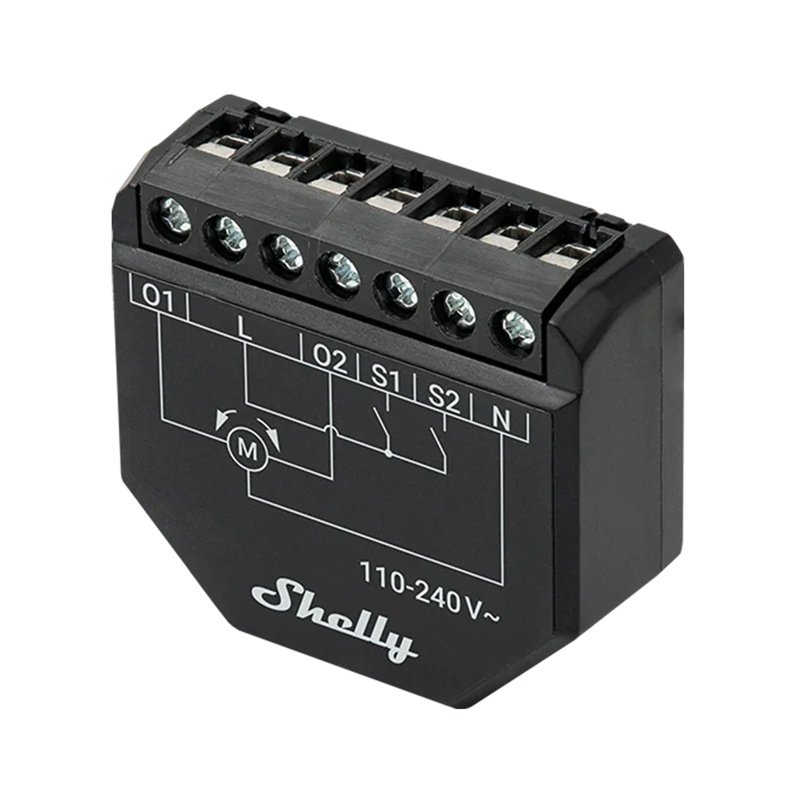

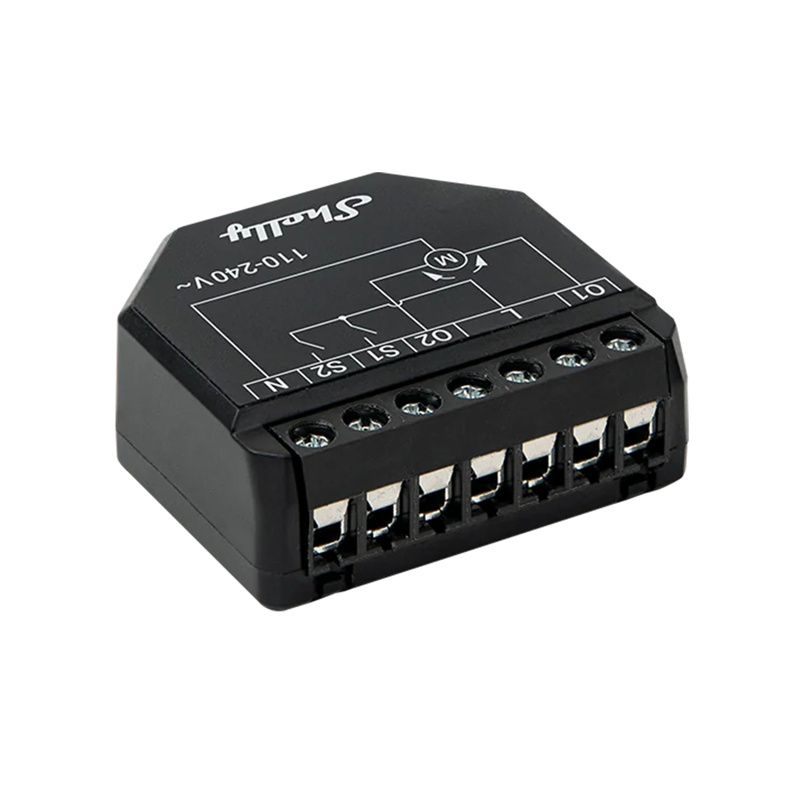

Choose countryThe Shelly Shutter controller is a compact smart home solution designed for installation in a standard electrical box behind a switch or button. It provides motorized control over blinds, shades, curtains, and awnings, while integrating energy metering to track electricity consumption.
Remote Control and Automation

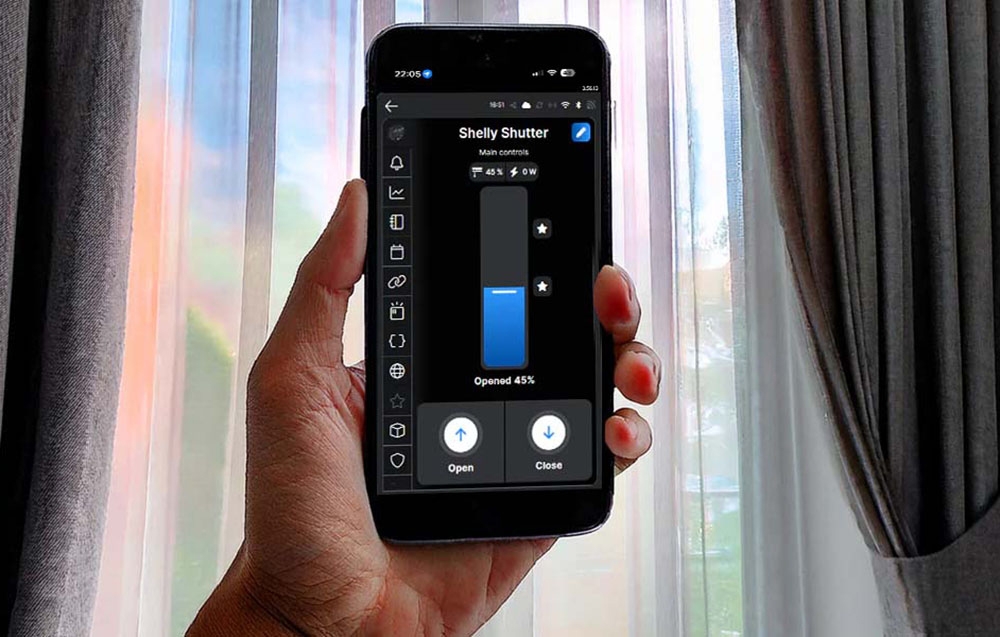

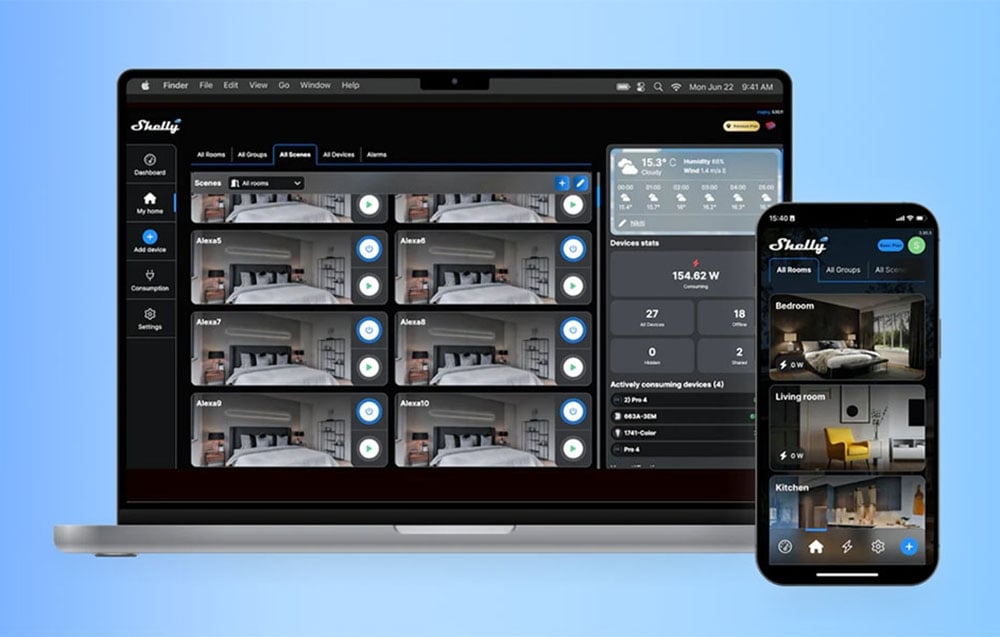

Manage your window coverings remotely via smartphone, tablet, computer, or home automation platform, both locally through Wi-Fi and via the cloud. The controller supports automated schedules aligned with sunrise and sunset, as well as customized automation scenarios with other Shelly devices. In addition to opening and closing, it supports tilt control for Venetian blind slats.
Connectivity and System Integration
Shelly Shutter features Wi-Fi and Bluetooth connectivity and integrates with Amazon Alexa, Google Smart Home, Samsung SmartThings, and KNX over IP. It also supports HTTP API, MQTT, webhooks, and UDP protocols. Built-in overload and overheating protections ensure reliable operation, while over-the-air updates keep the system maintained.
| Manufacturer | Shelly |
|---|---|
| Model | Shutter |
| Dimensions (H × W × D) | 37 × 42 × 16 ±0.5 mm |
| Weight | 30 g |
| Maximum tightening torque of screw terminals | 0.4 Nm |
| Cable cross section | 0.2 to 2.5 mm² (solid, wire and crimp sleeves) |
| Wire stripping length | 6 to 7 mm |
| Mounting | Installation box |
| Housing material | Plastic |
| Housing color | Black |
| Clamp color | Black |
| Ambient operating temperature | -20°C to 40°C |
| Humidity | 30% to 70% RH |
| Maximum altitude | 2000 m |
| Power supply | 110-240 V~ 50/60 Hz |
| Power consumption | < 1,4 W |
| External protection | Tripping characteristic B or C, max. rated current 16 A, minimum breaking capacity 6 kA, energy limitation class 3 |
| Maximum switching voltage | 240 V~ |
| Maximum AC switching current | 4 A for motors with compensated power factor (inductive loads) |
| Supported motor type | AC single-phase motors |
| Required limit switches | Electronic or mechanical |
| Voltmeter (AC) | Yes |
| Ammeter (AC) | Yes |
| Internal temperature sensor | Yes |
| Wi-Fi protocol | 802.11 b/g/n |
| RF bandwidth (Wi-Fi) | 2412 - 2472 MHz |
| Max RF power (Wi-Fi) | < 20 dBm |
| Wi-Fi range | Up to 30 m indoors / Up to 50 m outdoors (depending on local conditions) |
| Bluetooth protocol | 4.2 |
| RF bandwidth (Bluetooth) | 2402 - 2480 MHz |
| Max RF power (Bluetooth) | < 4 dBm |
| Bluetooth range | Up to 10 m indoors / up to 30 m outdoors (depending on local conditions) |
| CPU | ESP-Shelly-C38F |
| Flash memory | 8 MB |
| Schedules | 20 |
| Webhooks (URL shares) | 20 with up to 5 URLs per webhook |
| Scripts | Yes |
| MQTT | Yes |
Where is the Shelly Shutter controller installed?
It is installed inside a standard electrical installation box directly behind a wall switch or button.
Which motor types are supported by Shelly Shutter?
The device supports AC single-phase motors equipped with mechanical or electronic limit switches.
What is included in the package?
The package includes the controller, installation/configuration instructions, and a set of mounting components.
