Shelly Pro Dual Cover PM DIN Rail Dual Controller with Power Measurement, Wi-Fi
-26%
Price: 135.70 €100.20 €
| Products ID: | 101662 |
|---|---|
| Manufactured by: | Shelly |
| Availablity: | Ready to Order |
| Delivery Time | 5-12 business days |
| EAN: | 3800235268124 |
Delivery options to:

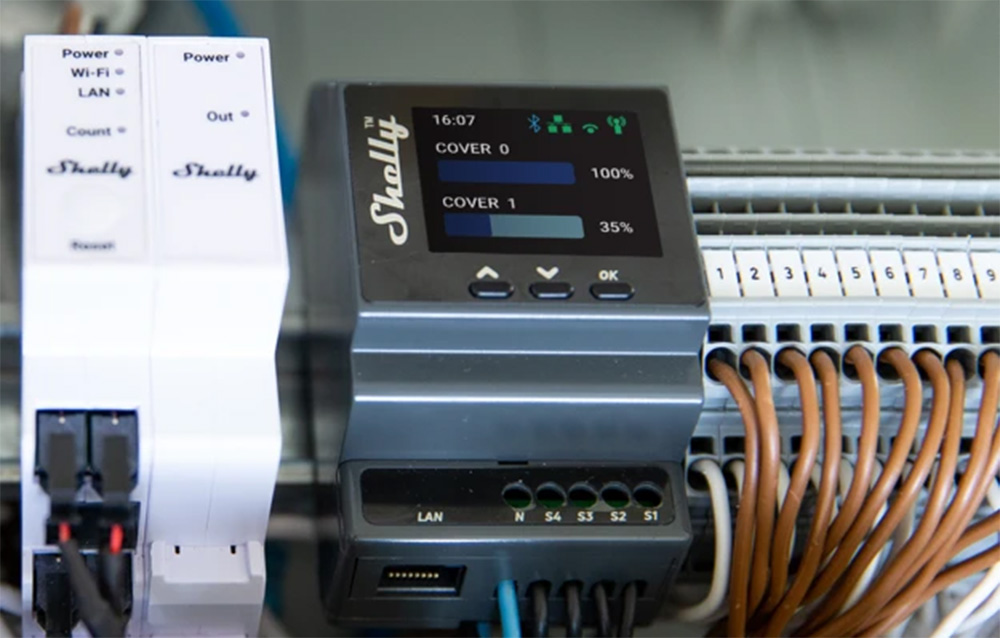

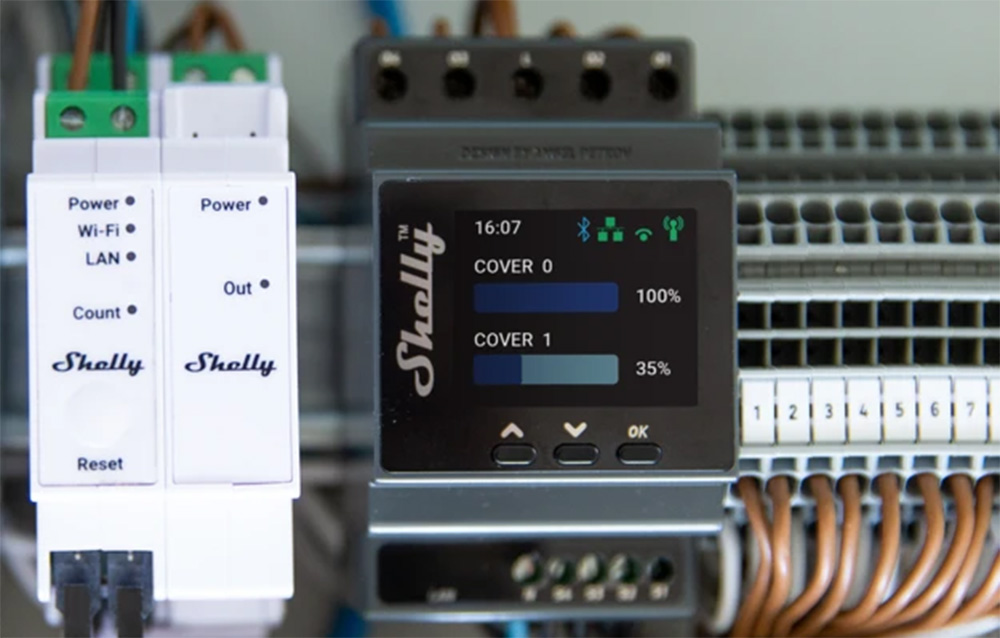

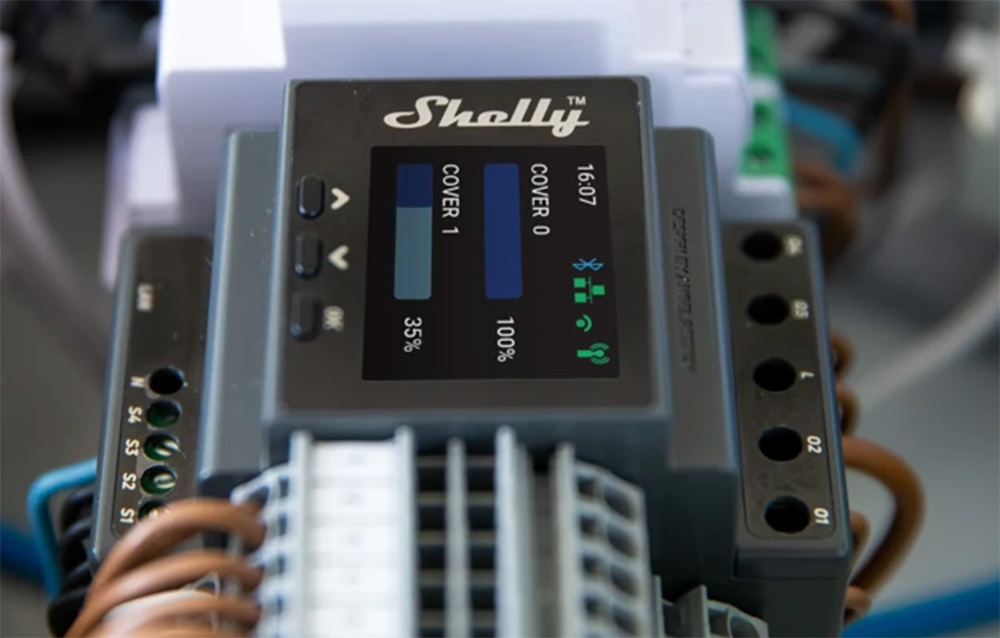

Choose countryShelly Pro Dual Cover PM is an intelligent two-channel DIN rail controller designed for automated control of blinds, curtains, awnings, gates, and other motorized devices, supporting up to 16 A per channel.
Key Features
- Independent power metering and consumption monitoring for each channel
- Wi-Fi and Bluetooth wireless connectivity
- Support for custom automation scenarios and scripting
- Form factor designed for standard DIN rail installation
| Manufacturer | Shelly |
|---|---|
| Name | Shelly Pro Dual Cover/Shutter PM |
| Model | SPSH-002PE16EU |
| Power Supply Voltage | AC: 110 - 240 V |
| Power Consumption | < 3 W |
| Maximum AC Switching Voltage | 240 V |
| Maximum AC Switching Current | 16 A per output |
| Dimensions | 96 x 53 x 59 ±0.02 mm |
| Weight | 150 g |
| Mounting | DIN rail |
| Voltmeter (AC) | Yes |
| Amperemeter (AC) | Yes |
| Internal Temperature Sensor | Yes |
| Wi-Fi Protocol | 802.11 b/g/n |
| Wi-Fi Range | Up to 30 m indoors and 50 m outdoors |
| Bluetooth Protocol | 4.2 |
| Bluetooth Range | Up to 10 m indoors and 30 m outdoors |
| CPU | ESP32-D0WDQ6 |
| Flash Memory | 8 MB |
| Ambient Temperature | -20°C to 40°C |
| Humidity | 30% to 70% RH |
| Maximum Altitude | 2000 m |
What is the maximum load supported per channel?
Shelly Pro Dual Cover PM supports a maximum AC switching current of 16 A per output.
What devices can be controlled with this module?
It is designed to control blinds, curtains, awnings, gates, and similar motorized equipment.
Does this controller monitor power consumption?
Yes, it features integrated voltmeters and ammeters to monitor power consumption independently for each channel.
