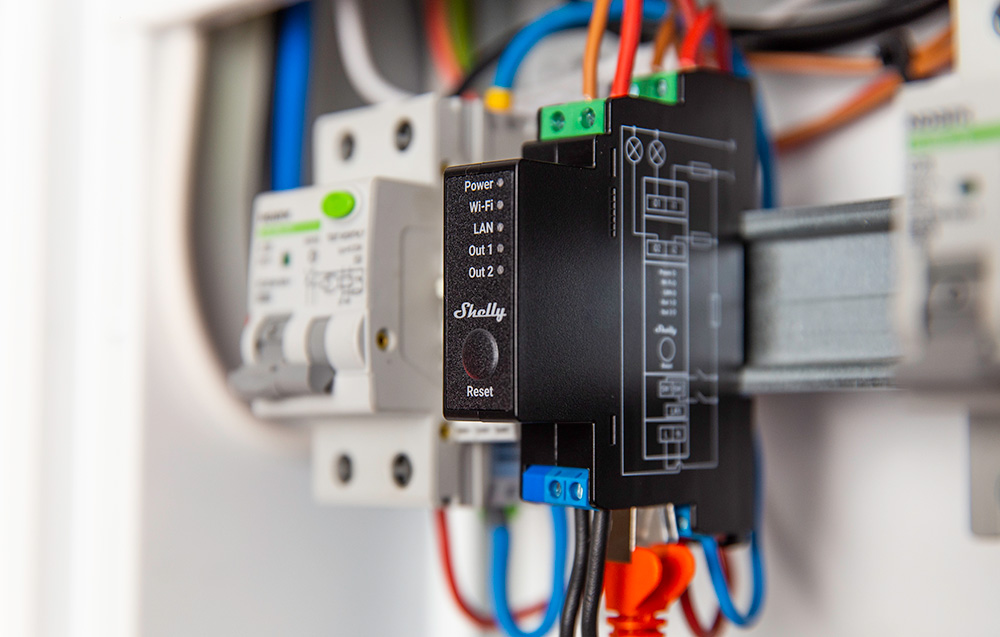

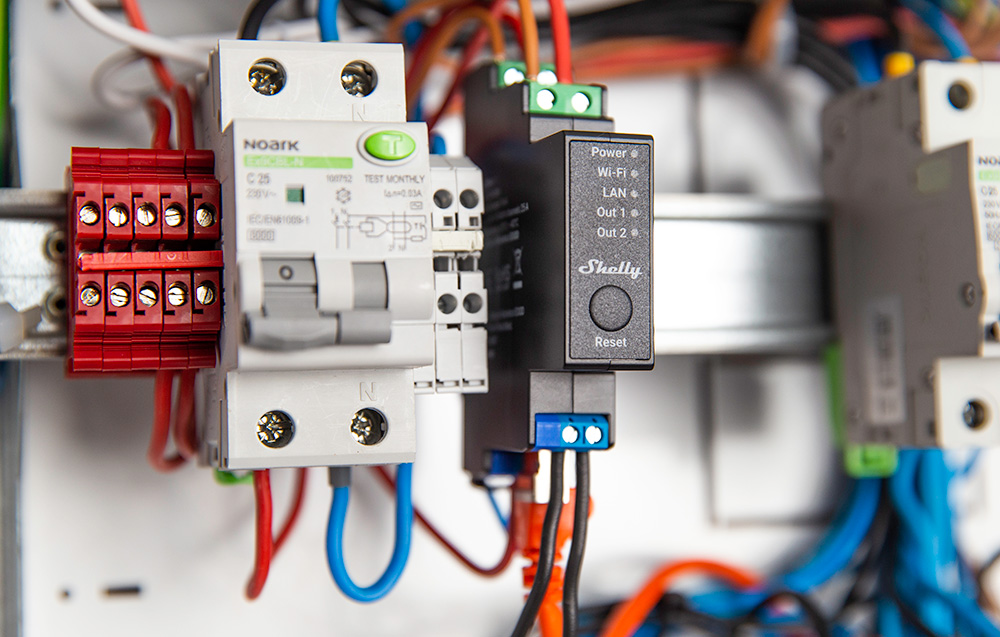

Shelly Pro 2PM 2-Channel DIN Rail Smart Relay with Power Metering, WiFi/LAN
-38%
Price: 136.40 €84.90 €
| Products ID: | 101660 |
|---|---|
| Manufactured by: | Shelly |
| Availablity: | Ready to Order |
| Delivery Time | 5-12 business days |
| EAN: | 3800235268032 |
Delivery options to:
Choose countryShelly Pro 2PM is an intelligent 2-channel DIN rail relay designed for appliance control with a maximum load of 16 A per channel and 25 A in total. It features a built-in power meter, allowing precise tracking of electricity consumption for lighting and other connected devices.
Key Features
- Two independent switching channels with up to 16 A per channel and 25 A total
- Integrated power meter with AC voltmeter and ammeter
- Wi-Fi, Ethernet LAN, and Bluetooth connectivity
- Voice assistant compatibility with Google Assistant, Samsung SmartThings, and Amazon Alexa
- Custom automation scenes via scripting capabilities
- Standard DIN rail mounting
| Manufacturer | Shelly |
|---|---|
| Model | SPSW-202PE16EU |
| AC Power Supply Voltage | 110 - 240 V |
| Power Consumption | < 3 W |
| Max AC Switching Voltage | 240 V |
| Max AC Switching Current | 16 A per channel, 25 A total |
| AC Voltmeter | Yes |
| AC Ammeter | Yes |
| Internal Temperature Sensor | Yes |
| Wi-Fi Protocol | 802.11 b/g/n |
| Wi-Fi Range | Up to 30 m indoors and up to 50 m outdoors |
| Bluetooth Protocol | 4.2 |
| Bluetooth Range | Up to 10 m indoors and up to 30 m outdoors |
| CPU | ESP32-D0WDQ6 |
| Flash Memory | 8 MB |
| Dimensions | 94 x 19 x 69 mm ±0.5 mm |
| Mounting | DIN Rail |
| Housing Material | Plastic |
| Ambient Operating Temperature | From -20°C to 40°C |
| Humidity | From 30% to 70% RH |
| Maximum Altitude | 2000 m |
What is the maximum electrical load supported by Shelly Pro 2PM?
The relay supports up to 16 A per channel with an overall maximum load of 25 A.
Which network connections does the relay feature?
Shelly Pro 2PM provides Wi-Fi 802.11 b/g/n, an RJ45 LAN port, and Bluetooth 4.2 connectivity.
Does this device measure energy consumption?
Yes, it has built-in power measurement capabilities, including an AC voltmeter and ammeter.
