Shelly Pro 1PM DIN Rail Smart Switch with Power Measurement, 1 Channel, Wi-Fi/LAN, 16 A
-22%
Price: 98.70 €77.00 €
| Products ID: | 101659 |
|---|---|
| Manufactured by: | Shelly |
| Availablity: | Ready to Order |
| Delivery Time | 5-12 business days |
| EAN: | 3800235268018 |
Delivery options to:

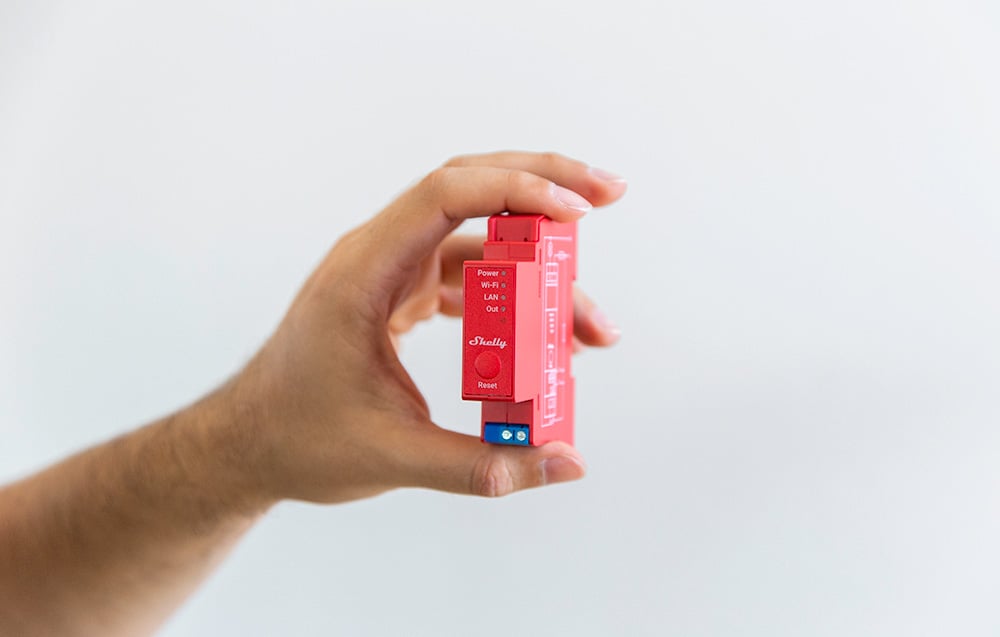

Choose countryShelly Pro 1PM is a 1-channel DIN rail smart relay designed to control electrical circuits with loads up to 16 A, equipped with integrated power monitoring for precise energy tracking.
Key Features
- Multiple Connectivity Modes: Supports Wi-Fi, wired LAN, and Bluetooth for reliable home and building automation.
- Energy Monitoring: Built-in AC voltmeter and ammeter enable real-time power consumption tracking.

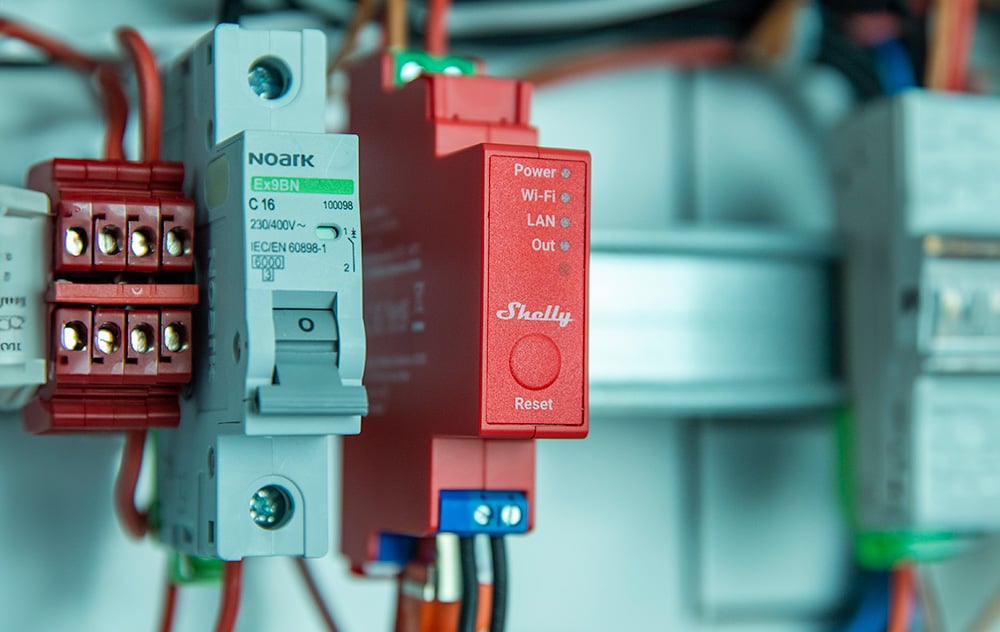

- DIN Rail Mounted: Compact modular design built for installation directly in distribution boxes.
- Smart Integrations: Compatible with Google Assistant, Samsung SmartThings, Amazon Alexa, and custom script automations.
| Manufacturer | Shelly |
|---|---|
| Model | SPSW-201PE16EU |
| AC Power Supply Voltage | 110 - 240 V |
| Power Consumption | < 3 W |
| Max AC Switching Voltage | 240 V |
| Max AC Switching Current | 16 A |
| AC Voltmeter | Yes |
| AC Ammeter | Yes |
| Internal Temperature Sensor | Yes |
| Wi-Fi Protocol | 802.11 b/g/n |
| Wi-Fi Range | Up to 30 m indoors and up to 50 m outdoors |
| Bluetooth Protocol | 4.2 |
| Bluetooth Range | Up to 10 m indoors and up to 30 m outdoors |
| CPU | ESP32-D0WDQ6 |
| Flash Memory | 8 MB |
| Dimensions | 94 x 19 x 69 mm ±0.5 mm |
| Mounting | DIN Rail |
| Housing Material | Plastic |
| Ambient Operating Temperature | From -20°C to 40°C |
| Humidity | From 30% to 70% RH |
| Maximum Altitude | 2000 m |
What is the maximum switching capacity of the Shelly Pro 1PM?
The switch supports a maximum AC switching current of 16 A at up to 240 V.
Which communication interfaces does the Shelly Pro 1PM offer?
It features Wi-Fi (802.11 b/g/n), an RJ45 LAN port for wired networking, and Bluetooth 4.2.
