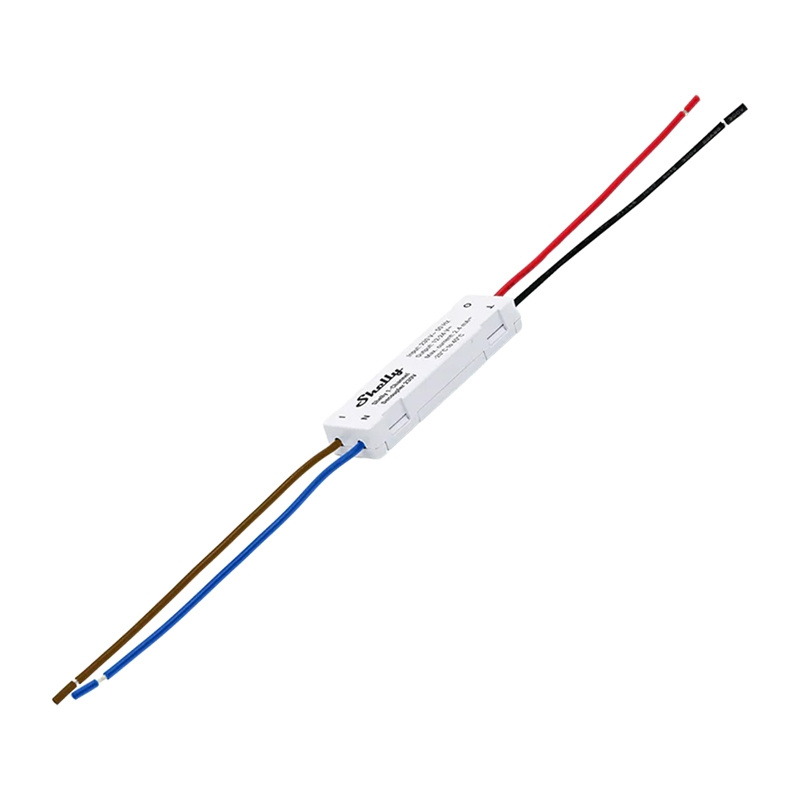

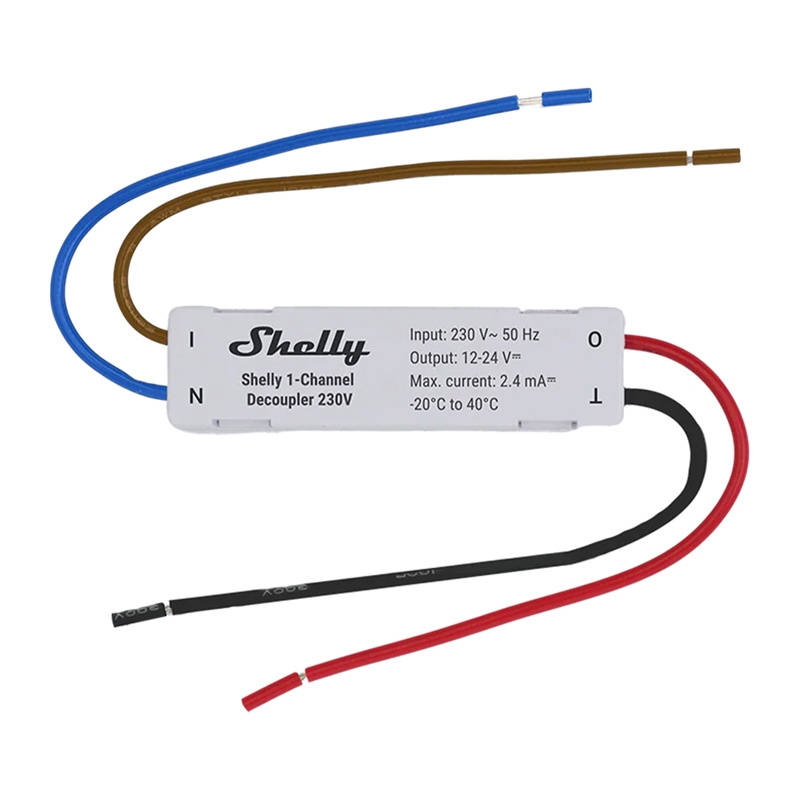

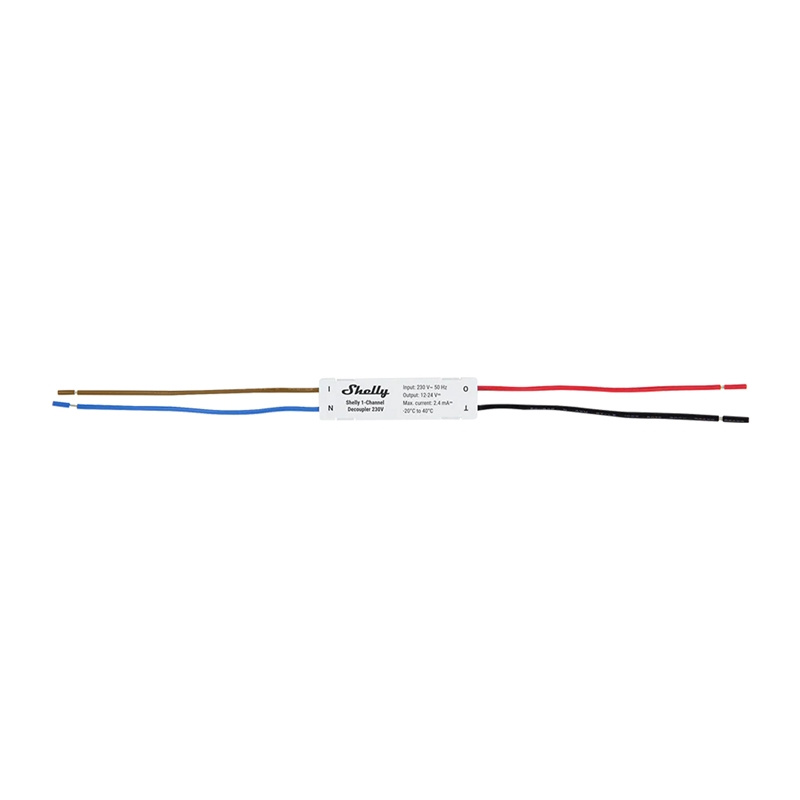

Shelly Decoupler 1-Channel Decoupler Module 230V
Price: 18.80 €
| Products ID: | 175799 |
|---|---|
| Manufactured by: | Shelly |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 3800238072117 |
Delivery options to:
Choose countryThe Shelly 1-Channel Decoupler 230V is a compact optoisolator module designed to safely and precisely trigger DC inputs using standard 230V AC signals, effectively isolating electrical circuits.
Key Features
- Enables the use of existing AC switches to control DC inputs and automation devices.
- Compatible with Shelly Plus RGBW PM, Shelly Pro RGBWW PM, Shelly Plus Uni, and Shelly Plus Add-On.
- Supports connections to external buttons, relays, PIR motion sensors, and light sensors.
- Ultra-compact dimensions of 48 × 13 × 7 mm with 80 mm pre-stripped leads for easy fitting into junction boxes.
- Operates on 230 V~ 50 Hz with power consumption under 0.6 W.
| Manufacturer | Shelly |
|---|---|
| Model | Channel Decoupler 230V |
| Channels | 1 |
| Input voltage | 230 V~ 50 Hz |
| Inputs | 2 wires: L, N (AC 230 V) |
| Outputs | 2 wires: 4- (GND), 4+ (DC signal) |
| Max. output current | 2.4 mA |
| Power consumption | < 0.6 W |
| Operating temperature range | 0°C - 40°C |
| Storage temperature | -20°C - 40°C |
| Operating humidity | 30 - 70% RH |
| Max. working altitude | 2000 m above sea level |
| Dimensions | 48 × 13 × 7 mm |
| Weight | 14 g |
| Case color | White |
| Cable length | 80 mm |
| Compatibility | Shelly Plus RGBW PM, Shelly Pro RGBWW PM, Shelly Plus Uni, Shelly Plus Add-On |
Which devices are compatible with the Shelly Decoupler 230V?
It is compatible with Shelly Plus RGBW PM, Shelly Pro RGBWW PM, Shelly Plus Uni, and Shelly Plus Add-On.
What are the dimensions and wire lengths of this module?
The module measures 48 × 13 × 7 mm, weighs 14 g, and includes 80 mm long wires with 5 mm stripped ends.
What is the power consumption of the module?
The module consumes less than 0.6 W when operating on 230 V~ 50 Hz.
