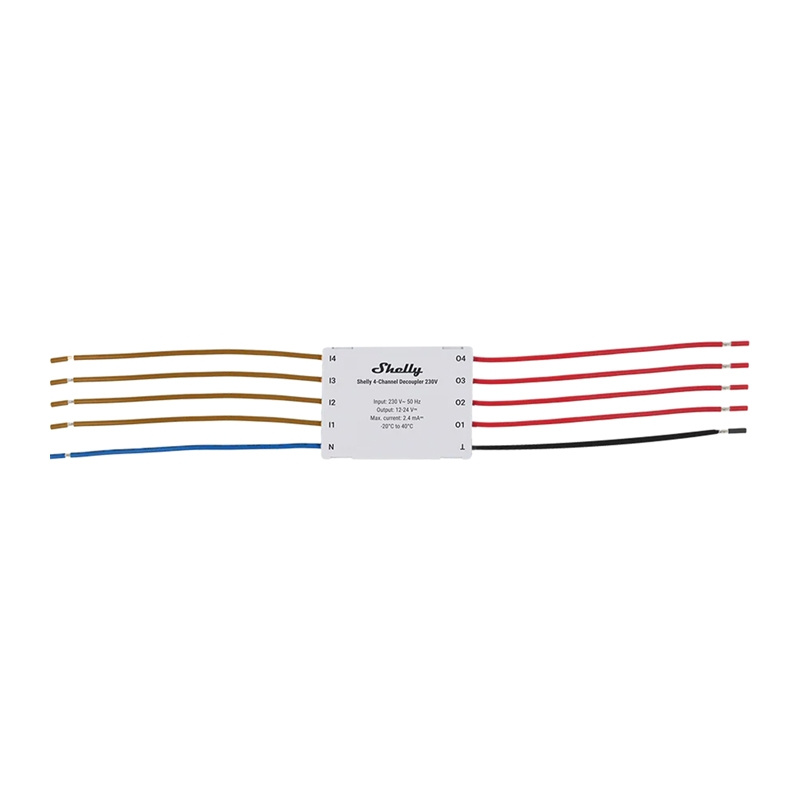

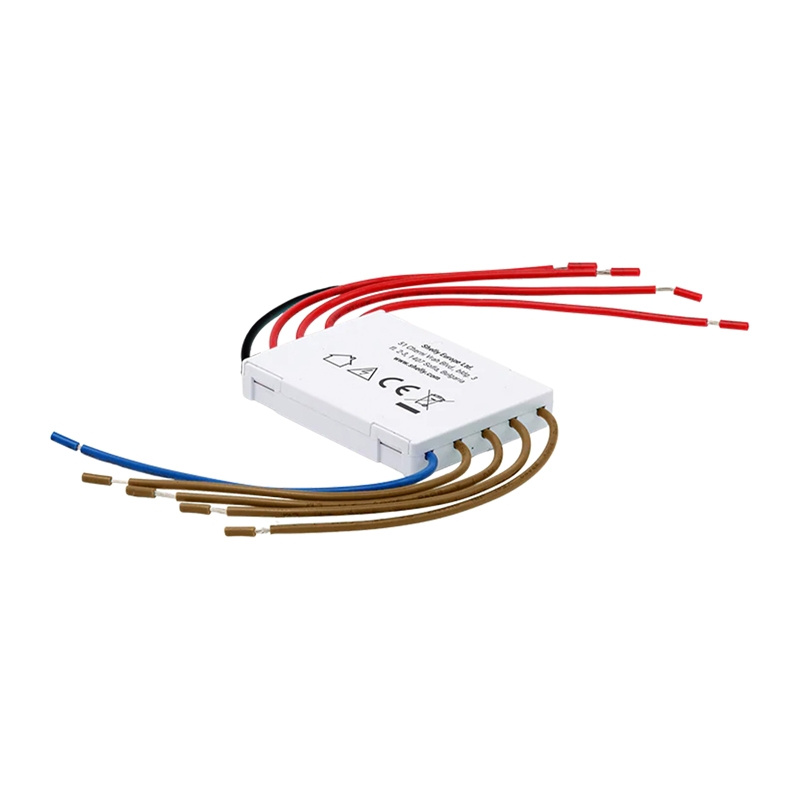

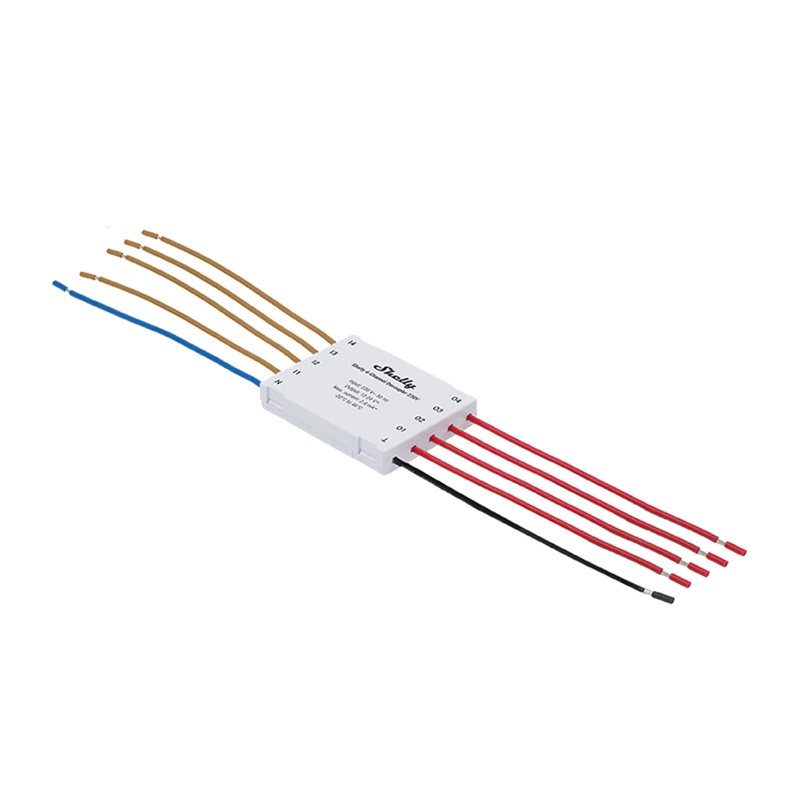

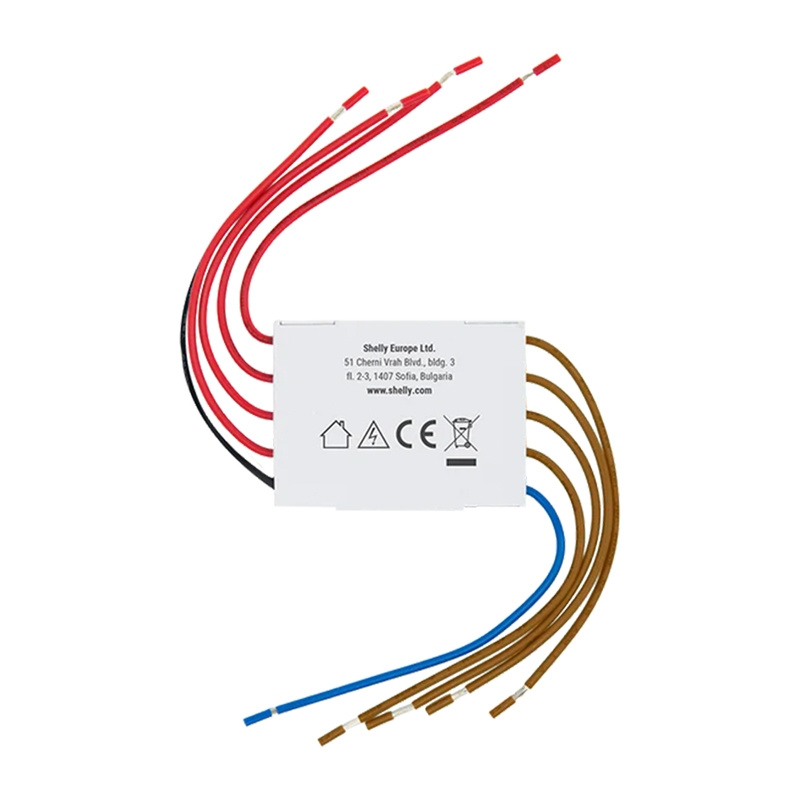

Shelly 4-Channel Decoupler 230V Signal Isolator Module
Price: 19.90 €
| Products ID: | 175800 |
|---|---|
| Manufactured by: | Shelly |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 3800238072124 |
Delivery options to:
Choose countryThe Shelly 4-Channel Decoupler 230V is a compact module designed for safe and precise triggering of DC inputs using standard 230 V AC signals. Equipped with an optoisolator, it provides galvanic isolation between electrical circuits to protect connected equipment from high voltage.
Key Features
- 4 independent channels for triggering DC inputs via AC signals
- Galvanic circuit isolation with integrated optocouplers
- Ideal for retrofit installations using existing AC switches and sensors
- Compatible with Shelly Plus RGBW PM, Shelly Pro RGBWW PM, Shelly Plus Uni, and Shelly Plus Add-On
- Compact dimensions of 44 × 34 × 7 mm with 80 mm pre-stripped leads
- Energy-efficient operation consuming under 0.6 W
| Manufacturer | Shelly |
|---|---|
| Model | 4-Channel Decoupler 230V |
| Channels | 4 |
| Input voltage | 230 V~ 50 Hz |
| Power consumption | < 0.6 W |
| Max. output current | 2.4 mA |
| Dimensions | 44 × 34 × 7 mm |
| Weight | 25 g |
| Cable length | 80 mm |
| Wire colors | Brown (I1-I4), Blue (N), Red (O1-O4), Black (Ʇ) |
| Operating temperature range | 0°C - 40°C |
| Storage temperature | -20°C - 40°C |
| Operating humidity | 30 - 70% RH |
| Max. working altitude | 2000 m above sea level |
Which Shelly devices are compatible with this decoupler?
It is compatible with Shelly Plus RGBW PM, Shelly Pro RGBWW PM, Shelly Plus Uni, and Shelly Plus Add-On.
What is the power consumption of this module?
The power consumption of the Shelly 4-Channel Decoupler 230V is less than 0.6 W.
