Maclean MCE385 W Outdoor PIR Motion Sensor, IP65, 1200W, White
14.90 €
Products ID: 173551
In supplier warehouse
Available to order: 10+ pcs.
Delivery Time 5–15 business days
Delivery options to:
Choose countryThe Maclean MCE385 W is an outdoor infrared PIR motion sensor with a twilight sensor designed for automatic control of lighting and other electrical equipment.
Key Features
- 120° detection angle with a detection distance of up to 12 meters
- IP65 weather-resistant casing for outdoor and indoor use
- Supports loads up to 1200 W (resistive) or 600 W (inductive)
- Pet immunity to prevent false triggers

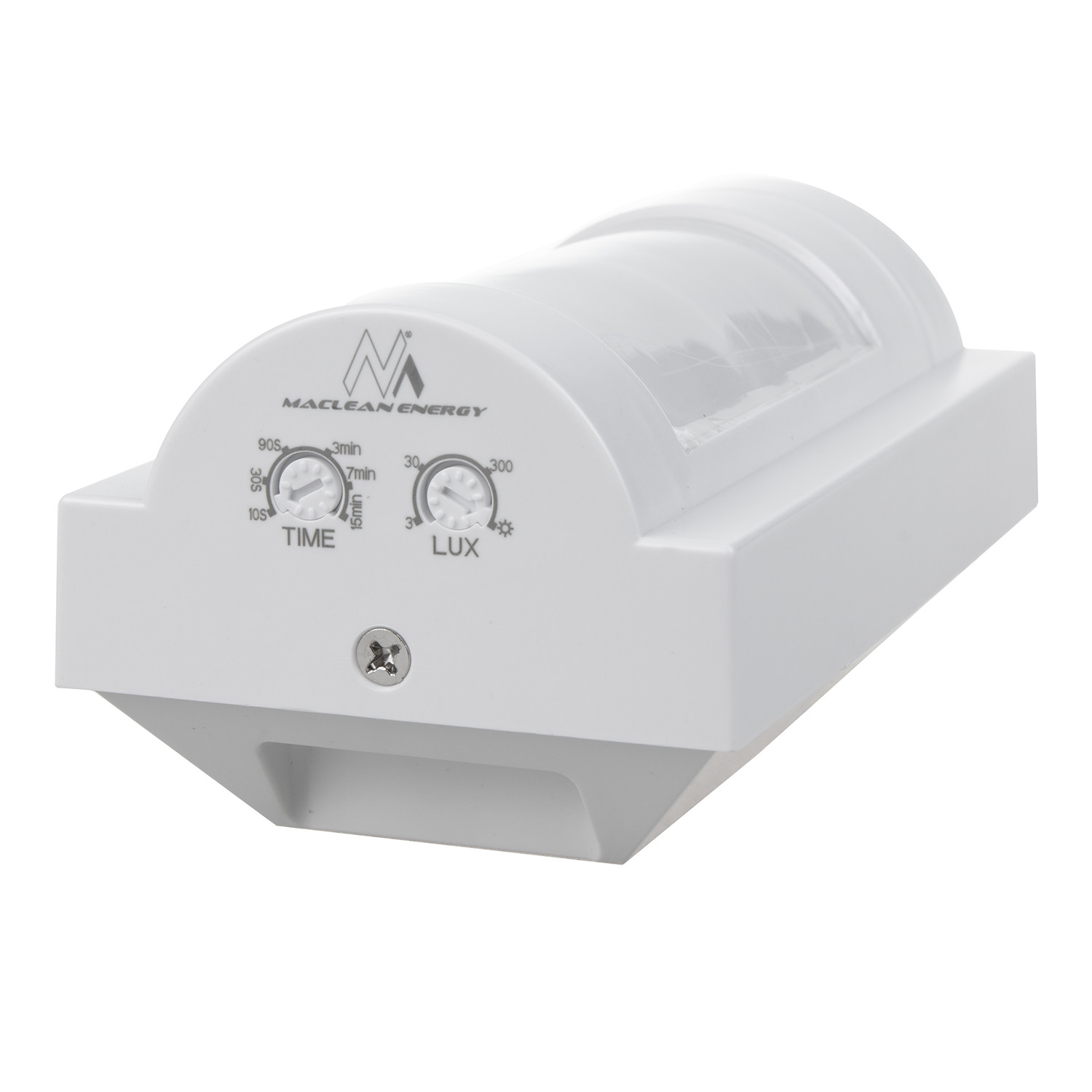

- Adjustable TIME control from approximately 10 seconds to 15 minutes
- Adjustable ambient light sensitivity (LUX) from 3 to 2000 LUX
| Manufacturer | Maclean |
|---|---|
| Model | MCE385 W |
| Sensor type | PIR (Infrared) |
| Color | White |
| Power supply | 220-240 V/AC, 50/60 Hz |
| Power consumption | approx. 0.5 W |
| Detection angle | 120° |
| Detection range | up to 12 m |
| Maximum load | 1200 W (resistive) / 600 W (inductive) |
| Ingress protection | IP65 |
| Time adjustment | approx. 10 s to 15 min |
| Light sensitivity | 3 to 2000 LUX |
| Operating temperature | -20 to +40°C |
| EAN | 5902211131847 |
|---|
What is the detection range and angle of the sensor?
The sensor features a 120° detection angle and detects motion at distances up to 12 meters.
What is the maximum electrical load supported?
The sensor supports up to 1200 W for resistive loads and up to 600 W for inductive loads.
Can the time and light sensitivity be adjusted?
Yes, the TIME knob adjusts operation time from 10 seconds to 15 minutes, and the LUX knob adjusts light sensitivity between 3 and 2000 LUX.
