Avatto ZWSM16-W1 1-Channel ZigBee Smart Switch Module TUYA
-36%
| Products ID: | 95971 |
|---|---|
| Manufactured by: | Avatto |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
Delivery options to:
Choose countryThe Avatto ZWSM16-W1 is a 1-channel ZigBee smart switch module designed to upgrade your standard lighting to a smart home system. It allows convenient remote control of your lights via smartphone or voice assistants.
Smart Lighting Control

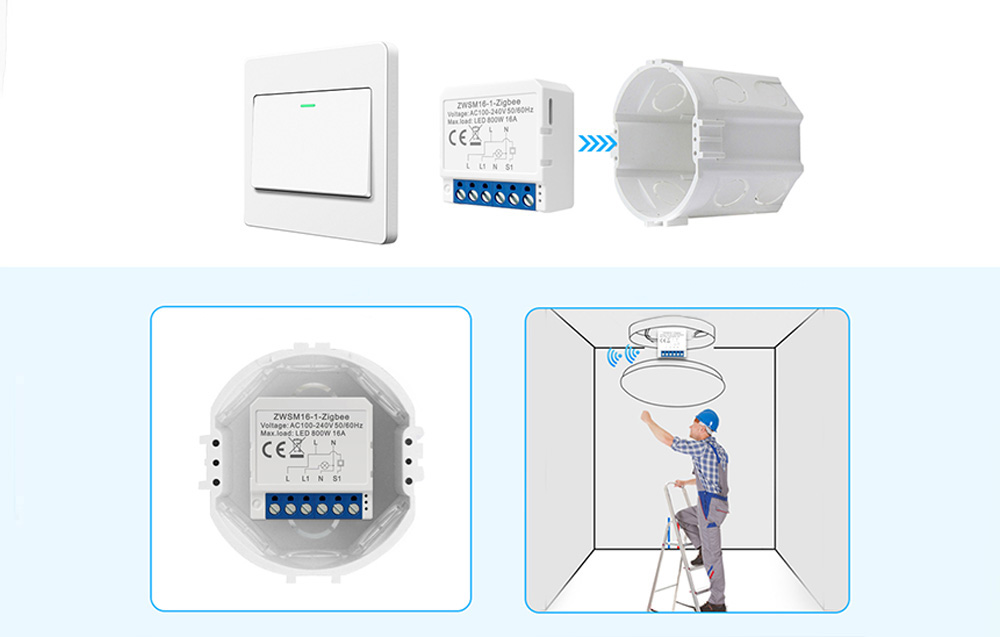

This compact module fits into most standard installation boxes (up to 95%) and can be used to automate your daily lighting routines. It is perfect for creating schedules, timers, and setting up 2-way control for staircases, ensuring your lights are only on when needed.
Key Features
- Remote Control: Manage your lighting from anywhere using the TUYA or Smart Life app.
- Voice Assistant Compatibility: Works seamlessly with Amazon Alexa and Google Assistant for hands-free control.
- Schedules and Timers: Automate your lights to turn on or off at specific times of the day.
- 2-Way Control Support: Can be wired with two switches to control a single light source, ideal for staircases.
- Memory Function: Remembers the last setting and restores it after a power failure.

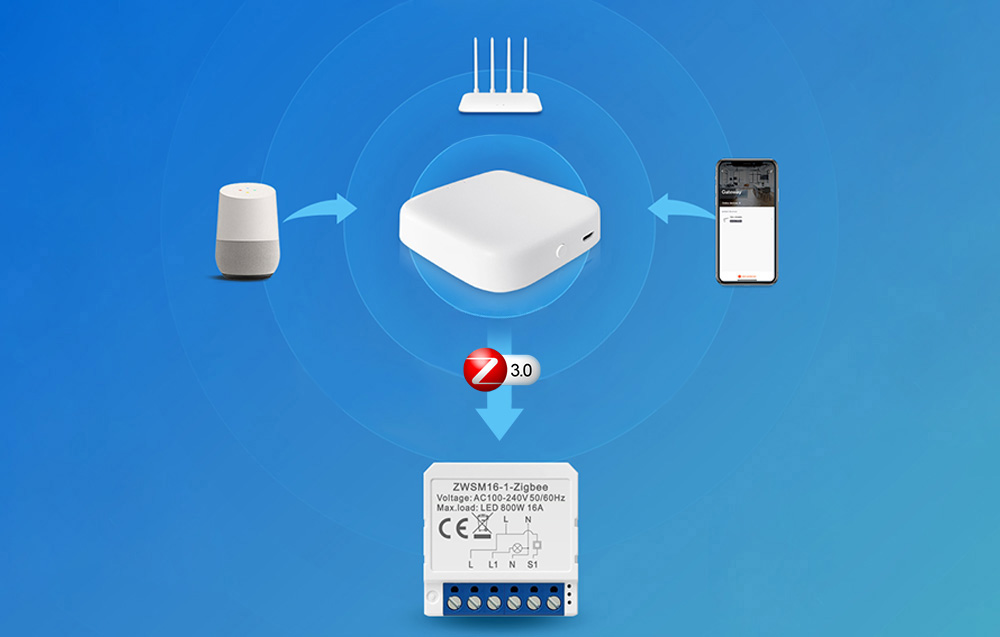

- ZigBee 3.0 Protocol: Ensures stable communication (requires a separate ZigBee gateway).
Technical Specifications
| Brand | Avatto |
|---|---|
| Model | ZWSM16-W1 |
| Channels | 1 |
| Max Load | LED 800 W / 16 A |
| Voltage | AC 100-240 V 50/60 Hz |
| Protocol | ZigBee 3.0 |
| Dimensions | 39 x 39 x 20 mm |
Frequently Asked Questions
Do I need a hub to use this switch?
Yes, this module uses the ZigBee 3.0 protocol and requires a compatible ZigBee gateway to connect to your network and the TUYA app.
Can I use this for a staircase light?
Yes, the module supports 2-way control, allowing you to use two physical switches for a single light source.
Will it fit in my wall box?
The module has compact dimensions of 39 x 39 x 20 mm, which fits up to 95% of standard installation boxes.
