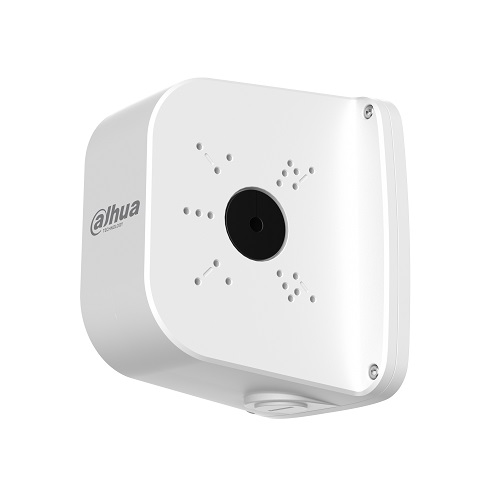

Dual Camera Mount Junction Box PFA6330X
Price: 47.20 €
| Products ID: | 171838 |
|---|---|
| Manufactured by: | Dahua Technology Co., Ltd |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6939554926037 |
Delivery options to:
Choose countryThe PFA6330X is a wall mount junction box and bracket designed for installing two dome or bullet cameras.
Key Features
- Mounts up to 2 Dahua cameras at a single point to simplify wiring
- Waterproof aluminum alloy construction with IP66 ingress protection
- Accommodates an EOC, PoE extender, or power module internally
- Integrated cable organization with bottom and side outlets
- Supports loads up to 3.0 kg and operates from -40°C to +60°C
| Material | Aluminum alloy |
|---|---|

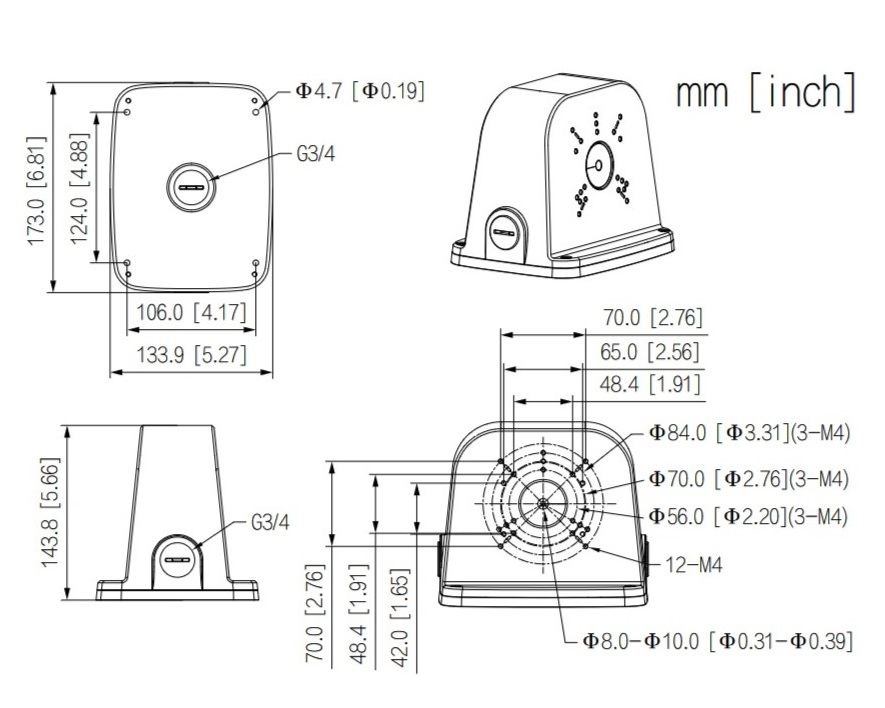

| Dimensions | 173.0 mm x 133.9 mm x 143.8 mm |
| Safety class | IP66 |
| Load bearing | 3.0 kg |
| Thread | G3/4" |
| Operating temperature | -40°C ~ +60°C |
How many cameras can be mounted on the PFA6330X?
Up to 2 Dahua dome or bullet cameras can be connected to the bracket.
Can networking or power modules be placed inside?
Yes, an EOC, PoE extender, or power module can be installed inside the junction box.
What is the maximum load capacity?
The bracket has a load bearing capacity of up to 3.0 kg.
