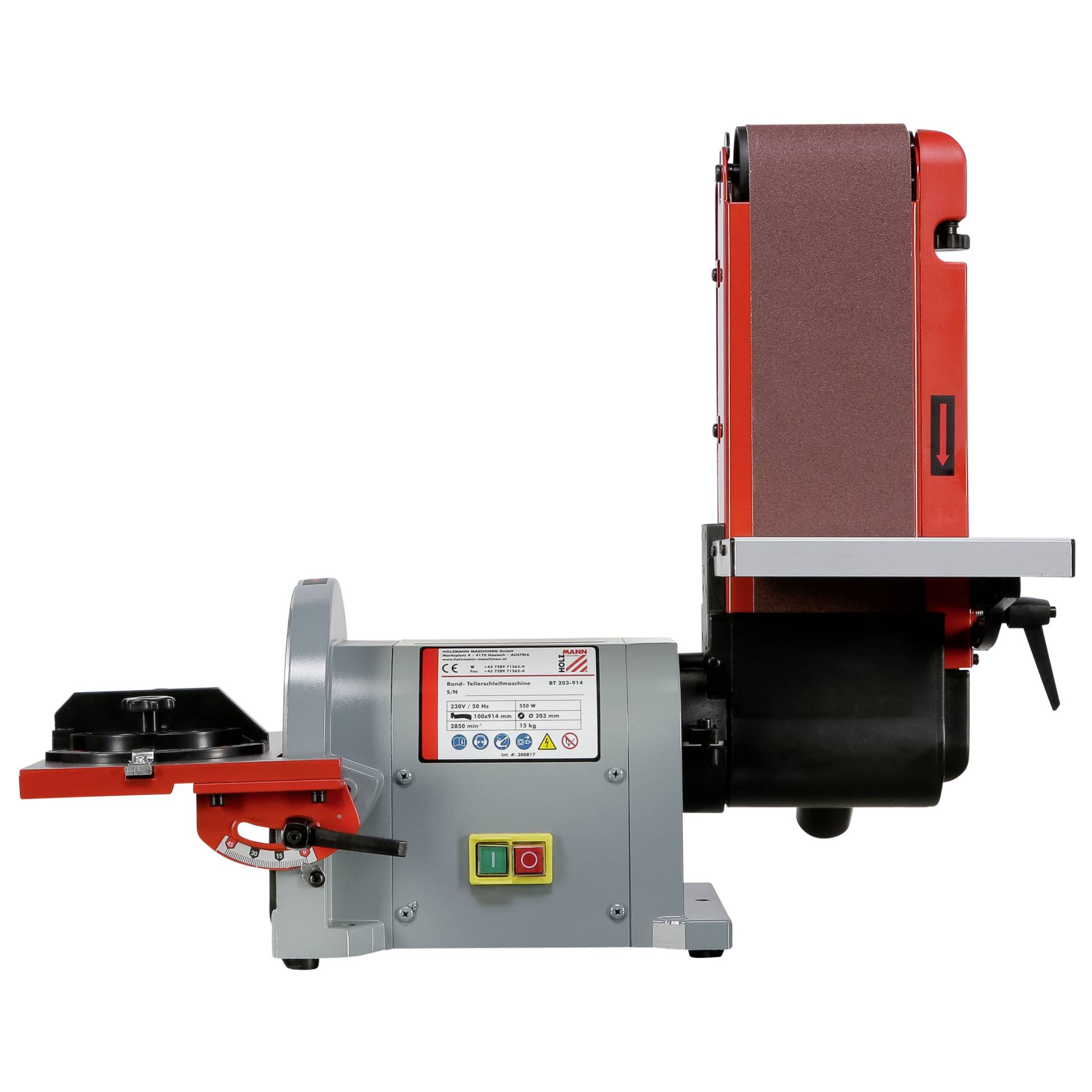

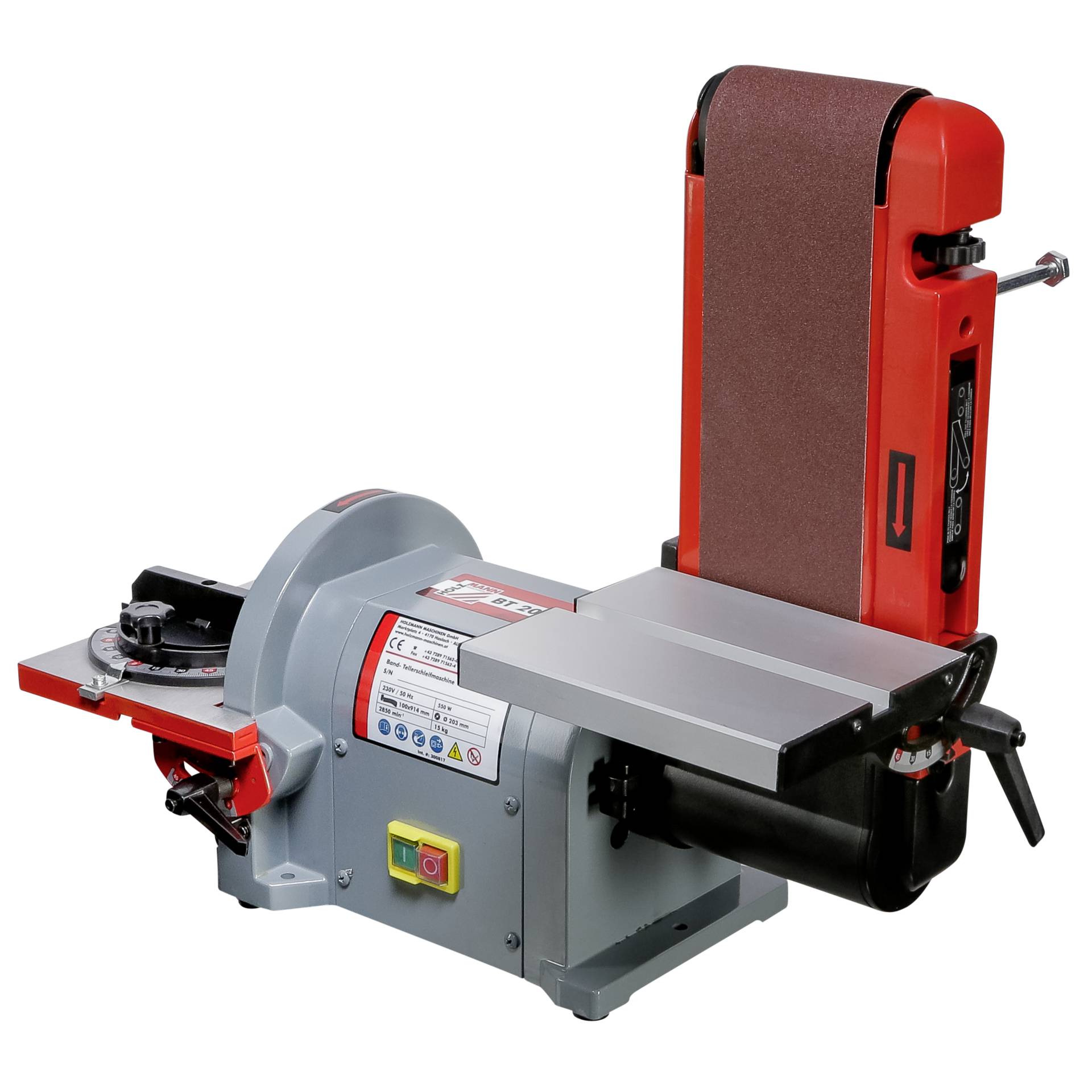

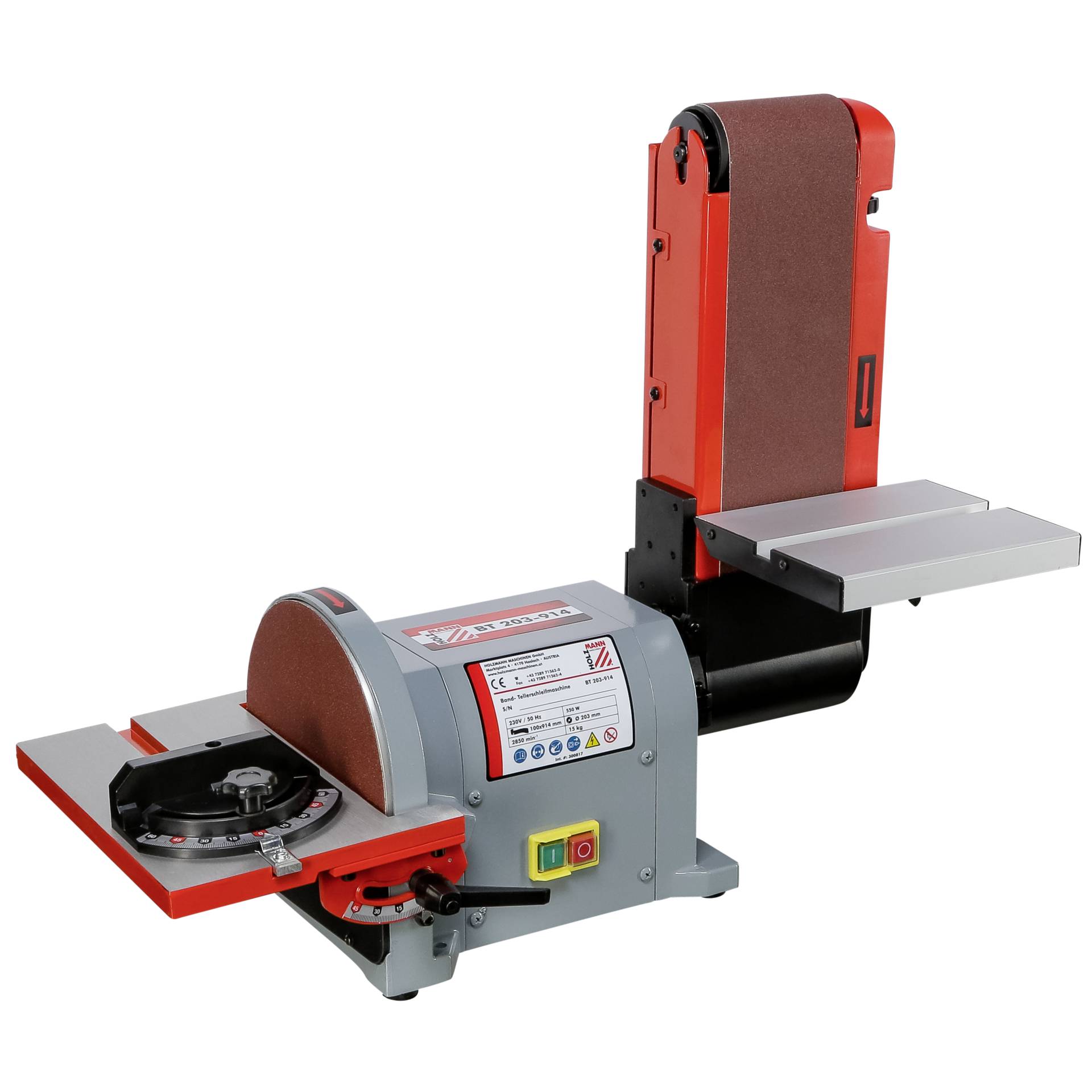

Holzmann BT203-914 Belt and Disc Sander, 550 W
Price: 186.30 €
| Products ID: | 180475 |
|---|---|
| Manufactured by: | Holzmann Maschinen |
| Availablity: | Ready to Order |
| Delivery Time | 7-15 business days |
| EAN: | 9120058376962 |
Delivery options to:
Choose country
The Holzmann BT203-914 is a versatile combination belt and disc sanding machine designed for workshop grinding tasks.
Key Features
- 550 W motor power with 2850 rpm operating speed
- 203 mm grinding disc diameter
- 914 x 100 mm sanding belt with quick-clamping device for straightforward replacement
- Sanding belt unit swivels horizontally and vertically from 0° to 90°
- Swivelable aluminium work table tilting up to 45° with mitre fence for angle grinding
- 36.5 mm external dust extraction connection
| Motor power S1 | 550 W |
|---|---|
| No-load speed | 2850 min-1 |
| Grinding disc diameter | 203 mm |
| Sanding belt dimensions | 914 x 100 mm |
| Sanding belt speed | 9.2 m/s (570 m/min) |
| Table dimensions | 264 x 150 / 190 x 159 mm |
| Table tilt angle | up to 45° |
| Sanding belt unit swivel | 0°-90° |
| Suction connection diameter | 36.5 mm |
| Integrated dust extraction | No |
| External aspiration | Yes |
| Sound pressure | 89 dB |
| Operating mode | Mains |
| Weight | 15 kg |
| Colour | Silver / Red |
What are the belt and disc sizes for the Holzmann BT203-914?
It uses a 914 x 100 mm sanding belt and a 203 mm diameter grinding disc.
Does this sander support dust extraction?
Yes, it has a 36.5 mm connection port for external dust extraction systems.
Can the belt unit and work table be adjusted?
Yes, the aluminium work table swivels up to 45°, and the belt sanding unit swivels horizontally and vertically between 0° and 90°.
