Metabo UHEV 2860-2 Quick Set rotary hammer with drill and chisel set

Metabo UHEV 2860-2 Quick Set rotary hammer with drill and chisel set — image 3

Metabo UHEV 2860-2 Quick Set rotary hammer with drill and chisel set — image 4

Metabo UHEV 2860-2 Quick Set rotary hammer with drill and chisel set — image 5

Price: 287.20 €

Products ID:	197374
Manufactured by:	Metabo
Availablity:	Ready to Order
Delivery Time	7-15 business days
EAN:	4007430309549

Delivery options to:

Choose country

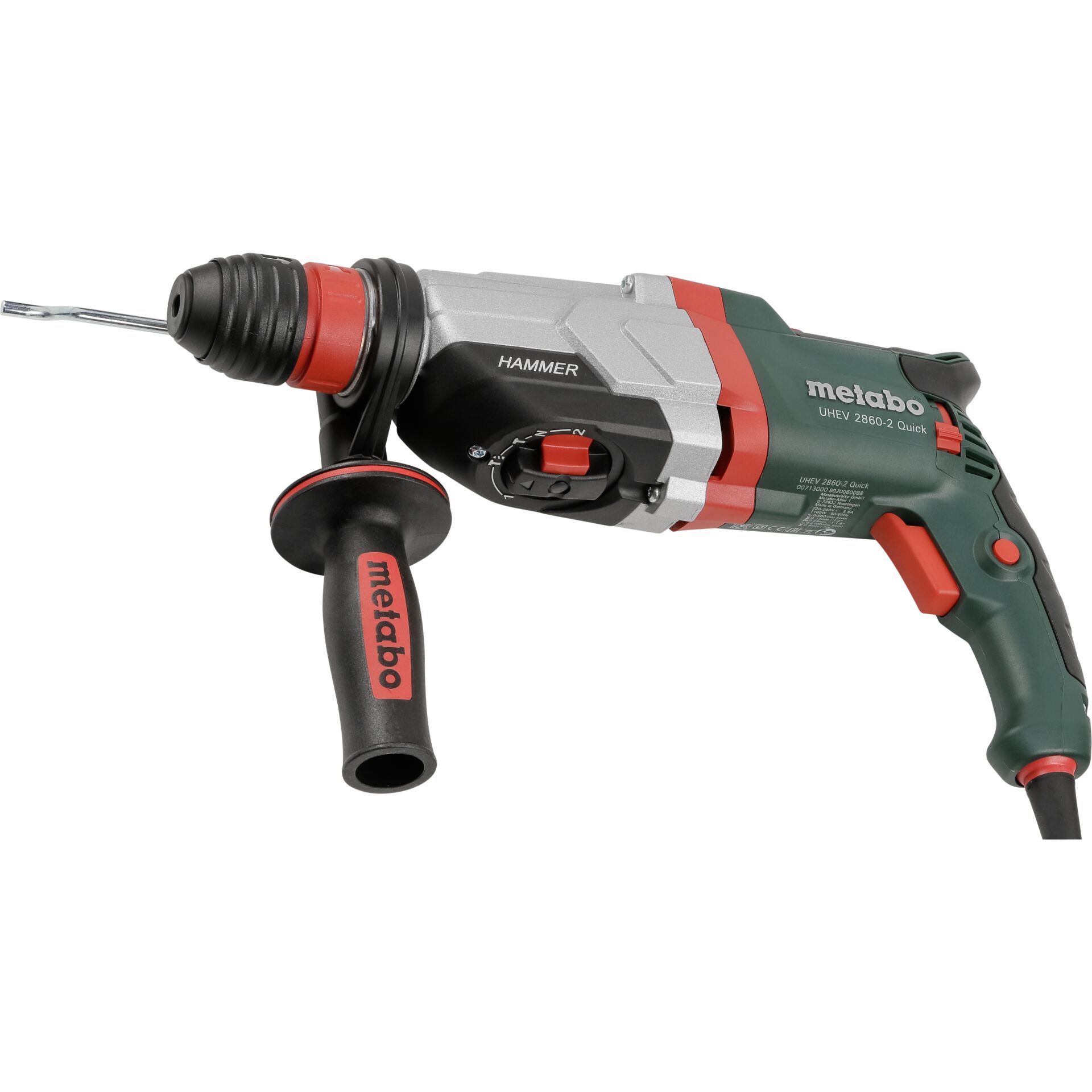

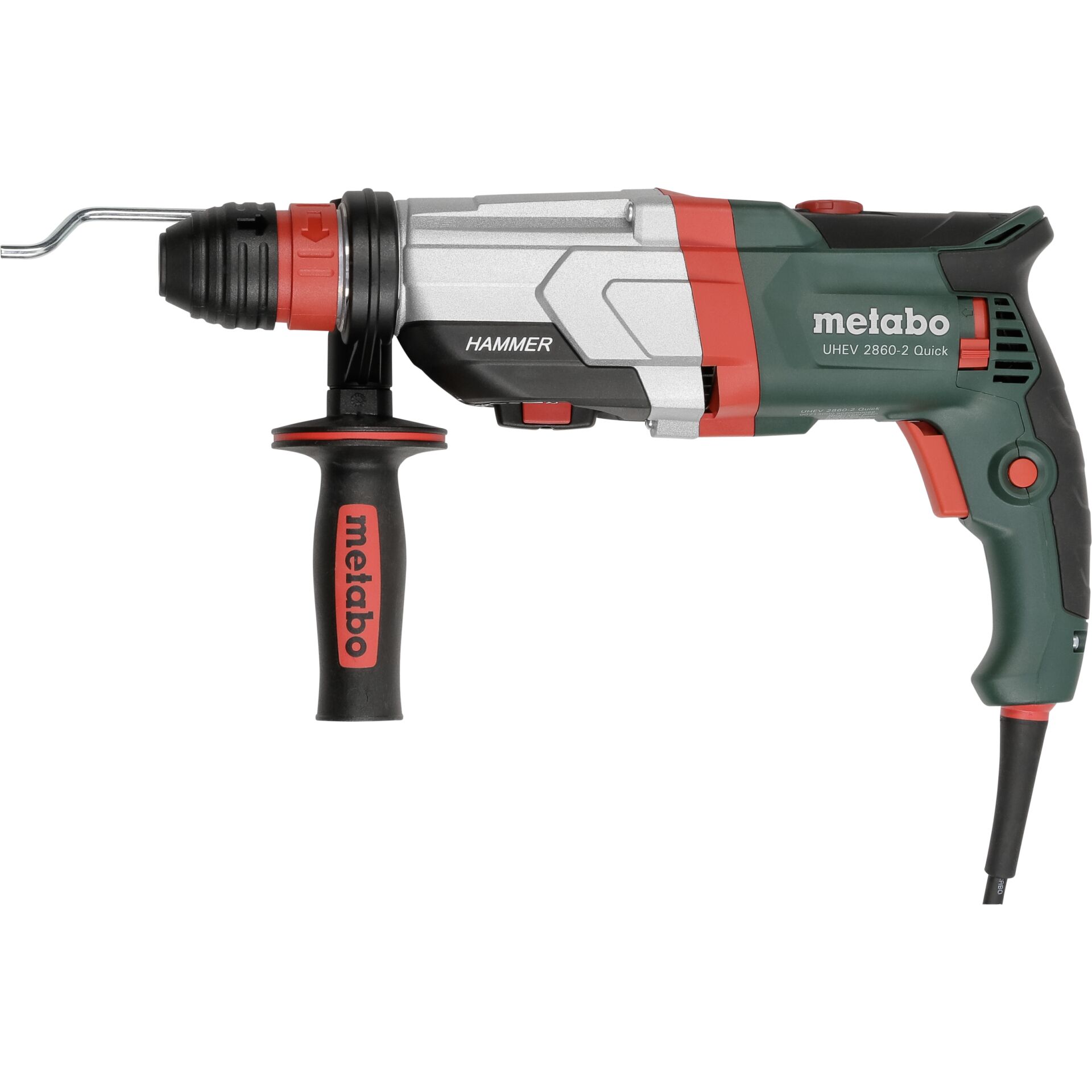

Metabo UHEV 2860-2 Quick Set rotary hammer with drill and chisel set

The Metabo UHEV 2860-2 Quick Set is a mains-powered rotary hammer for hammer drilling, drilling in 2 gears and chiselling. This set includes interchangeable chucks, a carrying case and a 10-piece drill and chisel set.

Drilling and chuck changes

A 1100 W motor and two-speed gearbox support drilling in wood and metal. Maximum drilling capacities are 28 mm in concrete, 13 mm in steel and 35 mm in wood. The Metabo Quick-System enables fast changes between the SDS-plus hammer chuck and the keyless drill chuck.

Control and protection

Speed selection: an adjustment wheel sets rotation and impact speed.
Safety clutch: Metabo S-automatic mechanically decouples the drive if the drill bit jams.
Restart protection: prevents unwanted restarting.
Drilling depth: a depth stop and additional handle are included.

Colour	Green / black
Weight	3.3 kg
Weight range	2.6–3.5 kg
Power source	Mains
Type	Rotary hammer / chipping hammer
Tool mounting system	SDS-plus
Maximum impact rate	4500 min⁻¹
Maximum drilling capacity in concrete	28 mm
Maximum drilling capacity in steel	13 mm
No-load speed	2100 min⁻¹
Maximum drilling capacity in wood	35 mm
Power range	901–1300 W
Power consumption	1100 W
Operating functions	Hammer drilling, drilling in 2 gears, chiselling
Chuck change system	Metabo Quick-System: SDS-plus hammer chuck and keyless drill chuck
Safety clutch	Metabo S-automatic; mechanical drive decoupling when the drill bit jams
Restart protection	Yes
Speed adjustment	Selection wheel for rotation and impact speed
Gearbox	2 gears
No-load speed ranges	0–900 / 0–2100 min⁻¹
Drilling capacity in masonry	68 mm
Drilling capacity in steel by gear	13 / 6 mm
Drilling capacity in softwood by gear	35 / 30 mm
Clamping neck diameter	50 mm

What is included in the set?

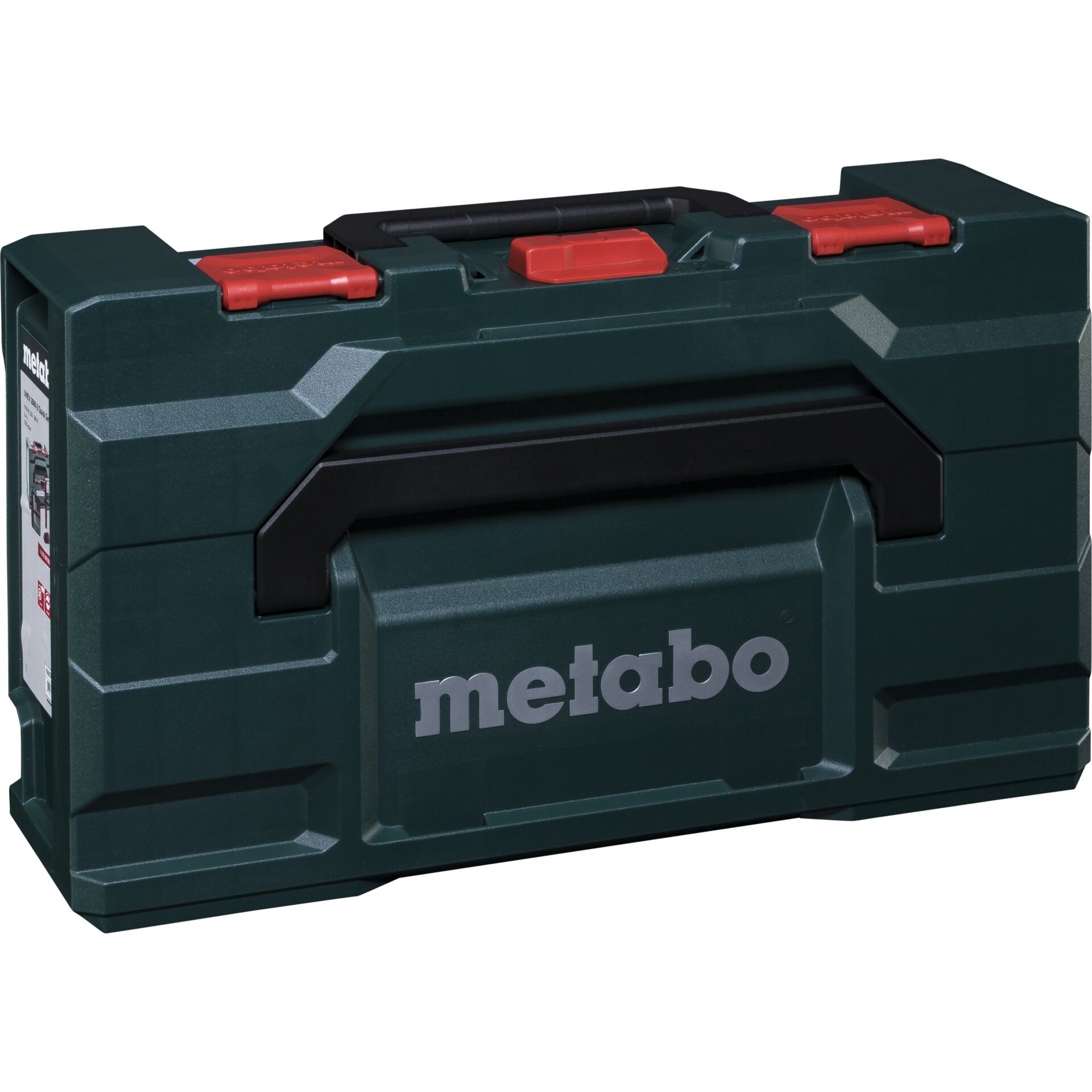

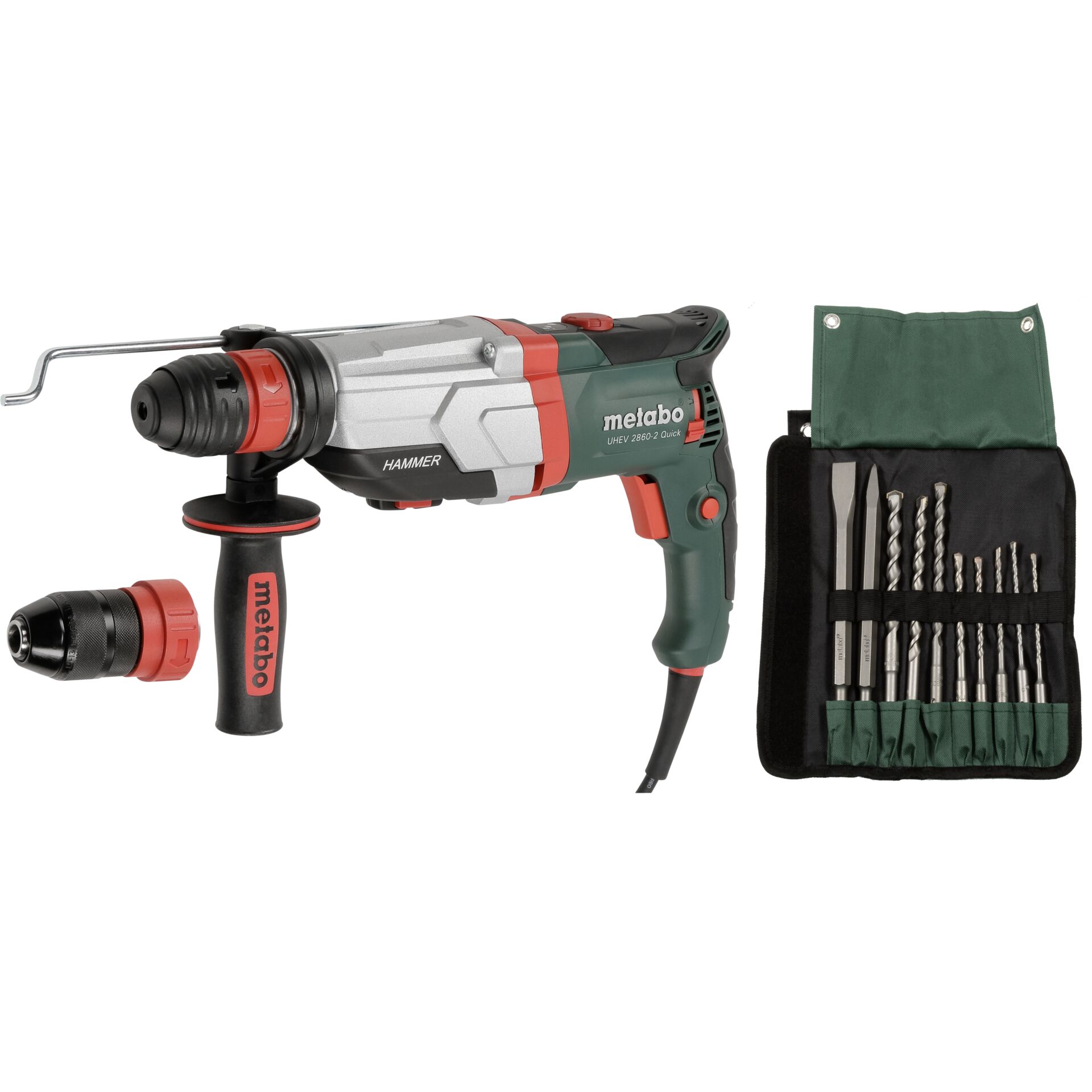

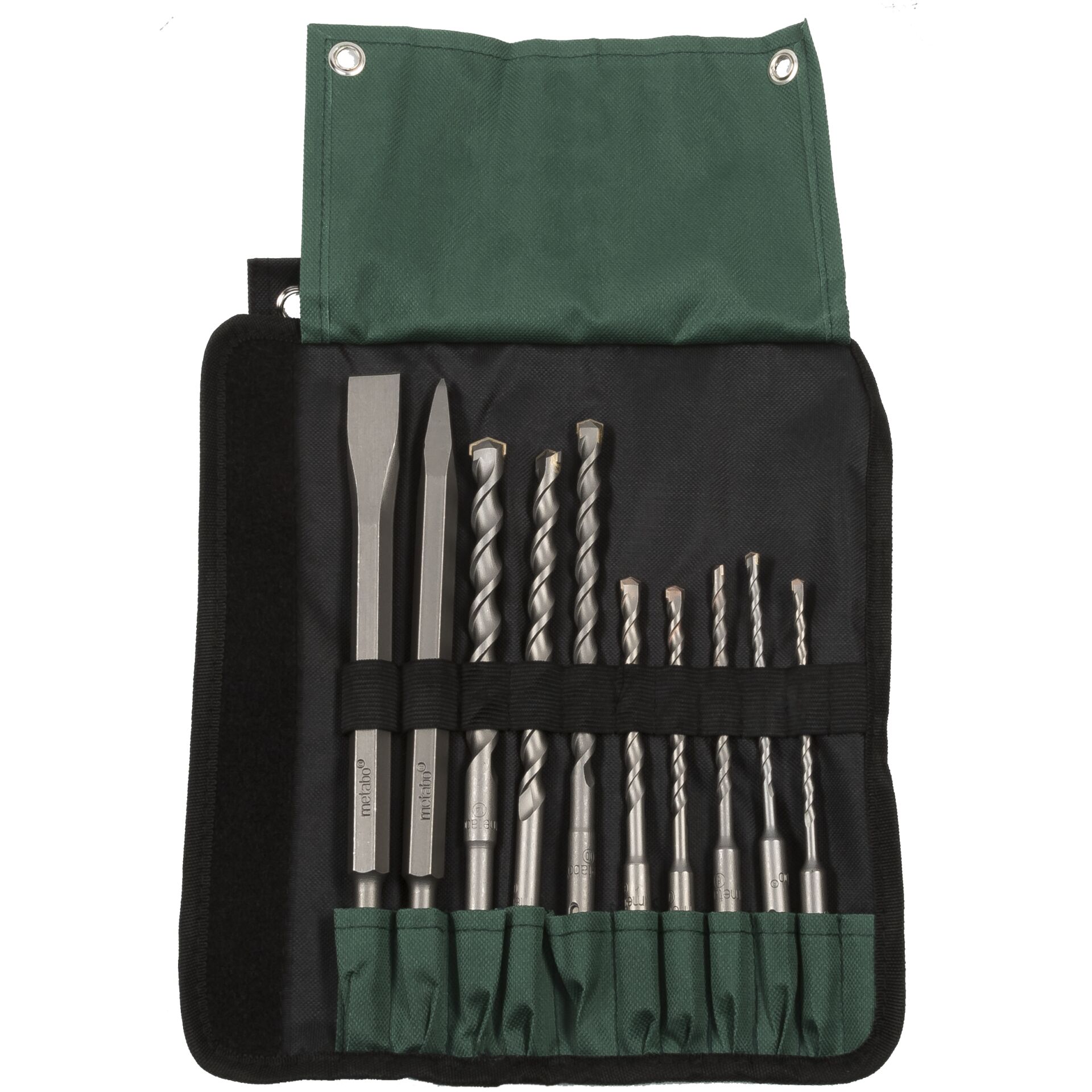

The set includes 1 SDS-plus hammer chuck, 1 keyless drill chuck, 1 additional handle, 1 depth stop, 1 carrying case and a 10-piece drill and chisel set.

Is this a cordless rotary hammer?

No. It runs on mains power and has a power consumption of 1100 W.
