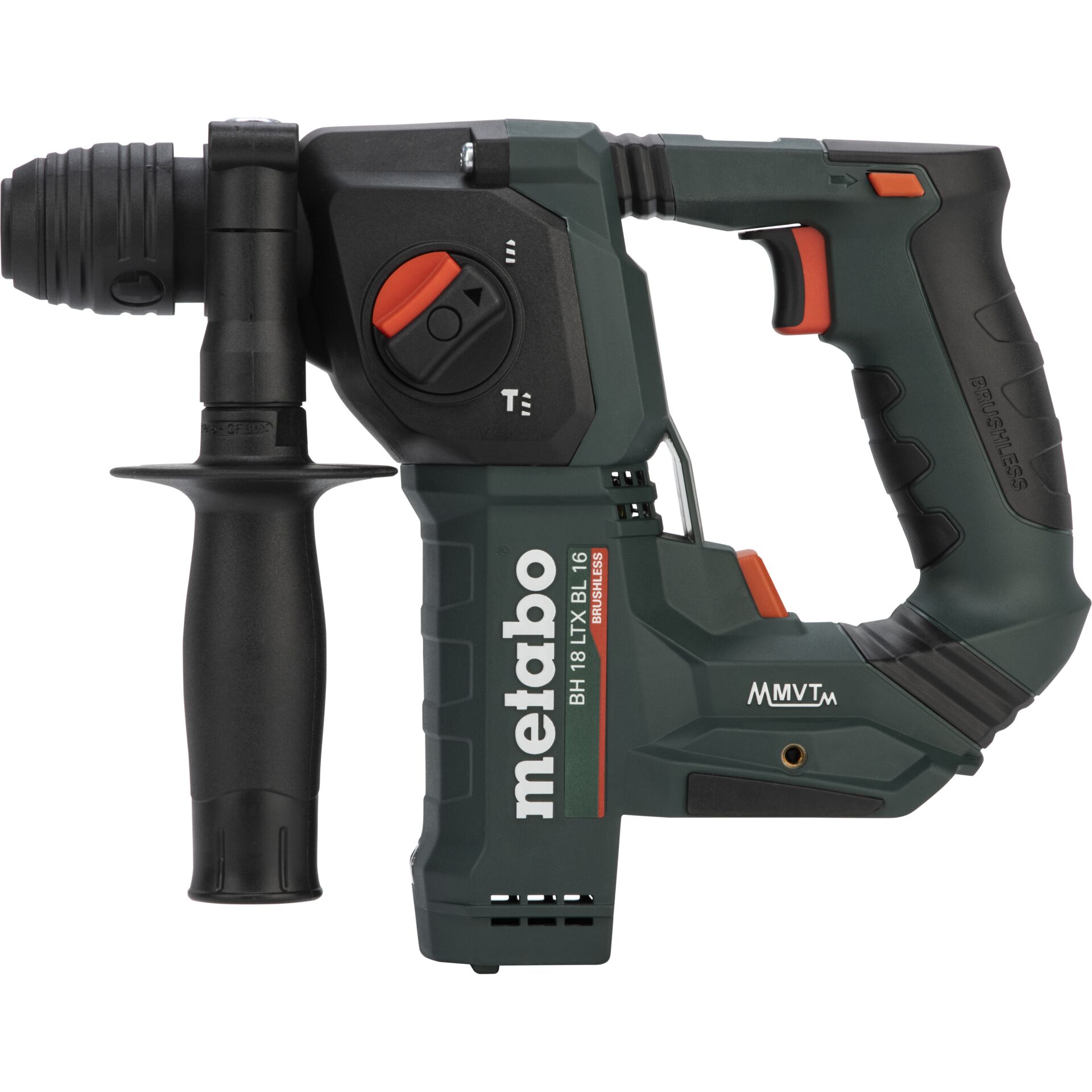

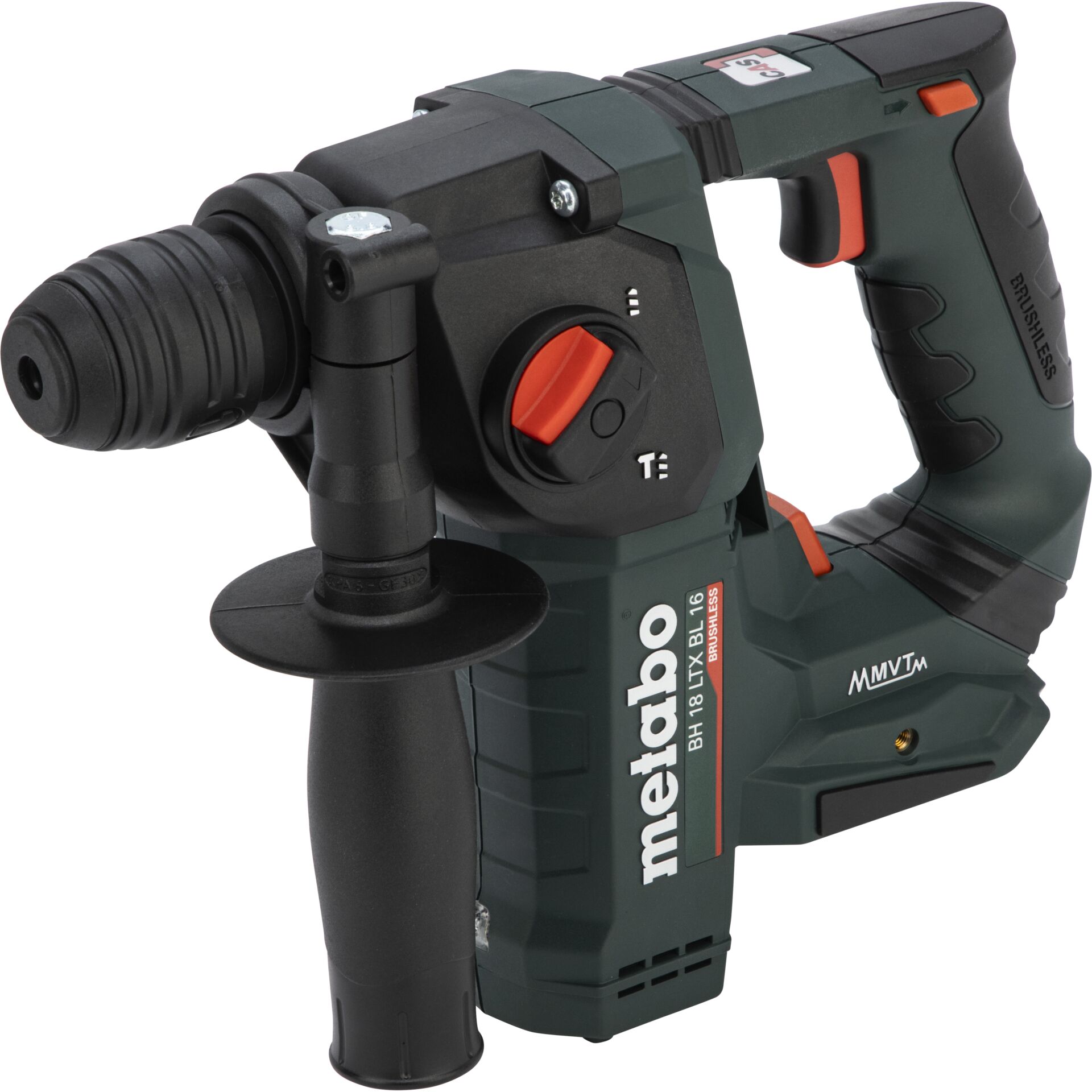

Metabo BH 18 LTX BL 16 18V Cordless SDS-plus Rotary Hammer metaBOX
Metabo
| Products ID: | 186748 |
|---|---|
| Manufactured by: | Metabo |
| Availablity: | Ready to Order |
| Delivery Time | 7-15 business days |
| EAN: | 4061792191679 |
Delivery options to:
Choose country
The Metabo BH 18 LTX BL 16 is a lightweight and compact cordless hammer drill powered by a brushless motor, designed for rotary drilling, hammer drilling, and chiseling. Compatible with the 18 V CAS battery platform, it delivers up to 2.2 J of single impact energy.
Performance and Controls
This 3-function combination hammer easily switches between hammer drilling, drilling without impact, and chiseling. Vario-Tacho-Constamatic (VTC) electronics maintain customized speeds constant under load, while electronic soft start allows precise spot-drilling.
Safety and Ergonomics
The integrated Metabo VibraTech (MVT) system dampens vibrations during prolonged operation. In the event of a jammed drill bit, a mechanical safety clutch decouples the drive to safeguard the user. An integrated LED light illuminates the working area.
- Brushless motor paired with a pneumatic hammer mechanism
- SDS-plus tool mounting system
- Variable speed regulation, rotation stop, and clockwise/counter-clockwise operation

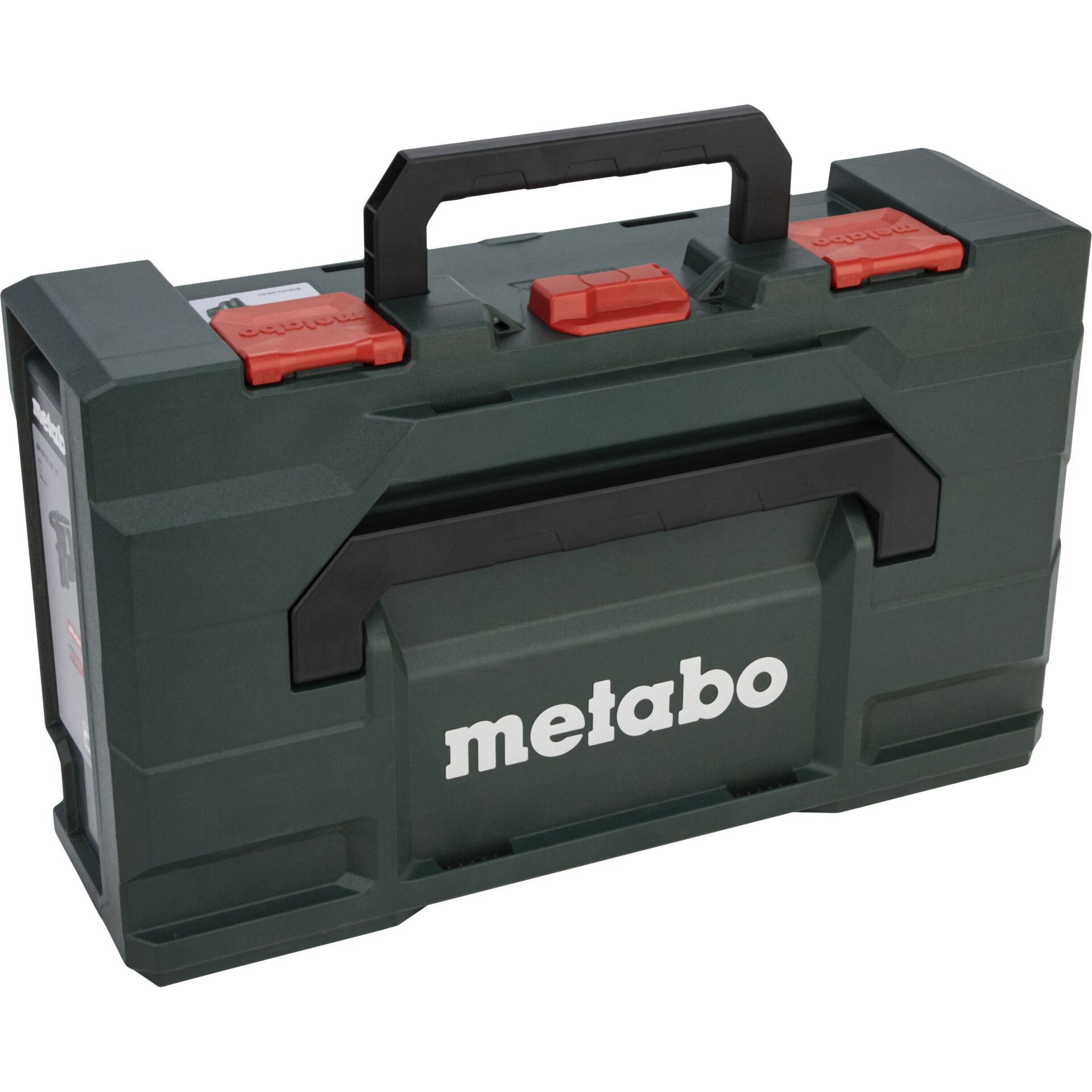

- Supplied with rubberized auxiliary handle, depth stop, and metaBOX 165 L
| Battery system | CAS (Metabo 18V) |
|---|---|
| Battery voltage | 18 V |
| Battery type | Lithium-ion |
| Battery / batteries included | No |
| Maximum single impact energy (EPTA) | 2.2 J |
| Max impact rate | 4750 /min |
| Idle speed | 0 - 1280 /min |
| Tool holder | SDS-plus |
| Max drilling diameter in concrete with hammer drills | 24 mm |
| Max drilling diameter in masonry with drill bits | 82 mm |
| Max drilling diameter in steel | 13 mm |
| Max drilling diameter in softwood | 30 mm |
| Hammer mill mechanism | Pneumatic |
| Variable speed regulation | Yes |
| Rotation stop | Yes |
| Hammer stop | Yes |
| Clockwise/counter-clockwise direction | Yes |
| Vibration hammer drilling concrete | 13.6 m/s² |
| Vibration measurement uncertainty K (drilling) | 1.5 m/s² |
| Vibration chiseling | 9.2 m/s² |
| Vibration measurement uncertainty K (chiseling) | 1.5 m/s² |
| Sound pressure level | 90 dB(A) |
| Sound power level (LwA) | 101 dB(A) |
| Noise measurement uncertainty K | 3 dB(A) |
| Weight without battery pack | 2.7 kg |
| Width | 33.2 cm |
| Height | 29.0 cm |
| Depth | 9.6 cm |
| Colour | Green / Black |
Are a battery and charger included?
No, this unit is supplied without a battery pack and without a charger. They are available separately and compatible with the 18 V CAS system.
What is included in the scope of delivery?
The package includes a rubberized additional handle, a drill depth stop, and the metaBOX 165 L carry case.
What is the maximum drilling capacity in concrete?
The maximum drilling capacity in concrete with hammer drill bits is 24 mm, and up to 82 mm in masonry when using core bits.
