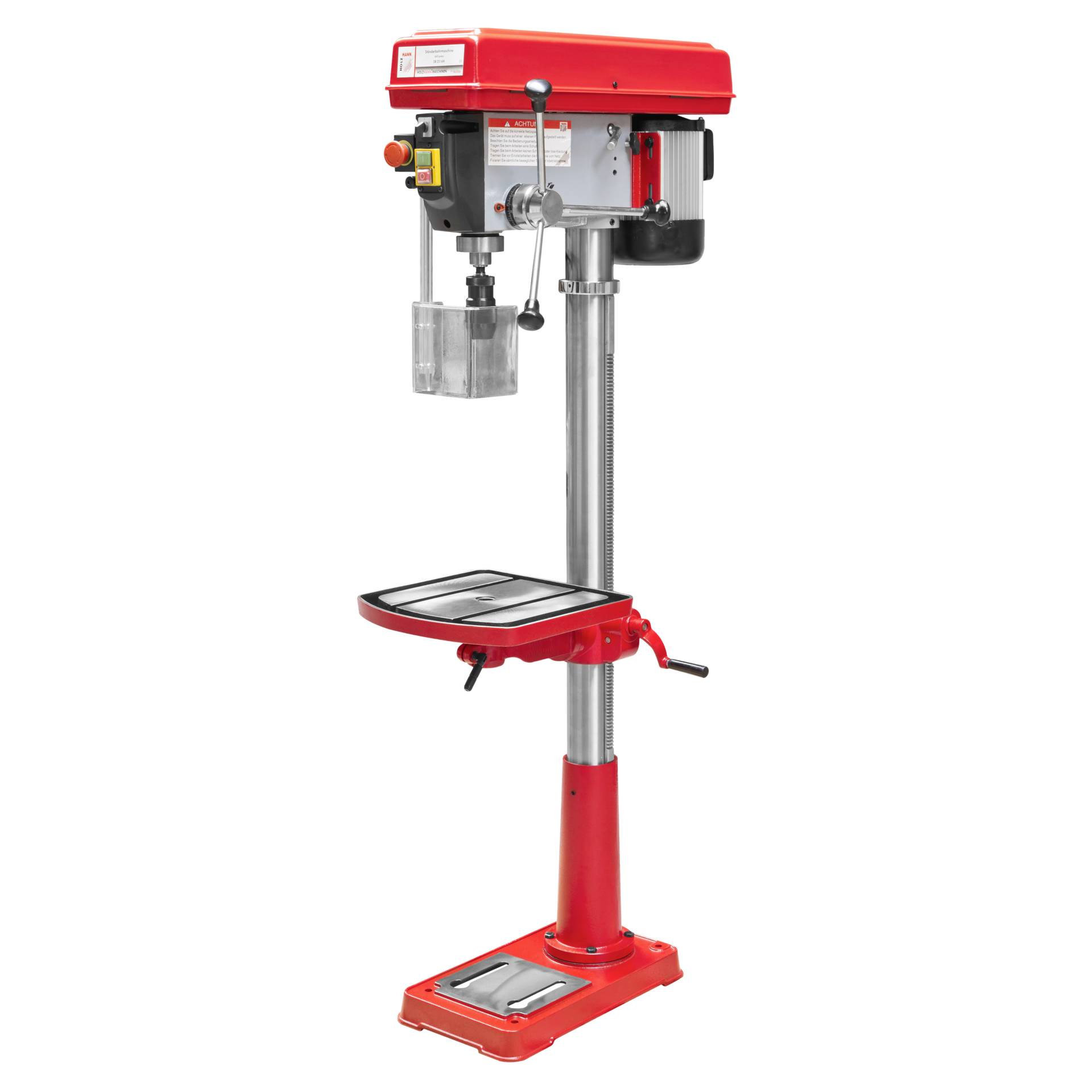

Column Drill Press Holzmann SB2516H 230V 1100W
Price: 726.80 €
| Products ID: | 183259 |
|---|---|
| Manufactured by: | Holzmann Maschinen |
| Availablity: | Ready to Order |
| Delivery Time | 7-15 business days |
| EAN: | 9120039909240 |
Delivery options to:
Choose countryThe Holzmann SB2516H 230V is a solid column drill press powered by an 1100W motor, engineered for precise drilling in steel, wood, and concrete.
Key Features
- Solid base plate for reliable stability
- Aluminium motor compliant with IP54 protection
- Bending-resistant drill column with ground surface
- Rotating drilling table adjustable to any height via gear rack
- Practical three-arm lever with drill depth scale and stop
- Fold-away quick chuck cover made of acrylic glass
| Motor power S1 | 1100 W |
|---|---|
| Voltage | 230 V |
| Max. height | 1635 mm |
| Extension (throat) | 215 mm |
| Table size | 356 x 356 mm |
| Set-up dimensions | 1635 x 356 x 780 mm |
| Spindle stroke | 80 mm |
| Base plate | 485 x 290 mm |
| Max. drilling capacity | 25 mm |
| Drilling spindle speed | (16) 160-3000 min-1 |
| Drilling spindle mount | MK3 / MT3 |
| Distance spindle to base plate | 1220 mm |
| Max. distance spindle to table | 725 mm |
| Colour | Red |
What spindle mount does this drill press use?
This drill press features an MK3 / MT3 spindle taper mount.
What is the spindle travel distance?
The spindle stroke is 80 mm and includes an integrated drill depth stop with scaling.
What are the dimensions of the drilling table?
The drilling table measures 356 x 356 mm and can be rotated and height-adjusted via a gear rack.
