Shelly 0-30V Analog Module Add-on for Shelly The Pill
Price: 16.20 €
| Products ID: | 176605 |
|---|---|
| Manufactured by: | Shelly |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 3800238073596 |
Delivery options to:
Choose country

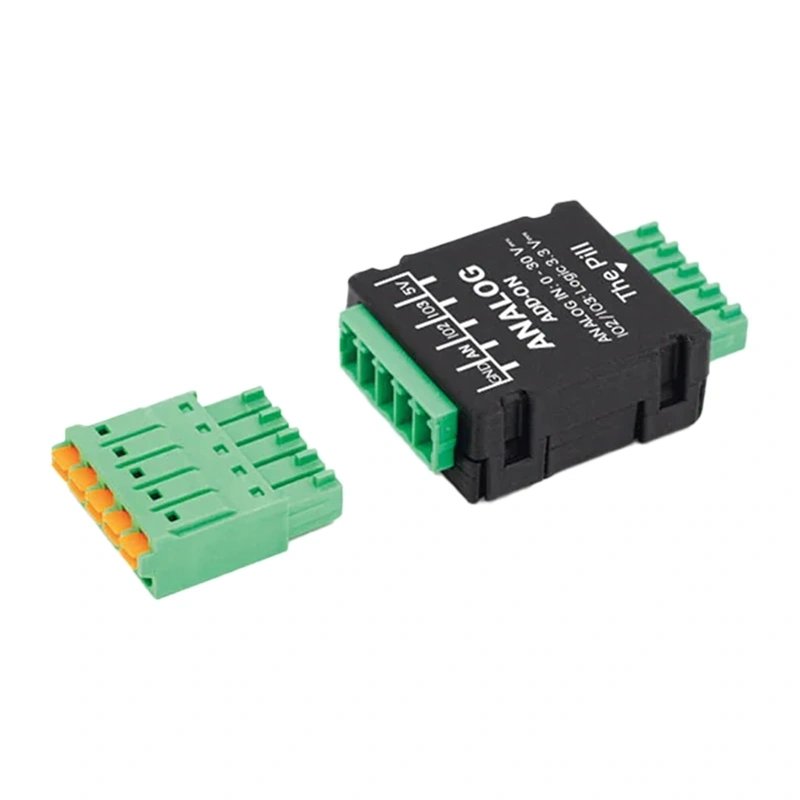

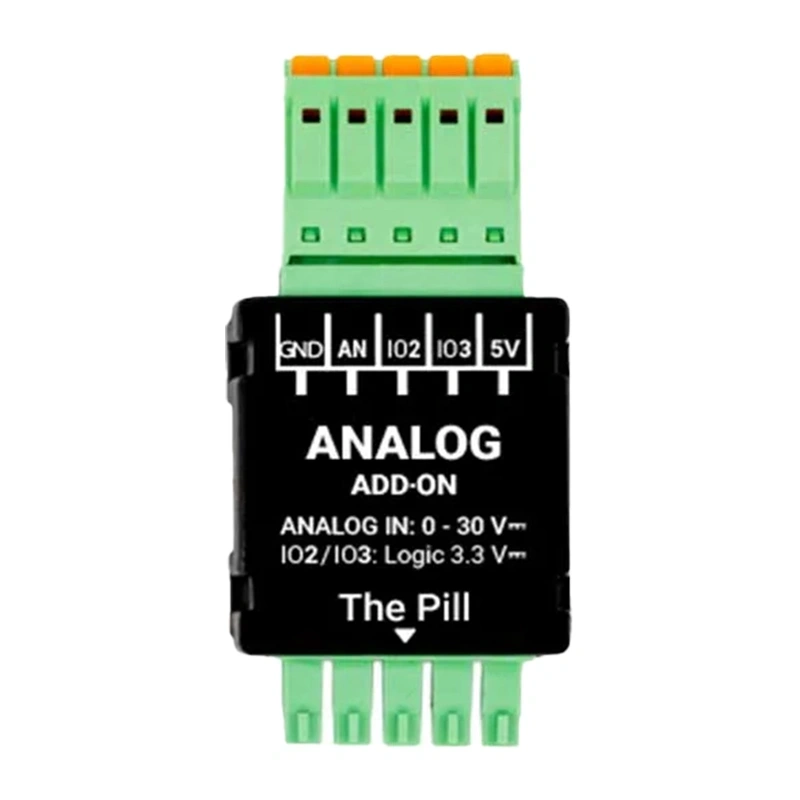

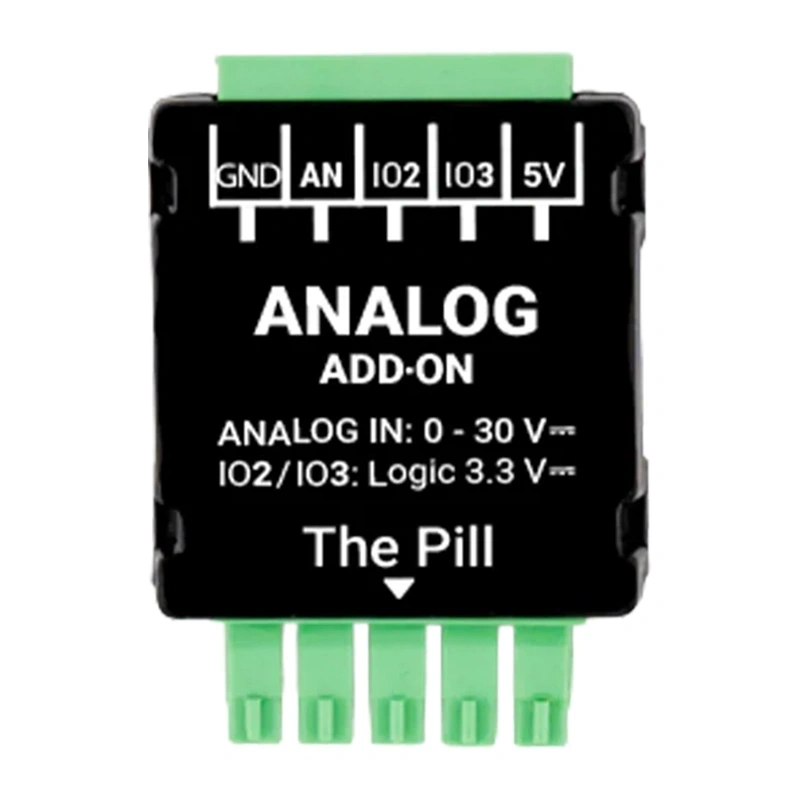

The Shelly 0-30V Analog Module is an add-on expansion for Shelly The Pill, enabling precise DC voltage measurements from 0 to 30 V DC.
Key Features
- Wide Measurement Range: measures DC voltage from 0 to 30 V, suitable for batteries, power supplies, and 0–5 V analog sensors.
- Configurable IO Pins: features two 3.3 V logic pins (IO2 and IO3) that function as digital inputs or outputs.
- Power Terminals: includes 5 V and GND terminals to power connected sensors or Shelly The Pill.
- Compact Form Factor: measures 36.5 × 26.5 × 11.5 mm and weighs only 8 g.
| Manufacturer | Shelly |
|---|---|
| Model | Analog 0 - 30V Add-o |
| Compatibility | Shelly The Pill |
| Dimensions (H × W × D) | 36.5 × 26.5 × 11.5 mm |
| Weight | 8 g |
| Housing Color | Black |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 40°C |
| Humidity | 30% to 70% RH |
| Maximum operating altitude | 2000 m |
| DC voltage measurement range | 0 to 30 V |
| Voltage measurement accuracy | ±(2% + 5 digits) |
| Digital Input Trigger Voltage | Low (LOW): < 0.83 V, High (HIGH): > 2.48 V |
| Maximum Digital Input Voltage | 3.3 V |
| Maximum switching voltage | 3.3 V |
| Maximum switching current | 20 mA |
What is required to connect this module to Shelly The Pill?
The module connects to Shelly The Pill via the 5-Terminal Add-on, which is required for installation.
What voltage range does the analog module support?
It measures DC voltage from 0 to 30 V with an accuracy of ±(2% + 5 digits).
