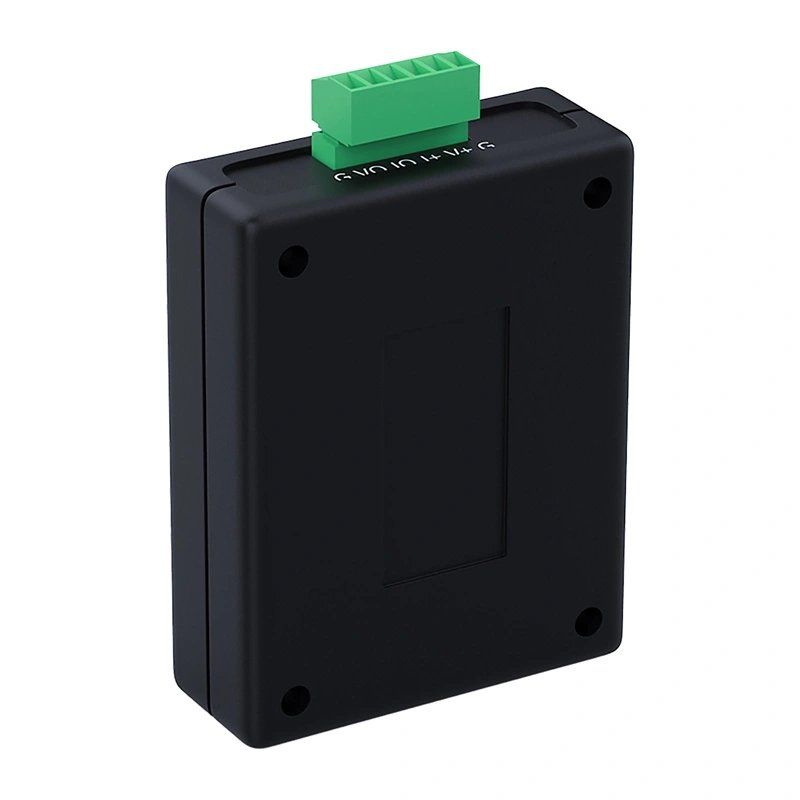

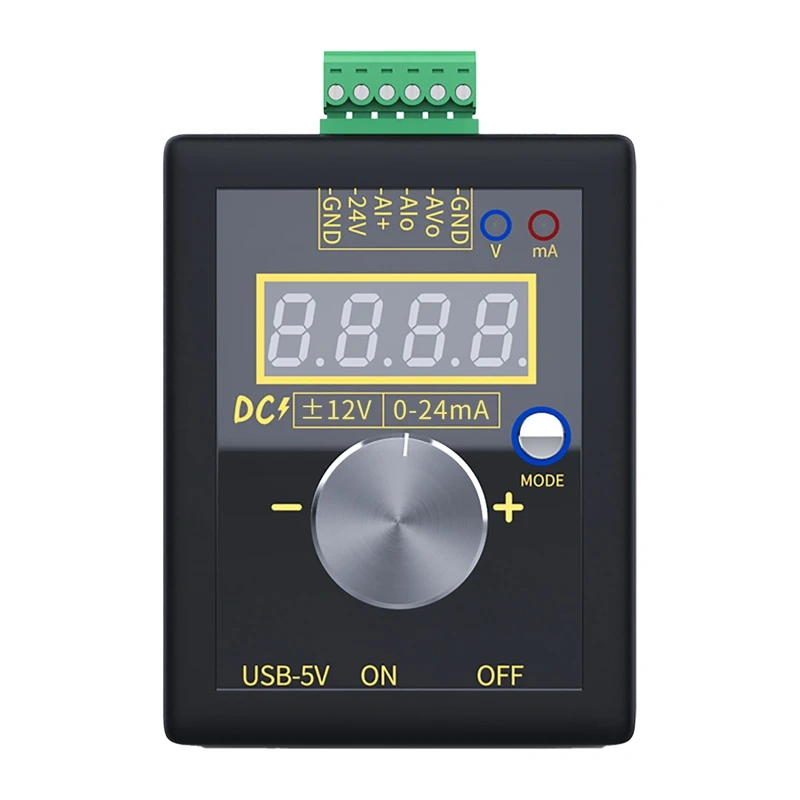

Multifunctional Signal Generator FNIRSI SG-002

The FNIRSI SG-002 is a multifunctional voltage and current signal generator designed for testing, calibration, diagnostics, and commissioning of industrial automation systems, PLCs, and control equipment.

Key Features

Voltage output ranges up to ±12 V and current output from 0 to 24 mA in active and passive modes.
Compatibility with 2-, 3-, and 4-wire installation wiring configurations.
Coarse and fine parameter adjustments via a 30-pulse rotary encoder.
4-digit LED display with 8 brightness levels and multiple data presentation modes.
Three power sources: external DC 15–30 V, micro USB 5 V, or built-in 1100 mAh battery.
Settings memory and programmable quick start points for repetitive tasks.

Manufacturer	FNIRSI
Model	SG-002
Device Type	Multifunctional voltage and current signal generator
Voltage Output Range	±12 V
Current Output Range	0–24 mA
Voltage Accuracy (after calibration)	±0.05 V
Current Accuracy (after calibration)	±0.05 mA
Maximum Load Resistance (Current)	≤ 500 Ω
Current Output Type	Active and passive
Supported Wiring Configurations	2-, 3-, and 4-wire
Display	4-digit LED
Display Brightness Levels	8
Built-in Battery	3.7 V / 1100 mAh lithium
External Power Supply	DC 15–30 V
USB Power Supply	micro USB 5 V
Dimensions	89 × 69 × 28 mm

What power sources can be used with the FNIRSI SG-002?

The generator can be powered via an external DC 15–30 V source, a 5 V micro USB input, or its built-in 3.7 V / 1100 mAh lithium battery. It also operates while charging.

What current output standards does the device support?

It supports 0–24 mA output ranges, including standard 0–20 mA and 4–20 mA signals in active and passive modes with loads up to 500 Ω.

What is included in the package?

The package includes the FNIRSI SG-002 signal generator, a detachable terminal strip, a micro USB cable, and a user manual.
