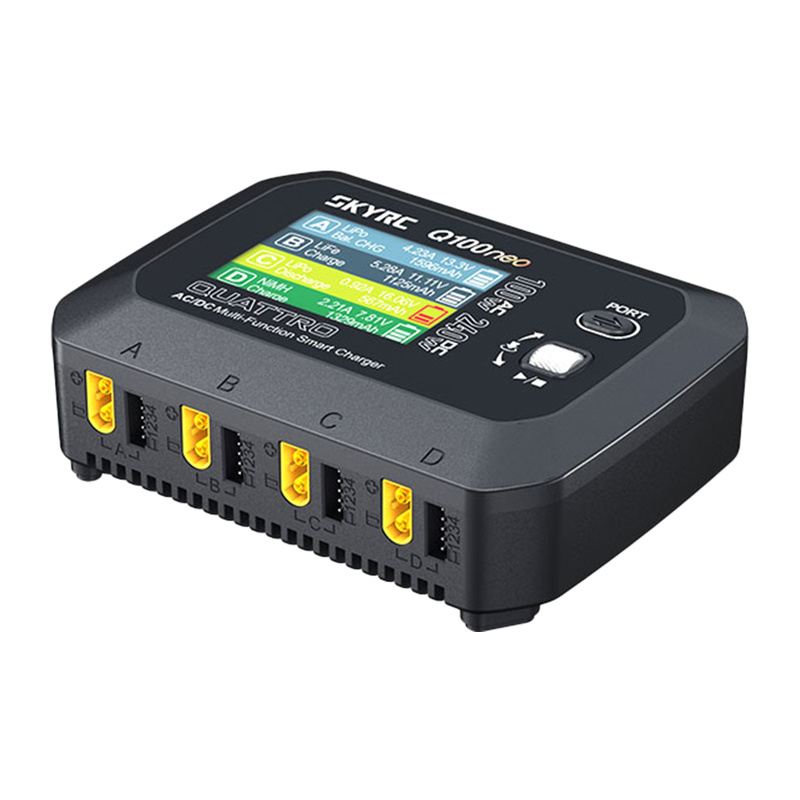

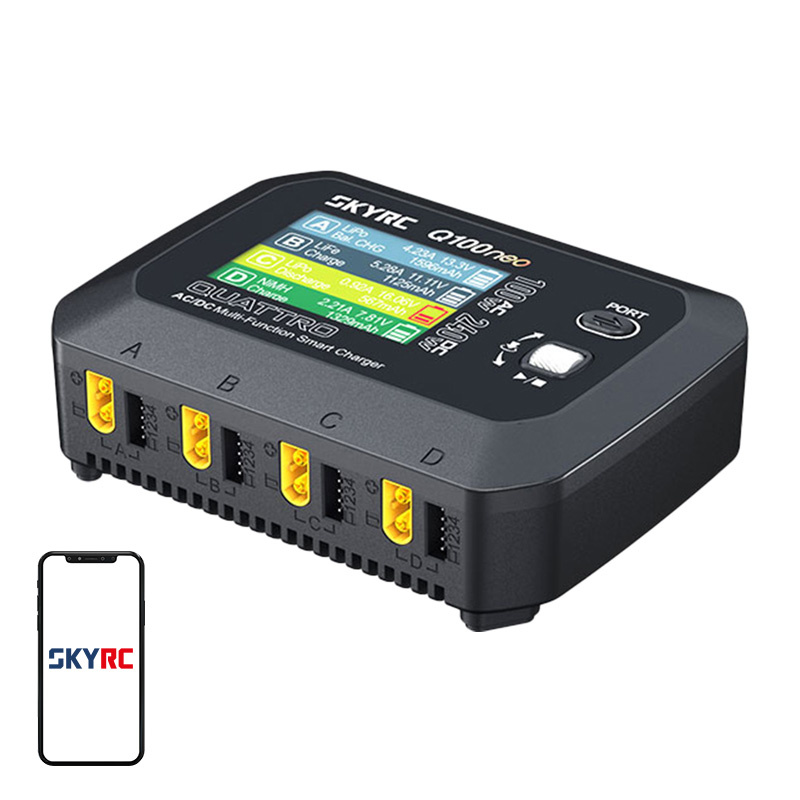

SkyRC Q100neo AC/DC Multifunctional Smart Charger
Price: 76.40 €
| Products ID: | 175974 |
|---|---|
| Manufactured by: | Skyrc |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6930460009029 |
Delivery options to:
Choose countryThe SkyRC Q100neo is a compact AC/DC multifunctional smart charger designed for RC models, drones, and other devices utilizing model batteries.
Key Features
- Four independent charging channels supporting up to 6 A charging current per port
- Dual AC/DC power options delivering up to 100 W on AC and up to 240 W on DC
- Broad battery chemistry support including LiPo, Li-ion, LiFe, LiHV, Pb, NiMH, and NiCd
- Adjustable DC power supply mode with 1–30 V voltage and 0.1–6 A current output
- Color display and intuitive control knob for monitoring operating parameters
- Built-in protection against reverse polarity, overheating, overload, and overvoltage
| Manufacturer | SkyRC |
|---|---|
| Model | Q100neo |
| Device type | Multifunctional smart AC/DC charger |
| Input voltage | AC: 100–240 V, DC: 10–30 V |
| Charging current | 0.1–0.5 A (±0.1 A), 0.6–6.0 A (±10%) |
| Discharge current | 0.1–2.0 A (±0.2 A) |
| Charging power | AC: 100 W (±10%), DC: 240 W (±10%) |
| Discharge power | max. 15 W |
| Balancing current | max. 600 mA |
| DC power supply mode | Voltage: 1–30 V (±0.2 V), Current: 0.1–6 A (±0.1 A) |
| Supported batteries | LiPo, Li-ion, LiFe, LiHV, Pb, NiMH, NiCd |
| Power distribution with AC power supply (100 W) | 1 port – max. 60 W, 2 ports – 50 W + 50 W, 3 ports – 33 W + 33 W + 33 W, 4 ports – 25 W × 4 |
| Dimensions | 140 × 108 × 43.5 mm |
| Weight | 491 g |
| Display | Yes |
What battery types are compatible with the SkyRC Q100neo?
It supports LiPo, Li-ion, LiFe, LiHV, Pb, NiMH, and NiCd battery chemistries.
How much power does the charger deliver on DC input?
When powered by a DC source (10–30 V), it can deliver up to 240 W of total charging power.
Can the Q100neo be used as a bench power supply?
Yes, it includes a DC power supply function with adjustable voltage from 1 to 30 V and current from 0.1 to 6 A.
