SkyRC BD380 Battery Discharger and Analyzer SK-600153
Price: 103.00 €
| Products ID: | 174678 |
|---|---|
| Manufactured by: | Skyrc |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6930460008411 |
Delivery options to:

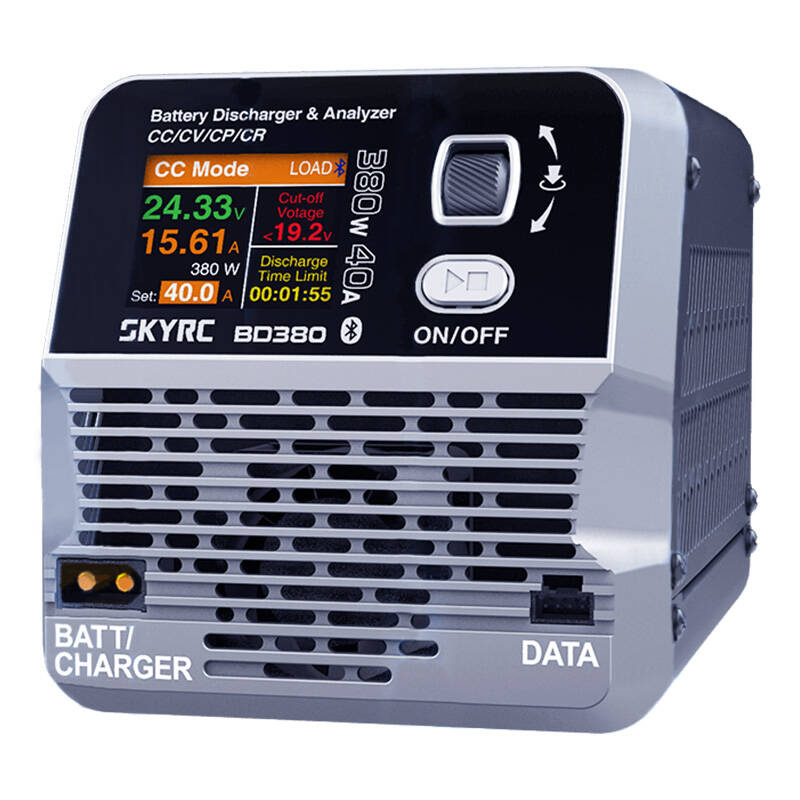

Choose countryThe SkyRC BD380 (SK-600153) is a battery discharger and analyzer designed for precise battery testing and monitoring with a DC input voltage range of 3–40 V.
Key features
- Four discharge modes: CC (0.3–40 A), CP (1–380 W), CR (1–100 Ω), and CV (up to 180 W).
- XT60 interface and a 1.77-inch TN color display.
- Real-time monitoring via smartphone app and PC/Mac software.
- Active cooling system with copper heat pipes and thermally controlled fans.
- Overload, overcurrent, and over-temperature protections.
| Manufacturer | SkyRC |
|---|---|
| Model | SK-600153 |
| DC input voltage | 3-40 V |
| Discharge current | 0.3 A - 40.0 A |
| CC mode (constant current) | 0.3-40 A |
| CR mode (constant resistance) | 1-100 Ω |
| CP mode (constant power) | 1-380 W |
| CV mode (constant voltage) | max. power 180 W |
| Interface | XT60 |
| Display type | TN |
| Display size | 1.77 inches |
| Resolution | 160 × 128 pixels |
| Housing material | PC-ABS V0 |
| Dimensions | 159.7 × 110 × 121.6 mm |
| Weight | 1100 g |
| Operating temperature | 0-40°C |
What discharge modes are supported by SkyRC BD380?
It supports CC (constant current 0.3–40 A), CP (constant power 1–380 W), CR (constant resistance 1–100 Ω), and CV (constant voltage, max 180 W).
What is the operating DC input voltage range?
The supported DC input voltage range is 3–40 V.
Which connector interface does this unit use?
The device uses an XT60 interface for connections.
