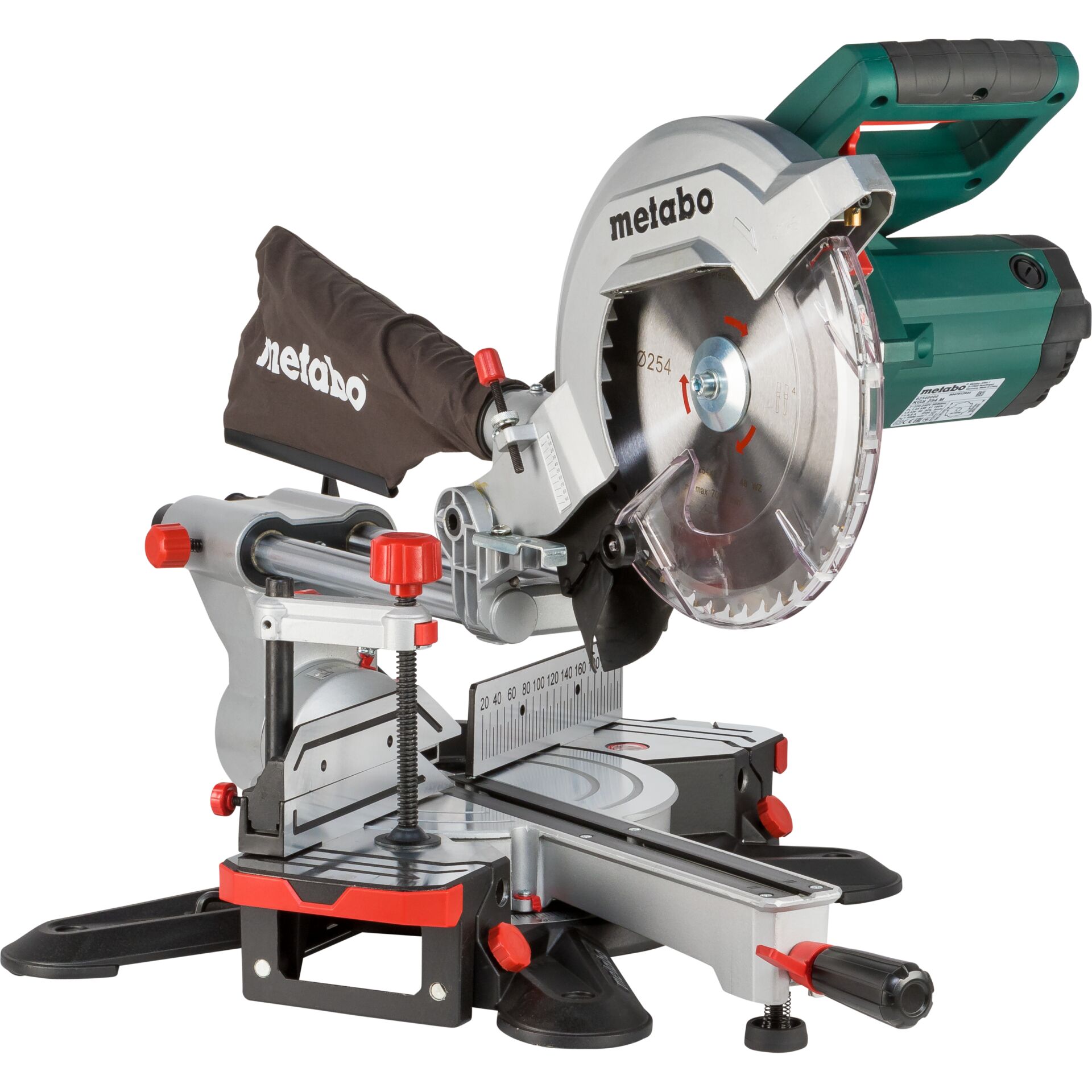

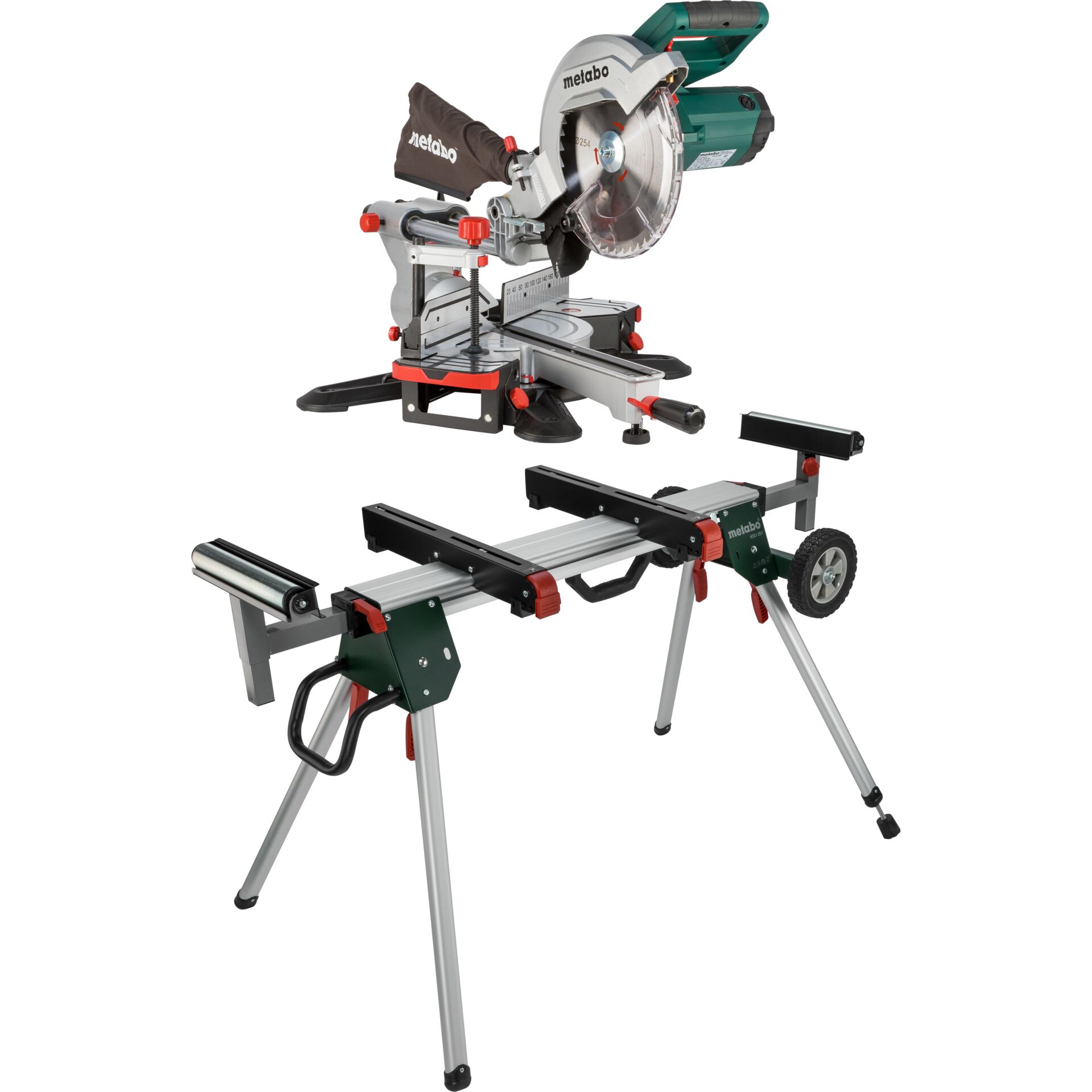

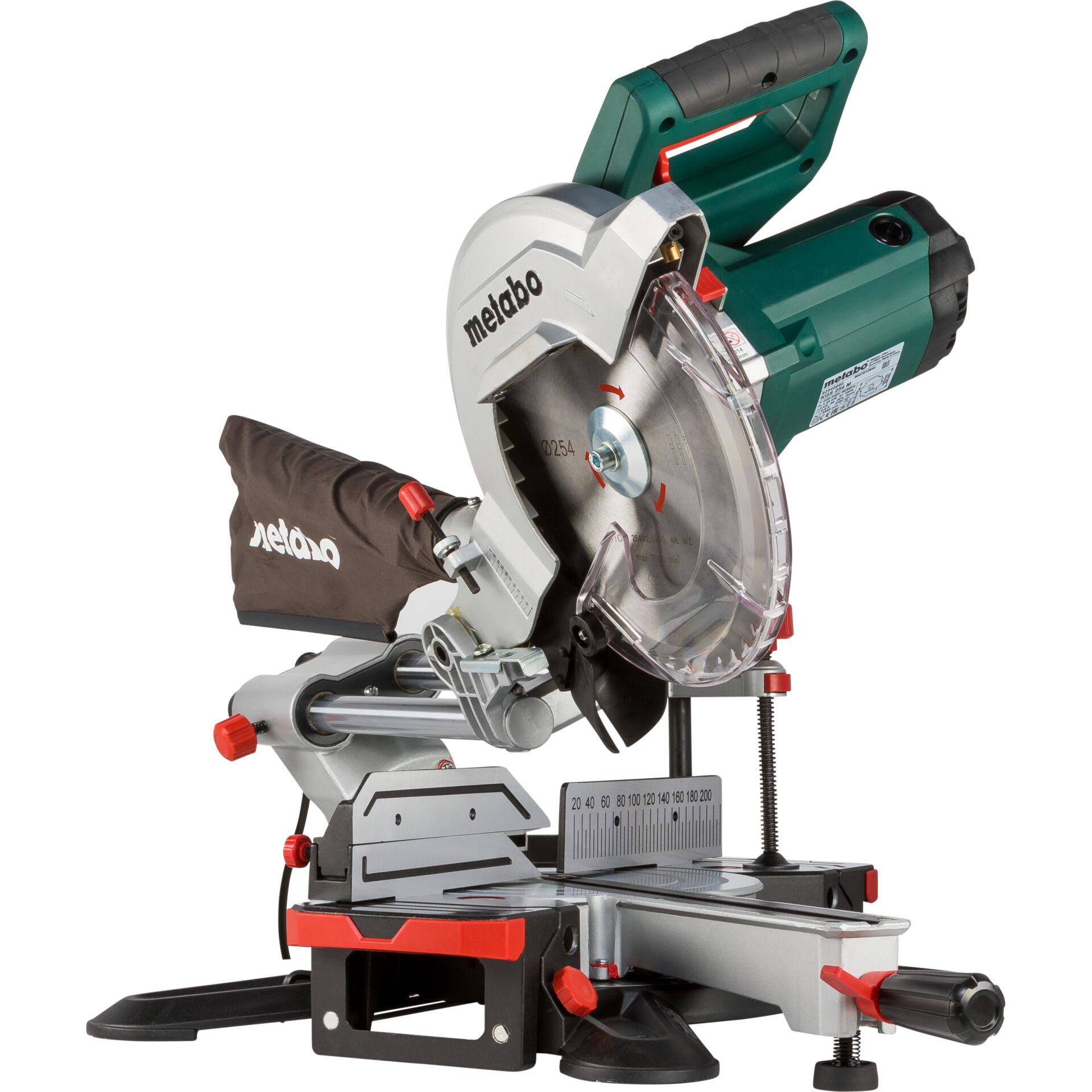

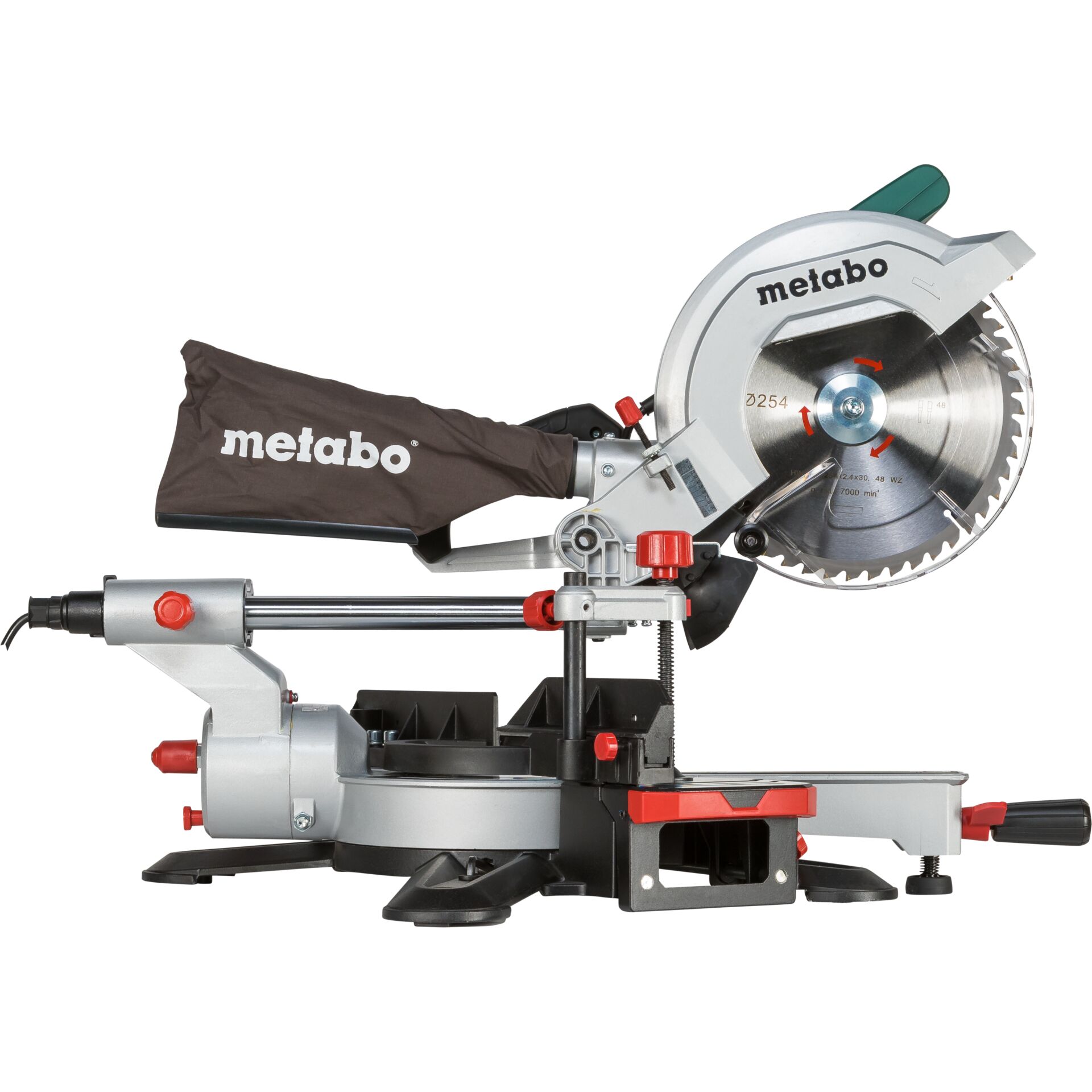

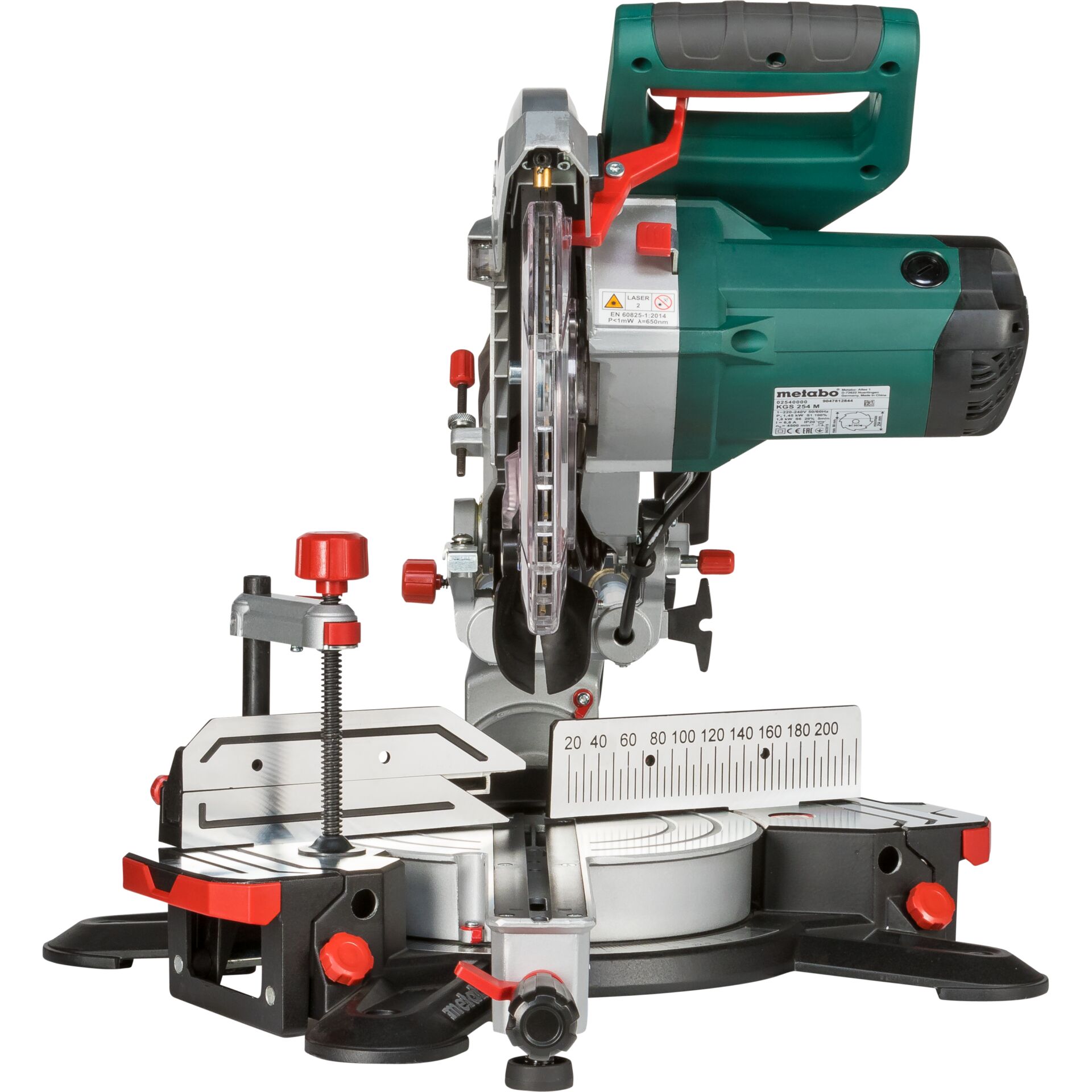

Metabo KGS 254 M Sliding Mitre Saw with KSU 251 Base Frame

Metabo KGS 254 M Sliding Mitre Saw with KSU 251 Base Frame — image 3

Metabo KGS 254 M Sliding Mitre Saw with KSU 251 Base Frame — image 4

Metabo KGS 254 M Sliding Mitre Saw with KSU 251 Base Frame — image 5

Price: 567.40 €

Products ID:	183908
Manufactured by:	Metabo
Availablity:	Ready to Order
Delivery Time	7-15 business days
EAN:	4061792226098

Delivery options to:

Choose country

Metabo KGS 254 M Sliding Mitre Saw with KSU 251 Base Frame

The Metabo KGS 254 M is an M-class mobile crosscut and mitre saw with pull function, supplied together with the KSU 251 machine base frame.

Key Features

Precision Cut Line shadow cut line with LED indicator
Pull function designed for wide workpieces
Die-cast aluminium design built for heavy-duty use
Integrated chip collection funnel for efficient dust extraction
Soft start and integrated depth stop
Extendable, removable table extensions and quick-action material clamp

Dimensions	726 x 485 x 543 mm
Support surface	345 x 760 mm
Max. cutting width 90° / 45°	305 / 215 mm
Max. cutting depth 90° / 45°	92 / 47 mm
Cutting capacity 90° / 90°	305 x 92 mm
Max. cutting capacity 45° / 45°	215 x 47 mm
Turntable setting left / right	50 / 50 °
Saw blade tilt left / right	47 / 2 °
Saw blade	254 x 30 mm
Rated input power	1450 W
Rated input power S1 100%	1450 W
Rated input power S6 20%	1800 W
No-load speed	4500 /min
Speed at nominal load	3200 /min
Cutting speed	60 m/s
Number of teeth	48
Weight	16.1 kg
Cable length	2 m
Sound pressure level	86 dB(A)
Sound power level (LwA)	99 dB(A)
Measurement uncertainty K	3 dB(A)

What is included in the package?

The set includes the Metabo KGS 254 M crosscut saw, KSU 251 base frame, Precision cut wood - classic 254x30 Z48 saw blade, 2 integrated table extensions, crosscut fence, material clamp, blade changing tool, cable winder, and chip collection bag.

What is the maximum cutting capacity at 90°?

The cutting capacity at 90°/90° is 305 x 92 mm.
