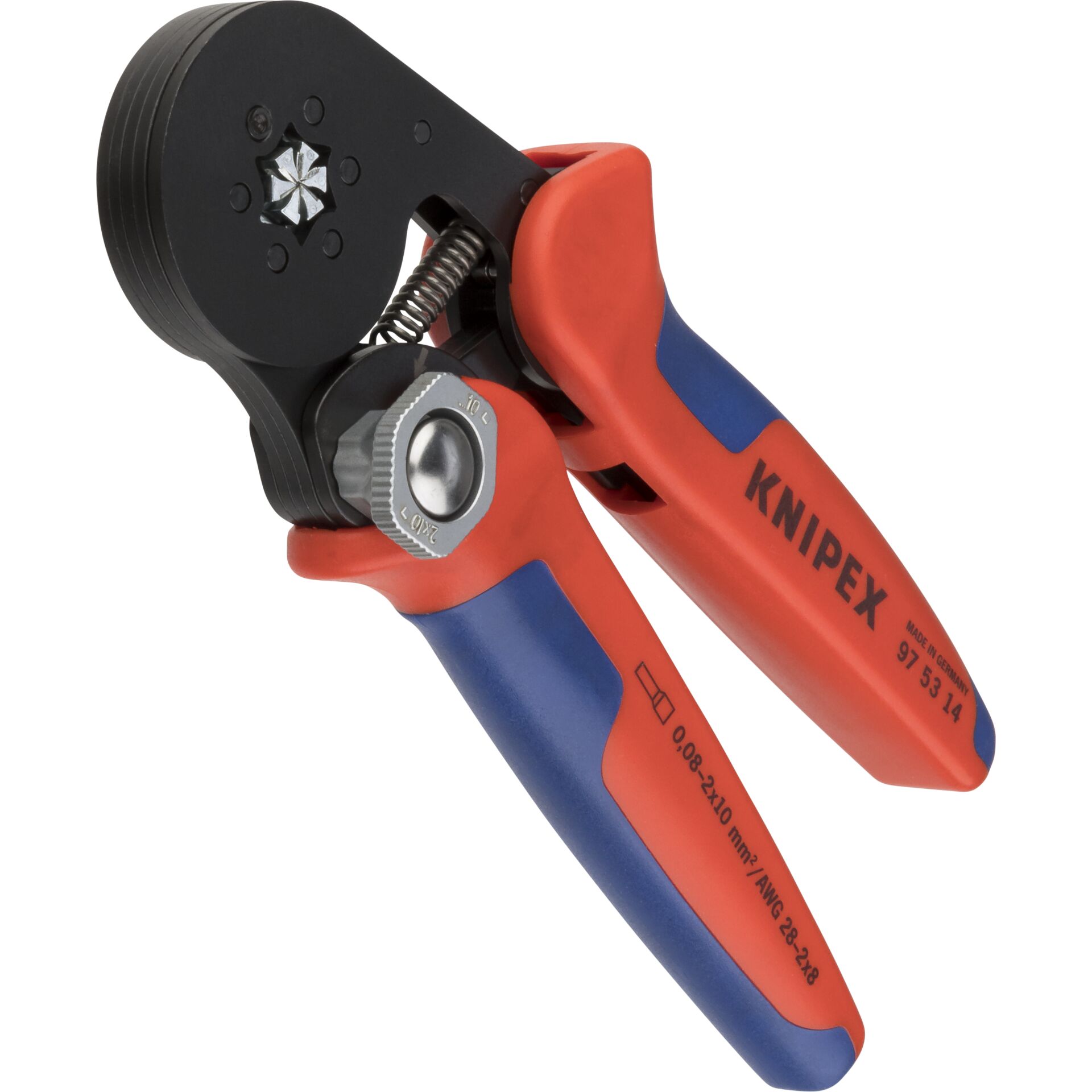

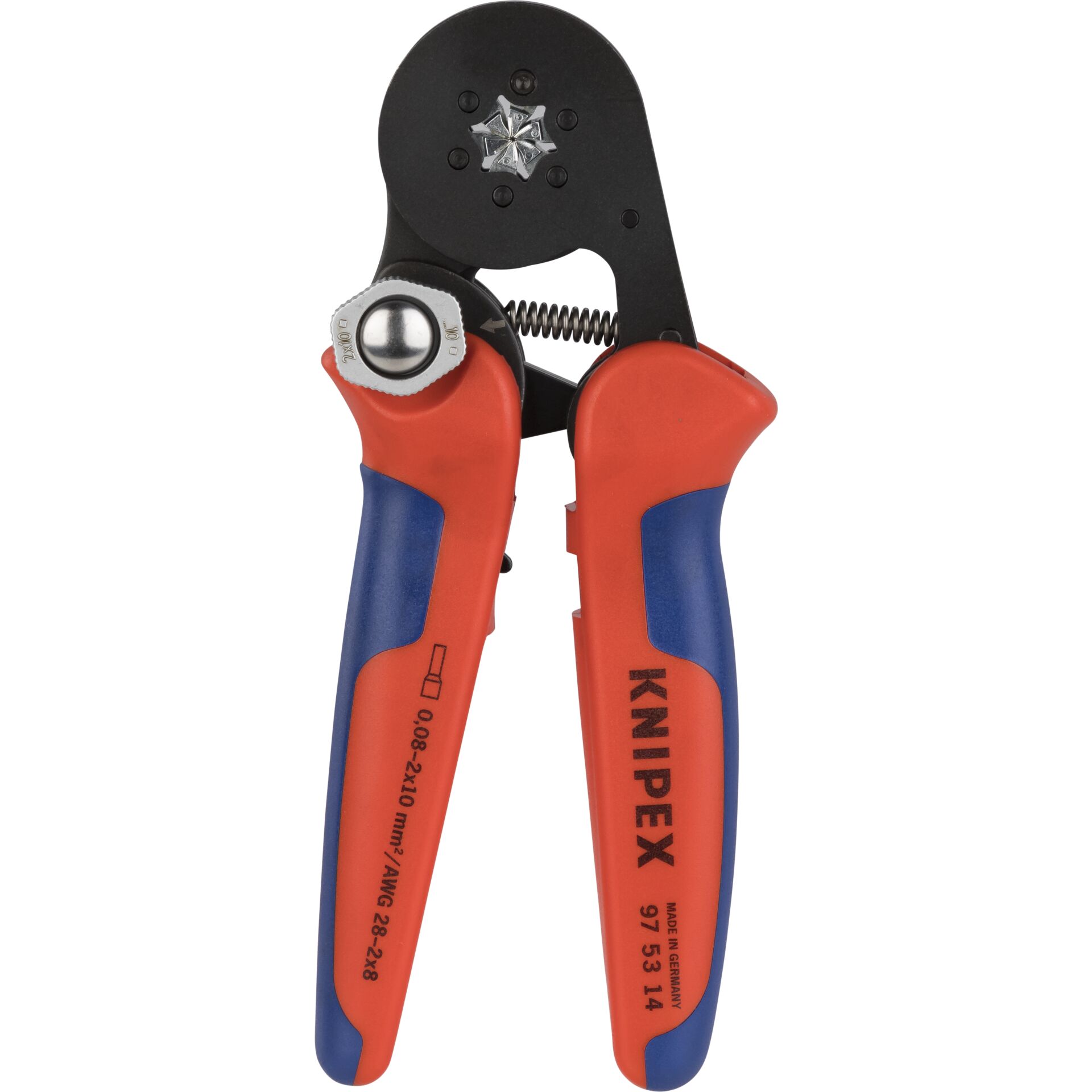

KNIPEX 97 53 14 SB self-adjusting ferrule crimping pliers
163.50 €
Products ID: 196878
In supplier warehouse
Available to order: 2 pcs.
Delivery Time 7–15 business days
Delivery options to:

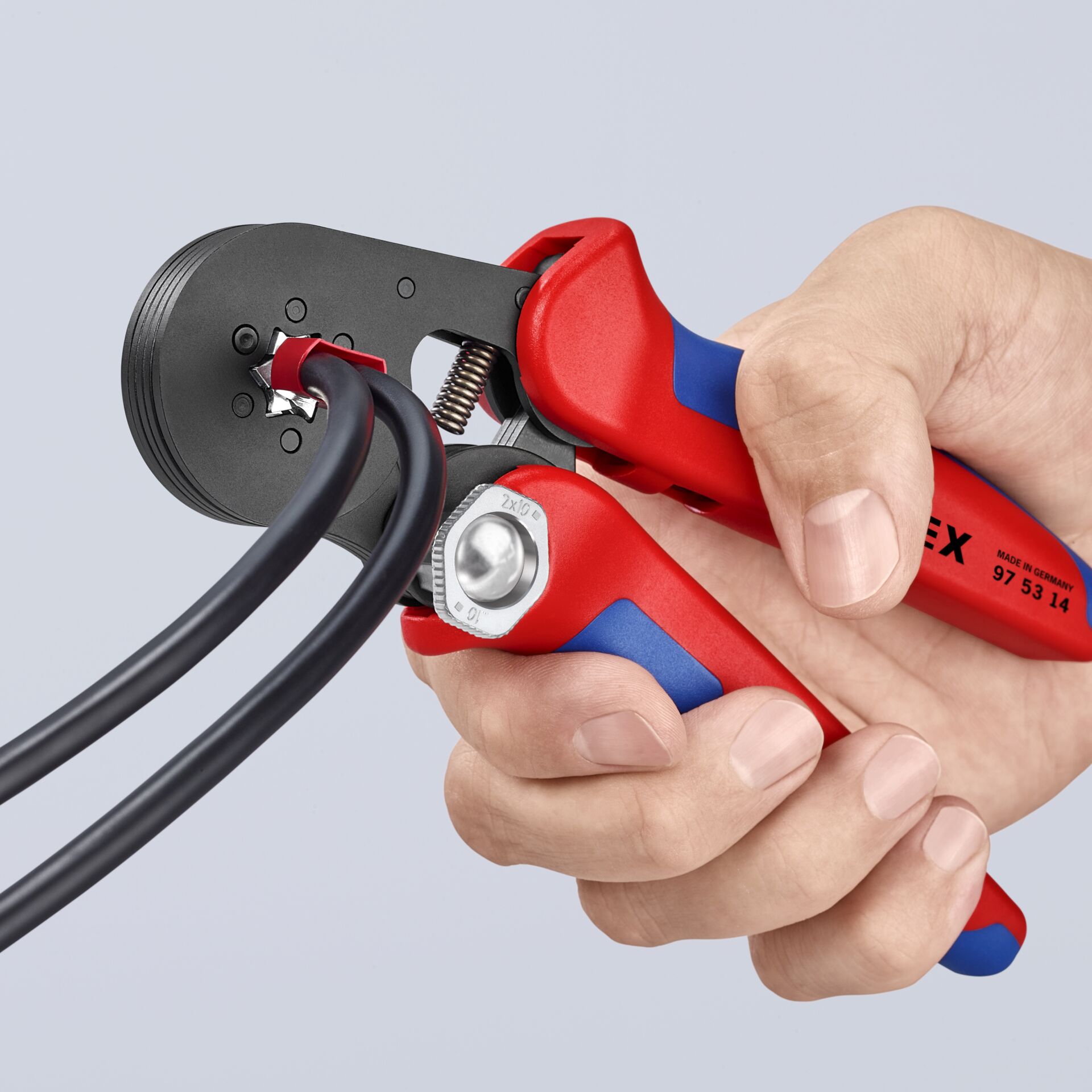

Choose countryKNIPEX 97 53 14 SB are compact, self-adjusting pliers for crimping wire end ferrules. They produce a hexagonal crimp and also accommodate twin ferrules within the 0.08–10.0 mm² capacity range.
Crimping mechanism
- Automatic adjustment: the pliers adapt to the ferrule size.
- Calibrated pressure: precisely set factory crimping pressure supports consistent crimp quality.
- Releasable lock: the positive locking mechanism can be unlocked.
- Reduced effort: a toggle lever reduces the force needed for crimping.
Construction and grip
The 180 mm pliers have a burnished finish and multicomponent handle covers. Improved ergonomics and a reduced grip width make the tool easier to hold. Construction materials include special-grade, oil-hardened chrome vanadium electrical steel and plastic.
| Surface finish | Burnished |
|---|---|
| Handle covers | Multicomponent |
| Material | Special-grade chrome vanadium electrical steel, oil-hardened; plastic |
| Application | Wire end ferrules |
| Crimping capacity | 0.08–10.0 mm² |
| Number of nests | 1 |
| Length | 180 mm |
| Diameter (source designation) | 0.08–10 mm |
| Collecting container | No |
| Adjusting screw | No |
| Length in centimetres | 18.0 cm |
| Base materials | Steel / plastic |
| Colour | Red / blue |
| Tool type | Crimping pliers |
| Twin ferrule capacity | 0.08–10.0 mm² |
| Crimp shape | Hexagonal; up to 10 mm² |
| Size adjustment | Self-adjusting |
| Locking mechanism | Releasable positive lock |
| Crimping pressure | Precisely set and calibrated at the factory |
| Force transmission | Toggle lever for reduced effort |
| Ergonomics | Reduced grip width |
| EAN | 4003773048497 |
|---|
Can these pliers crimp twin ferrules?
Yes. They accommodate twin ferrules within the 0.08–10.0 mm² capacity range.
Does the ferrule size need to be set manually?
No. The pliers adjust automatically to the ferrule size, and the crimping pressure is factory-calibrated.
