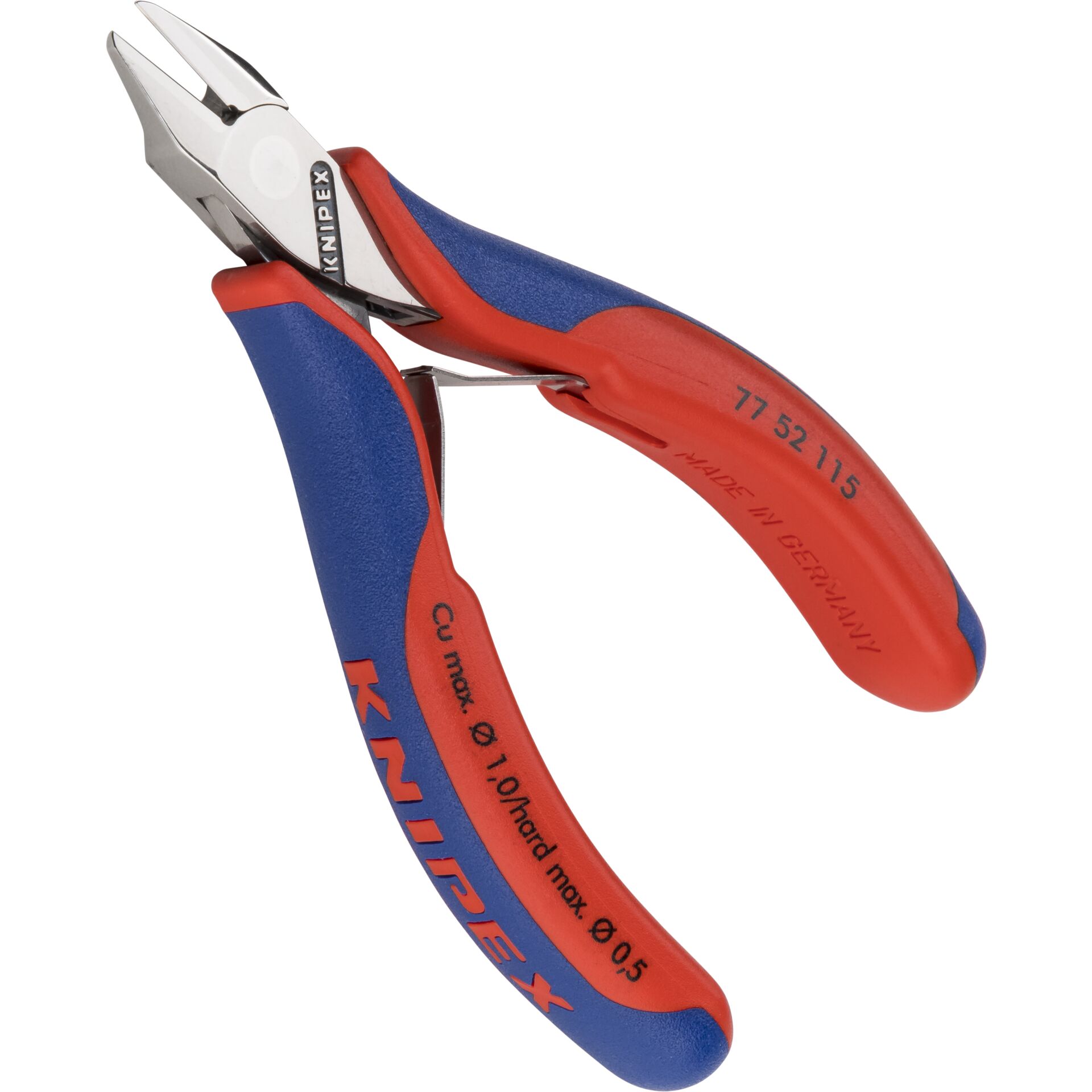

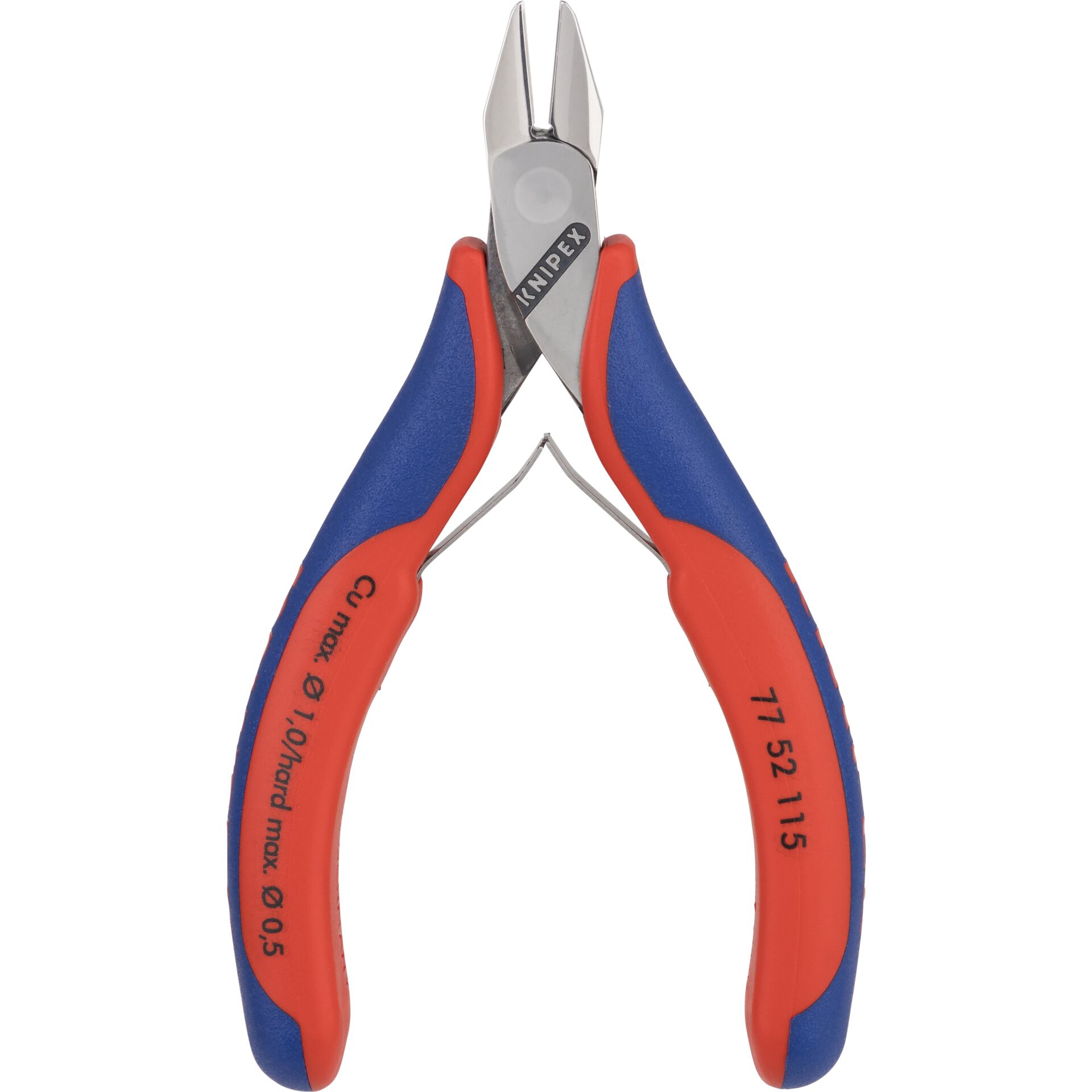

KNIPEX 77 52 115 Electronics Diagonal Cutters, 115 mm
Knipex
Price: 48.90 €
| Products ID: | 186393 |
|---|---|
| Manufactured by: | Knipex |
| Availablity: | Ready to Order |
| Delivery Time | 7-15 business days |
| EAN: | 4003773040750 |
Delivery options to:
Choose country
The KNIPEX 77 52 115 electronics diagonal cutter is designed for detailed work in electronics and precision engineering.
Key Features
- Intended for electronics and precision engineering
- Cutting edge hardness approx. 60 HRC
- Low-friction double spring for smooth and even opening
- Mirror polished head with small facet
- Multi-component handle grips for comfortable handling
| Product type | Diagonal cutter |
|---|---|
| Shape | 5 |
| Head finish | Mirror polished |
| Cutting edge hardness | Approx. 60 HRC |
| Cutting capacities soft wire | Ø 0.3 - 1 mm |
| Cutting capacities medium hard wire | Ø 0.8 mm |
| Cutting capacities hard wire | Ø 0.5 mm |
| Jaw length | 14 mm |
| Jaw thickness at joint | 7.5 mm |
| Head width | 11 mm |
| Material | Steel / Plastic |
| Handle type | Multi-component grip |
| Colour | Red / Blue |
| Adjusting screw | No |
| Collecting container | No |
| Overall length | 115 mm |
| Dimensions | 115 x 66 x 17 mm |
| Weight | 65 g |
What wire diameters can this cutter handle?
It cuts soft wire with diameters from Ø 0.3 to 1 mm, medium-hard wire up to Ø 0.8 mm, and hard wire up to Ø 0.5 mm.
What are the dimensions and weight of this tool?
The overall length is 115 mm, total dimensions are 115 x 66 x 17 mm, and it weighs 65 g.
