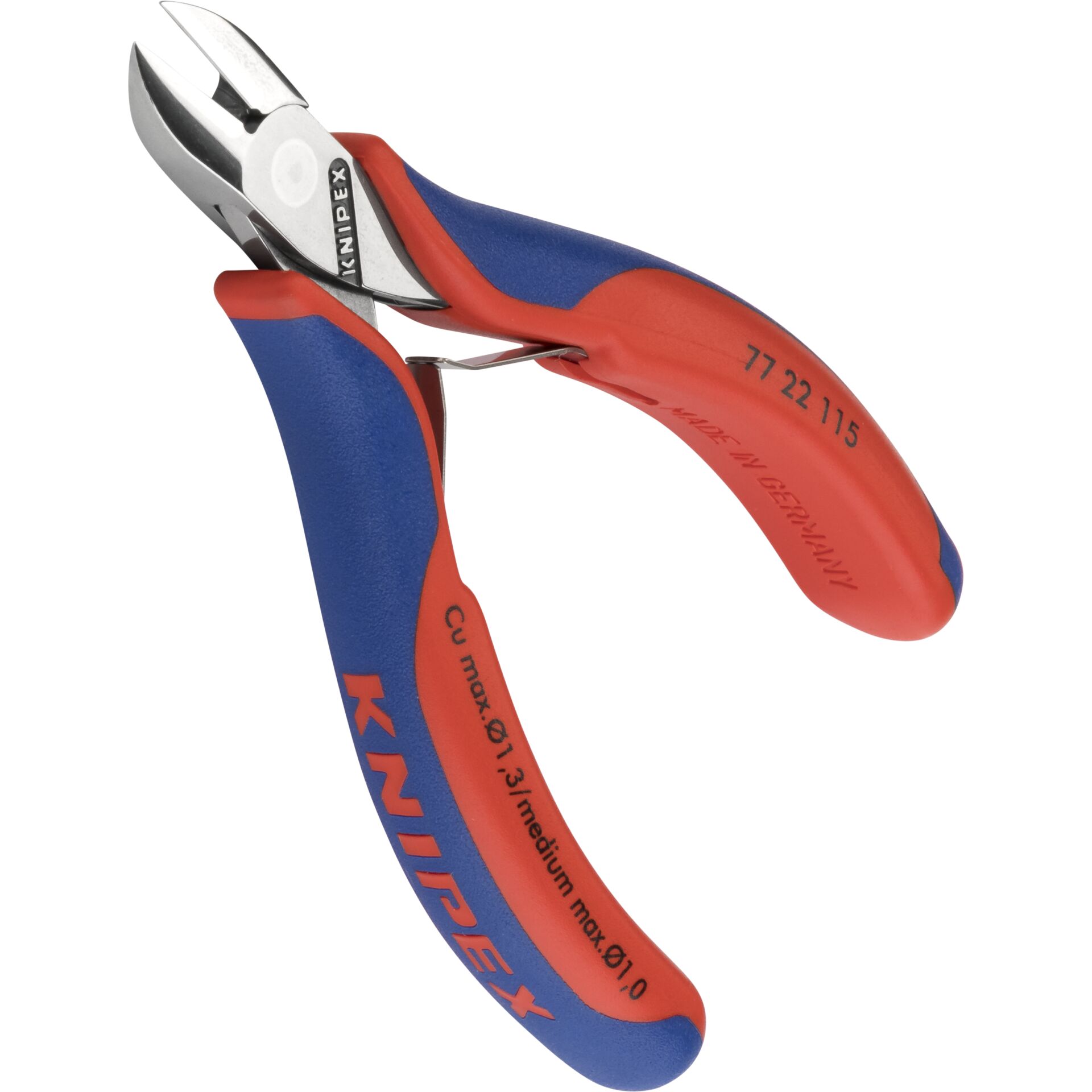

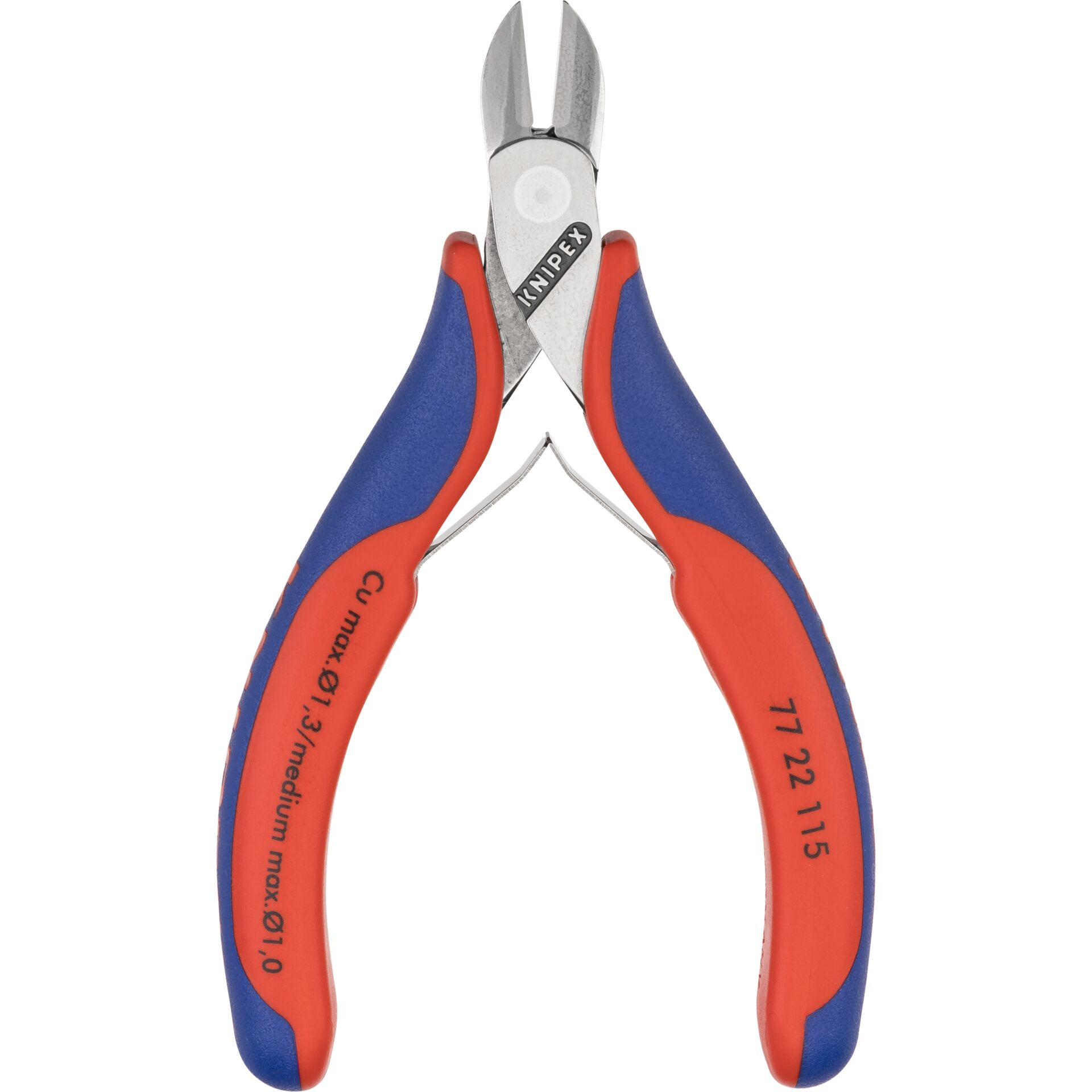

KNIPEX 77 22 115 Electronics Diagonal Cutters, 115 mm
Price: 44.70 €
| Products ID: | 182722 |
|---|---|
| Manufactured by: | Knipex |
| Availablity: | Ready to Order |
| Delivery Time | 7-15 business days |
| EAN: | 4003773043782 |
Delivery options to:
Choose country

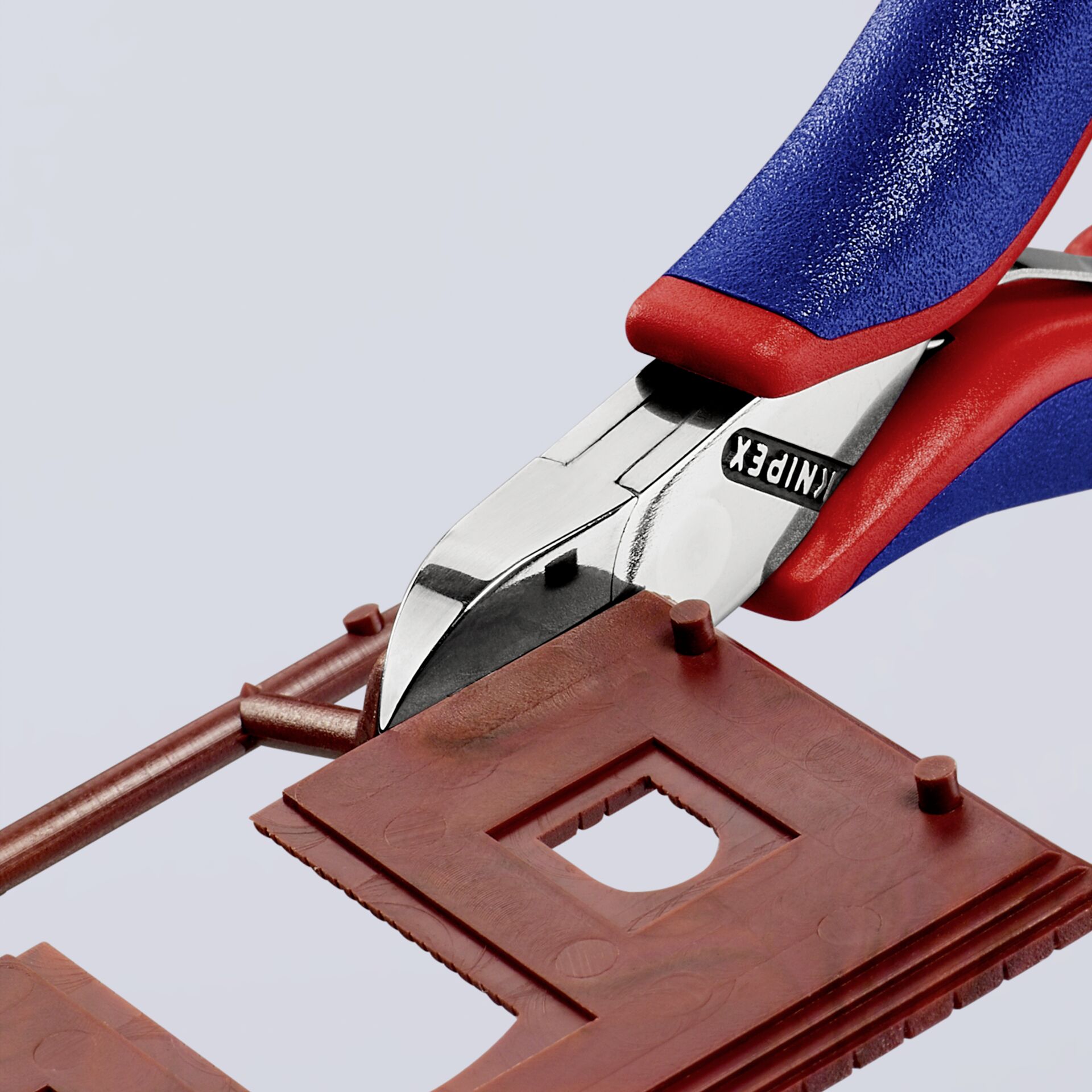

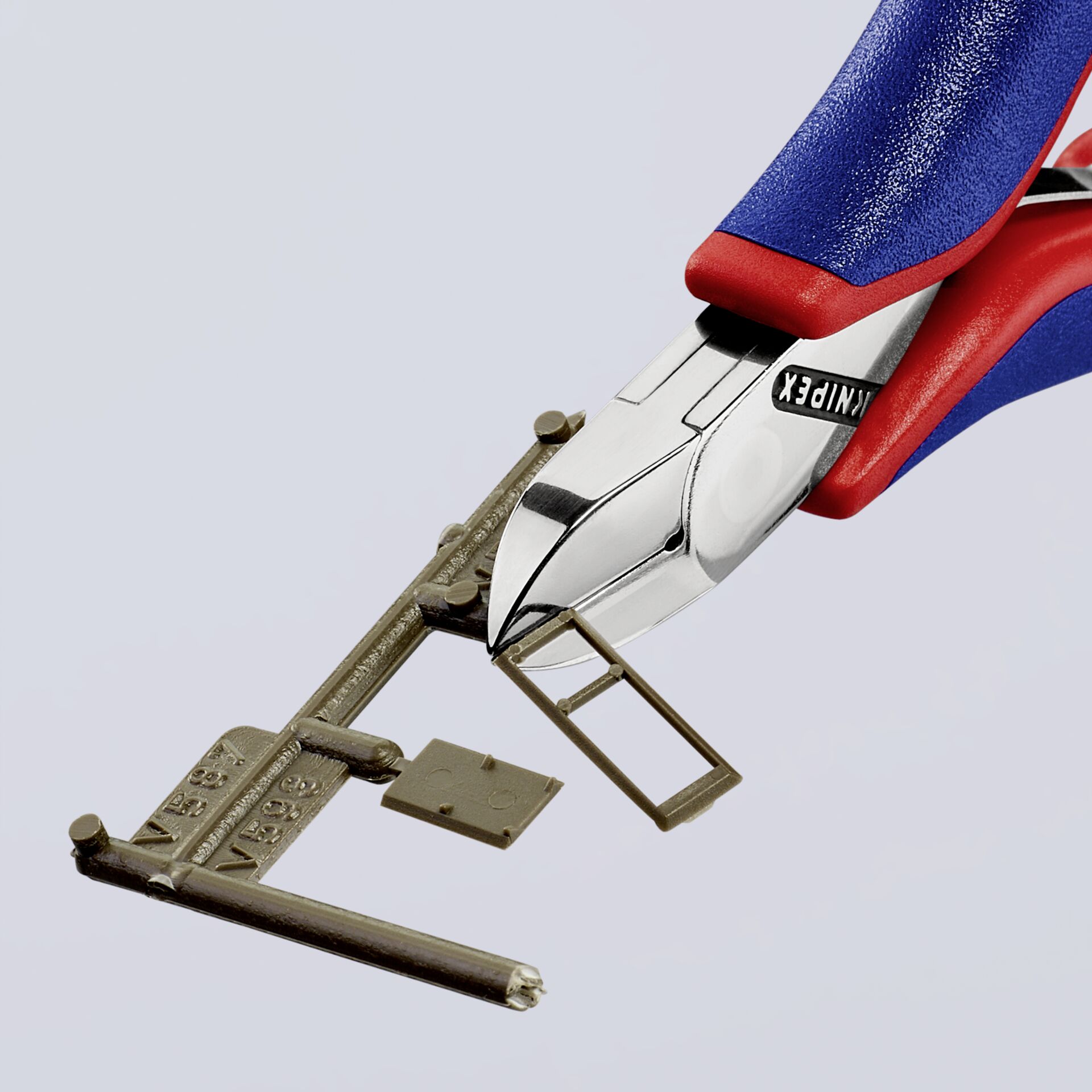

The KNIPEX 77 22 115 electronics diagonal cutters are designed for delicate cutting work in electronics and precision engineering.
Key Features

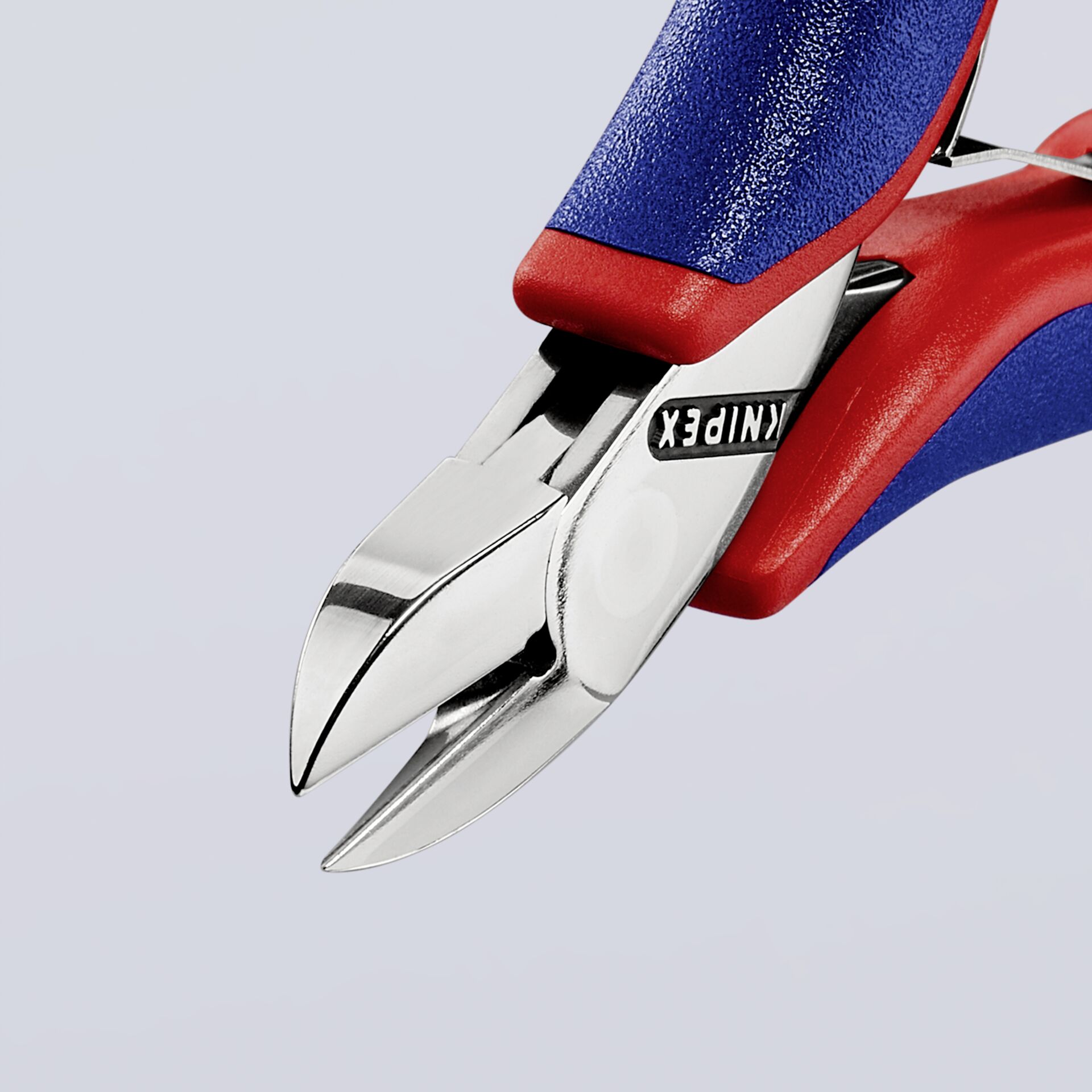

- Round head without bevel for clean, flush cutting
- Laser-hardened cutting edges with a hardness of approximately 57 HRC
- Stable, box-joint design for play-free action
- Low-friction double spring for smooth and gentle opening
- Crafted from oil-hardened ball bearing chrome steel with a mirror-polished head
- Ergonomic multi-component handle covers
| Head shape | Round head, without bevel |
|---|---|
| Application | Electronics and precision engineering |
| Cutting edge hardness | Approx. 57 HRC |
| Joint type | Box-joint without play |
| Material | Ball bearing chrome steel, oil-hardened, plastic |
| Surface finish | Mirror-polished head |
| Handle type | Multi-component covers |
| Shape | 2 |
| Cutting capacity (medium-hard wire) | Ø 1.0 mm |
| Cutting capacity (soft wire) | Ø 0.3 - 1.3 mm |
| Jaw length | 14 mm |
| Jaw thickness at joint | 7 mm |
| Head width | 11 mm |
| Overall length | 115 mm |
| Dimensions | 115 x 65 x 17 mm |
| Weight | 70 g |
| Colour | Red / Blue |
What wire sizes can the KNIPEX 77 22 115 cut?
It is rated to cut soft wire from Ø 0.3 to 1.3 mm and medium-hard wire up to Ø 1.0 mm.
Does this cutter have a bevel?
No, it features a round head without a facet (bevel), making it suitable for flush cuts.
