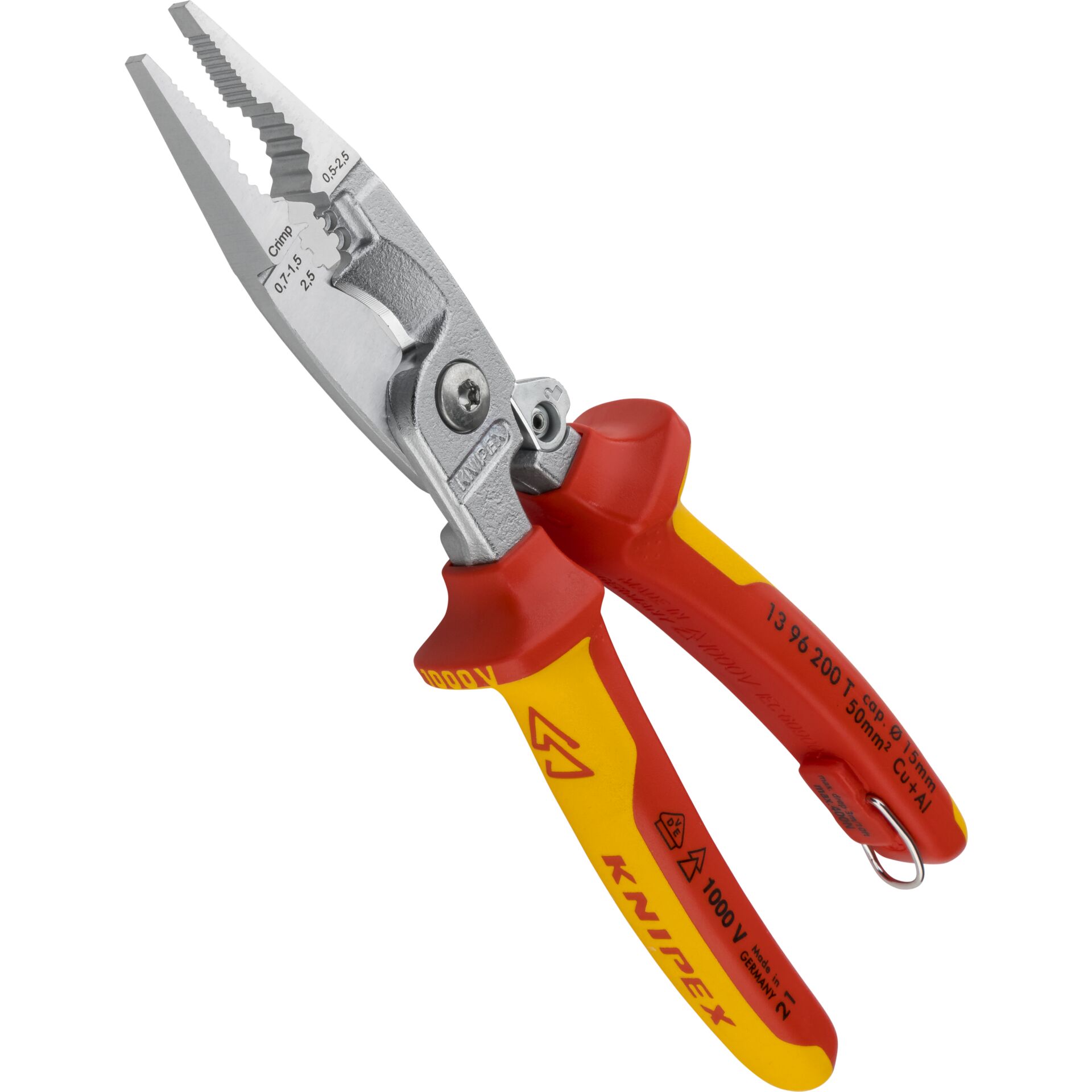

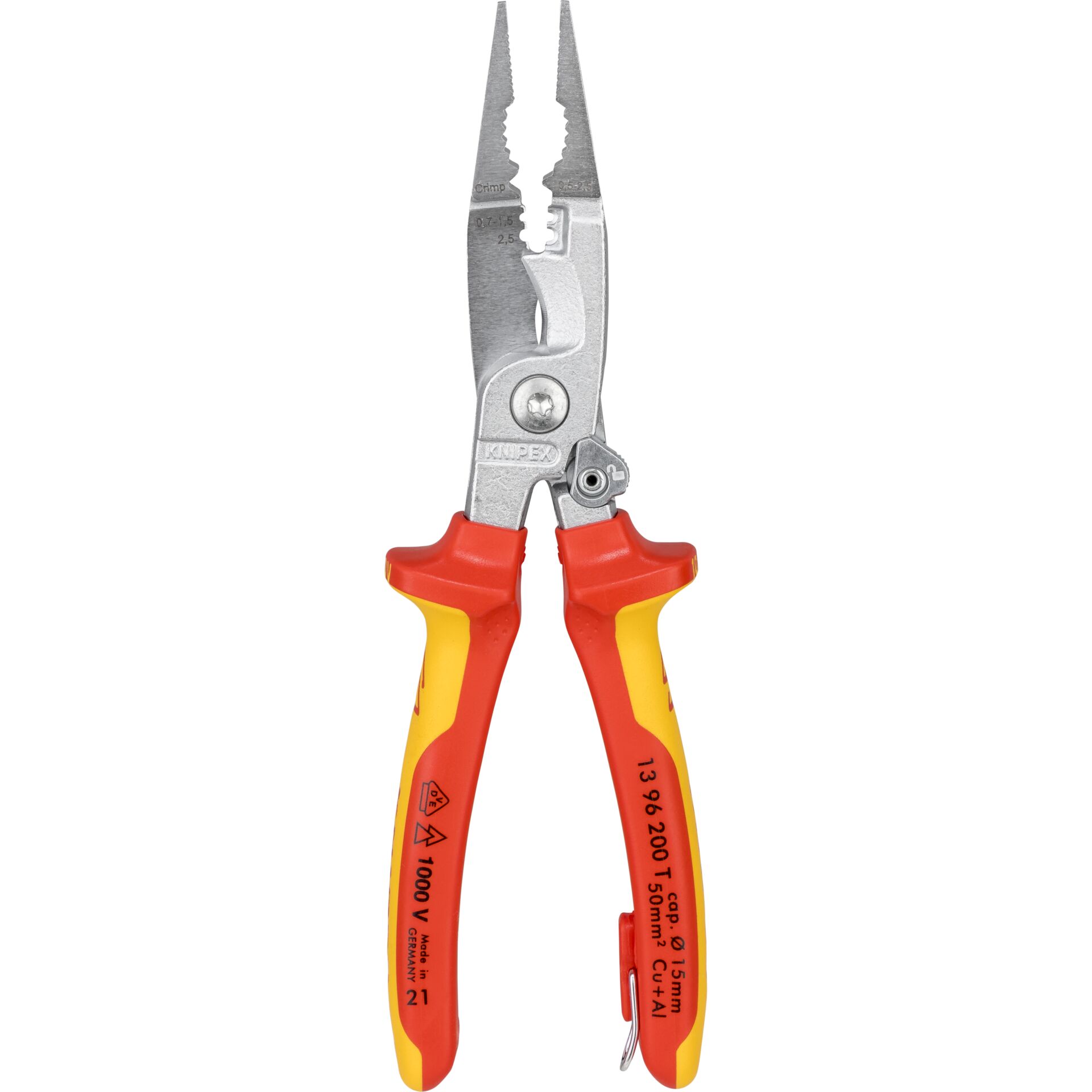

KNIPEX 13 96 200 T Electrical Installation Pliers, 200 mm
Price: 70.80 €
| Products ID: | 182793 |
|---|---|
| Manufactured by: | Knipex |
| Availablity: | Ready to Order |
| Delivery Time | 7-15 business days |
| EAN: | 4003773081425 |
Delivery options to:
Choose country
The KNIPEX 13 96 200 T electrical installation pliers combine 6 distinct functions in a single tool for gripping flat and round material, bending, deburring, cutting cable, stripping wire, and crimping end sleeves.
Key Features
- Integrated insulated fastening eyelet for attaching a fall protection device
- Smooth gripping surfaces at the tips for gripping single conductors without damage
- Profiled gripping surfaces and pipe grip area for flat and round material
- Precision cable shears for copper and aluminium cables up to 5 x 2.5 mm² / Ø 15 mm
- Stripping holes for conductors 0.75 - 1.5 mm² and 2.5 mm²
- Crimping die for wire end ferrules from 0.5 to 2.5 mm²
- Prominent outer edge for deburring feed-through holes and working on flush-mounted boxes
- Bolted joint providing precise, smooth operation without backlash
| Type | Electrical Installation Pliers |
|---|---|
| Model | 13 96 200 T |
| Overall Length | 200 mm |
| Width | 65 mm |
| Height | 28 mm |
| Weight | 275 g |
| Material | Steel / Plastic |
| Handle Type | Multi-Component Grip |
| Colour | Red / Yellow |
| Cutting Capacity Cu/Al Cable (Diameter) | Ø 15 mm |
| Cutting Capacity Cu/Al Cable (Cross-Section) | 50 mm² (up to 5 x 2.5 mm²) |
| Stripping Capacities | 0.75 - 1.5 mm² / 2.5 mm² |
| Crimping Capacity | 0.5 - 2.5 mm² |
What 6 functions do these pliers provide?
The pliers perform gripping flat and round material, bending, deburring, cable cutting, wire stripping, and crimping wire-end ferrules.
What is the eyelet on the handle used for?
It is an integrated insulated fastening point for attaching a fall protection tether.
