Holzmann HOB260NL Combined Planer and Thicknesser, 230V, 2100W
Price: 1102.81 €
| Products ID: | 183557 |
|---|---|
| Manufactured by: | Holzmann Maschinen |
| Availablity: | Ready to Order |
| Delivery Time | 7-15 business days |
| EAN: | 9120039902289 |
Delivery options to:
Choose country

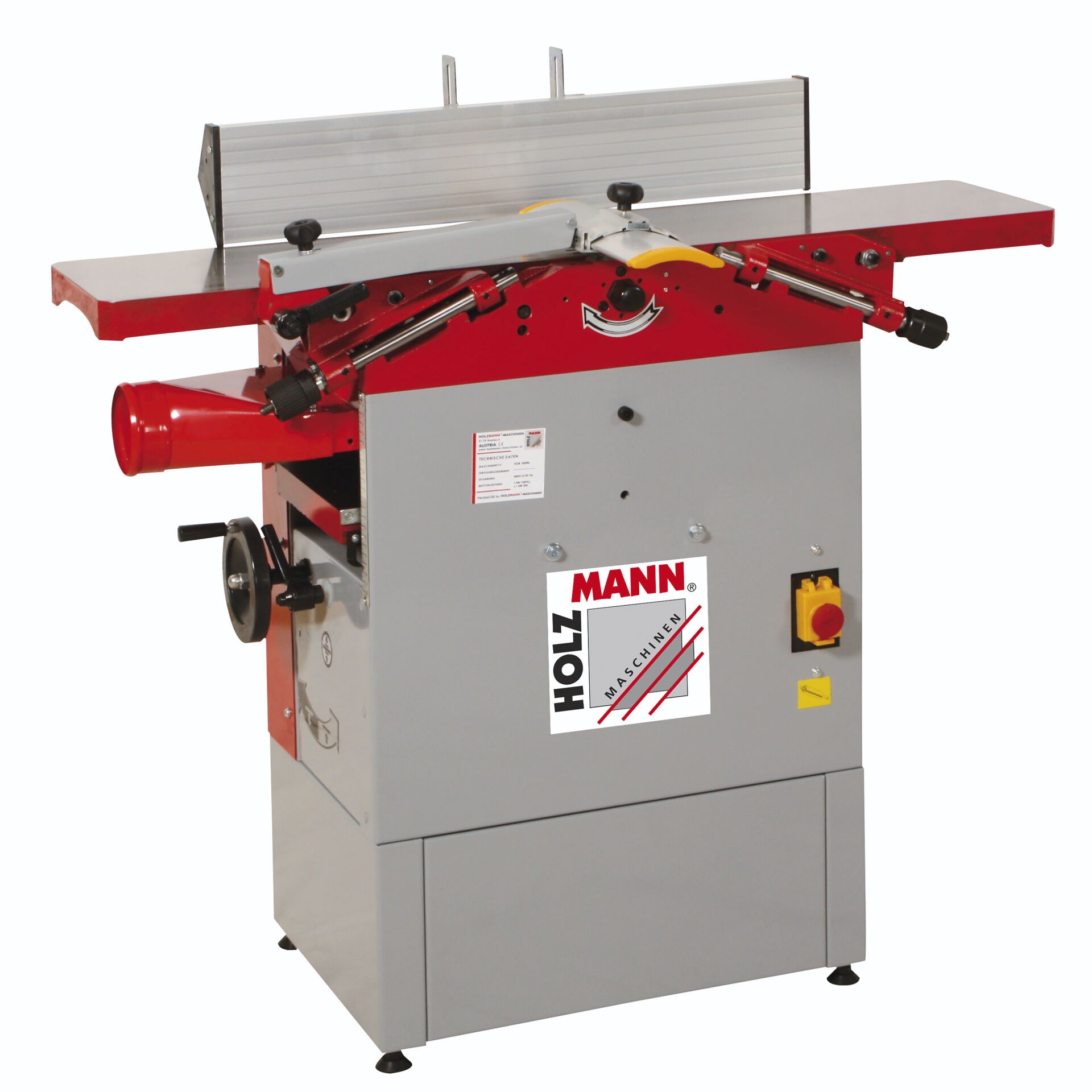

The Holzmann HOB260NL is a combined surface planer and thicknessing machine engineered for accurate wood surfacing and dimensioning.
Key Features
- Solid machine base providing high stability during operation
- Laterally hinged cast iron tables for quick conversion to thickness planing
- Swivelling planing fence adjustable from 90° to 45°
- 100 mm suction connection for effective dust and chip removal
- Selectable feed drive that can be switched off when needed

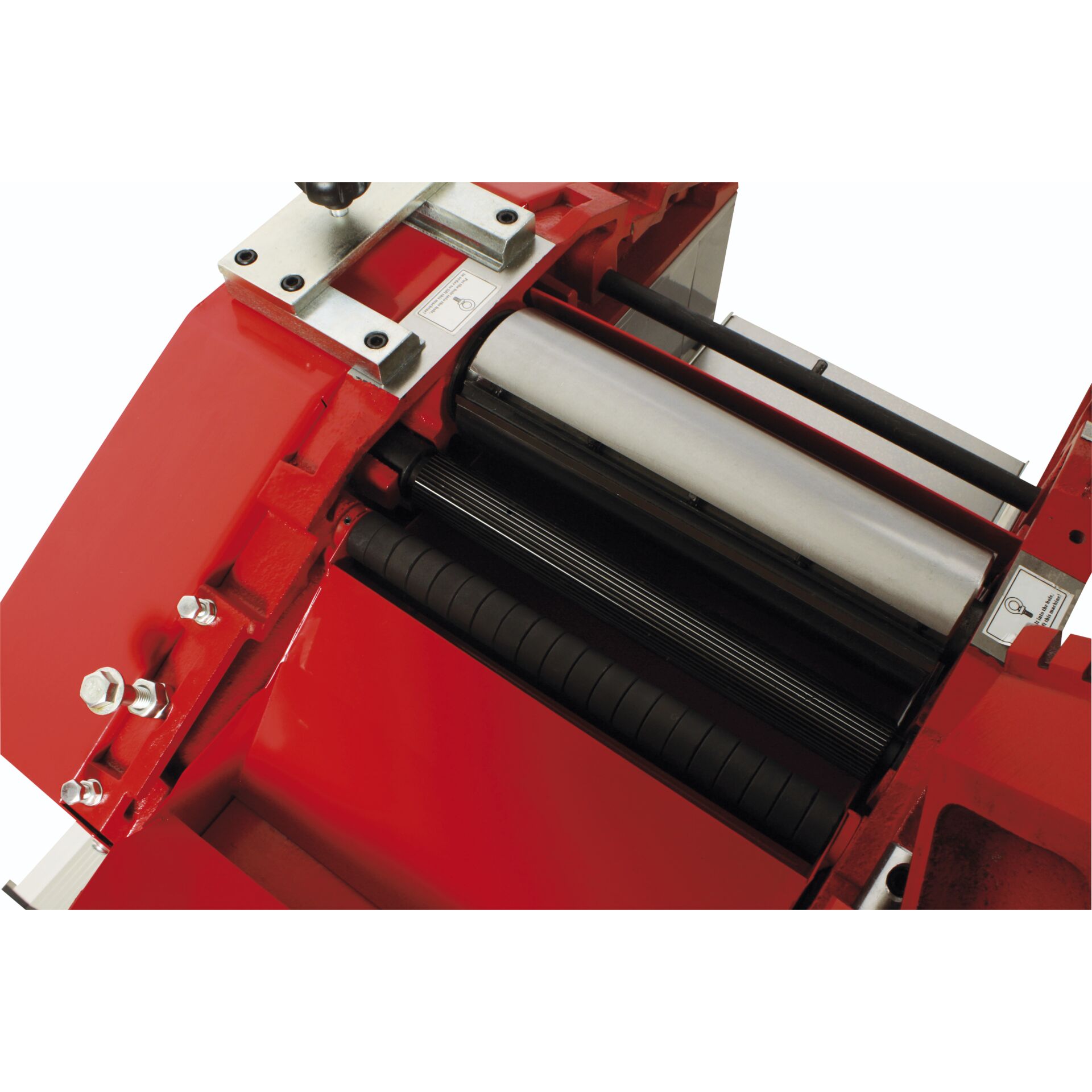

- Cutterblock equipped with 3 knives operating at 4000 rpm
| Feed rate | 8 m/min |
|---|---|
| Planing fence dimensions | 720 x 135 mm |
| Planing fence swivel range | 90° - 45° |
| Dressing table size | 1090 x 250 mm |
| Dressing table height | 855 mm |
| Motor power S6 | 2100 W |
| Motor power S1 | 1500 W |
| Voltage | 230 V |
| Suction connection diameter | 100 mm |
| Max. workpiece thickness | 185 mm |
| Thicknesser table size | 600 x 185 mm |
| Max. chip removal (dressing) | 3 mm |
| Max. chip removal (thicknessing) | 3 mm |
| Planing shaft diameter | 75 mm |
| Planing shaft speed | 4000 min-1 |
| Number of planing knives | 3 |
| Installation dimensions | 1100 x 420 mm |
| Weight | 150 kg |
| Colour | Red / Silver |
What is the maximum workpiece thickness for thickness planing?
The maximum workpiece thickness capacity is 185 mm.
What size dust collector hose fits this machine?
The machine features a standard 100 mm diameter suction port for connecting a dust extraction system.
How many knives does the cutterblock hold?
The cutterblock holds 3 planing knives and rotates at 4000 min-1.
