Knipex

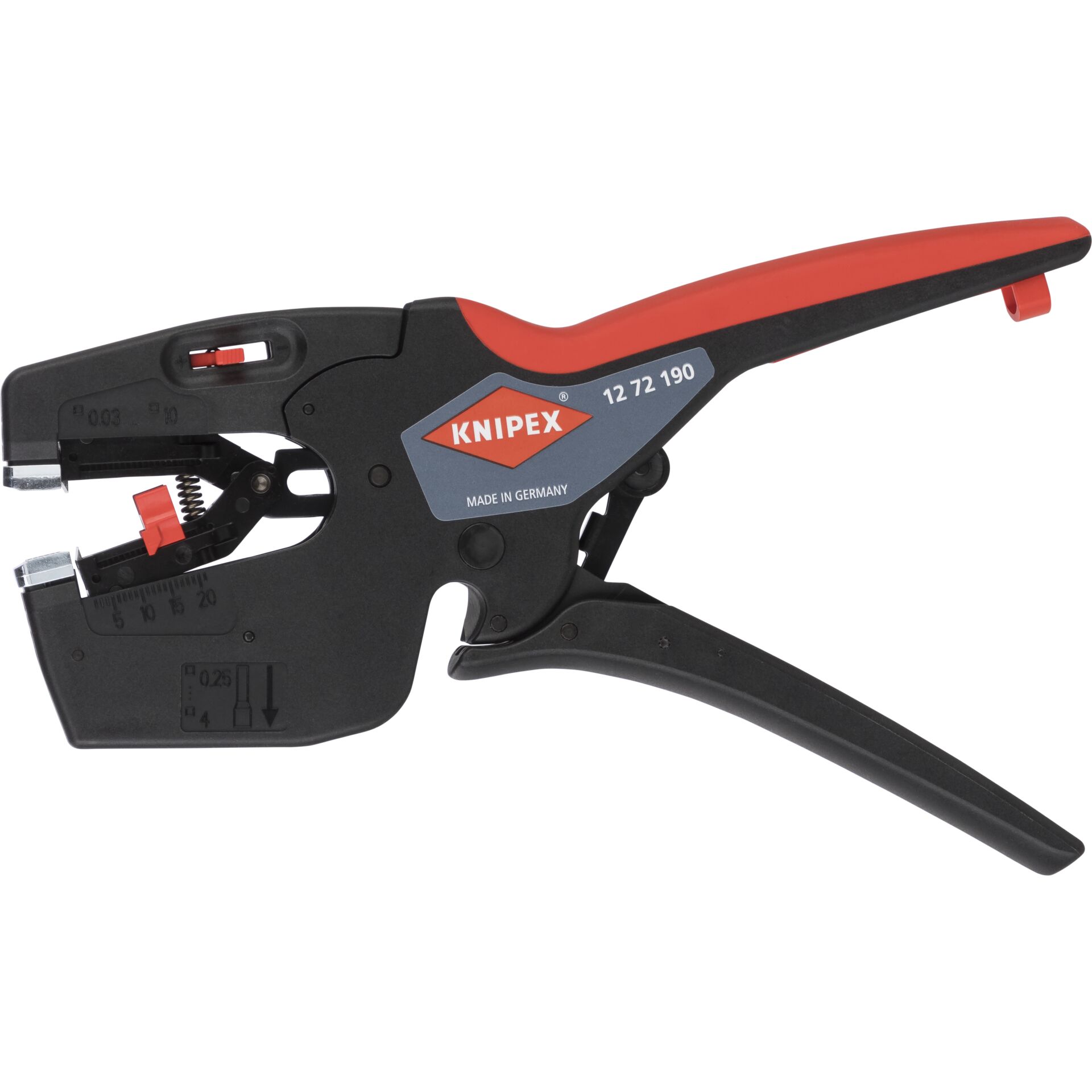

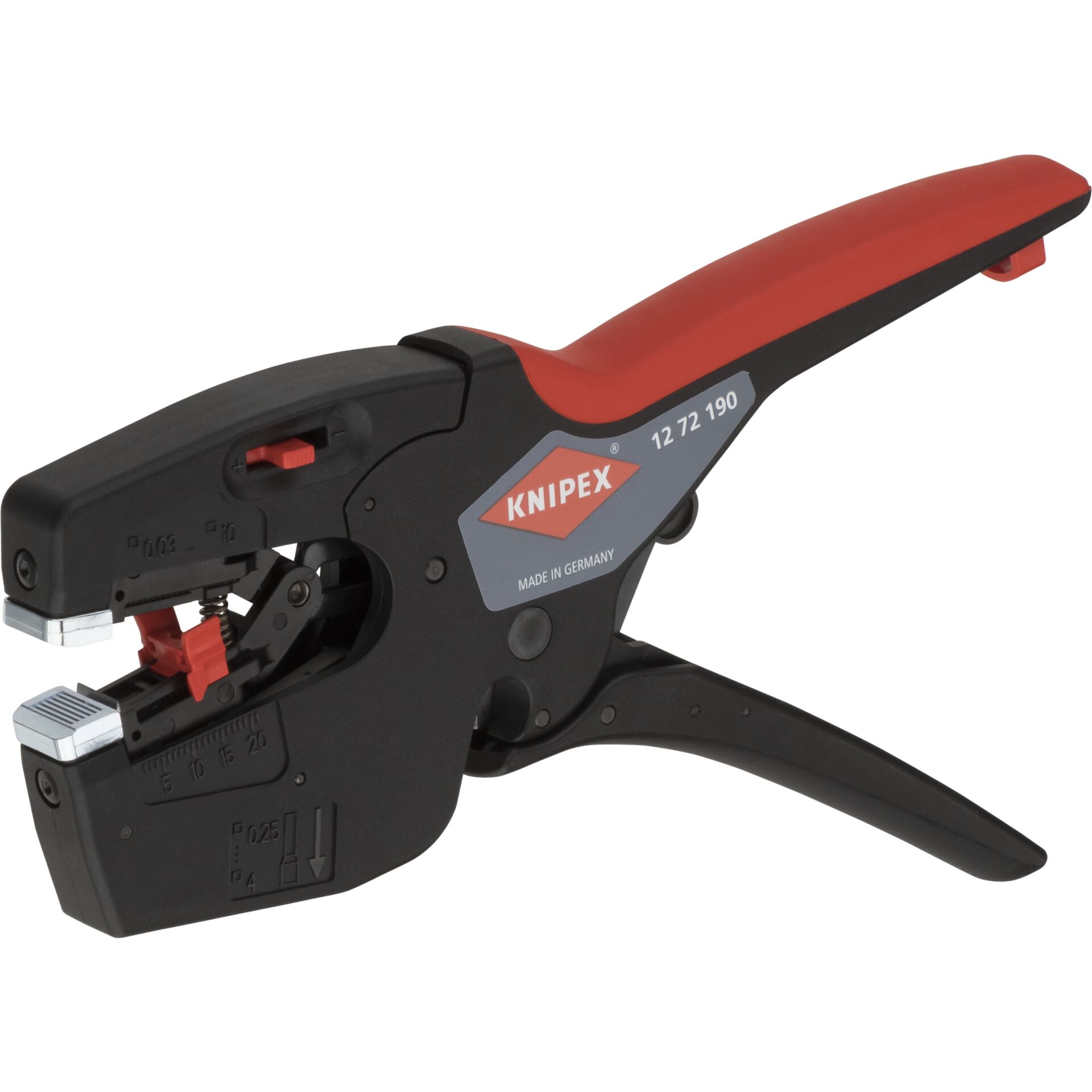

KNIPEX NexStrip 12 72 190 SB electrician's multi-tool

128.80 € incl. VAT
In supplier warehouse · 6 pcs. Delivery Time: 6–12 business days

In your cart: 0

Delivery options to:

Choose country

The KNIPEX NexStrip 12 72 190 SB combines wire stripping, ferrule crimping and conductor cutting in one tool. It is designed for electrical work with solid and flexible conductors.

Three functions for wiring work

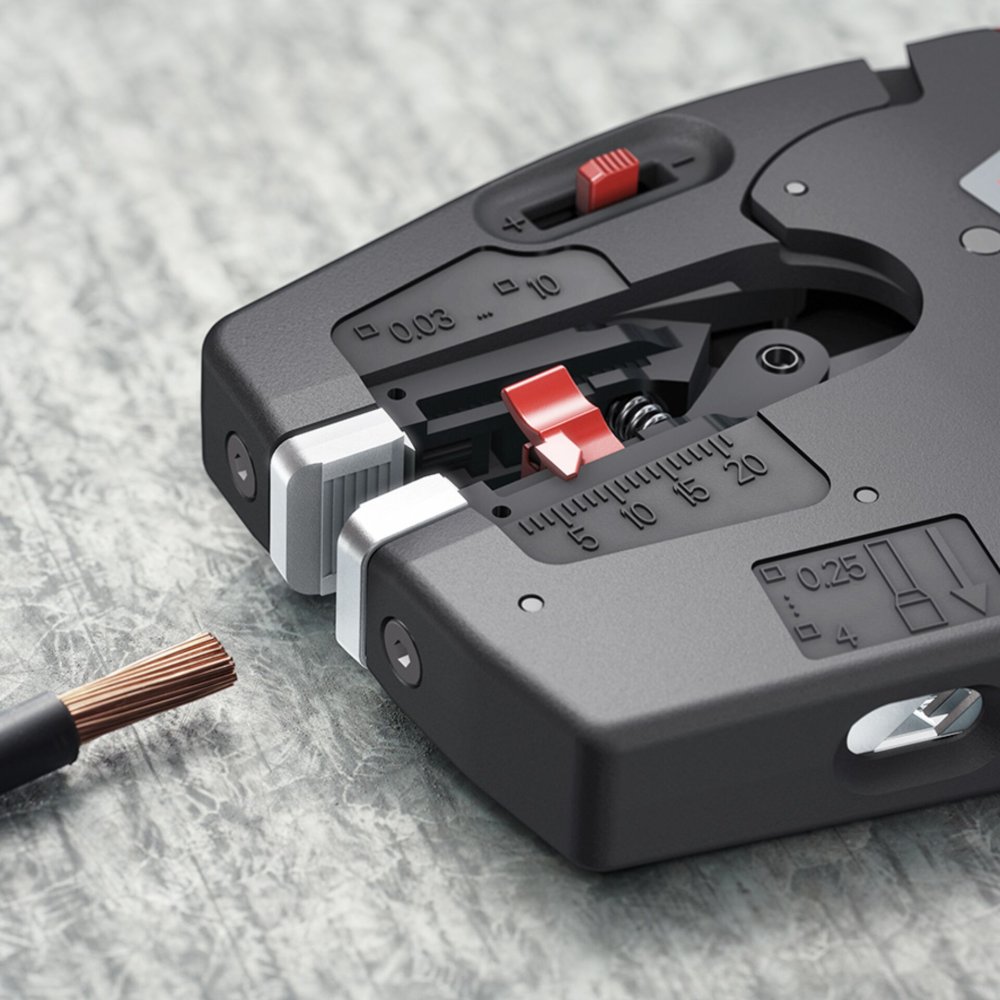

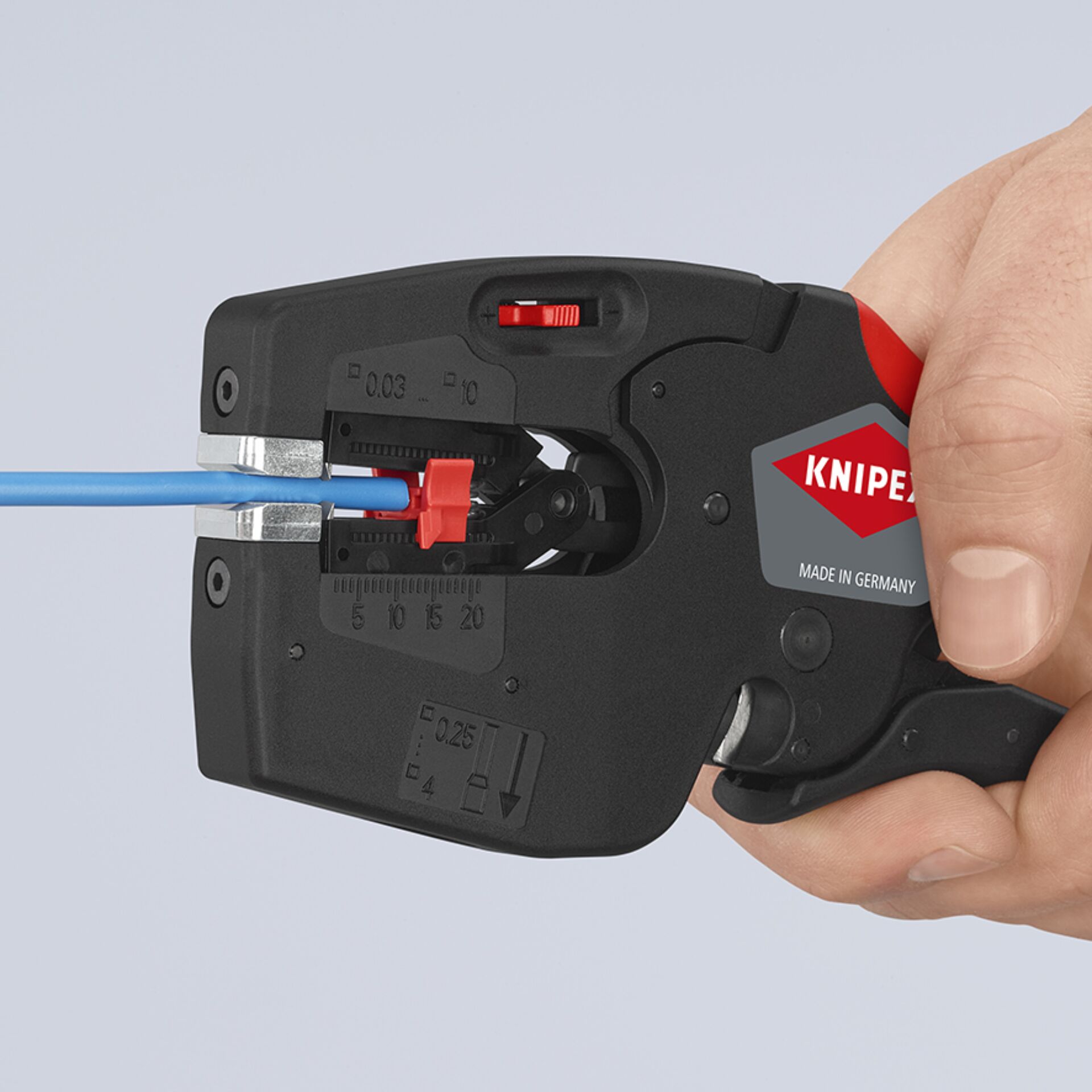

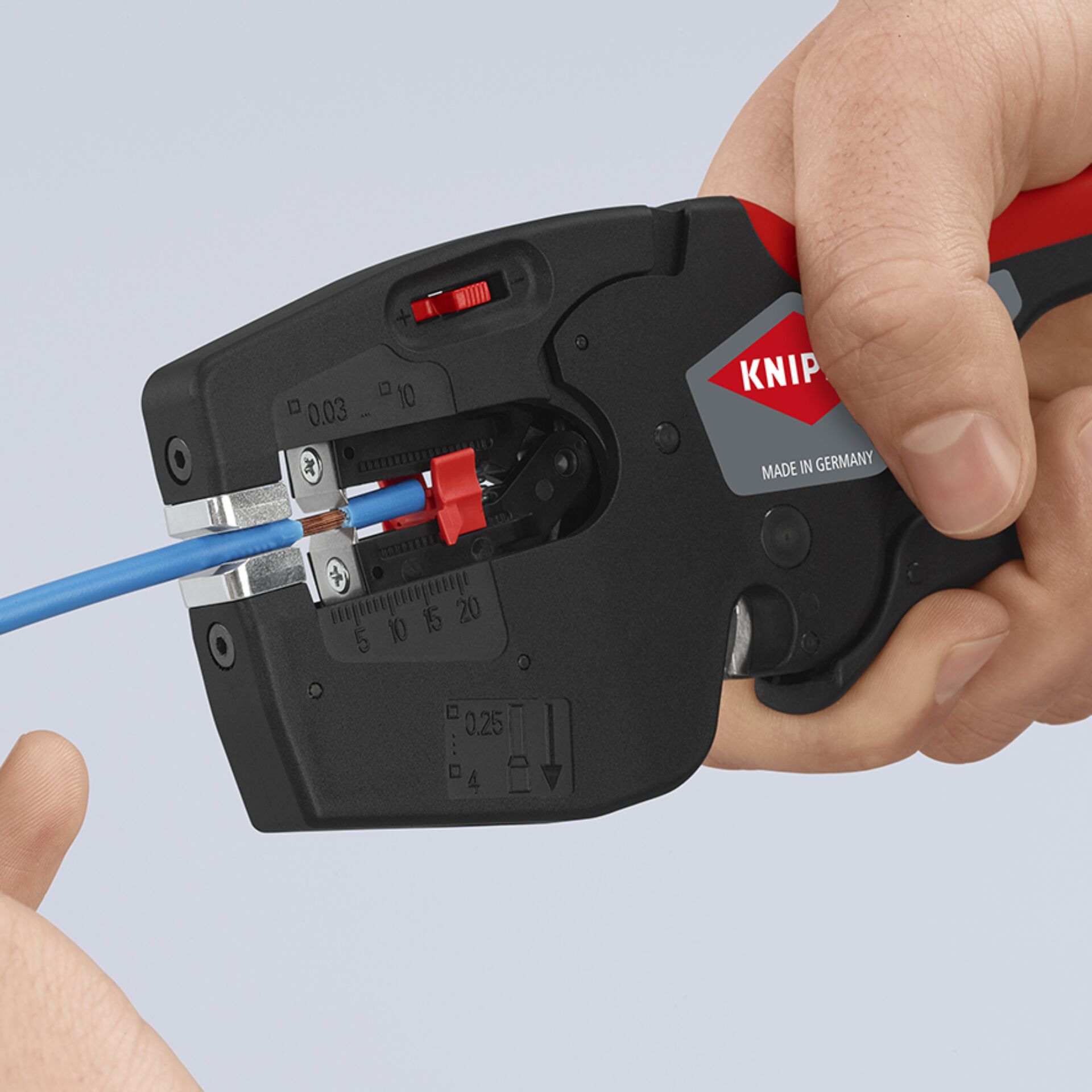

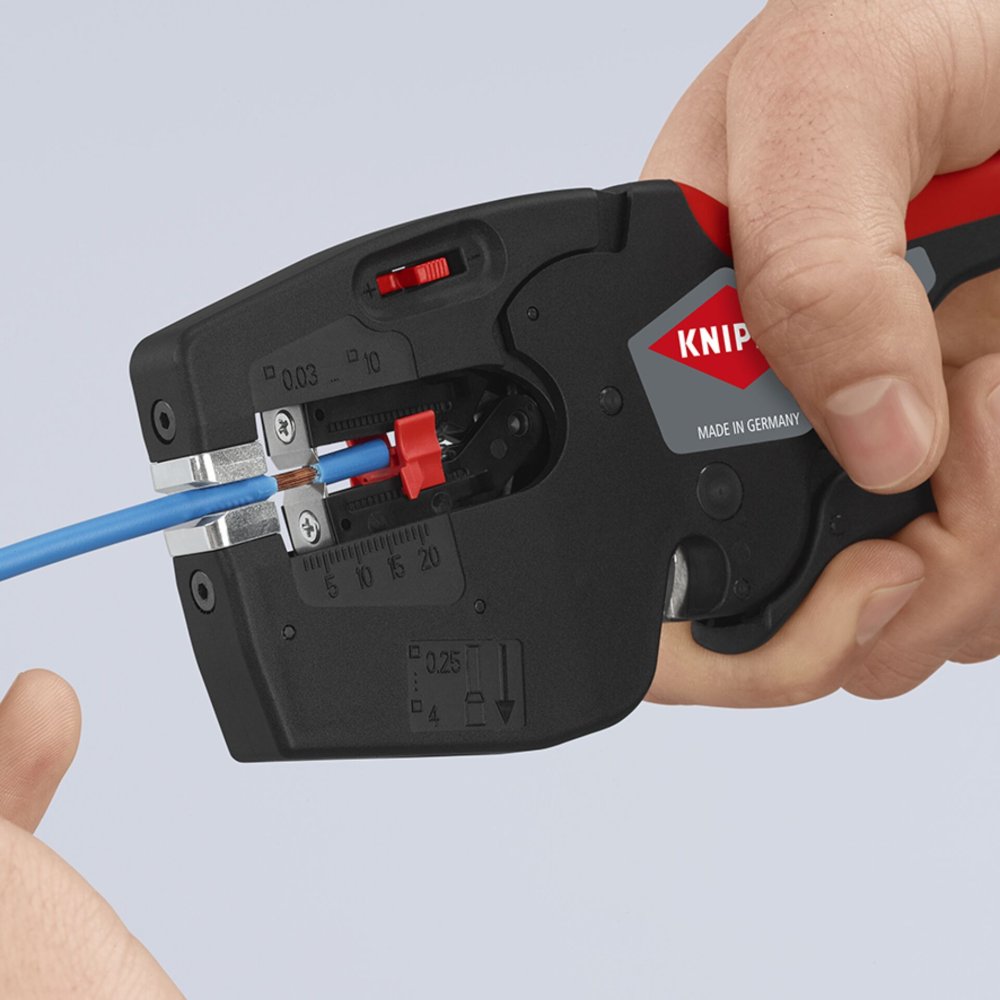

  • Stripping: handles conductor cross-sections of 0.03–10 mm², with fine adjustment for special materials or temperature conditions.
  • Crimping: produces square crimps on individual wire end ferrules, with automatic adjustment between 0.25–4 mm².

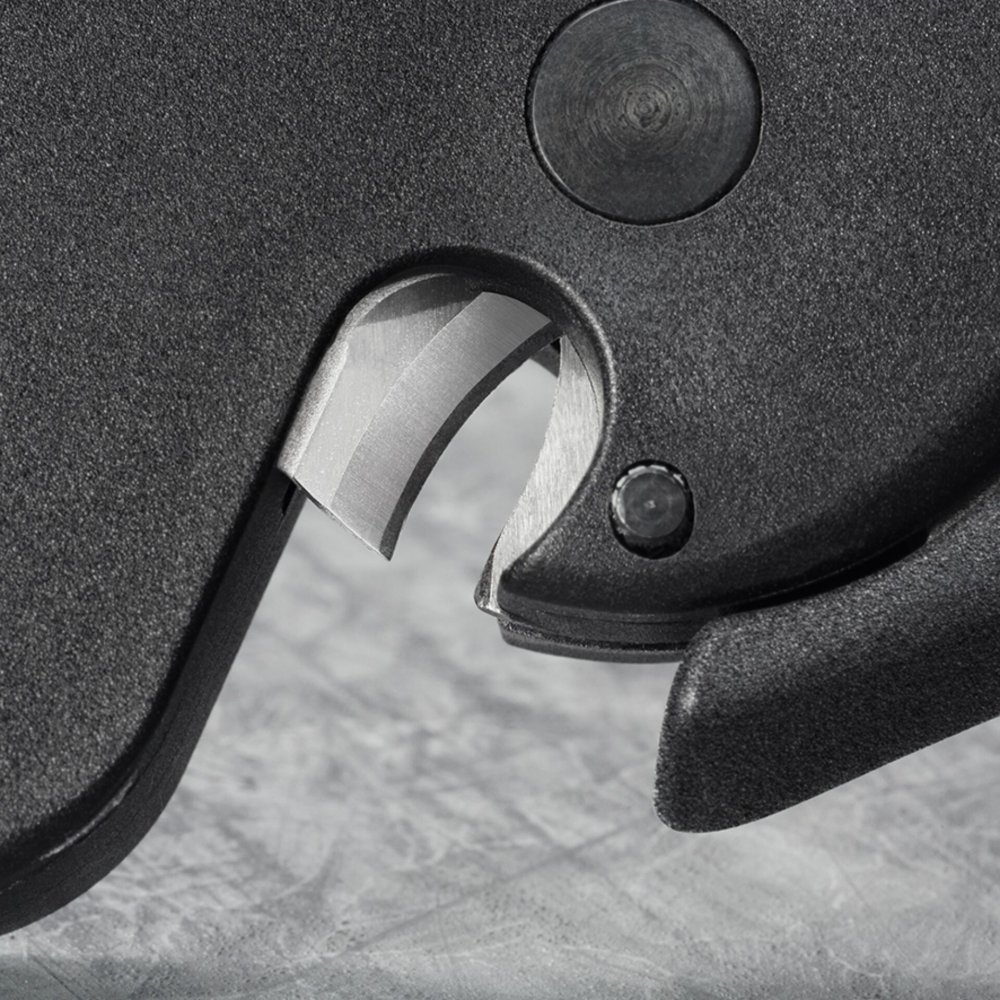

  • Cutting: integrated cable shears cut conductors up to 10 mm².

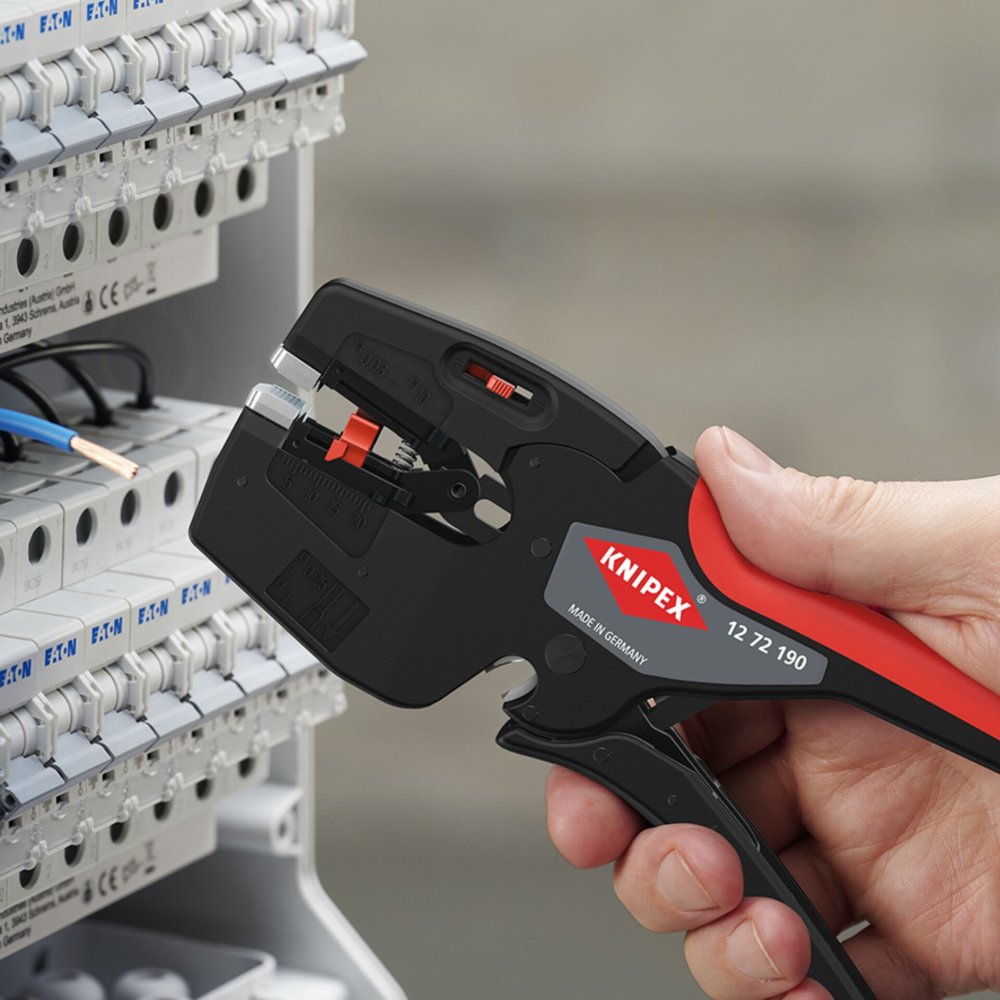

The 190 mm tool has a glass-fibre-reinforced plastic housing and anti-slip plastic handle covers. It is intended for electrical professionals wiring electronic devices such as programmable logic controllers, as well as working on domestic installations and motorhomes.


Length190 mm
Weight170 g
HandlesAnti-slip plastic covers
Housing materialGlass-fibre-reinforced plastic
MaterialPlastic / metal
Number of functions3
ColourBlack / red
TypeMulti-tool pliers
Field of applicationElectrical engineering
Stripping range0.03–10 mm²; solid and flexible conductors
Ferrule crimping range0.25–4 mm²; self-adjusting
Crimp profileSquare; for individual wire end ferrules
Maximum conductor cutting cross-section10 mm²

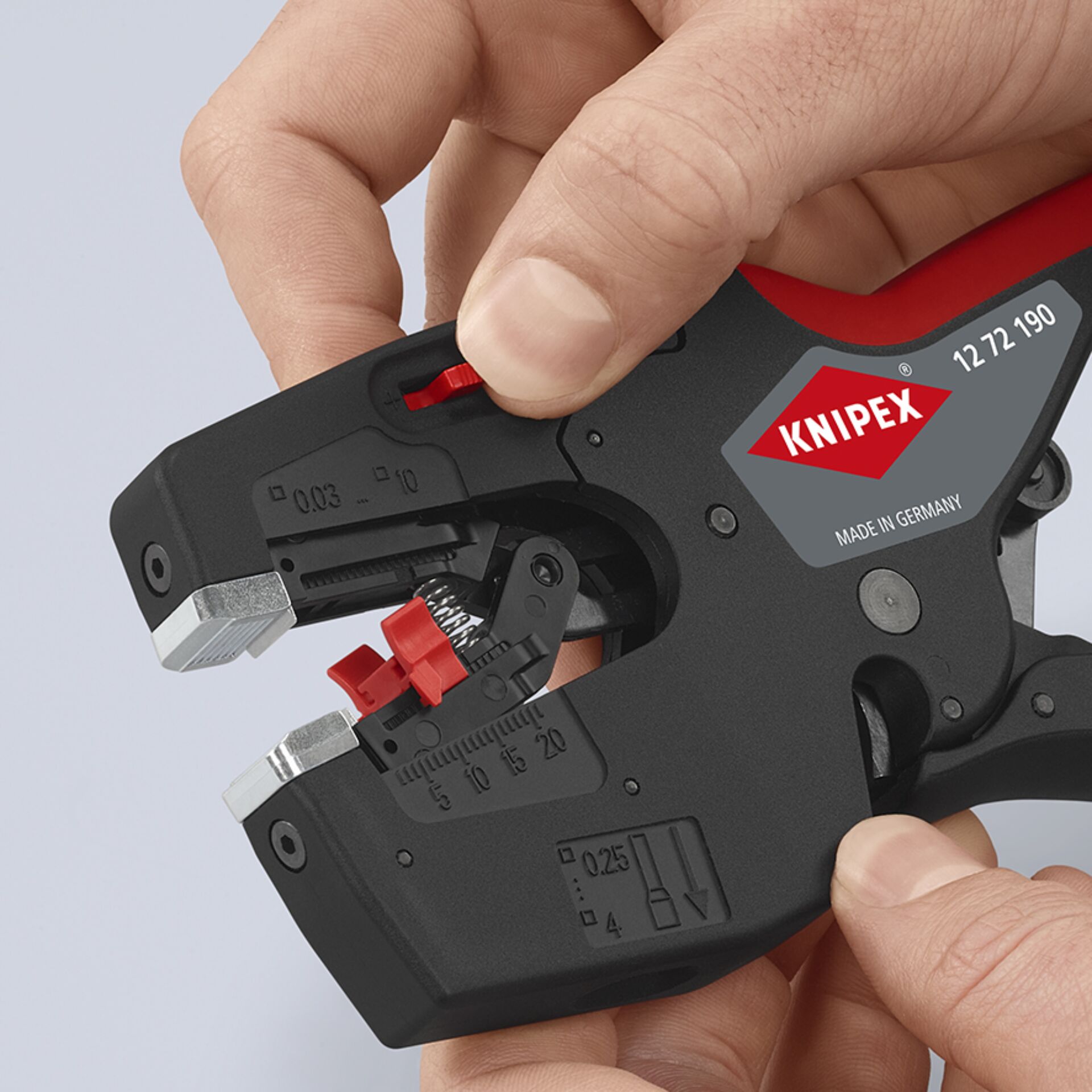

Fine adjustmentFor adaptation to special materials or temperature conditions
EAN4003773088592
Are the stripping and crimping ranges the same?

No. The stripping range is 0.03–10 mm² for solid and flexible conductors, while individual wire end ferrules can be crimped in the 0.25–4 mm² range.

Can this tool also cut conductors?

Yes. The integrated cable shears cut conductors with cross-sections up to 10 mm².
