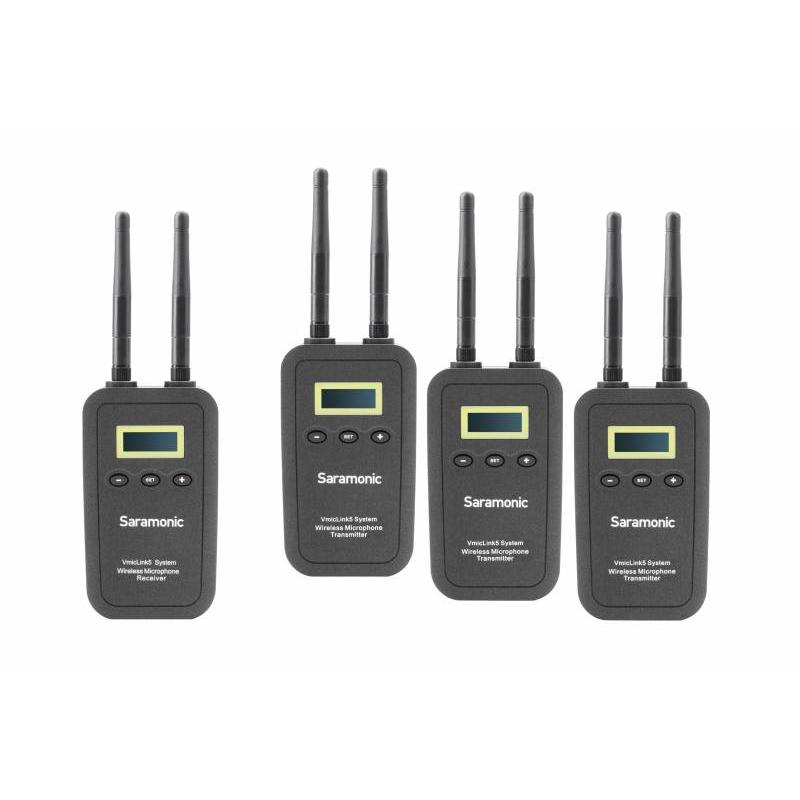

Wireless system 5.8 GHz Saramonic VmicLink5 RX + TX + TX + TX Kit

Capture crystal-clear audio from up to three people at once with the Saramonic VmicLink5 RX + TX + TX + TX wireless system. Operating in the 5.8 GHz band, this professional wireless kit gives you stable, interference‑free sound for filmmakers, vloggers, journalists and sound engineers who need reliable audio on the move. The compact, lightweight design is easy to mount on cameras and belts, while intuitive controls and LCD screens keep setup fast and stress‑free on any shoot. With over 6 hours of battery life and a full set of accessories, this wireless system is ready for interviews, events, reports and travel projects right out of the box. Upgrade your audio and focus on your story, not your cables.

The Saramonic VmicLink5 RX + TX + TX + TX is an extensive wireless audio transmission kit providing freedom of work and the ability to receive signals from three transmitters. The advantages of the system will be appreciated by both professional sound engineers and amateur sound engineers.

The VmicLink5 system allows the signal to be transmitted to the receiver from up to three transmitters (sampling frequency: 48 KHz / 16 bit) at a distance of up to 30 metres (in an open area). Operating at 5.8 GHz and using state-of-the-art digital technology, it eliminates interference from other radio transmitters in the environment. The automatic search function and selection of the best working channel will be particularly appreciated by professional filmmakers and reporters working in the field.

The Saramonic VmicLink5 kit features a very elegant and ergonomic design. Its light weight and dimensions make the system extremely comfortable to use. The discreet design and ease of installation will be an asset to vloggers and journalists attending various interviews and conferences.

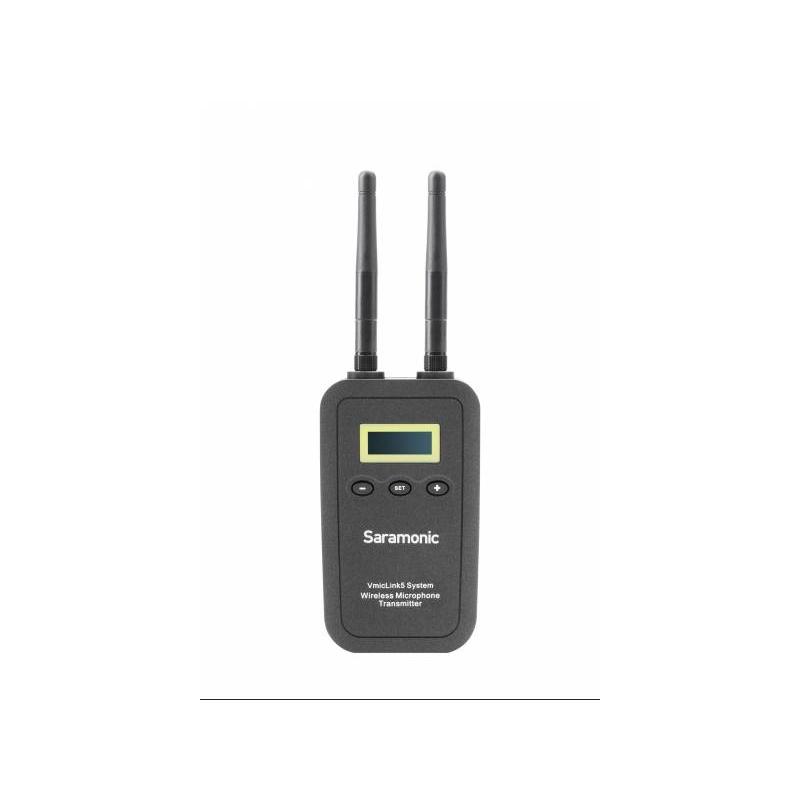

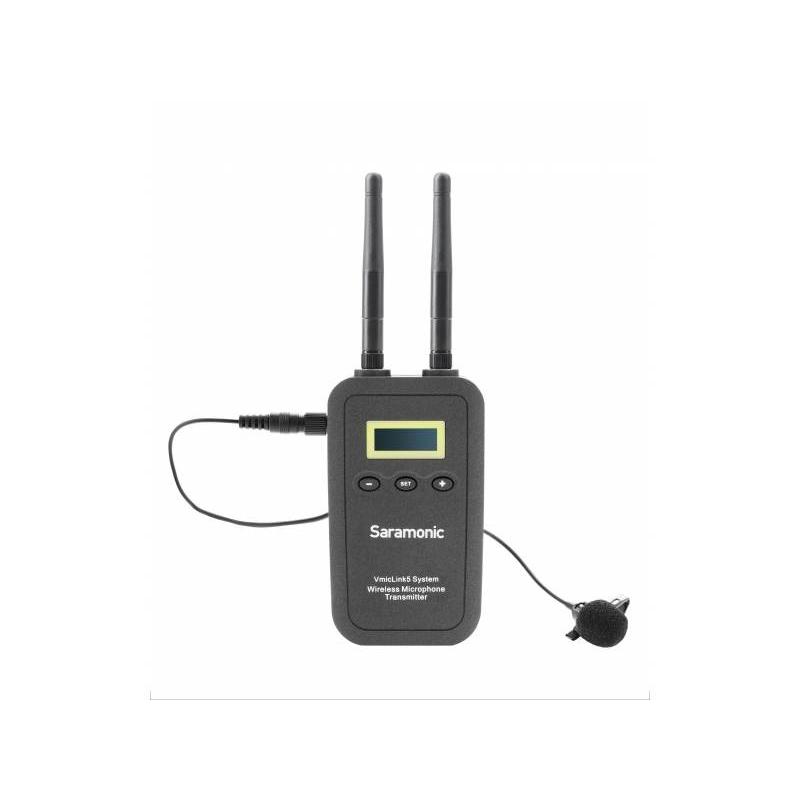

The TX5 transmitters of the VmicLink5 HiFi system are equipped with microphone and line inputs, making them compatible with a wide range of microphones and other audio devices. The sockets are made in the popular mini Jack TRS (3.5 mm) standard.

The receiver has a line output for connecting a recording device (camera, camcorder, recorder) and a headphone output for listening. Both in mini Jack TRS (3.5 mm) standard.

The transmitters and receiver are equipped with clear LCD displays showing operating parameters such as range, volume, signal strength, etc.

The VmicLink5 kit is powered by LP-E17 batteries allowing for over 6 hours of continuous operation.

In addition to the transmitters and receiver themselves, the Saramonic VmicLink5 kit offers a set of practical accessories, including: microphone, batteries, charger, belt and camera mounts. As an added bonus, there is a hard case to accommodate all kit components, which is ideal for travelling.

Specifications

• radio power (RF): 15 dBm (30 mW)
• operating frequency (RF): 5725-5875 MHz
• number of operating channels: 3
• range: up to 30 m (in open terrain)

Transmitter input ports:

• microphone input: mini Jack TRS (3.5 mm), max 160 mV / -13 dBu, 1.8 V phantom power
• line input: mini Jack TRS (3.5 mm), max 2 V / 8 dBu

Receiver output ports:

• headphone output: mini Jack TRS (3.5 mm), max 70 W / 32 Ω
• signal output: quadruple microphone signal

amplification

• sensitivity: 98 dB
• harmonic distortion (THD+N): -92 dB
• sampling frequency: 48 kHz / 16 bit
• frequency response: 40 Hz - 18 kHz (+/-1 dB)
• delay: 18 ms

Power consumption:

• RX5: 180 mA / 6 V
• TX5: 140 mA / 6 V

Antenna gain: 3 dBi

Weight:

• RX5: 169 g (without battery)
• TX5: 169 g (without battery)

Power supply: rechargeable lithium-ion battery LP-E17 (7.2 V / 1000 mAh)

Dimensions:

• RX5: 11.3 x 6.4 x 2.8 cm
• TX5: 11.3 x 6.4 x 2.8 cm

Operating temperature: 0°C - 50°C

Storage temperature: -20°C - 55°C

Contents of the kit

• RX5 receiver
• 3 TX5 transmitters
• 3 tie microphones
• 8 antennas
• 4 LP-E17 batteries
• battery charger
• mounting adapter (cold shoe and 1/4" female tripod mount)
• 4 belt mounts
• microphone mounts
• XLR - mini Jack TRS (3.5 mm) cable with plug-in lock
• USB - microUSB cable for charger
• microphone attachment
• rigid carrying case
