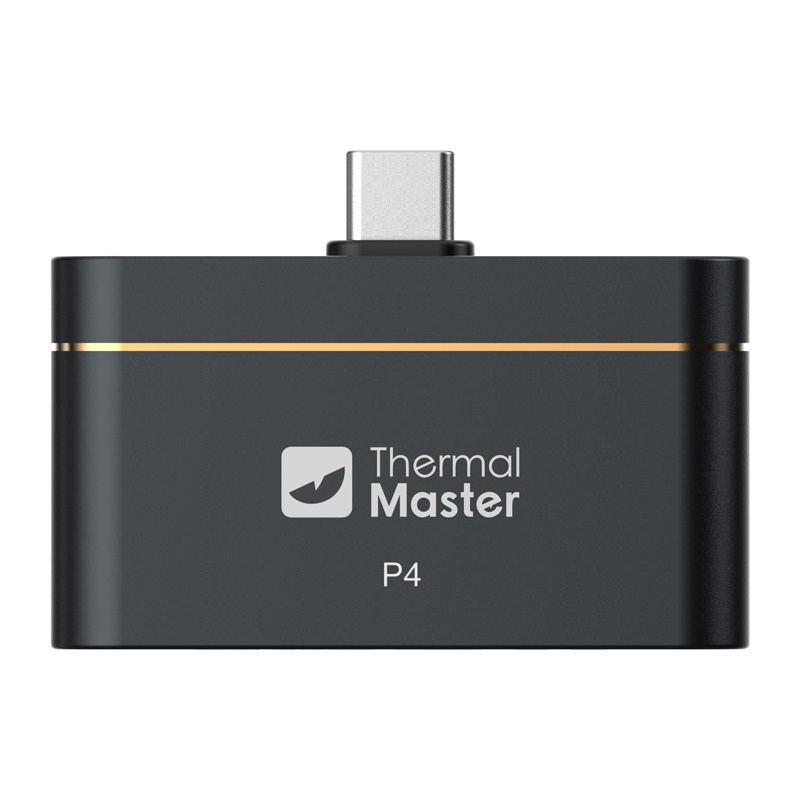

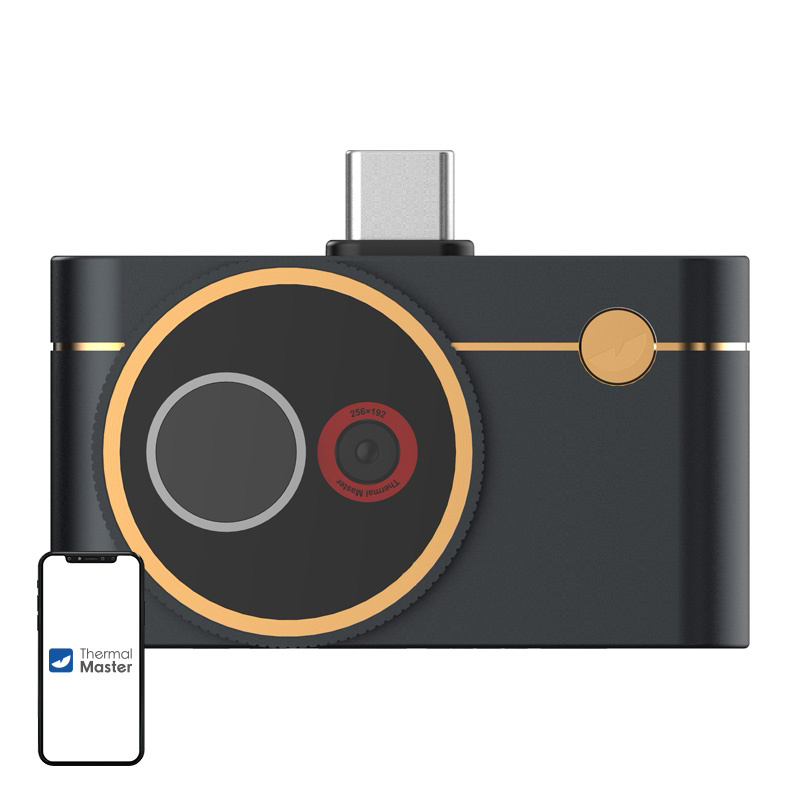

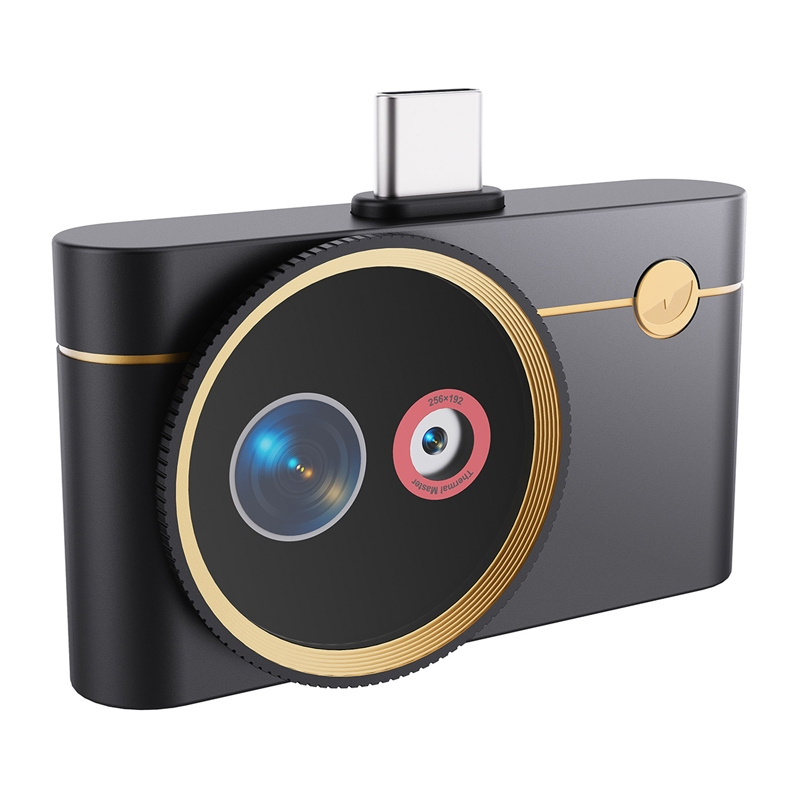

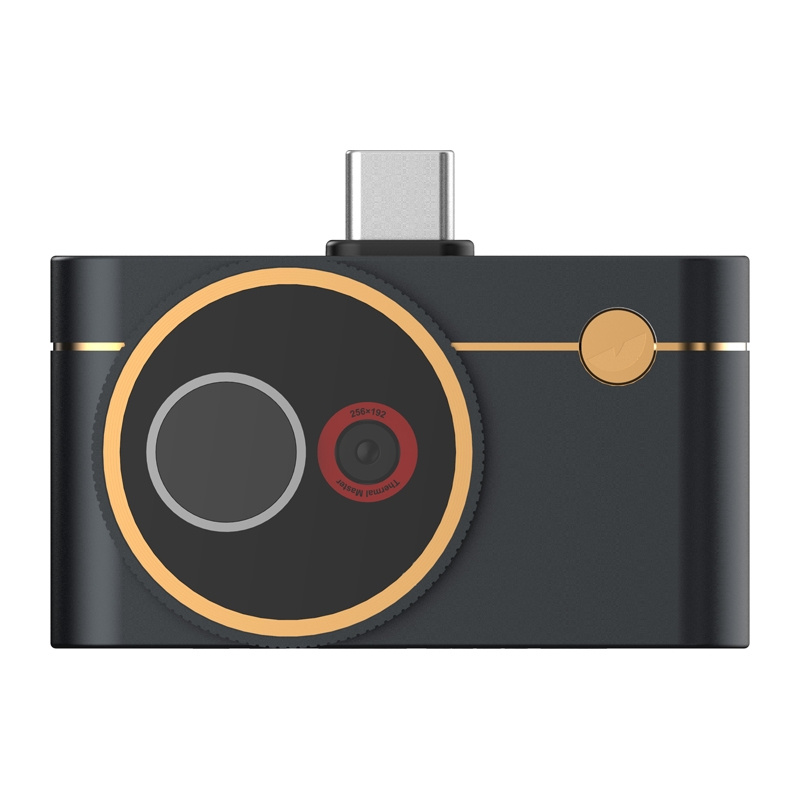

THERMAL MASTER P4 USB-C Mini Thermal Camera
Price: 334.30 €
| Products ID: | 176990 |
|---|---|
| Manufactured by: | THERMAL MASTER |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6977658980487 |
Delivery options to:
Choose countryThe THERMAL MASTER P4 is a compact USB-C mini thermal camera that combines thermal and visible light imaging for mobile diagnostic and inspection tasks.
Key Features
- High Resolution: 256 × 192-pixel VOx detector with X³IR™ technology delivers images up to 512 × 384 pixels.
- Wide Measurement Range: measures temperatures from -20°C to 600°C with ±2°C accuracy and ≤35 mK thermal sensitivity.
- Dual Optical System: combines thermal imaging with a 1280 × 960-pixel visible light camera across 4 imaging modes.
- Compact and Lightweight: weighs only 26.5 g and measures 53 × 29 × 11 mm for easy portability.
| Manufacturer | THERMAL MASTER |
|---|---|
| Model | P4 |
| X³IR resolution | 512 × 384 pixels |
| Detector | VOx 256 × 192 pixels (12 μm) |
| Temperature measurement range | From -20°C to 600°C |
| Temperature measurement accuracy | ±2°C (PCB-grade accuracy) |
| Image modes | Pro-Mix, IR-Fuse™, Infrared, Visible image |
| IREraser | Manufacturer’s patented technology |
| Digital zoom | 15× |
| Free professional analysis | 15 types of analysis, point, line, rectangle, and circular measurements, and data analysis |
| Estimated operating time | Approximately 180 minutes (e.g., 183 minutes on a Samsung Galaxy S23+ with a 4700 mAh battery) |
| Focus mode | Fixed focus from 15 cm to infinity |
| Field of view (FOV) | 56.0° (horizontal) × 42.2° (vertical) |
| Image refresh rate | 25 Hz |
| Thermal sensitivity (NETD) | ≤35 mK |
| Thermal Core | Thermal Master High-Sensitivity Core |
| IQ+ Precision Temp | Dynamic temperature drift compensation algorithm with intelligent ambient temperature measurement |
| Razor X™ | Ultra-clear image algorithm |
| AI (Det) | Deep learning-based artificial intelligence algorithm |
| Isotherm | Highlighting a selected temperature range with a distinct color |
| Color palettes | 12 palettes (White Hot, Black Hot, Iron Red, Red Hot, and 8 others) |
| Measurement parameter correction | Emissivity, distance, ambient temperature |
| Photo and video recording | Ability to save photos and videos |
| Power consumption | 0.58 W |
| Visible light camera | 1280 × 960 pixels |
| Weight | 26.5 g |
| Dimensions | 53 × 29 × 11 mm |
| Operating temperature | From -20°C to 55°C |
| Storage temperature | From -40°C to 85°C |
| App name | Thermal Master |
| Supported system | Android 7.0 and newer |
| Connection method | Smartphone / tablet / computer |
What is included in the package?
The package includes the thermal imaging camera, a protective case, a 50 cm USB-C extension cable, and a quick start guide.
Which operating systems and devices are supported?
The camera supports smartphones, tablets, and computers with a USB-C port running Android 7.0 or later.
