MOES WCB-A5-TW-E1 Wi-Fi Smart Circuit Breaker and Energy Monitor DIN Rail
Price: 18.70 €
| Products ID: | 173579 |
|---|---|
| Manufactured by: | Moes |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6974246472584 |
Delivery options to:

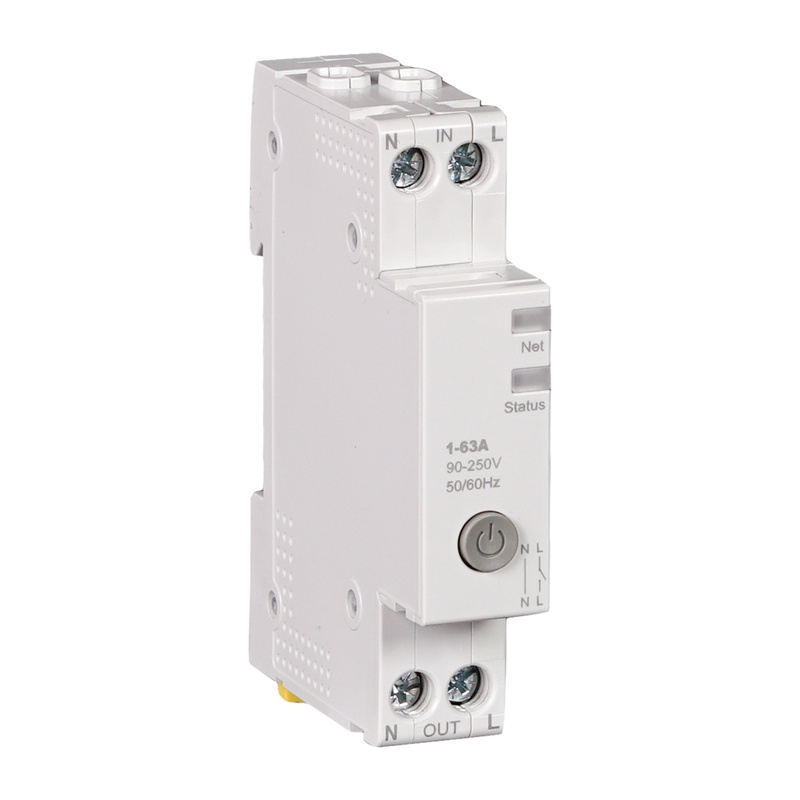

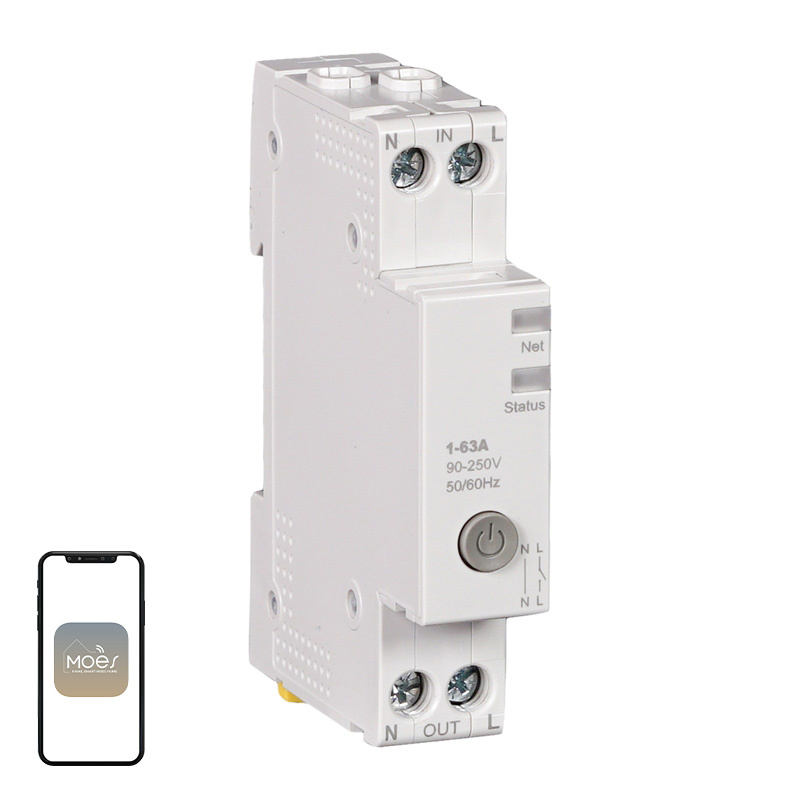

Choose countryThe MOES WCB-A5-TW-E1 is a DIN rail-mounted Wi-Fi smart circuit breaker and controller featuring real-time energy consumption monitoring and remote power management via MOES, Tuya Smart, and Smart Life apps.
Key Features
- Real-time energy consumption tracking (kWh) with daily, monthly, and yearly stats
- Works with Amazon Alexa and Google Assistant for voice control
- Adjustable protection thresholds against overload, overvoltage, and undervoltage
- Customizable schedules, sunrise/sunset automation, and cyclic mode
- Flame-retardant UL94 V-0 housing designed for standard DIN rail mounting
- Power-off state memory function to maintain or reset operating status
| Manufacturer | Moes |
|---|---|
| Model | WCB-A5-TW-E1 |
| Voltage | 90–250 V |
| Operating voltage range (nominal) | 90% Un ~ 110% Un |
| Extended operating voltage range | 80% Un ~ 115% Un |
| Current range | 1–63 A |
| Frequency | 50 Hz ±5% |
| Power consumption | ≤1.5 W |
| Operating temperature | -20°C ~ 70°C |
| Operating humidity | ≤95% |
| Protection class | IP20 |
| Dimensions | 91.1 × 18 × 65.5 mm |
Which applications are compatible with this device?
It integrates with MOES, Tuya Smart, and Smart Life applications, and supports voice commands via Amazon Alexa and Google Assistant.
How is the MOES WCB-A5-TW-E1 installed?
The device is designed for easy installation on a standard DIN rail in electrical panels.
