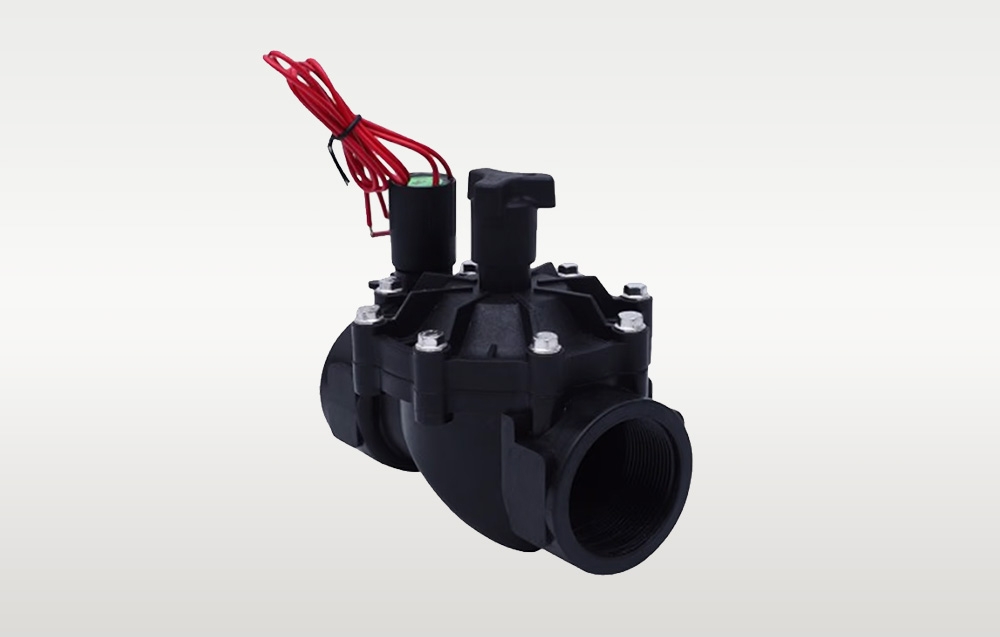

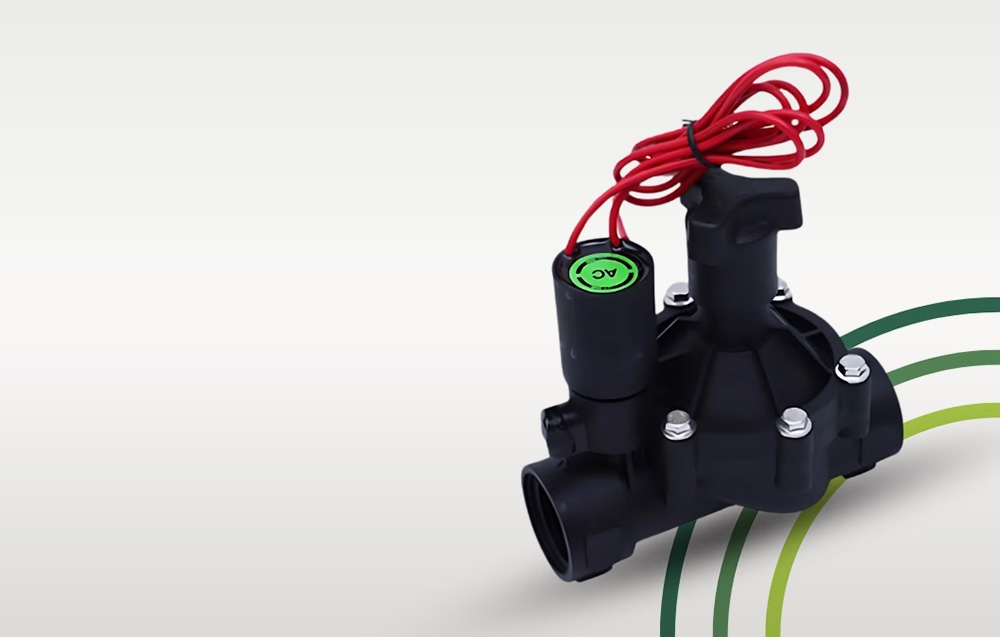

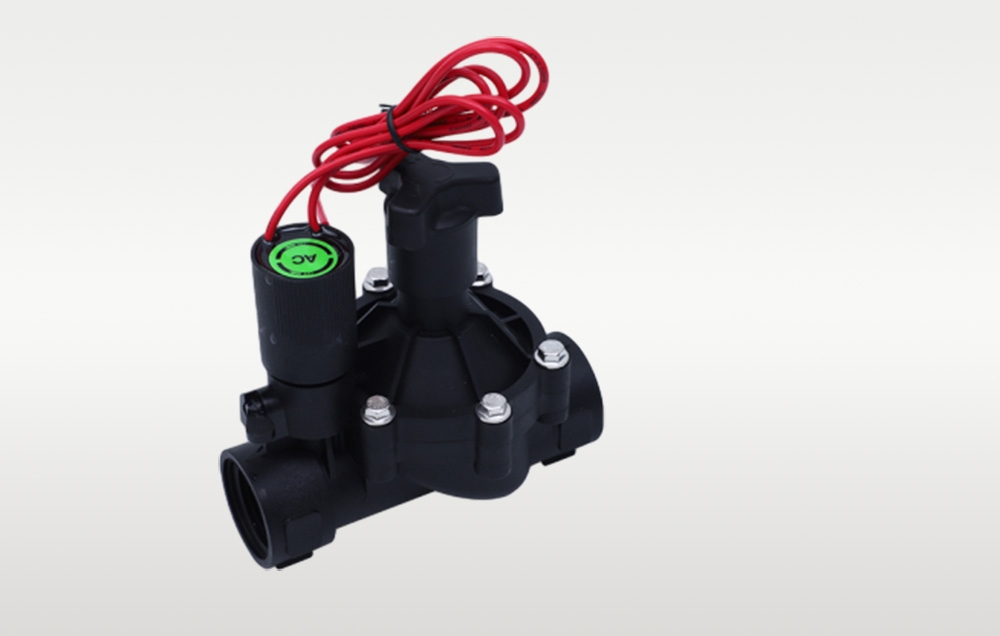

Garden Solenoid Valve RainPoint EVD100 1" DC 12V
-19%
Price: 26.00 €21.10 €
| Products ID: | 147803 |
|---|---|
| Manufactured by: | Rainpoint |
| Availablity: | Ready to Order |
| Delivery Time | 5-12 business days |
| EAN: | 5907085528649 |
Delivery options to:
Choose countryThe RainPoint EVD100 1" solenoid valve is designed to control water flow in low-flow irrigation systems, gardens, and greenhouses.
Key Features
- Wide flow range of 0.05 to 9 m³/h and operating pressure from 0.5 to 8 bar
- Durable fiberglass-reinforced nylon body with an EPDM rubber membrane
- DC 12V operation with a control pulse under 100 ms for minimal power usage
- Integrated manual switch and flow control knob for quick testing and adjustments
- Supports liquid temperatures up to 60°C
| Manufacturer | RainPoint |
|---|---|
| Model | EVD100 |
| Flow range | 0.05-9 m³/h |
| Pressure range | 0.5-8 bar |
| Liquid temperature | ≤60°C |
| Valve material | Glass fiber reinforced nylon |
| Membrane | EPDM rubber |
| Parameters of the electromagnet | Operating voltage: DC 12V ±10% (9-15V), pulse width: < 100 ms |
What power supply does this solenoid valve require?
It operates on DC 12V ±10% (9-15V) with a short control pulse of less than 100 ms.
What are the dimensions of this valve?
The valve measures 126 x 124 x 90 mm and has a 1" connection.
