Garden Solenoid Valve RainPoint EVA100 AC 1" 24V
-22%
Price: 26.00 €20.30 €
| Products ID: | 147936 |
|---|---|
| Manufactured by: | Rainpoint |
| Availablity: | Ready to Order |
| Delivery Time | 5-12 business days |
| EAN: | 5907085528632 |
Delivery options to:

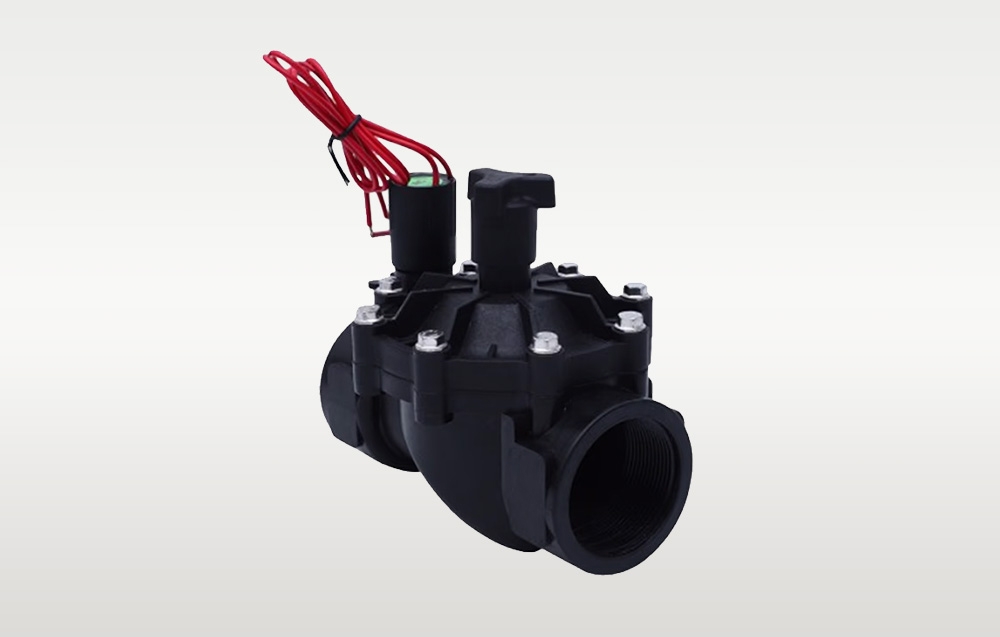

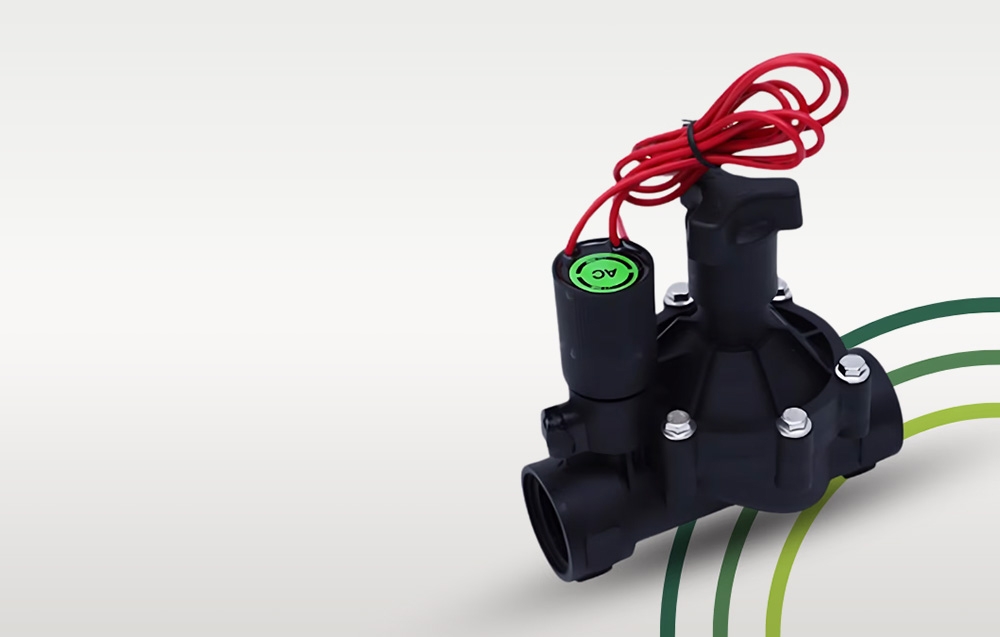

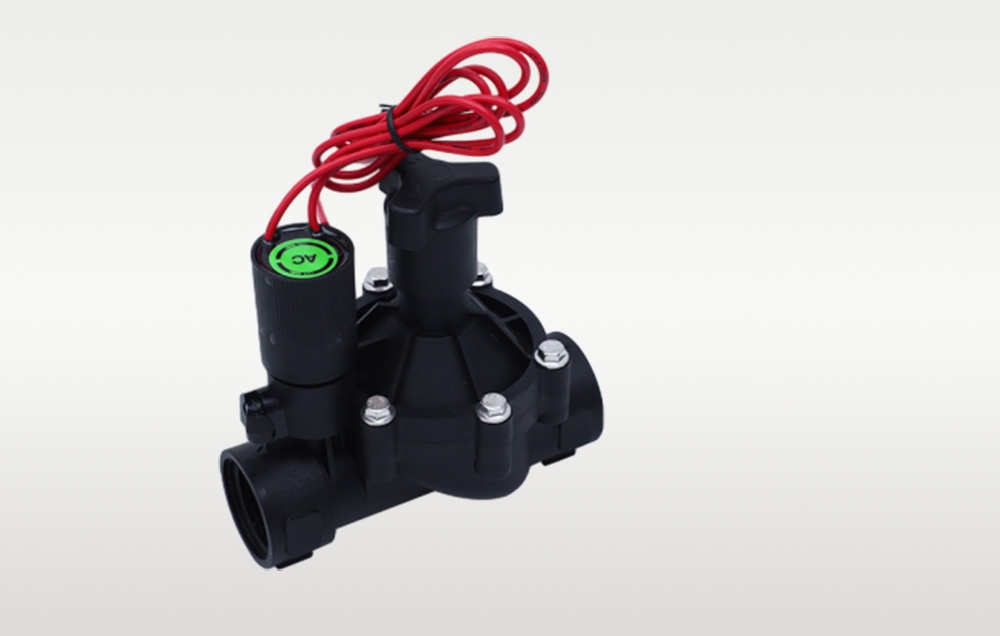

Choose countryThe RainPoint EVA100 solenoid valve is designed to control water flow in low-flow irrigation systems, gardens, and greenhouses. Powered by 24V AC, it includes manual flow control capability for convenient operation.
Key Features
- Flow range of 0.05 to 9 m³/h with operating pressure from 0.5 to 8 bar
- Glass fiber reinforced nylon body with durable EPDM rubber membrane
- Withstands liquid temperatures up to 60°C, suitable for water and soluble fertilizers
- Low energy consumption with 0.3 A starting current and 0.18 A holding current
- Manual switch and flow control knob for easy adjustments and testing
- Compact dimensions of 126 x 124 x 90 mm with directional flow indicators
| Manufacturer | RainPoint |
|---|---|
| Model | EVA100 |
| Flow range | 0.05-9 m³/h |
| Pressure range | 0.5-8 bar |
| Liquid temperature | ≤60°C |
| Valve material | Glass fiber reinforced nylon |
| Membrane | EPDM rubber |
| Parameters of the electromagnetic head (AC) | Operating voltage: AC 24V ±10%, 50/60 Hz; starting current: 0.3 A; holding current: 0.18 A |
What is the operating power supply for this valve?
The valve operates on AC 24V ±10% at 50/60 Hz.
What are the dimensions of the valve?
The dimensions are 126 x 124 x 90 mm.
What liquid temperatures can this valve handle?
The valve can withstand liquid temperatures up to 60°C.
