Yongnuo YN560 III Negative Display Manual Camera Flash
Yongnuo
| Products ID: | 194984 |
|---|---|
| Manufactured by: | Yongnuo |
| Availablity: | SOLDOUT! |
| EAN: | 6947110911380 |
Delivery options to:
Choose countryThe Yongnuo YN560 III Negative Display is a manual speedlite flash engineered for cameras with a standard ISO hot shoe, off-camera PC sync connections, and wireless radio setups.
Flash Power and Operating Modes
With a guide number of GN 58 (at ISO 100, 105 mm) and power output adjustable from 1/1 to 1/128 in 1/3 EV increments, the flash provides precise lighting control. It supports Manual (M) and stroboscopic Multi modes, alongside first-curtain and second-curtain sync.
- Integrated 2.4 GHz radio receiver compatible with Yongnuo RF602 and RF603 triggers up to 100 m
- Optical slave triggering in S1 and S2 modes with 10–25 m range
- Operation across 16 channels and 18 groups in Slave (RX) mode
- Standard ISO hot shoe mount and PC sync socket
Ergonomics and Head Adjustment

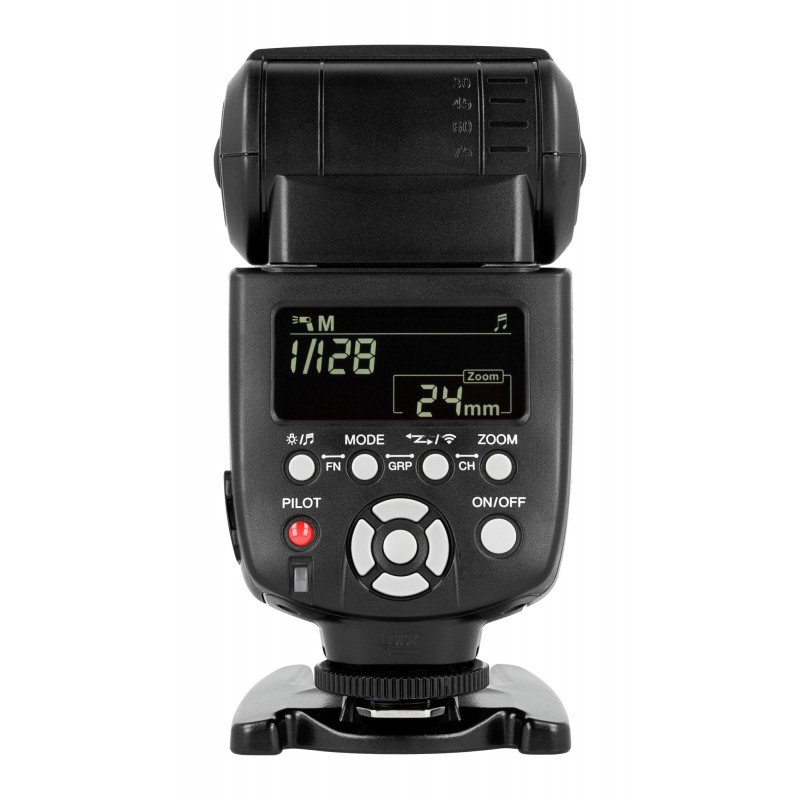

The unit features a high-contrast Negative Display LCD that presents white characters on a black background. Its adjustable flash head provides manual zoom from 24 mm to 105 mm, tilt angles from -7° to 90°, and horizontal rotation from 0° to 270°. It also includes a pull-out diffuser and reflector panel, with a mini-USB port available for firmware updates.
| Model | Yongnuo YN560 III Negative Display |
|---|---|
| Guide Number | GN 58 (ISO 100, 105 mm) |
| Power Adjustment | 1/128 - 1/1 in 1/3 EV increments |
| Operating Modes | Manual (M), Stroboscopic (Multi) |
| Trigger Methods | ISO hot shoe, PC port, optical (S1, S2), 2.4 GHz radio (RF602, RF603) |
| Flash Zoom | 24, 28, 35, 50, 70, 80, 105 mm |
| Vertical Tilt Range | -7° - 90° |
| Horizontal Swivel Range | 0° - 270° |
| Recycle Time | Up to approx. 3 s |
| Color Temperature | 5600 K |
| Flash Duration | 1/200 - 1/20000 s |
| Shutter Speed Sync | Up to 1/8000 s |
| Optical Trigger Range | 10 - 25 m |
| Radio Trigger Range | Up to 100 m |
| Radio Signal Frequency | 2.4 GHz |
| Dimensions | 7.8 x 19.0 x 6.0 cm |
| Weight Without Accessories | 360 g |
| Power Supply | 4 x AA batteries (capacity: 100 - 1500 flashes) |
| Mount | Hot shoe, 1/4" female tripod mount in stand |
| Display | LCD Negative Display |
| Ports | Mini-USB, PC sync |
What is included in the package?
The package contains the Yongnuo YN560 III Negative Display flash, a protective case, and a flash stand equipped with a 1/4-inch tripod thread.
Which wireless triggers are compatible with the built-in receiver?
The integrated 2.4 GHz receiver works in Slave mode with Yongnuo RF602, RF603, RF605, and YN560-TX triggers, as well as YN560 IV, YN660, and YN720 master units.
What power sources are required?
The flash is powered by four standard AA batteries or rechargeable NiMH cells, yielding between 100 and 1500 flashes per charge cycle.
