Slider Motor Drive Module Zeapon Micro 4 Motor
Zeapon
| Products ID: | 195161 |
|---|---|
| Manufactured by: | Zeapon |
| Availablity: | SOLDOUT! |
| EAN: | 6970684671107 |
Delivery options to:
Choose country

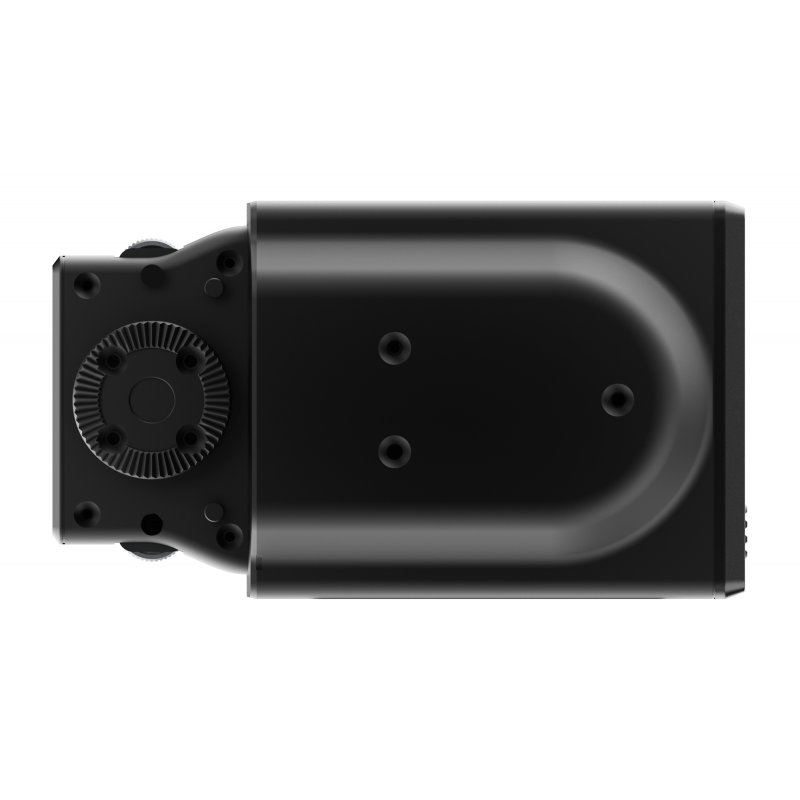

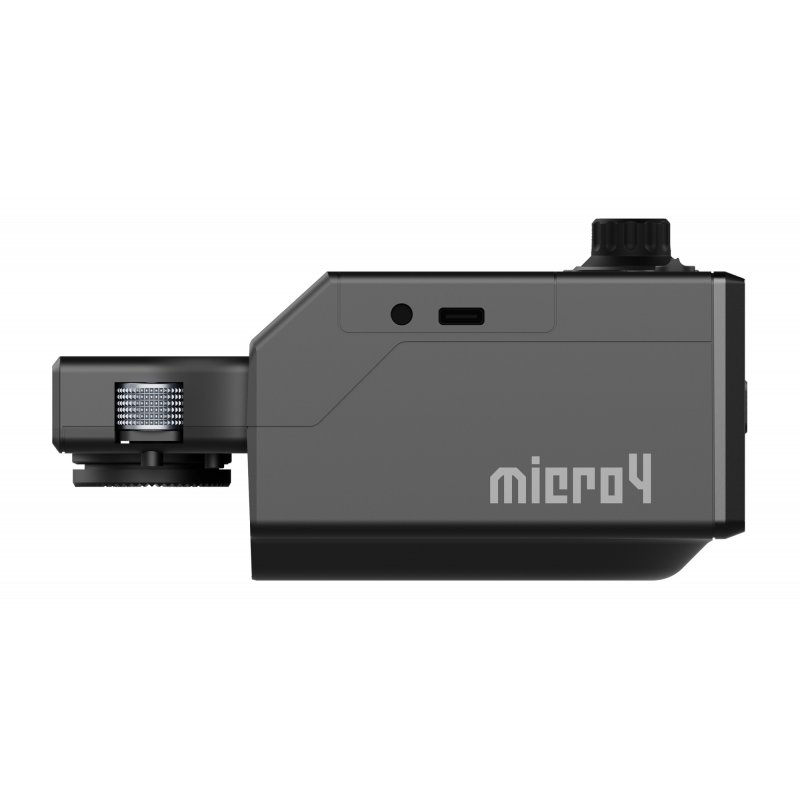

The Zeapon Micro 4 Motor is a slider drive module designed to automate camera motion on Zeapon Micro 4 series sliders, delivering precise control for video production and timelapses.
Precise Speed Control and Interface

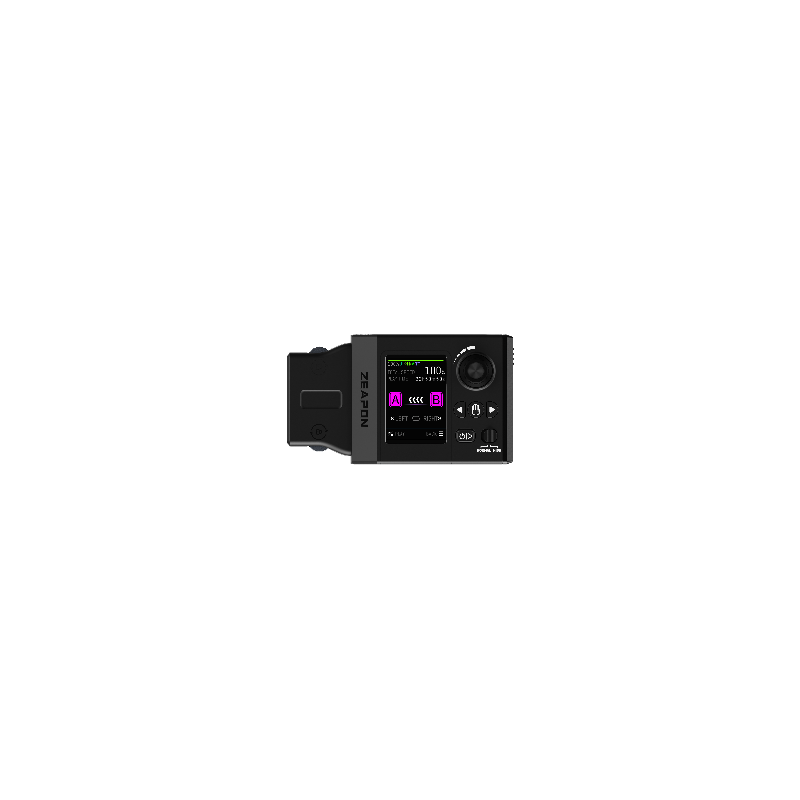

The module enables smooth speed adjustment from 0.18 mm/s to 178 mm/s via a dedicated control knob, even while the slider is in motion. A built-in touchscreen and physical buttons allow standalone operation without requiring a smartphone, while High Speed mode supports fast dynamic movement.
Dual Power Options
Power can be supplied either via USB-C using a power bank or Power Delivery adapter, or directly through an NP-F series battery (NP-F550, NP-F750, or NP-F970). A secure battery lock prevents accidental detachment during operation.
Wireless Control and Modular Ecosystem
Using the Zeapon Lab mobile application, users can program motion sequences, set up timelapses, and operate the slider remotely. The motor is compatible with Zeapon Micro 4 sliders, Zeapon Pons heads, and the Zeapon Timelapse Trigger.
| Model | Drive module for Zeapon Micro 4 slider |
|---|---|
| Minimum speed | 0.18 mm/s |
| Maximum speed | 178 mm/s |
| Operating time (NP-F550) | Standard mode up to 340 min / High Speed mode up to 161 min |
| Operating time (NP-F750) | Standard mode up to 700 min / High Speed mode up to 281 min |
| Operating time (NP-F970) | Standard mode up to 1016 min / High Speed mode up to 456 min |
| Maximum payload (horizontal) | 12 kg (Standard and High Speed modes) |
| Maximum payload (angled and vertical, Standard mode) | 4.5 kg |
| Maximum payload (angled and vertical, High Speed mode) | 2 kg |
| Dimensions | 20.5 x 15.5 x 14 cm |
| Weight | 865 g |
| Slider compatibility | Zeapon Micro 4 series (M500, M700, M1000) |
| Battery compatibility | NP-F series (NP-F550, NP-F750, NP-F970) |
| Accessory compatibility | Zeapon Pons Motorized Pan Head, Zeapon Pons PT Motorized Pan Head, Zeapon Timelapse Trigger |
| Package contents | Drive module for Zeapon Micro 4 slider, protective case |
What power sources can be used with this drive module?
The module can be powered by NP-F series batteries (NP-F550, NP-F750, NP-F970) or via its USB-C port using a power bank or a Power Delivery power supply.
What is the maximum payload capacity?
In horizontal operation, the payload capacity is 12 kg in both Standard and High Speed modes. In angled or vertical operation, capacity is 4.5 kg in Standard mode and 2 kg in High Speed mode.
What is included in the box?
The package includes the Zeapon Micro 4 slider drive module and a sturdy reinforced protective case.
